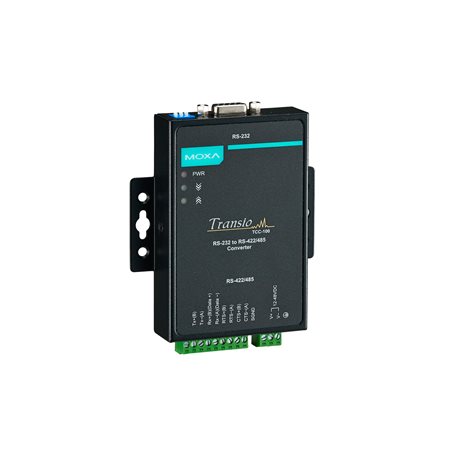

TCC-100I
TCC-100/100I Series

RS-232 to RS-422/485 converter with optical isolation

Serial Interface

  • No. of Ports

    • 2

  • Connector

    • Terminal block

  • Serial Standards

    • RS-232
      RS-422
      RS-485

  • Baudrate

    • 50 bps to 921.6 kbps (supports non-standard baudrates)

  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms

  • RS-485 Data Direction Control

    • ADDC (automatic data direction control)

  • Terminator for RS-485

    • N/A, 120 ohms, 120 kilo-ohms

  • Isolation

    • 2 kV (I models)
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, RTS (optional), CTS (optional), GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Power Parameters

  • Input Current

    • 144 mA (max)

  • Input Voltage

    • 12 to 48 VDC

  • No. of Power Inputs

    • 1

  • Overload Current Protection

    • Supported

  • Power Connector

    • Terminal block (for DC models)
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in)

  • Weight

    • 148 g (0.33 lb)

  • Installation

    • Wall mounting
      DIN-rail mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -20 to 60°C (-4 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF

  • Safety

    • UL 60950-1

  • Vibration

    • IEC 60068-2-6

  • Environmental Testing

    • IEC 60068-2-1
      IEC 60068-2-3
MTBF

  • Time

    • 3,017,857 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
