TCC-82

Port-powered RS-232 4-channel isolators

moxa-tcc-82-image-1-(1).jpg | Moxa
moxa-tcc-82-image-2-(1).jpg | Moxa
moxa-tcc-82-image-3-(1).jpg | Moxa

Features and Benefits

  • Four channels of 4 kV RMS isolation for 1 minute
  • External power source supported but not required
  • Automatic baudrate detection
  • Compact size

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The TCC-82 provides full electrical isolation for bidirectional serial communication between two RS-232 devices in a compact, industrial-grade package. Both sides of an RS-232 connection are isolated optically to provide perfect protection against lightning surges, accidental high-voltage shorts, and ground loops. The built-in, wide range isolators are tested to ensure that they can withstand more than 4 kV rms input to output for one minute. This means that the TCC-82 not only meets the requirements of general serial data communications, but also the high standards required by industrial automation and medical applications. The TCC-82 protects the TxD and RxD data lines, and it also protects the RTS and CTS handshake lines for a total of four isolated channels to provide complete protection of your RS-232 applications.

External Power Source Not Required

The TCC-82 supports port-powered operation, which means that it can obtain power directly from the attached serial devices. Power is obtained from the RS-232 TxD, RTS, or DTR lines, regardless of whether the signal is high or low, eliminating the need for an external power supply. However, external power can be used if handshake lines are not available, if the serial cable is too long, or if the serial device is a low-power device. For external power, the TCC-82 can use a 5 to 12 VDC adapter or a USB power cord. Note that both sides of the connection are powered independently, so if necessary, one side can rely on port power and the other on an external power source.

When installing the TCC-82, we recommend that you connect all output signals. The TCC-82 obtains power from these signals even if they are not used by your system. Care should be taken when choosing the external power supply if your application requires the full 4 kV of isolation. Most commercial power supplies provide only 1500 VAC isolation between the primary and secondary windings. If you are using external power for both sides of the TCC-82, make sure that separate power sources are used, each with sufficient isolation protection.

  • Connector

    DB9 male

  • No. of Ports

    2

  • Serial Standards

    RS-232

  • Baudrate

    50 bps to 921.6 kbps (supports non-standard baudrates)

  • RS-232

    TxD, RxD, RTS, CTS, GND The DTR, DSR, and DCD pins are internally shorted.

  • Input Current

    5 to 12 VDC, 20 mA (max.)

  • Input Voltage

    5 to 12 VDC

  • No. of Power Inputs

    1

  • Overload Current Protection

    Supported

  • Source of Input Power

    Power input jack

  • Housing

    Plastic

  • IP Rating

    IP30

  • Dimensions

    42 x 80 x 23.6 mm (1.65 x 3.15 x 0.93 in)

  • Weight

    60 g (0.13 lb)

  • Installation

    Desktop

  • Operating Temperature

    0 to 60°C (32 to 140°F)

  • Storage Temperature (package included)

    -20 to 75°C (-4 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF

  • Environmental Testing

    IEC 60068-2-1
    IEC 60068-2-2
    IEC 60068-2-3

  • Safety

    UL 60950-1

  • Vibration

    IEC 60068-2-6

  • Time

    959,780 hrs

  • Standards

    MIL-HDBK-217F

Support Documents

Name Type Version Release Date
Datasheet for TCC-82
793.6 KB
Datasheet v1.3 Nov 15, 2022 Nov 15, 2022
2D CAD for TCC-82
341.1 KB
2D CAD Jul 06, 2015 Jul 06, 2015
Manual for TCC-82
335.9 KB
Manual v4.0 Jun 03, 2010 Jun 03, 2010

Available Models (1)

Show Images

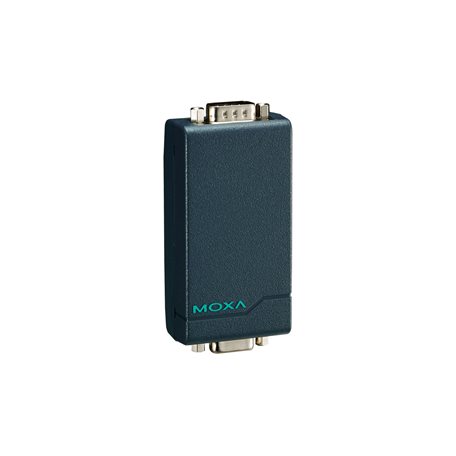

moxa-tcc-82-image.jpg | MoxaTCC-82
Port Power
Isolation4 kV
Serial ConnectorDB9
