Serial-to-Serial Converters

Moxa's serial-to-serial media converters can convert between RS-232, RS-422, and RS-485, which avoids compatibility issues that are often encountered when communicating between different serial interfaces.

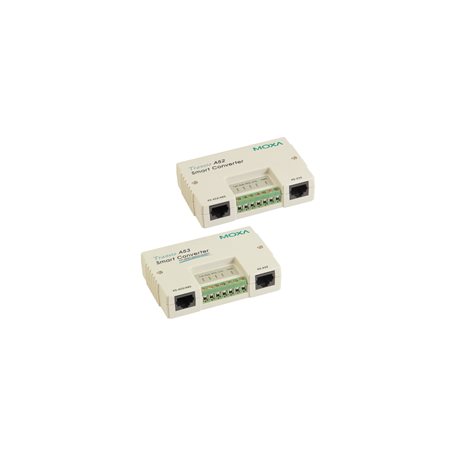

A52-DB9F w/ Adapter
Transio A52/A53 Series

RS-232/422/485 converter with adapter, DB9F cable

Serial Interface

  • Connector

    • 10-pin RJ45

  • Flow Control

    • RTS/CTS

  • No. of Ports

    • 2

  • RS-485 Data Direction Control

    • ADDC (automatic data direction control)

  • Serial Standards

    • RS-232
      RS-422
      RS-485
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
Power Parameters

  • Input Current

    • 170 mA @ 9 VDC

  • Input Voltage

    • 9 to 30 VDC

  • No. of Power Inputs

    • 1

  • Overload Current Protection

    • Supported

  • Power Consumption

    • 170 mA @ 9 VDC

  • Source of Input Power

    • Power input jack
Physical Characteristics

  • Housing

    • Plastic

  • IP Rating

    • IP30

  • Dimensions

    • 90 x 60 x 21 mm (3.54 x 2.36 x 0.83 in)

  • Weight

    • 85 g (0.19 lb)

  • Installation

    • Desktop
Environmental Limits

  • Operating Temperature

    • 0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    • -20 to 75°C (-4 to 167°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF

  • Environmental Testing

    • IEC 60068-2-1
      IEC 60068-2-14
      IEC 60068-2-2
      IEC 60068-2-3

  • Vibration

    • IEC 60068-2-6
MTBF

  • Time

    • 1,870,854 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
