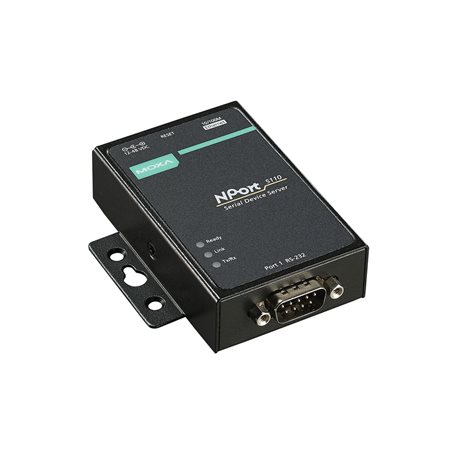

NPort 5100 Series

1-port RS-232/422/485 serial device servers

moxa-nport-5100-series-image-1-(1).jpg | Moxa
moxa-nport-5100-series-image-2-(1).jpg | Moxa
moxa-nport-5100-series-image-3-(1).jpg | Moxa
moxa-nport-5100-series-image-4-(1).jpg | Moxa
moxa-nport-5100-series-image-5-(1).jpg | Moxa
moxa-nport-5100-series-image-6-(1).jpg | Moxa

Features and Benefits

  • Small size for easy installation
  • Real COM and TTY drivers for Windows, Linux, and macOS
  • Standard TCP/IP interface and versatile operation modes
  • Easy-to-use Windows utility for configuring multiple device servers
  • SNMP MIB-II for network management
  • Configure by Telnet, web browser, or Windows utility
  • Adjustable pull high/low resistor for RS-485 ports

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

NPort® 5100 device servers are designed to make serial devices network-ready in an instant. The small size of the servers makes them ideal for connecting devices such as card readers and payment terminals to an IP-based Ethernet LAN. Use the NPort 5100 device servers to give your PC software direct access to serial devices from anywhere on the network.

Most Cost-effective Serial-to-Ethernet Solution

Using serial device servers to connect legacy serial devices to Ethernet is now commonplace, and users expect device servers to be cost-effective and to provide a broad selection of useful functions. With its full support of Microsoft and Linux operating systems and solid 5-year warranty, the NPort® 5100 Series provides the best choice for serial-to-Ethernet converters.

Adjustable Termination and Pull High/Low Resistors

In some critical environments, termination resistors may be needed to prevent the reflection of serial signals. When using termination resistors, it is also important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible with all environments, the NPort® 5100 device servers come with jumpers for adjusting termination and pull high/low resistor values for each serial port.

Standard TCP/IP Interface and Broad Choice of Operation Modes

The NPort® 5100 device servers can be configured for TCP Server, TCP Client, UDP Server/Client, Pair Connection, or Ethernet Modem mode, ensuring compatibility with software based on a standard network API (e.g., Winsock or BSD Sockets).

Real COM/TTY Drivers for Existing Software

The Real COM/TTY drivers provided with the NPort® 5100 device servers allow you to continue using software designed for communicating through COM/TTY ports. Installation and configuration are painless, and allows your serial devices and PC to communicate seamlessly over a TCP/IP network. Using Moxa’s Real COM/TTY drivers is an excellent way to preserve your software investment while still allowing you to enjoy the benefits of networking your serial devices.

Easy to Troubleshoot

NPort® 5100 device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP manager, an email alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a change in password.

  • 10/100BaseT(X) Ports (RJ45 connector)

    1

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Serial Console (NPort 5110/5110-T/5150 only), Windows Utility, Telnet Console, Web Console (HTTP)

  • Management

    DHCP Client
    IPv4
    SMTP
    SNMPv1
    Telnet
    DNS
    HTTP
    ARP
    BOOTP
    UDP
    TCP/IP
    ICMP

  • Windows Real COM Drivers

    Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
    Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003
    Windows Embedded CE 6.0/5.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x

  • Fixed TTY Drivers

    macOS Versions: 11.x, 10.12 to 10.15

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Arm®-based Platform Support

    Linux Kernel 5.x/4.x

  • Virtual Machine

    VMWare ESXi (Windows 11/10)
    VMware Fusion (Windows on macOS 10.12 to 11.x)
    Parallels Desktop (Windows on macOS 10.12 to 11.x)

  • Android API

    Android 3.1.x and later

  • MIB

    RFC1213, RFC1317

  • Authentication

    Local database (password only)

  • Connector

    DB9 male

  • No. of Ports

    1

  • Serial Standards

    NPort 5110/5110-T: RS-232
    NPort 5130: RS-422, RS-485
    NPort 5150: RS-232, RS-422, RS-485

  • Operation Modes

    Disabled
    Ethernet Modem
    Pair Connection
    Real COM
    Reverse Telnet
    TCP Client
    TCP Server
    UDP

  • Baudrate

    NPort 5110/5110-T: 110 bps to 230.4 kbps
    NPort 5130/5150: 50 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    RTS/CTS (RS-232 only)
    DTR/DSR (RS-232 only)
    XON/XOFF

  • Pull High/Low Resistor for RS-485

    NPort 5130/5150: 1 kilo-ohm, 150 kilo-ohms

  • RS-485 Data Direction Control

    NPort 5130/5150: Automatic Data Direction Control (ADDC)

  • RS-232

    NPort 5110: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
    NPort 5150: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    NPort 5130: Tx+, Tx-, Rx+, Rx-, GND
    NPort 5150: Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    NPort 5130: Tx+, Tx-, Rx+, Rx-, GND
    NPort 5150: Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    NPort 5130: Data+, Data-, GND
    NPort 5150: Data+, Data-, GND

  • Input Current

    NPort 5110/5110-T: 128 mA @ 12 VDC
    NPort 5130/5150: 200 mA @ 12 VDC

  • Input Voltage

    12 to 48 VDC

  • No. of Power Inputs

    1

  • Source of Input Power

    Power input jack

  • Housing

    Metal

  • Installation

    Desktop
    DIN-rail mounting (with optional kit)
    Wall mounting

  • Dimensions (with ears)

    75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in)

  • Dimensions (without ears)

    52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)

  • Weight

    340 g (0.75 lb)

  • Operating Temperature

    Standard Models: 0 to 55°C (32 to 131°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Safety

    UL 60950-1

  • Time

    NPort 5110/5110-T: 3,126,448 hrs
    NPort 5130: 2,836,863 hrs
    NPort 5150: 2,736,202 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR
