NPort 5200 Series

2-port RS-232/422/485 serial device servers

moxa-nport-5200-series-image-1-(1).jpg | Moxa
moxa-nport-5200-series-image-2-(1).jpg | Moxa
moxa-nport-5200-series-image-3-(1).jpg | Moxa
moxa-nport-5200-series-image-4-(1).jpg | Moxa
moxa-nport-5200-series-image-5-(1).jpg | Moxa
moxa-nport-5200-series-image-6-(1).jpg | Moxa
moxa-nport-5200-series-image-7-(1).jpg | Moxa

Features and Benefits

  • Compact design for easy installation
  • Socket modes: TCP server, TCP client, UDP
  • Easy-to-use Windows utility for configuring multiple device servers
  • Patented ADDC® (Automatic Data Direction Control) for 2-wire and 4-wire RS-485
  • SNMP MIB-II for network management

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa

Contact Sales

Introduction

The NPort 5200 serial device servers are designed to make your industrial serial devices Internet-ready in no time. The compact size of NPort 5200 serial device servers makes them the ideal choice for connecting your RS-232 (NPort 5210/5230/5210-T/5230-T) or RS-422/485 (NPort 5230/5232/5232I/5230-T/5232-T/5232I-T) serial devices—such as PLCs, meters, and sensors—to an IP-based Ethernet LAN, making it possible for your software to access serial devices from anywhere over a local LAN or the Internet. The NPort 5200 Series has a number of useful features, including standard TCP/IP protocols and choice of operation modes, Real COM/TTY drivers for existing software, and remote control of serial devices with TCP/IP or traditional COM/TTY Port.

Standard TCP/IP Protocols and Choice of Operation Modes

NPort 5200 device servers can operate in TCP Server, TCP Client, or UDP operation mode, ensuring compatibility with software based on a standard network API (Winsock, BSD Sockets).

Real COM/TTY Drivers for Existing Software

With the Real COM/TTY drivers that are provided with each NPort, software designed for communication with COM/TTY ports can be instantly and seamlessly integrated into a TCP/IP network. This is an excellent no fuss way to preserve your software investment and enjoy the benefits of networking your serial devices.

Control Remote Serial Devices with TCP/IP or Traditional COM/TTY Port

By specifying the NPort 5200's IP address and port number, a network sockets API can obtain access to the attached serial device over the network, from any host computer that supports TCP/IP. For legacy Windows or Linux software that is COM or TTY-based, Moxa’s COM/TTY drivers provide a seamless way of operating over the network.

Appearance

  • 10/100BaseT(X) Ports (RJ45 connector)

    1

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Windows Utility, Telnet Console, Web Console (HTTP), Serial Console

  • Management

    DHCP Client, IPv4, SNTP, SMTP, SNMPv1, DNS, HTTP, ARP, BOOTP, UDP, TCP/IP, Telnet, ICMP

  • Windows Real COM Drivers

    Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Fixed TTY Drivers

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Linux Real TTY Drivers

    Kernel version: 2.4.x, 2.6.x, 3.x, 4.x

  • Android API

    Android 3.1.x and later

  • MIB

    RFC1213, RFC1317

  • Connector

    NPort 5210 Series: 8-pin RJ45
    NPort 5230/5232 Series: Terminal block

  • No. of Ports

    2

  • Serial Standards

    NPort 5210 Series: RS-232
    NPort 5230 Series: RS-232/422/485 The NPort 5230 Series supports RS-232 on one port, and RS-422/485 on the other.
    NPort 5232 Series: RS-422/485

  • Operation Modes

    Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, TCP Client, TCP Server, UDP

  • Baudrate

    Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 2304000

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • RS-485 Data Direction Control

    ADDC® (automatic data direction control)

  • Terminator for RS-485

    120 ohms

  • Isolation

    NPort 5232I Series: 2 kV

  • RS-232

    NPort 5210 Series: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
    NPort 5230 Series: TxD, RxD, RTS, CTS, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Input Current

    NPort 5210/5230 Series: 325 mA @ 12 VDC
    NPort 5232/5232I Series: 280 mA @ 12 VDC, 365 mA @ 12 VDC

  • Input Voltage

    12 to 48 VDC

  • No. of Power Inputs

    1

  • Power Connector

    1 removable 3-contact terminal block(s)

  • Automatic Reboot Trigger

    Built-in WDT

  • Alert Tools

    Built-in buzzer and RTC (real-time clock)

  • Housing

    Metal

  • Dimensions (with ears)

    NPort 5210/5230 Series, NPort 5232/5232-T: 90 x 100.4 x 22 mm (3.54 x 3.95 x 0.87 in)
    NPort 5232I/5232I-T: 90 x 100.4 x 35 mm (3.54 x 3.95 x 1.37 in)

  • Dimensions (without ears)

    NPort 5210/5230 Series, NPort 5232/5232-T: 67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in)
    NPort 5232I/5232I-T: 67 x 100.4 x 35 mm (2.64 x 3.95 x 1.37 in)

  • Weight

    NPort 5210 Series: 340 g (0.75 lb)
    NPort 5230 Series, NPort 5232/5232-T: 360 g (0.79 lb)
    NPort 5232I/5232I-T: 380 g (0.84 lb)

  • Installation

    Desktop, DIN-rail mounting (with optional kit), Wall mounting

  • Operating Temperature

    Standard Models: 0 to 55°C (32 to 131°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11 DIPs

  • Safety

    UL 60950-1

  • Medical

    NPort 5210 Series: EN 60601-1-2 Class B, EN 55011

  • Maritime

    NPort 5230/5232 Series: DNV

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    NPort 5210 Series: 381,342 hrs
    NPort 5230 Series: 377,937 hrs
    NPort 5232 Series: 309,383 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
Driver for NPort 5200 Series (Windows Driver Manager)
2.7 MB
Driver 3.0
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2016
2018-08-23 Aug 23, 2018 Release notes
Driver for NPort 5200 Series (Windows Driver Manager)
2.6 MB
Driver 2.0
  • Windows 2000
  • Windows 2000
  • Windows 95
  • Windows 95
  • Windows 98
  • Windows 98
  • Windows 98
  • Windows 98
  • Windows ME
  • Windows ME
  • Windows NT
  • Windows NT
  • Windows Server 2003
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008
  • Windows Vista
  • Windows Vista
  • Windows XP
  • Windows XP
2018-08-22 Aug 22, 2018 Release notes
Firmware for NPort 5200 Series
487.7 KB
Firmware v2.10
2018-05-28 May 28, 2018 Release notes
Driver for NPort 5200 Series (Device Server Android API)
18.1 MB
Driver 1.0
  • Android
2018-01-19 Jan 19, 2018 Release notes
Software Package for NPort 5200 Series (MXview)
244.9 MB
Software Package v2.9
  • Windows Server 2012
  • Windows 10
  • Windows 8
  • Windows 7
2017-12-05 Dec 05, 2017 Release notes
Driver for NPort 5200 Series (Linux kernel 2.4.x)
92.8 KB
Driver v1.19
  • Linux Kernel 2.4.x
  • Linux Kernel 2.6.x
2017-11-15 Nov 15, 2017 Release notes
Driver for NPort 5200 Series (Linux kernel 3.x.x)
88.6 KB
Driver v1.19
  • Linux Kernel 4.x
  • Linux Kernel 3.x
2017-11-15 Nov 15, 2017 Release notes
Driver for NPort 5200 Series (Real TTY for Linux 3.x.x, 4.x.x)
88.6 KB
Driver 1.19
  • Linux 3.x
  • Linux 4.x
2017-11-15 Nov 15, 2017 Release notes
Driver for NPort 5200 Series (Real TTY for Linux 2.4.x, 2.6.x)
92.8 KB
Driver 1.19
  • Linux 2.4.x
  • Linux 2.6.x
2017-11-15 Nov 15, 2017 Release notes
Utility for NPort 5200 Series (Device Search Utility)
1.1 MB
Utility v2.2
  • Windows 95
  • Windows Server 2012 R2
  • Windows 7
  • Windows NT
  • Windows XP
  • Windows Vista
  • Windows 98
  • Windows 2000
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows 10
  • Windows 8
  • Windows Server 2016
  • Windows Server 2008
  • Windows Server 2003
  • Windows 8.1
  • Windows ME
2017-09-05 Sep 05, 2017 Release notes
Driver for NPort 5200 Series (NPort Administration Suite)
4.0 MB
Driver v1.22
  • Windows 95
  • Windows Server 2012 R2
  • Windows 7
  • Windows NT
  • Windows XP
  • Windows Server 2008 R2
  • Windows 98
  • Windows 2000
  • Windows Server 2012
  • Windows 10
  • Windows Vista
  • Windows 8
  • Windows Server 2008
  • Windows Server 2003
  • Windows 8.1
  • Windows ME
2016-10-28 Oct 28, 2016 Release notes
Utility for NPort 5200 Series (NPort Search Utility)
930.8 KB
Utility v1.15
  • Windows 95
  • Windows 7
  • Windows NT
  • Windows XP
  • Windows 98
  • Windows 2000
  • Windows Server 2012
  • Windows Vista
  • Windows 98 SE
  • Windows 8
  • Windows Server 2008
  • Windows Server 2003
  • Windows ME
2014-06-30 Jun 30, 2014
Library for NPort 5200 Series (MXview Plugin)
264.3 KB
Library v2.2.1
2012-12-26 Dec 26, 2012
Driver for NPort 5200 Series (WinCE 5)
230.5 KB
Driver v1.6
  • Windows CE 5.0
  • Windows CE 6.0
2012-11-15 Nov 15, 2012 Release notes
Utility for NPort 5200 Series (PComm Lite)
1.6 MB
Utility v1.6
  • Windows 7
  • Windows XP
  • Windows 2000
  • Windows Vista
  • Windows Server 2008
  • Windows Server 2003
2012-05-14 May 14, 2012 Release notes
Driver for NPort 5200 Series (WinXP Embedded)
1.2 MB
Driver v1.14
  • Windows XP Embedded
2012-04-05 Apr 05, 2012 Release notes
Driver for NPort 5200 Series (UNIX)
73.0 KB
Driver v3.5
  • FreeBSD 8.x
  • QNX 4.x
  • Mac OS X
  • HP-UX
  • Solaris 10
  • IBM AIX 5.3
  • FreeBSD 7.x
  • SCO OpenServer 5
  • SCO UnixWare 7
  • SCO OpenServer 6
  • QNX 6.x
  • FreeBSD 5.x
  • FreeBSD 6.x
2012-03-20 Mar 20, 2012 Release notes

Support Documents

Name Type Version Release Date
Datasheet for NPort 5200 Series
3.2 MB
Datasheet v1.0 2018-11-11 Nov 11, 2018
Manual for NPort 5200 Series
15.2 MB
Manual v3.2 2018-02-08 Feb 08, 2018
QIG for NPort 5200 Series
2.3 MB
QIG v8.0 2017-03-21 Mar 21, 2017
Tech Note for NPort 5200 Series (NPort Real COM Mode for DNP3 Applications)
1.9 MB
Tech Note v1.0 2014-11-18 Nov 18, 2014
Tech Note for NPort 5200 Series (TCP Server Mode for NPort Series)
311.3 KB
Tech Note v1.0 2013-06-30 Jun 30, 2013
Tech Note for NPort 5200 Series (Using DNP3 with the NPort Series)
1.0 MB
Tech Note v1.0 2012-03-30 Mar 30, 2012
Tech Note for NPort 5200 Series (Accessing Multiple NPorts Behind NAT for NPort Series)
482.6 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5200 Series (Ethernet Modem Mode for NPort Series)
116.6 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5200 Series (Pair Connection Mode)
211.4 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5200 Series (Real COM Mode for NPort Series)
253.0 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5200 Series (Reverse Telnet Mode for NPort Series)
204.6 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5200 Series (TCP Client Mode for NPort Series)
224.4 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5200 Series (UDP Mode for NPort Series)
173.2 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5200 Series (Fixed TTY Driver for NPort Series)
207.6 KB
Tech Note v1.0 2009-05-22 May 22, 2009
Tech Note for NPort 5200 Series (Real TTY Driver for NPort Series)
204.2 KB
Tech Note v1.0 2009-05-22 May 22, 2009
3D CAD for NPort 5232
123.2 KB
3D CAD 1995-08-03 Aug 03, 1995
3D CAD for NPort 5232I
201.8 KB
3D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5210 TOP
433.8 KB
2D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5230 TOP
427.6 KB
2D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5232I TOP
255.8 KB
2D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5232 TOP
427.6 KB
2D CAD 1995-08-03 Aug 03, 1995

Available Models (8)

Show Images
moxa-nport-5210-image.jpg | MoxaNPort 5210moxa-nport-5210-t-image.jpg | MoxaNPort 5210-Tmoxa-nport-5230-image.jpg | MoxaNPort 5230moxa-nport-5230-t-image.jpg | MoxaNPort 5230-T
Operating Temp.0 to 55°C-40 to 75°C0 to 55°C-40 to 75°C
Baudrate110 bps to 230.4 kbps110 bps to 230.4 kbps110 bps to 230.4 kbps110 bps to 230.4 kbps
Serial StandardsRS-232RS-232RS-232/422/485RS-232/422/485
Serial Isolation
No. of Serial Ports2222
Input Voltage12-48 VDC12-48 VDC12-48 VDC12-48 VDC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

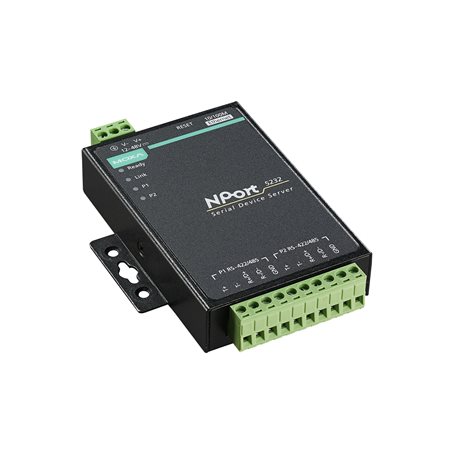

moxa-nport-5232-image.jpg | MoxaNPort 5232moxa-nport-5232-t-image.jpg | MoxaNPort 5232-Tmoxa-nport-5232i-image.jpg | MoxaNPort 5232Imoxa-nport-5232i-t-image.jpg | MoxaNPort 5232I-T
Operating Temp.0 to 55°C-40 to 75°C0 to 55°C-40 to 75°C
Baudrate110 bps to 230.4 kbps110 bps to 230.4 kbps110 bps to 230.4 kbps110 bps to 230.4 kbps
Serial StandardsRS-422/485RS-422/485RS-422/485RS-422/485
Serial Isolation2 kV2 kV
No. of Serial Ports2222
Input Voltage12-48 VDC12-48 VDC12-48 VDC12-48 VDC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Added To Bag

NPort 5200 Series

NPort 5210

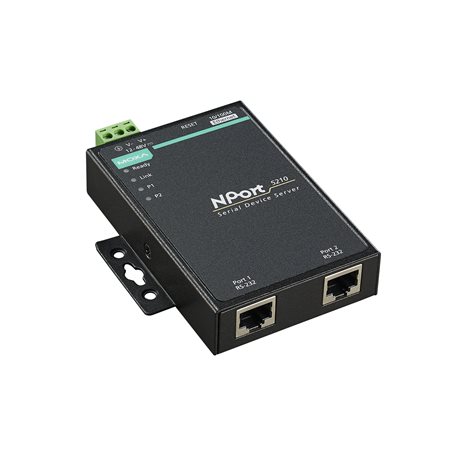

moxa-nport-5210-image.jpg | Moxa

Buy online from our distributors

NPort 5200 Series

NPort 5210-T

moxa-nport-5210-t-image.jpg | Moxa

Buy online from our distributors

NPort 5200 Series

NPort 5230

moxa-nport-5230-image.jpg | Moxa

Buy online from our distributors

NPort 5200 Series

NPort 5230-T

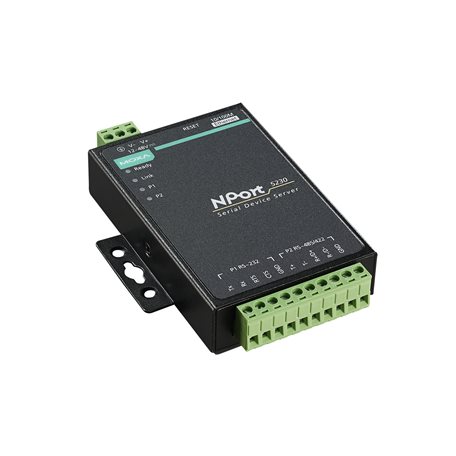

moxa-nport-5230-t-image.jpg | Moxa

Buy online from our distributors

NPort 5200 Series

NPort 5232

moxa-nport-5232-image.jpg | Moxa

Buy online from our distributors

NPort 5200 Series

NPort 5232-T

moxa-nport-5232-t-image.jpg | Moxa

Buy online from our distributors

NPort 5200 Series

NPort 5232I

moxa-nport-5232i-image.jpg | Moxa

Buy online from our distributors

NPort 5200 Series

NPort 5232I-T

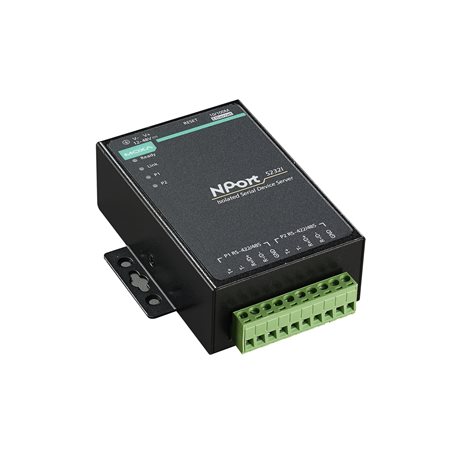

moxa-nport-5232i-t-image.jpg | Moxa

Buy online from our distributors
