Our NPort device servers make your serial devices network-ready in an instant. Their compact size makes them ideal for connecting devices such as card readers and payment terminals to an IP-based Ethernet LAN.

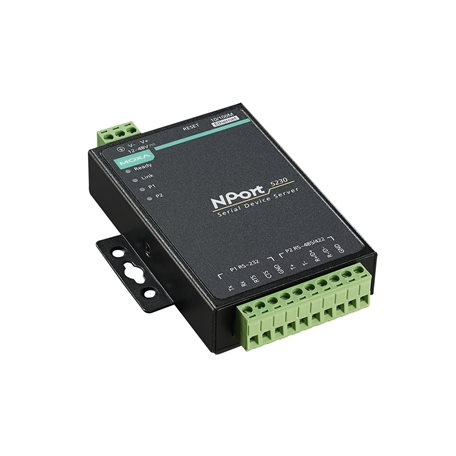

NPort 5230-T
NPort 5200 Series

2-port device server with 1 RS-232 port and 1 RS-422/485 port, -40 to 75°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Configuration Options

    • Windows Utility
      Serial Console
      Telnet Console
      Web Console (HTTP)
  • Management

    • DHCP Client
      IPv4
      SNTP
      SMTP
      SNMPv1
      DNS
      HTTP
      ARP
      BOOTP
      UDP
      TCP/IP
      Telnet
      ICMP
  • Windows Real COM Drivers

    • Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95
      Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
      Windows Embedded CE 6.0 and 5.0, Windows XP Embedded
  • Linux Real TTY Drivers

    • Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
  • Fixed TTY Drivers

    • macOS versions: 14, 13, 12, 11, and 10.1x
      SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Arm®-based Platform Support

    • Windows 11
      Linux Kernel 6.x, 5.x, and 4.x
      macOS 14, 13, 12, and 11
  • Virtual Machine

    • VMWare ESXi (Windows 11/10)
      VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)
      Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)
  • Android API

    • Android 3.1.x and later
  • MIB

    • RFC1213, RFC1317
Security Functions
  • Authentication

    • Local database (password only)
Serial Interface
  • Connector

    • Terminal block
  • No. of Ports

    • 2
  • Serial Standards

    • RS-232
      RS-422
      RS-485
      Note: The NPort 5230-T supports RS-232 on one port, and RS-422/485 on the other.
  • Operation Modes

    • Disabled
      Ethernet Modem
      Pair Connection
      Real COM
      Reverse Telnet
      TCP Client
      TCP Server
      UDP
  • Baudrate

    • Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • RTS/CTS (RS-232 only)
      DTR/DSR (RS-232 only)
      XON/XOFF
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohms (fixed value)
  • RS-485 Data Direction Control

    • ADDC (automatic data direction control)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Power Parameters
  • Input Current

    • 325 mA @ 12 VDC
  • Input Voltage

    • 12 to 48 VDC
  • No. of Power Inputs

    • 1
  • Power Connector

    • 1 removable 3-contact terminal block(s)
Reliability
  • Automatic Reboot Trigger

    • Built-in WDT
  • Alert Tools

    • Built-in buzzer and RTC (real-time clock)
Physical Characteristics
  • Housing

    • Metal
  • Dimensions (with ears)

    • 90 x 100.4 x 22 mm (3.54 x 3.95 x 0.87 in)
  • Dimensions (without ears)

    • 67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in)
  • Weight

    • 360 g (0.79 lb)
  • Installation

    • Desktop
      DIN-rail mounting (with optional kit)
      Wall mounting
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11
  • Safety

    • UL 60950-1
  • Maritime

    • DNV
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 377,937 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
