NPort 5600-DTL Series

8-port RS-232/422/485 serial device servers

moxa-nport-5600-dtl-series-image-1-(1).jpg | Moxa
moxa-nport-5600-dtl-series-image-2-(1).jpg | Moxa
moxa-nport-5600-dtl-series-image-3-(1).jpg | Moxa
moxa-nport-5600-dtl-series-image-4-(1).jpg | Moxa
moxa-nport-5600-dtl-series-image-5-(1).jpg | Moxa
moxa-nport-5600-dtl-series-image-6-(1).jpg | Moxa
moxa-nport-5600-dtl-series-image-7-(1).jpg | Moxa

Features and Benefits

  • 8 serial ports supporting RS-232/422/485
  • Compact desktop design
  • 10/100M auto-sensing Ethernet
  • Configure by Telnet, web browser, or Windows utility
  • Supports Real COM and TCP server, TCP client, UDP socket modes
  • SNMP MIB-II for network management

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

NPort® 5600-8-DTL device servers can conveniently and transparently connect 8 serial devices to an Ethernet network, allowing you to network your existing serial devices with basic configurations. You can both centralize management of your serial devices and distribute management hosts over the network. The NPort® 5600-8-DTL device servers have a smaller form factor than our 19-inch models, making them a great choice for applications that need additional serial ports when mounting rails are not available.

Convenient Design for RS-485 Applications

The NPort® 5650-8-DTL device servers support selectable 1 kilo-ohm and 150 kilo-ohms pull high/low resistors and a 120-ohm terminator. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals. When using termination resistors, it is also important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible with all environments, NPort® 5600-8-DTL device servers use DIP switches to allow users to adjust termination and pull high/low resistor values manually for each serial port.

LED Indicators to Ease Your Maintenance Tasks

The System LED, Serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The NPort® 5600’s LEDs not only indicate current system and network status, but they also help field engineers monitor the status of attached serial devices.

Appearance

  • 10/100BaseT(X) Ports (RJ45 connector)

    1

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Web Console (HTTP), Windows Utility, Telnet Console, Serial Console

  • Management

    DHCP Client, HTTP, IPv4, SMTP, SNMPv1, Telnet, ARP, Rtelnet, DNS, BOOTP, UDP, TCP/IP, ICMP

  • Windows Real COM Drivers

    Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Fixed TTY Drivers

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Linux Real TTY Drivers

    Kernel version: 2.4.x, 2.6.x, 3.x, 4.x

  • Android API

    Android 3.1.x and later

  • MIB

    RFC1213, RFC1317

  • Time Management

    SNTP

  • Connector

    DB9 male

  • No. of Ports

    8

  • Serial Standards

    NPort 5610-8-DTL Series: RS-232
    NPort 5650-8-DTL Series: RS-232, RS-422, RS-485

  • Baudrate

    Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    RTS/CTS, DTR/DSR, XON/XOFF

  • Isolation

    NPort 5650I-8-DTL Series: 2 kV

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • RS-485 Data Direction Control

    ADDC® (automatic data direction control)

  • Terminator for RS-485

    NPort 5650 Series: 120 ohms

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Input Current

    NPort 5610-8-DTL Series: 340 mA @ 12 VDC
    NPort 5650-8-DTL Series: 470 mA @ 12 VDC
    NPort 5650I-8-DTL Series: 740 mA @ 12 VDC

  • No. of Power Inputs

    1

  • Input Voltage

    12 to 48 VDC

  • Reverse Polarity Protection

    Supported

  • Source of Input Power

    Power input jack

  • Housing

    Metal

  • Dimensions (with ears)

    229 x 135.43 x 46 mm (9.02 x 5.33 x 1.81 in)

  • Dimensions (without ears)

    197 x 135.43 x 44 mm (7.76 x 5.33 x 1.73 in)

  • Weight

    NPort 5610-8-DTL Series: 1760 g (3.88 lb)
    NPort 5650-8-DTL Series: 1770 g (3.90 lb)
    NPort 5650I-8-DTL Series: 1850 g (4.08 lb)

  • Installation

    Desktop, DIN-rail mounting (with optional kit), Wall mounting (with optional kit)

  • Operating Temperature

    Standard Models: 0 to 60°C (-32 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11 DIPs

  • Safety

    UL 60950-1

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    NPort 5610-8-DTL Series: 953,388 hrs
    NPort 5650-8-DTL Series: 740,457 hrs
    NPort 5650I-8-DTL Series: 258,150 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
Driver for NPort 5600-DTL Series (NPort Windows Driver Manager)
2.6 MB
Driver v2.0
  • Windows 95
  • Windows Server 2012 R2
  • Windows 7
  • Windows NT
  • Windows XP
  • Windows Server 2008 R2
  • Windows 98
  • Windows 2000
  • Windows Server 2012
  • Windows 10
  • Windows Vista
  • Windows 8
  • Windows Server 2008
  • Windows Server 2003
  • Windows 8.1
  • Windows ME
2018-08-23 Aug 23, 2018 Release notes
Driver for NPort 5600-DTL Series (NPort Windows Driver Manager)
2.7 MB
Driver v3.0
  • Windows 95
  • Windows Server 2012 R2
  • Windows 7
  • Windows NT
  • Windows XP
  • Windows Server 2008 R2
  • Windows 98
  • Windows 2000
  • Windows Server 2012
  • Windows 10
  • Windows Vista
  • Windows 8
  • Windows Server 2008
  • Windows Server 2003
  • Windows 8.1
  • Windows ME
2018-08-23 Aug 23, 2018 Release notes
Software Package for NPort 5600-DTL Series (MXview)
244.9 MB
Software Package v2.9
  • Windows Server 2012
  • Windows 10
  • Windows 8
  • Windows 7
2017-12-05 Dec 05, 2017 Release notes
Driver for NPort 5600-DTL Series (Linux kernel 2.4.x)
92.8 KB
Driver v1.19
  • Linux Kernel 2.4.x
  • Linux Kernel 2.6.x
2017-11-15 Nov 15, 2017 Release notes
Driver for NPort 5600-DTL Series (Linux kernel 3.x.x)
88.6 KB
Driver v1.19
  • Linux Kernel 4.x
  • Linux Kernel 3.x
2017-11-15 Nov 15, 2017 Release notes
Driver for NPort 5600-DTL Series (Real TTY for Linux 2.4.x, 2.6.x)
92.8 KB
Driver 1.19
  • Linux 2.4.x
  • Linux 2.6.x
2017-11-15 Nov 15, 2017 Release notes
Driver for NPort 5600-DTL Series (Real TTY for Linux 3.x.x, 4.x.x)
88.6 KB
Driver 1.19
  • Linux 3.x
  • Linux 4.x
2017-11-15 Nov 15, 2017 Release notes
Utility for NPort 5600-DTL Series (Device Search Utility)
1.1 MB
Utility v2.2
  • Windows 95
  • Windows Server 2012 R2
  • Windows 7
  • Windows NT
  • Windows XP
  • Windows Vista
  • Windows 98
  • Windows 2000
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows 10
  • Windows 8
  • Windows Server 2016
  • Windows Server 2008
  • Windows Server 2003
  • Windows 8.1
  • Windows ME
2017-09-05 Sep 05, 2017 Release notes
Firmware for NPort 5600-DTL Series
519.4 KB
Firmware v1.4
2017-03-15 Mar 15, 2017
Driver for NPort 5600-DTL Series (NPort Administration Suite)
4.0 MB
Driver v1.22
  • Windows 95
  • Windows Server 2012 R2
  • Windows 7
  • Windows NT
  • Windows XP
  • Windows Server 2008 R2
  • Windows 98
  • Windows 2000
  • Windows Server 2012
  • Windows 10
  • Windows Vista
  • Windows 8
  • Windows Server 2008
  • Windows Server 2003
  • Windows 8.1
  • Windows ME
2016-10-28 Oct 28, 2016 Release notes
Utility for NPort 5600-DTL Series (NPort Search Utility)
930.8 KB
Utility v1.15
  • Windows 95
  • Windows 7
  • Windows NT
  • Windows XP
  • Windows 98
  • Windows 2000
  • Windows Server 2012
  • Windows Vista
  • Windows 98 SE
  • Windows 8
  • Windows Server 2008
  • Windows Server 2003
  • Windows ME
2014-06-30 Jun 30, 2014
Software Package for NPort 5600-DTL Series (MXview plugin)
334.8 KB
Software Package 2.2
  • Windows 7
  • Windows Server 2008
  • Windows XP
2012-12-25 Dec 25, 2012 Release notes
Driver for NPort 5600-DTL Series (WinCE 5)
230.5 KB
Driver v1.6
  • Windows CE 5.0
  • Windows CE 6.0
2012-11-15 Nov 15, 2012 Release notes
Utility for NPort 5600-DTL Series (PComm Lite)
1.6 MB
Utility v1.6
  • Windows 7
  • Windows XP
  • Windows 2000
  • Windows Vista
  • Windows Server 2008
  • Windows Server 2003
2012-05-14 May 14, 2012 Release notes
Driver for NPort 5600-DTL Series (WinXP Embedded)
1.2 MB
Driver v1.14
  • Windows XP Embedded
2012-04-05 Apr 05, 2012 Release notes
Driver for NPort 5600-DTL Series (UNIX)
73.0 KB
Driver v3.5
  • FreeBSD 8.x
  • QNX 4.x
  • Mac OS X
  • HP-UX
  • Solaris 10
  • IBM AIX 5.3
  • FreeBSD 7.x
  • SCO OpenServer 5
  • SCO UnixWare 7
  • SCO OpenServer 6
  • QNX 6.x
  • FreeBSD 5.x
  • FreeBSD 6.x
2012-03-20 Mar 20, 2012 Release notes

Support Documents

Name Type Version Release Date
Datasheet for NPort 5600-DTL Series
1.6 MB
Datasheet v1.0 2018-11-11 Nov 11, 2018
Manual for NPort 5600-DTL Series
15.2 MB
Manual v3.2 2018-02-08 Feb 08, 2018
QIG for NPort 5600-DTL Series
578.3 KB
QIG v3.0 2015-07-29 Jul 29, 2015
Tech Note for NPort 5600-DTL Series (NPort Real COM Mode for DNP3 Applications)
1.9 MB
Tech Note v1.0 2014-11-18 Nov 18, 2014
Tech Note for NPort 5600-DTL Series (TCP Server Mode for NPort Series)
311.3 KB
Tech Note v1.0 2013-06-30 Jun 30, 2013
Tech Note for NPort 5600-DTL Series (Using DNP3 with the NPort Series)
1.0 MB
Tech Note v1.0 2012-03-30 Mar 30, 2012
Tech Note for NPort 5600-DTL Series (Accessing Multiple NPorts Behind NAT for NPort Series)
482.6 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5600-DTL Series (PPP Mode Dial-in for NPort Series)
193.6 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5600-DTL Series (Ethernet Modem Mode for NPort Series)
116.6 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5600-DTL Series (RFC2217 Mode for NPort Series)
191.5 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5600-DTL Series (Pair Connection Mode)
211.4 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5600-DTL Series (Real COM Mode for NPort Series)
253.0 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5600-DTL Series (Reverse Telnet Mode for NPort Series)
204.6 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5600-DTL Series (TCP Client Mode for NPort Series)
224.4 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5600-DTL Series (UDP Mode for NPort Series)
173.2 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
3D CAD for NPort 5600-8-DTL
1.3 MB
3D CAD 2009-11-04 Nov 04, 2009
2D CAD for NPort 5600-8-DTL PCBA
354.9 KB
2D CAD 2009-11-04 Nov 04, 2009
2D CAD for NPort 5600-8-DTL TOP
165.3 KB
2D CAD 2009-11-04 Nov 04, 2009
Tech Note for NPort 5600-DTL Series (Fixed TTY Driver for NPort Series)
207.6 KB
Tech Note v1.0 2009-05-22 May 22, 2009
Tech Note for NPort 5600-DTL Series (Real TTY Driver for NPort Series)
204.2 KB
Tech Note v1.0 2009-05-22 May 22, 2009

Available Models (6)

Show Images
moxa-nport-5610-8-dtl-image.jpg | MoxaNPort 5610-8-DTLmoxa-nport-5610-8-dtl-t-image.jpg | MoxaNPort 5610-8-DTL-Tmoxa-nport-5650-8-dtl-image.jpg | MoxaNPort 5650-8-DTLmoxa-nport-5650-8-dtl-t-image.jpg | MoxaNPort 5650-8-DTL-T
Serial InterfaceRS-232RS-232RS-232/422/485RS-232/422/485
Serial Interface ConnectorDB9DB9DB9DB9
Serial Interface Isolation
Operating Temp.0 to 60°C-40 to 75°C0 to 60°C-40 to 75°C
Input Voltage12-48 VDC12-48 VDC12-48 VDC12-48 VDC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-nport-5650i-8-dtl-image.jpg | MoxaNPort 5650I-8-DTLmoxa-nport-5650i-8-dtl-t-image.jpg | MoxaNPort 5650I-8-DTL-T
Serial InterfaceRS-232/422/485RS-232/422/485
Serial Interface ConnectorDB9DB9
Serial Interface Isolation2 kV2 kV
Operating Temp.0 to 60°C-40 to 75°C
Input Voltage12-48 VDC12-48 VDC
Add to QuoteView BagAdd to QuoteView Bag
Added To Bag

NPort 5600-DTL Series

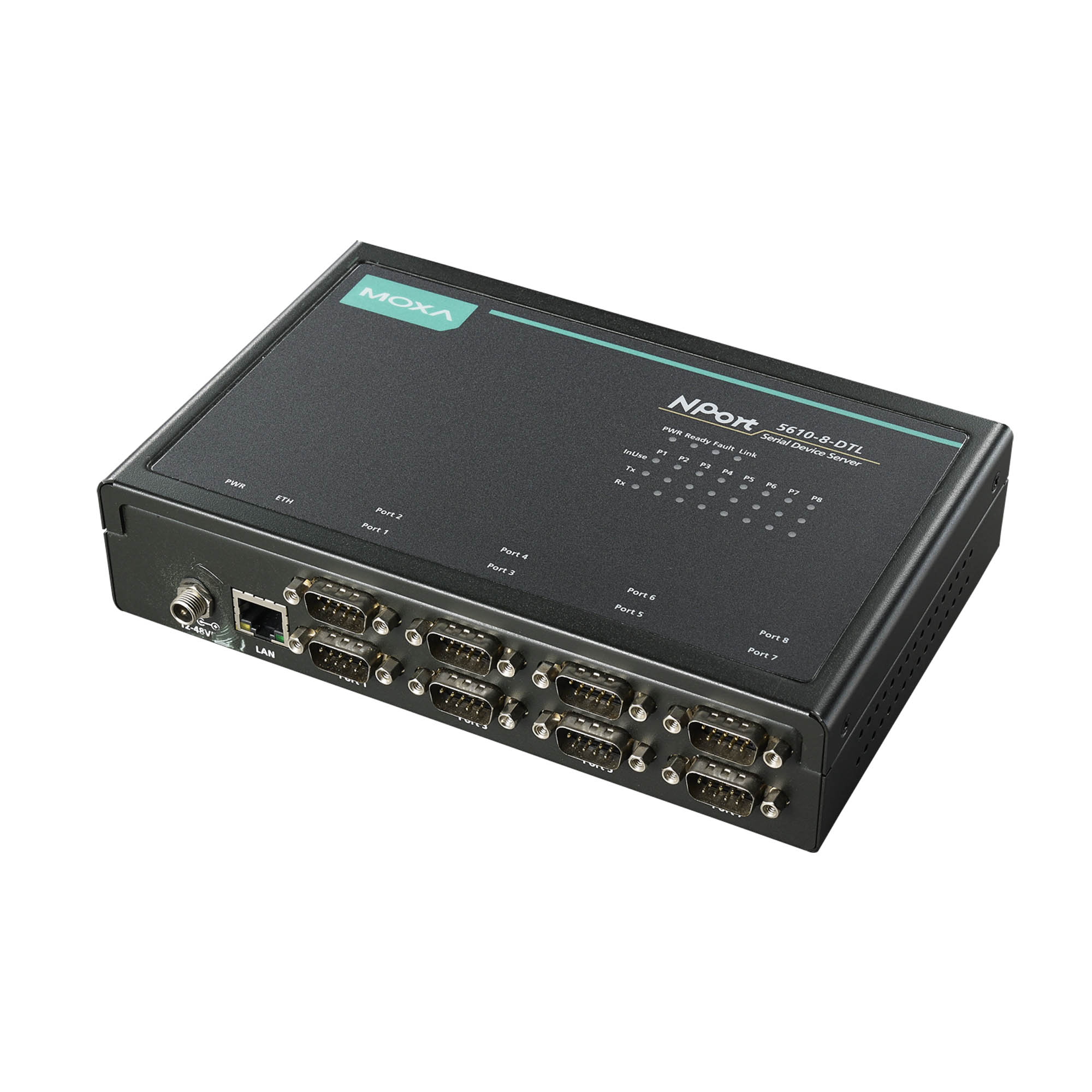

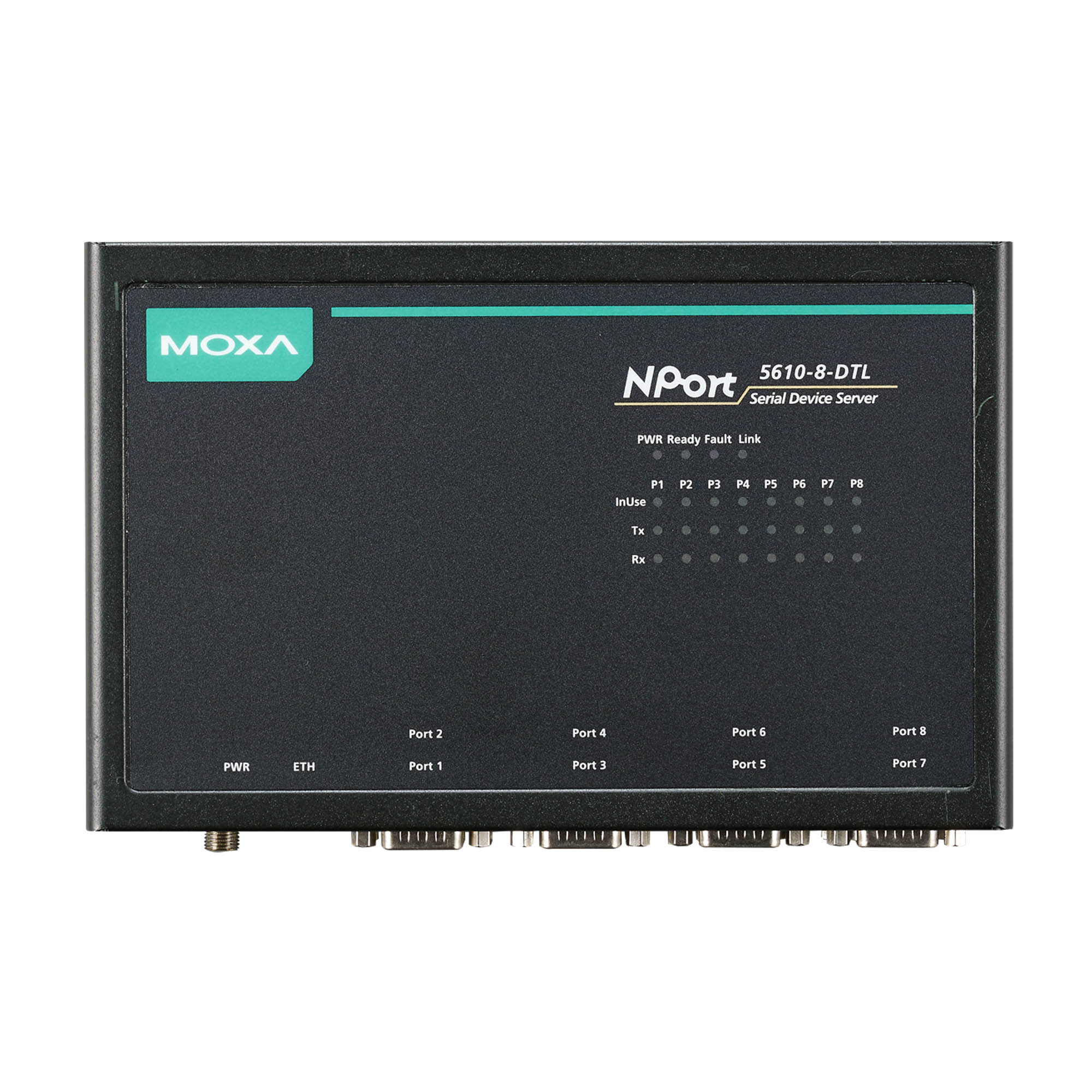

NPort 5610-8-DTL

moxa-nport-5610-8-dtl-image.jpg | Moxa

Buy online from our distributors

NPort 5600-DTL Series

NPort 5610-8-DTL-T

moxa-nport-5610-8-dtl-t-image.jpg | Moxa

Buy online from our distributors

NPort 5600-DTL Series

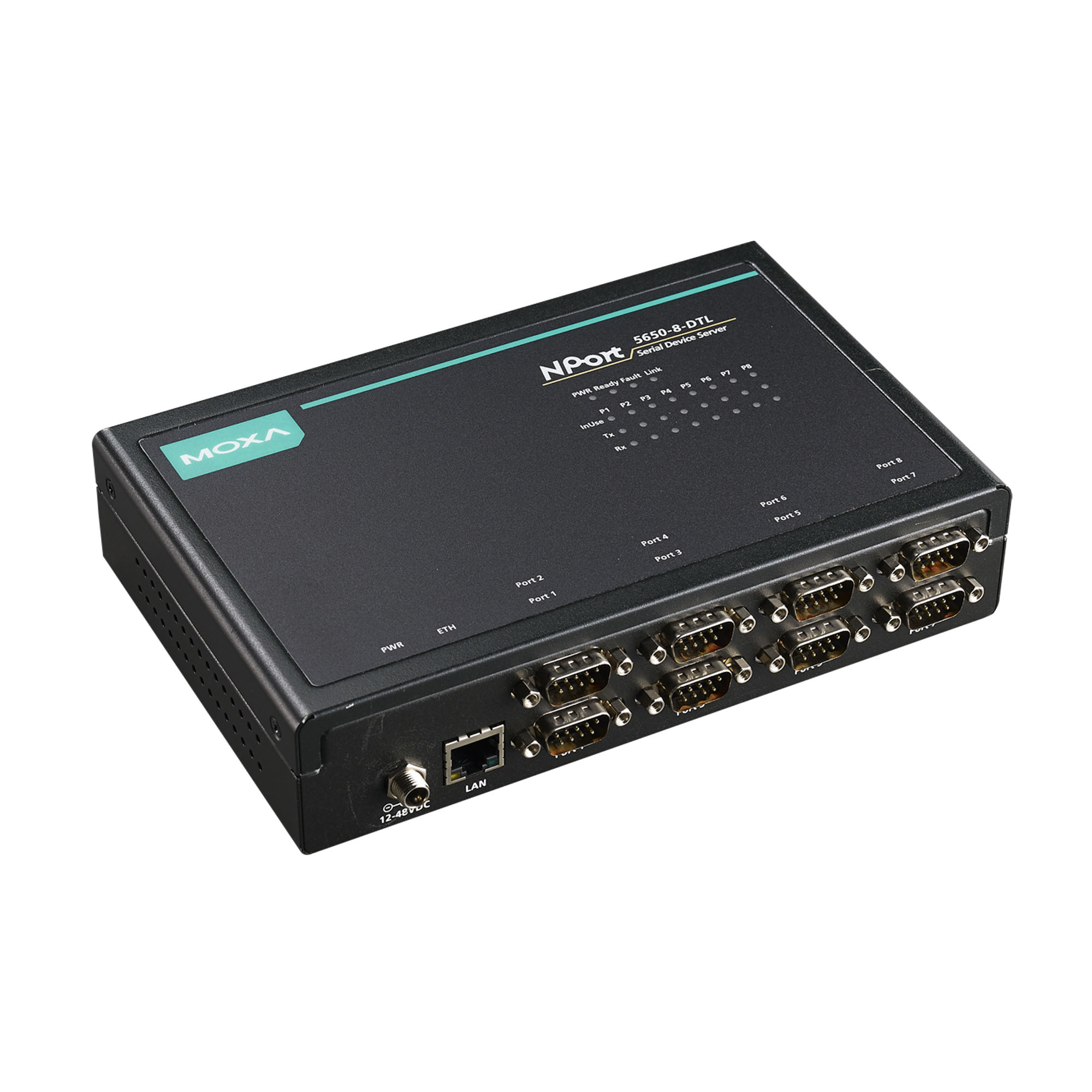

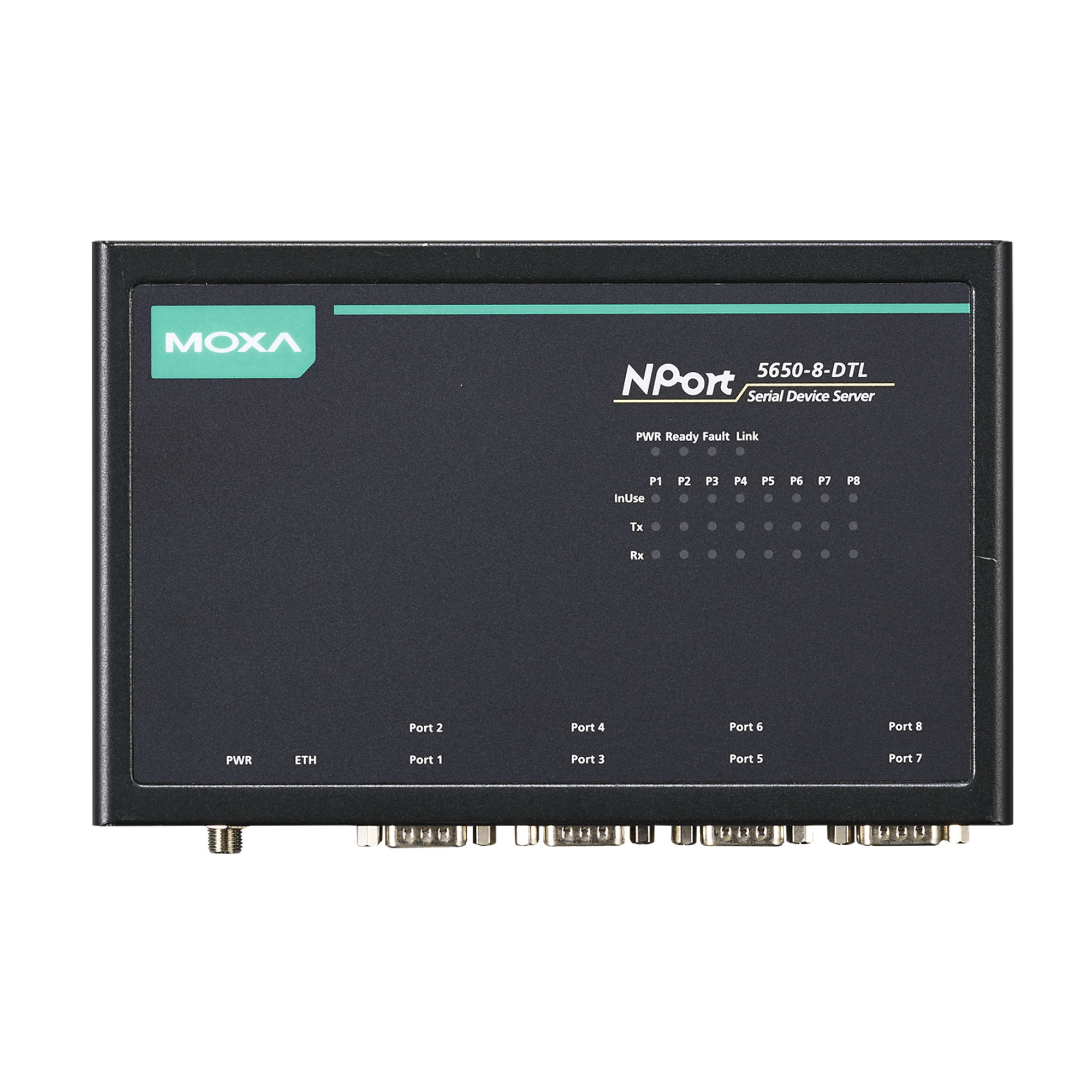

NPort 5650-8-DTL

moxa-nport-5650-8-dtl-image.jpg | Moxa

Buy online from our distributors

NPort 5600-DTL Series

NPort 5650-8-DTL-T

moxa-nport-5650-8-dtl-t-image.jpg | Moxa

Buy online from our distributors

NPort 5600-DTL Series

NPort 5650I-8-DTL

moxa-nport-5650i-8-dtl-image.jpg | Moxa

Buy online from our distributors

NPort 5600-DTL Series

NPort 5650I-8-DTL-T

moxa-nport-5650i-8-dtl-t-image.jpg | Moxa

Buy online from our distributors
