MOXA

Industrial Device Servers

The industrial device servers offer enhanced surge protection and have certifications for hazardous locations including rolling stock and wayside. In addition, all the devices are designed to ensure reliable serial-to-Ethernet connectivity when operating in harsh environments such as oil and gas and power automation.

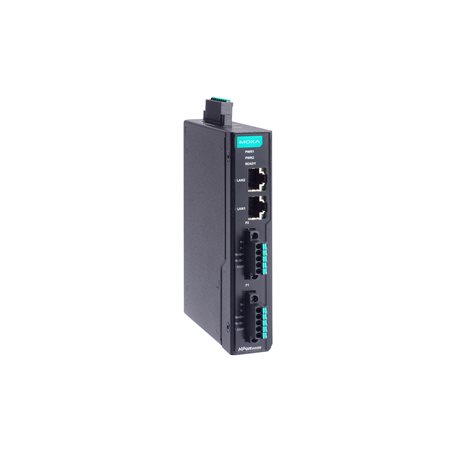

NPort IA5250I-TB-G2
NPort IA5000-G2 Series

NPort IA5250I-TB-G2

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • NPort IA5150-S-SC-G2/M-SC-G2/M-ST-G2 models: 1
      NPort IA5000-G2 models: 2
      Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)

  • Optical Fiber

    • 100BaseFX
      Multi-Mode Single-Mode
      Fiber Cable Type OM1 50/125 µm G.652
      800 MHz x km
      Typical Distance 4 km 5 km 40 km
      Wavelength Typical (nm) 1300 1310
      TX Range (nm) 1260 to 1360 1280 to 1340
      RX Range (nm) 1100 to 1600 1100 to 1600
      Optical Power TX Range (dBm) -10 to -20 0 to -5
      RX Range (dBm) -3 to -32 -3 to -34
      Link Budget (dB) 12 29
      Dispersion Penalty (dB) 3 1
      Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.
      Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
Ethernet Software Features

  • Configuration Options

    • Web Console (HTTP/HTTPS)
      Device Search Utility (DSU)
      MCC Tool
      Serial Console

  • Management

    • ARP, DHCP Client, DNS, HTTPS, ICMP, IPv4, MDNS, LLDP, SMTP, SMTPS, SNMPv1/v2c/v3, TCP/IP, UDP, SNTP, WINS

  • Windows Real COM Drivers

    • Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95
      Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT

  • Linux Real TTY Drivers

    • Kernel versions: 6.x, 5.x, and 4.x

  • Fixed TTY Drivers

    • macOS versions: 14, 13, 12, and 11

  • Arm®-based Platform Support

    • Windows 11
      Linux kernels 6.x, 5.x, and 4.x
      macOS 14, 13, 12, and 11

  • Virtual Machine

    • VMWare ESXi (Windows 11/10/8.1/8/7 & Linux 6.x, 5.x, and 4.x)
      VMware Fusion (Windows on macOS 14, 13, 12, and 11)
      Parallels Desktop (Windows on macOS 14, 13, 12, and 11)

  • Android API

    • Android 3.1.x and later

  • Time Management

    • SNTP Client

  • Filter

    • IGMP v1/v2

  • MIB

    • RFC1213, RFC1317
      Private MIB
Security Functions

  • Root of Trust

    • Secure Boot
      True Random Number Generator (TRNG)

  • Authentication

    • Local database

  • Encryption

    • HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, SHA-256, SHA-384, HMAC
      SSH: ECC-256, ECC-384, ECC-521, RSA-2048, AES-128, AES-256, SHA-256, SHA-384, HMAC
      SNMPv3: AES-128, SHA-256, SHA-384
      Secure OP mode: HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, SHA-256, SHA-384, HMAC
      Config file import/export: AES-256, SHA-256, HMAC

  • Security Protocols

    • HTTPS (TLS 1.2)
      SNMPv3
      SSHv2
Serial Interface

  • No. of Ports

    • NPort IA5150-G2 models: 1
      NPort IA5250-G2 models: 2
      NPort IA5450-G2 models: 4

  • Connector

    • NPort IA5150-G2 models: 1 x DB9 male
      NPort IA5250-G2 models: 2 x DB9 male
      NPort IA5250-TB-G2 models: 2 x 5-pin terminal block
      NPort IA5450-G2 models: 4 x DB9 male
      NPort IA5450-TB-G2 models: 4 x 5-pin terminal block

  • Serial Standards

    • RS-232/422/485 (software-selectable)

  • Standard Operation Modes

    • Real COM, TCP Server, TCP Client, UDP, Reverse Terminal, RFC2217, Pair Connection, Disabled

  • Secure Operation Modes

    • Secure Real COM, Secure TCP Server, Secure TCP Client, Reverse SSH, Secure Pair Connection

  • Baudrate

    • 50 bps to 921.6 kbps (supports non-standard baudrates)

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • None, RTS/CTS, DTR/DSR, RTS Toggle, XON/XOFF

  • RS-485 Data Direction Control

    • ADDC (automatic data direction control)

  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
      (software–configurable)

  • Terminator for RS-485

    • 120 ohms
      (software–configurable)

  • Isolation

    • I models: 2 kV
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
Power Parameters

  • Input Voltage

    • 12 to 48 VDC

  • Input Current

    • NPort IA5150-G2/IA5250-G2 models: 270 mA (max.)
      NPort IA5250I-G2 models: 330 mA (max.)
      NPort IA5450-G2/IA5150-SFP-G2/IA5150I-SFP-G2 models: 377 mA (max.)

  • Power Connector

    • 8-pin terminal block
      (V1+, V1-, NO, NC, GND, V2+, V2-, SG)
Relays

  • Contact Current Rating

    • Resistive load: 1 A @ 30 VAC
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • NPort IA5150-G2/IA5250-G2 models: 25 x 89 x 129 mm (0.98 x 3.5 x 5.07 in)
      NPort IA5450-G2 models: 42 x 89 x 129 mm (1.65 x 3.5 x 5.07 in)

  • Weight

    • NPort IA5150-G2 models: 384 g (0.85 lb)
      NPort IA5250-G2 models: 394 g (0.87 lb)
      NPort IA5450-G2 models: 512 g (1.13 lb)
Environmental Limits

  • Operating Temperature

    • Standard models: -10 to 60°C (14 to 140°F)
      Wide temp. models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 2 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11

  • Hazardous Locations

    • ATEX*, Class I Division 2*, IECEx*

      *Approval pending

  • Maritime

    • DNV*

      *Approval pending

  • Safety

    • IEC 62368-1
      UL 62368-1
      EN 62368-1

  • Vibration

    • IEC 60068-2-6
      IEC 60068-2-64

  • Freefall

    • IEC 60068-2-6
      IEC 60068-2-32
      IEC 60068-2-34
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • NPort IA5150-G2(-T): 3,238,923 hrs
      NPort IA5150I-G2(-T): 3,156,944 hrs
      NPort IA5150-SFP-G2(-T): 3,109,327 hrs
      NPort IA5250-TB-G2(-T): 2,943,248 hrs
      NPort IA5250-G2(-T): 2,931,934 hrs
      NPort IA5150-S/M-SC-G2(-T): 2,889,487 hrs
      NPort IA5250I-TB-G2(-T): 2,809,979 hrs
      NPort IA5250I-G2(-T): 2,799,662 hrs
      NPort IA5450-TB-G2(-T): 2,377,791 hrs
      NPort IA5450-G2(-T): 2,363,042 hrs
      NPort IA5450I-TB-G2(-T): 2,208,607 hrs
      NPort IA5450I-G2(-T): 2,195,874 hrs

  • Standards

    • Telcordia Standard SR-332
Warranty
