Industrial Device Servers

The industrial device servers offer enhanced surge protection and have certifications for hazardous locations including rolling stock and wayside. In addition, all the devices are designed to ensure reliable serial-to-Ethernet connectivity when operating in harsh environments such as oil and gas and power automation.

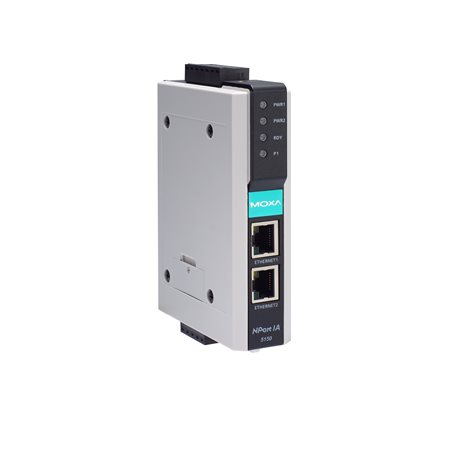

NPort IA-5150-T
NPort IA5000 Series

1-port RS-232/422/485 device server with 2 10/100BaseT(X) ports (RJ45 connectors, single IP), -40 to 75°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2 (1 IP, Ethernet cascade)
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
  • Optical Fiber

Ethernet Software Features
  • Configuration Options

    • Web Console (HTTP)
      Windows Utility
      Telnet Console
      Serial Console
  • Management

    • DHCP Client
      IPv4
      SMTP
      SNMPv1
      Telnet
      ARP
      BOOTP
      DNS
      HTTP
      TCP/IP
      UDP
      ICMP
      Rtelnet
  • Windows Real COM Drivers

    • Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98 and 95
      Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000 and NT
      Windows Embedded CE 5.0 and 6.0, Windows XP Embedded
  • Linux Real TTY Drivers

    • Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
  • Fixed TTY Drivers

    • macOS versions: 14, 13, 12, 11, and 10.1x
      SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Arm®-based Platform Support

    • Windows 11
      Linux Kernel 6.x, 5.x, and 4.x
      macOS 14, 13, 12, and 11
  • Virtual Machine

    • VMWare ESXi (Windows 11/10)
      VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)
      Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)
  • Android API

    • Android 3.1.x and later
  • Time Management

    • SNTP
  • MIB

    • RFC1213, RFC1317
Security Functions
  • Authentication

    • Local database (password only)
Serial Interface
  • Connector

    • DB9 male for RS-232 and terminal block for RS-422/485
  • No. of Ports

    • 1
  • Serial Standards

    • RS-232
      RS-422
      RS-485
  • Baudrate

    • Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
  • Data Bits

    • 5, 6, 7, 8
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 1.5, 2
  • Flow Control

    • RTS/CTS (RS-232 only)
      DTR/DSR (RS-232 only)
      XON/XOFF
  • Terminator for RS-485

    • 120 ohms
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • RS-485 Data Direction Control

    • ADDC (automatic data direction control)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Power Parameters
  • Input Voltage

    • 12 to 48 VDC
  • Input Current

    • 435 mA @ 12 VDC
  • No. of Power Inputs

    • 2
  • Power Connector

    • Terminal block
Relays
  • Contact Current Rating

    • Resistive load: 1 A @ 30 VDC
Physical Characteristics
  • Housing

    • Plastic
  • IP Rating

    • IP30
  • Dimensions

    • 29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in)
  • Weight

    • 360 g (0.79 lb)
  • Installation

    • DIN-rail mounting
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
      IEC 61000-4-11
  • Safety

    • IEC 60950-1
      EN 60950-1
      EN 62368-1
      UL 508
  • Maritime

    • DNV
  • Hazardous Locations

    • ATEX
      Class I Division 2
      IECEx
  • Freefall

    • IEC 60068-2-32
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
      IEC 60068-2-64
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 1,349,710 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
