MOXA

Industrial Device Servers

The industrial device servers offer enhanced surge protection and have certifications for hazardous locations including rolling stock and wayside. In addition, all the devices are designed to ensure reliable serial-to-Ethernet connectivity when operating in harsh environments such as oil and gas and power automation.

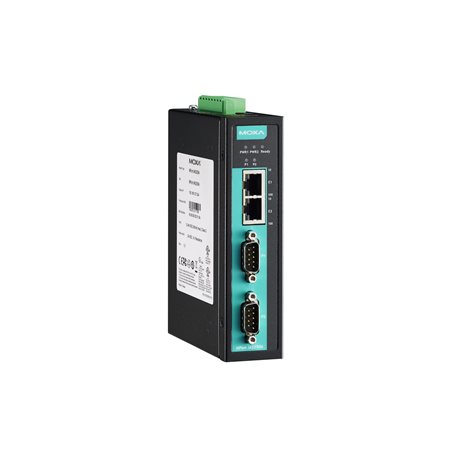

NPort IA5250A
NPort IA5000A Series

2-port RS-232/422/485 industrial automation device server with serial/LAN/power surge protection, 2 10/100BaseT(X) ports with single IP, 0 to 60°C operating temperature

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • Supports 2 IP addresses
      Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features

  • Configuration Options

    • Web Console (HTTP/HTTPS)
      Windows Utility
      Device Search Utility (DSU)
      MCC Tool
      Serial Console
      Telnet Console

  • Management

    • ARP
      BOOTP
      DHCP Client
      DNS
      HTTP
      HTTPS
      ICMP
      IPv4
      LLDP
      Rtelnet
      SMTP
      SNMPv1/v2c
      TCP/IP
      Telnet
      UDP

  • Filter

    • IGMP v1/v2

  • Windows Real COM Drivers

    • Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98 and 95
      Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000 and NT
      Windows Embedded CE 5.0 and 6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    • Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x

  • Fixed TTY Drivers

    • macOS versions: 14, 13, 12, 11 and 10.1x

  • Virtual Machine

    • VMWare ESXi (Windows 11 / 10)
      VMware Fusion (Windows on macOS 14, 13, 12, 11 and 10.1x)
      Parallels Desktop (Windows on macOS 14, 13, 12, 11 and 10.1x)

  • Arm®-based Platform Support

    • Windows 11
      Linux Kernel 6.x, 5.x and 4.x
      macOS 14, 13, 12 and 11

  • Android API

    • Android 3.1.x and later

  • Time Management

    • SNTP
Security Functions

  • Authentication

    • Local database

  • Encryption

    • HTTPS
      AES-128
      RSA-1024
      SHA-1
      SHA-256
Serial Interface

  • Connector

    • DB9 male

  • No. of Ports

    • 2

  • Serial Standards

    • RS-232
      RS-422
      RS-485

  • Operation Modes

    • Disabled
      Ethernet Modem
      Pair Connection
      Real COM
      Reverse Telnet
      RFC2217
      TCP Client
      TCP Server
      UDP

  • Baudrate

    • Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • None
      RTS/CTS (RS-232 only)
      DTR/DSR (RS-232 only)
      XON/XOFF

  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    • 120 ohms

  • RS-485 Data Direction Control

    • ADDC (automatic data direction control)
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
Power Parameters

  • Input Current

    • 250 mA @ 12 VDC

  • Input Voltage

    • 12 to 48 VDC

  • No. of Power Inputs

    • 2

  • Power Connector

    • Terminal block
Physical Characteristics

  • Housing

    • Metal

  • Dimensions

    • 36 x 105 x 140 mm (1.42 x 4.13 x 5.51 in)

  • Weight

    • 485 g (1.07 lb)

  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • 0 to 60°C (32 to 140°F)

  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11

  • Hazardous Locations

    • ATEX Zone 2
      UL/cUL Class I Division 2 Groups A/B/C/D

  • Safety

    • UL 508

  • Vibration

    • IEC 60068-2-6

  • Shock

    • IEC 60068-2-27

  • Freefall

    • IEC 60068-2-32
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 262,805 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
