Moxa's terminal servers are equipped with the specialized functions and security features needed to establish reliable terminal connections to a network, and can connect various devices such as terminals, modems, data switches, mainframe computers, and POS devices to make them available to network hosts and process.

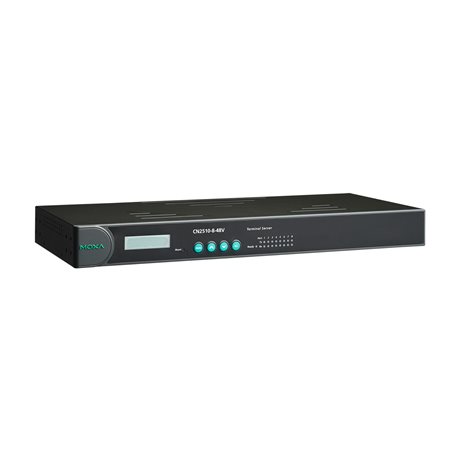

CN2510-8
CN2510 Series

8-port RS-232 Async Server, 100 to 240 VAC power input

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1
Ethernet Software Features
  • Management

    • Device Search Utility (DSU), DHCP Client, TCP/IP, UDP
  • MIB

    • MIB-II
  • Security

    • RADIUS
  • Unicast Routing

    • RIPV1/V2, Static Route
  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Linux Real TTY Drivers

    • Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Serial Interface
  • Connector

    • 8-pin RJ45
  • No. of Ports

    • 8
  • Serial Standards

    • RS-232
  • Operation Modes

    • Terminal mode
  • Baudrate

    • 50 bps to 921.6 kbps
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • None, RTS/CTS, XON/XOFF
Power Parameters
  • Input Current

    • 125 mA @ 110 VAC
  • Input Voltage

    • 100 to 240 VAC (47 to 63 Hz)
Physical Characteristics
  • Housing

    • Metal
  • Installation

    • 19-inch rack mounting
  • Dimensions

    • 440 x 198 x 45 mm (17.3 x 7.8 x 1.77 in)
  • Weight

    • 2,680 g (5.91 lb)
Environmental Limits
  • Operating Temperature

    • 0 to 55°C (32 to 131°F)
  • Storage Temperature (package included)

    • -20 to 70°C (-4 to 158°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11 DIPs
  • Safety

    • EN 60950-1, UL 60950-1
MTBF
  • Time

    • 857,279 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
