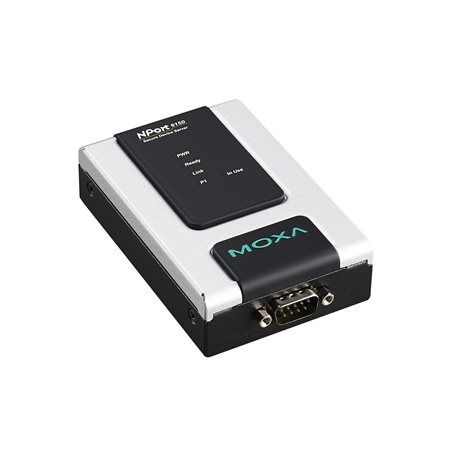

NPort 6150-T
NPort 6100/6200 Series

1-port RS-232/422/485 secure device server, -40 to 75°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
  • Optical Fiber

Ethernet Software Features
  • Configuration Options

    • Web Console (HTTP/HTTPS)
      Windows Utility
      Device Search Utility (DSU)
      MCC Tool
      Serial Console
      Telnet/SSH Console
  • Management

    • ARP
      BOOTP
      DHCP Client
      DNS
      HTTP
      ICMP
      IPv4/IPv6
      LLDP
      PPPOE
      SMTP
      SNMPv1/v2c/v3
      SNTP
      TCP/IP
      Telnet
      UDP
  • Windows Real COM Drivers

    • Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
      Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003
      Windows Embedded CE 6.0/5.0, Windows XP Embedded
  • Linux Real TTY Drivers

    • Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
  • Fixed TTY Drivers

    • macOS Versions: 11.x, 10.12 to 10.15
      SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Arm®-based Platform Support

    • Linux Kernel 5.x/4.x
  • Virtual Machine

    • VMWare ESXi (Windows 11/10)
      VMware Fusion (Windows on macOS 10.12 to 11.x)
      Parallels Desktop (Windows on macOS 10.12 to 11.x)
  • Android API

    • Android 3.1.x and later
  • Time Management

    • SNTP Client
  • MIB

    • MIB-II
  • Unicast Routing

    • RIPV1/V2
      Static Route
Security Functions
  • Authentication

    • Local database
      RADIUS
      TACACS+
  • Encryption

    • HTTPS
      AES-128
      AES-256
      HMAC
      RSA-1024
      SHA-1
      SHA-256
      SHA-384
  • Security Protocols

    • HTTPS (TLS 1.2)
      SNMPv3
      SSHv2
Serial Interface
  • Connector

    • DB9 male
  • No. of Ports

    • 1
  • Serial Standards

    • RS-232
      RS-422
      RS-485
  • Secure Operation Modes

    • Reverse SSH
      Secure Pair Connection
      Secure Real COM
      Secure TCP Client
      Secure TCP Server
      SSH
  • Standard Operation Modes

    • Disabled
      Ethernet Modem
      Pair Connection
      PPP
      Printer
      Real COM
      Reverse Telnet
      RFC2217
      TCP Client
      TCP Server
      Terminal
      UDP
  • Baudrate

    • 50 bps to 921.6 kbps (supports non-standard baudrates)
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Flow Control

    • RTS/CTS
      DTR/DSR
      XON/XOFF
  • Parity

    • None, Even, Odd, Space, Mark
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • RS-485 Data Direction Control

    • Automatic Data Direction Control (ADDC)
  • Terminator for RS-485

    • 120 ohms
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Power Parameters
  • Input Current

    • 285 mA @ 12 to 48 VDC
  • Input Voltage

    • 12 to 48 VDC
Reliability
  • Automatic Reboot Trigger

    • Built-in WDT
  • Alert Tools

    • Built-in buzzer and RTC (real-time clock)
Physical Characteristics
  • Housing

    • Metal
  • Dimensions (with ears)

    • 90 x 100.4 x 29 mm (3.54 x 3.95 x 1.1 in)
  • Dimensions (without ears)

    • 67 x 100.4 x 29 mm (2.64 x 3.95 x 1.1 in)
  • Weight

    • 190 g (0.42 lb)
  • Installation

    • Desktop
      DIN-rail mounting (with optional kit)
      Wall mounting
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 1 kV(AC), 0.5 kV(DC); Signal: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
      IEC 61000-4-11
  • Traffic Control

    • NEMA TS2
  • Vibration

    • IEC 60068-2-6
  • Freefall

    • IEC 60068-2-34
  • Safety

    • UL 60950-1
      UL 62368-1
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 1,934,102 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
