NPort 6100-G2/6200-G2 Series

2nd Gen 1/2-port RS-232/422/485 secure terminal servers

moxa-nport-6100-g2-6200-g2-series-image-(1).jpg | Moxa
moxa-nport-6100-g2-6200-g2-series-image-1-(1).jpg | Moxa
moxa-nport-6100-g2-6200-g2-series-image-2-(1).jpg | Moxa
moxa-nport-6100-g2-6200-g2-series-image-3-(1).jpg | Moxa
moxa-nport-6100-g2-6200-g2-series-image-4-(1).jpg | Moxa
moxa-nport-6100-g2-6200-g2-series-image-5-(1).jpg | Moxa
moxa-nport-6100-g2-6200-g2-series-image-6-(1).jpg | Moxa

Features and Benefits

  • Data encryption with secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
  • Supports SSL certificate signing by RSA-4096 / ECC-521
  • Secure Boot only allows Moxa-authorized firmware to run on devices
  • Side-mount installation option and two-sided LEDs to meet all installation scenarios and enable system downsizing
  • Easy RS-485 configuration of serial interfaces with software-adjustable pull high/low resistor and terminator

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-nema-ts2-certification-logo-image.png | Moxa

Contact Sales

Introduction

Moxa has leveraged IEC 62443-4-1 secure development lifecycle process to develop a new generation of secure terminal servers. The NPort 6100- G2/6200-G2 Series secure terminal servers follow the IEC 62443-4-2 design and guidelines to securely connect your legacy serial devices to industrial networks. In addition, the user experience is enhanced based on Moxa’s 35 years of experience in the serial-connectivity field by providing versatile installation means for different space requirements and an easy troubleshooting tool for maintenance.

Secure Data Transmission

For many applications, guaranteeing secure data transmission is an important concern when connecting serial devices to a network. To answer this concern, the NPort® 6100-G2/6200-G2 secure terminal servers support the TLS and SSH protocols, which work by encrypting data before sending it over the network. With the NPort® 6100-G2/6200-G2, you can be rest assured that serial data is transmitted securely over both private and public networks.

Easy Provisioning With Side-mount and Software-configurable Pull High/low Resistors and Terminator

In line with the trend for smaller systems and easier setup, the NPort® 6100-G2/6200-G2 secure terminal servers support side-mount installation and two-sided LEDs to fit in a variety of installation scenarios with the added benefit of reduction in the system size. The software-configurable pull high/low resistors and terminator function eliminate the requirement to open the chassis to adjust the pull high/low resistors or terminators, making it convenient for operators to install the devices at field sites.

Easy Troubleshooting With One-click Log Collection

At the maintenance stage, system errors may require you to call for help. Device vendors might take a long time to troubleshoot issues because they need to collect information and then hold discussions with the technical support team. The NPort 6100-G2/6200-G2 comes with a one-click log collection function to enable logging of data, which can provide all the data that a technical support team needs to quickly troubleshoot system issues.

  • SD Slot

    NPort 6200-G2 models:
    microSD card
    Up to 2 TB (high speed, 25 Mbps)

  • 10/100BaseT(X) Ports (RJ45 connector)

    1
    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Web Console (HTTP/HTTPS)
    Windows Utility
    Device Search Utility (DSU)
    MCC Tool
    Serial Console

  • Management

    ARP
    DHCP Client
    DNS
    HTTPS
    ICMP
    IPv4/IPv6
    SMTP
    SMTPS
    SNMPv1/v2c/v3
    SNTP
    TCP/IP
    UDP
    WINS

  • Windows Real COM Drivers

    Windows 11, 10, 8.1, 8, and 7
    Windows Server 2022, 2019, 2016, 2012 R2, 2012, and 2008 R2

  • Linux Real TTY Drivers

    Kernel versions 6.x, 5.x, and 4.x

  • Fixed TTY Drivers

    macOS versions: 14, 13, 12, and 11

  • Arm®-based Platform Support

    Windows 11
    Linux kernel 6.x, 5.x, and 4.x
    macOS 14, 13, 12, and 11

  • Virtual Machine

    VMWare ESXi (Windows 11/10/8.1/8/7 & Linux 6.x, 5.x, and 4.x)
    VMware Fusion (Windows on macOS 14, 13, 12, and 11)
    Parallels Desktop (Windows on macOS 14, 13, 12, and 11)

  • Time Management

    SNTP Client

  • MIB

    MIB-II
    RFC1213, RFC1317
    Private MIB

  • Unicast Routing

    RIPV1/V2
    Static Route

  • Root of Trust

    Secure Boot
    True Random Number Generator (TRNG)
    Security Screws

  • Authentication

    Local database
    RADIUS
    TACACS+

  • Encryption

    AES-128
    AES-256
    ECC-256
    ECC-384
    ECC-521
    HMAC
    RSA-1024
    RSA-2048
    RSA-3072
    RSA-4096
    SHA-256
    SHA-384

  • Security Protocols

    HTTPS (TLS 1.2)
    SNMPv3
    SSHv2

  • Connector

    DB9 male

  • No. of Ports

    NPort 6150-G2 models: 1
    NPort 6250-G2 models: 2

  • Serial Standards

    RS-232
    RS-422
    RS-485

  • Secure Operation Modes

    Reverse SSH
    Secure Pair Connection
    Secure Real COM
    Secure TCP Client
    Secure TCP Server
    SSH

  • Standard Operation Modes

    Disabled
    Pair Connection
    SLIP
    PPP
    Real COM
    Reverse Terminal
    RFC2217
    TCP Client
    TCP Server
    Terminal
    UDP

  • Baudrate

    50 bps to 921.6 kbps (supports non-standard baudrates)

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Flow Control

    None
    RTS/CTS
    DTR/DSR
    RTS Toggle
    XON/XOFF

  • Parity

    None, Even, Odd, Space, Mark

  • RS-485 Data Direction Control

    Automatic Data Direction Control (ADDC)

  • Terminator for RS-485

    120 ohms

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms
    (software–configurable)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Input Current

    12 to 48 VDC, 160 mA (max.)

  • Input Voltage

    12 to 48 VDC

  • Automatic Reboot Trigger

    Built-in WDT

  • Alert Tools

    Built-in buzzer and RTC (real-time clock)

  • Housing

    Metal

  • Dimensions (with ears)

    NPort 6150-G2 models: 64 x 111.8 x 25 mm (2.52 x 4.4 x 0.98 in)
    NPort 6250-G2 models: 76.3 x 122.4 x 25 mm (3 x 4.82 x 0.98 in)

  • Weight

    Product with package:
    NPort 6150-G2: 228 g (0.50 lb); 437 g (0.96 lb)
    NPort 6150-G2-T: 228 g (0.50 lb); 302 g (0.67 lb)
    NPort 6250-G2: 278 g (0.61 lb); 487 g (1.07 lb)
    NPort 6250-G2-T: 278 g (0.61 lb); 352 g (0.78 lb)

  • Installation

    Desktop
    DIN-rail mounting (with optional kit)
    Wall mounting (with optional kit)
    Side-panel mounting (with optional kit)

  • Operating Temperature

    Standard models: -10 to 60°C (14 to 140°F)
    Standard models with power adapter (in the box):
    0 to 40°C (32 to 104°F)
    Wide temp. models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV
    IEC 61000-4-6 CS: 3 V
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Traffic Control

    NEMA TS2

  • Vibration

    IEC 60068-2-6

  • Package Drop Test

    ISTA 1A

  • Safety

    IEC 62368-1
    UL 62368-1
    EN 62368-1

  • International Approval

    KC

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    NPort 6150-G2/6150-G2-T: 3,843,653 hrs
    NPort 6250-G2/6250-G2-T: 3,351,651 hrs

  • Standards

    Telcordia Standard SR-332
    Telcordia SR-332 Issue 4

Software, Firmware, and Drivers

FILTER

All Driver Firmware Software Package Utility
Name Type Checksum Version Operating System Release Date
MXview One plugin (Windows)
18.7 MB 		Software Package
SHA-512
v1.6
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
 Nov 11, 2024 Nov 11, 2024 Release notes
MXconfig Plugin
3.6 MB 		Software Package
SHA-512
v1.7
  • Windows 10
  • Windows 7
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
 Nov 11, 2024 Nov 11, 2024 Release notes
MXconfig plugin (non-Java version)
1.8 MB 		Software Package
SHA-512
v1.6
  • Windows 10
  • Windows 7
  • Windows Server 2016
  • Windows Server 2019
 Nov 11, 2024 Nov 11, 2024 Release notes
Private MIB for NPort 6000-G2 Series
253.5 KB 		Software Package
SHA-512
v1.0.0
Nov 08, 2024 Nov 08, 2024 Release notes
Firmware for NPort 6000-G2 Series
3.5 MB 		Firmware
SHA-512
v1.0.0
Nov 08, 2024 Nov 08, 2024 Release notes
Moxa CLI Configuration Tool for Linux
11.6 MB 		Utility
SHA-512
v1.4
  • Linux Kernel 2.6.x
  • Linux Kernel 3.x
  • Linux Kernel 4.x
  • Linux Kernel 5.x
  • Linux Kernel 6.x
 Nov 07, 2024 Nov 07, 2024 Release notes
Moxa CLI Configuration Tool for Windows
2.0 MB 		Utility
SHA-512
v1.4
  • Windows
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
 Nov 07, 2024 Nov 07, 2024 Release notes
MXview One plugin (Linux)
18.7 MB 		Software Package
SHA-512
v1.6
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
 Nov 04, 2024 Nov 04, 2024 Release notes
Device Search Utility
428.1 MB 		Utility
SHA-512
v3.0
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
 Oct 31, 2024 Oct 31, 2024 Release notes
Windows Driver Manager (Windows 11 and Server 2022 and later, WHQL certified)
9.4 MB 		Driver
SHA-512
v4.3
  • Windows 11
  • Windows Server 2022
 Sep 22, 2024 Sep 22, 2024 Release notes
Windows Driver Manager (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
8.9 MB 		Driver
SHA-512
v3.6
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
 Sep 22, 2024 Sep 22, 2024 Release notes
Real TTY Linux Kernel 6.x Driver
590.0 KB 		Driver
SHA-512
v6.1
  • Linux Kernel 6.x
 Sep 05, 2024 Sep 05, 2024 Release notes
Serial Device Server Driver for macOS (macOS 11.x to 14)
6.3 MB 		Driver
SHA-512
v1.3
  • macOS 11
  • macOS 12
  • macOS 13
  • macOS 14
 Sep 02, 2024 Sep 02, 2024 Release notes
Real TTY Linux Kernel 4.x Driver
600.0 KB 		Driver
SHA-512
v4.3
  • Linux Kernel 4.x
 Aug 07, 2024 Aug 07, 2024 Release notes
Real TTY Linux Kernel 5.x Driver
590.0 KB 		Driver
SHA-512
v5.4
  • Linux Kernel 5.x
 Aug 07, 2024 Aug 07, 2024 Release notes

Support Documents

FILTER

All Datasheet Declaration Manual QIG
Name Type Version Release Date
FOSS Statement for Moxa CLI Configuration Tool
114.6 KB 		Declaration v1.0 Dec 10, 2024 Dec 10, 2024
Moxa CLI Configuration Tool User Manual
1.0 MB 		Manual v2.4 Nov 18, 2024 Nov 18, 2024
Datasheet for NPort 6100-G2/6200-G2 Series
9.5 MB 		Datasheet v1.1 Nov 11, 2024 Nov 11, 2024
QIG for NPort 6100-G2/6200-G2 Series
1.0 MB 		QIG v1.1 Nov 08, 2024 Nov 08, 2024
Manual for NPort 6000-G2 Series
10.2 MB 		Manual v1.0 Nov 01, 2024 Nov 01, 2024
FOSS Statement for NPort 6000-G2 Series
1.1 MB 		Declaration v1.0 Nov 01, 2024 Nov 01, 2024
Device Search Utility v3.x User Manual
95.1 MB 		Manual v1.0 Oct 31, 2024 Oct 31, 2024
FOSS Statement for NPort macOS driver
108.4 KB 		Declaration v1.0 Oct 29, 2024 Oct 29, 2024
Declaration of Conformity for NPort 6100-G2/6200-G2 Series
308.1 KB 		Declaration v1.0 Sep 27, 2024 Sep 27, 2024
FOSS Statement for Device Search Utility
161.8 KB 		Declaration v1.0 Jun 24, 2024 Jun 24, 2024

Available Models (4)

Show Images
Compare

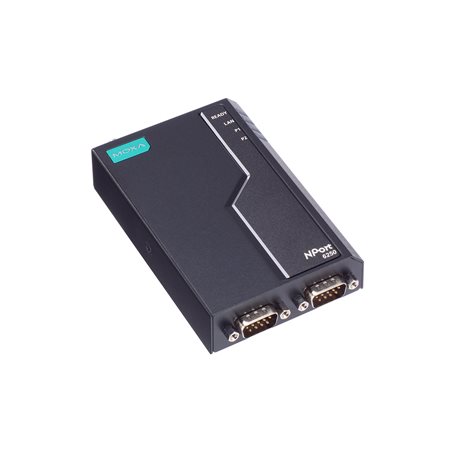

moxa-nport-6250-g2-image.jpg | MoxaNPort 6250-G2
Compare

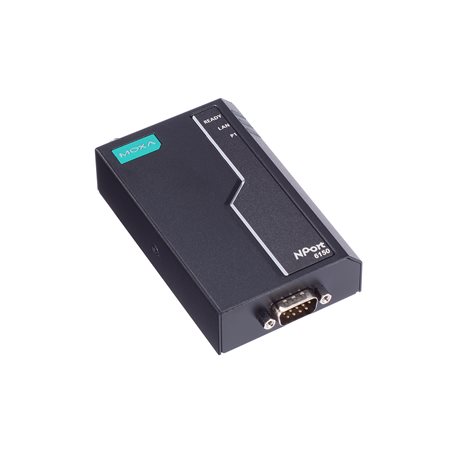

moxa-nport-6150-g2-t-image.jpg | MoxaNPort 6150-G2-T
Compare
moxa-nport-6150-g2-image.jpg | MoxaNPort 6150-G2
Compare
moxa-nport-6250-g2-t-image.jpg | MoxaNPort 6250-G2-T
Ethernet InterfaceRJ45RJ45RJ45RJ45
No. of Serial Ports2112
SD Card SupportUp to 2 TB
(high speed, 25 Mbps)		––Up to 2 TB
(high speed, 25 Mbps)
Operating Temp.-10 to 60°C-40 to 75°C-10 to 60°C-40 to 75°C
Power Supply
Included		✓–✓–
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

Details

File Name: Firmware for Nport 6000 Series

Version: xx

SHA-512 Checksum: --checksum placeholder--

Copied to clipboard

product image

Buy online from distributors

Please sign in

Forgot your password?
Sign In
Remember Me.
Not a member? Sign up now

Do Not Share My Personal Information

To opt out of sharing your personal information for cross-context behavioral advertising, you can complete and submit the form provided below.


Please note that even if you choose to complete the form, you may still see our ads on other websites. However, these ads may not be as relevant to you as they would be if you had not opted out.




Added To Bag

View Bag
You have some items waiting in your bag; click here to finish your quote!

You are currently on the Global / English site.
Would you like to go to the site for your region?

Feedback
