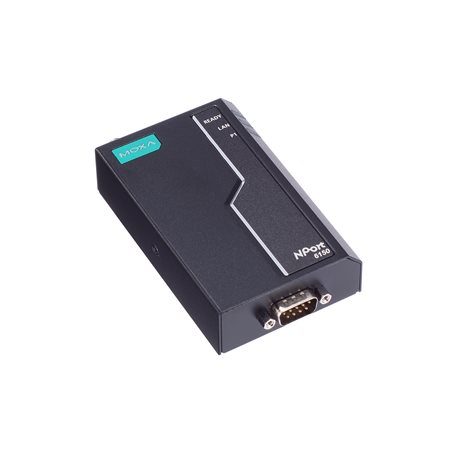

NPort 6150-G2-T
NPort 6100-G2/6200-G2 Series

2nd Gen 1-port RS-232/422/485 secure device server, -40 to 75°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1
      Auto MDI/MDI-X connection
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Configuration Options

    • Web Console (HTTP/HTTPS)
      Windows Utility
      Device Search Utility (DSU)
      MCC Tool
      Serial Console
  • Management

    • ARP
      DHCP Client
      DNS
      HTTPS
      ICMP
      IPv4/IPv6
      SMTP
      SMTPS
      SNMPv1/v2c/v3
      SNTP
      TCP/IP
      UDP
      WINS
  • Windows Real COM Drivers

    • Windows 11, 10, 8.1, 8, and 7
      Windows Server 2022, 2019, 2016, 2012 R2, 2012, and 2008 R2
  • Linux Real TTY Drivers

    • Kernel versions 6.x, 5.x, and 4.x
  • Fixed TTY Drivers

    • macOS versions: 14, 13, 12, and 11
  • Arm®-based Platform Support

    • Windows 11
      Linux kernel 6.x, 5.x, and 4.x
      macOS 14, 13, 12, and 11
  • Virtual Machine

    • VMWare ESXi (Windows 11/10/8.1/8/7 & Linux 6.x, 5.x, and 4.x)
      VMware Fusion (Windows on macOS 14, 13, 12, and 11)
      Parallels Desktop (Windows on macOS 14, 13, 12, and 11)
  • Time Management

    • SNTP Client
  • MIB

    • MIB-II
      RFC1213, RFC1317
      Private MIB
  • Unicast Routing

    • RIPV1/V2
      Static Route
Security Functions
  • Root of Trust

    • Secure Boot
      True Random Number Generator (TRNG)
      Security Screws
  • Authentication

    • Local database
      RADIUS
      TACACS+
  • Encryption

    • AES-128
      AES-256
      ECC-256
      ECC-384
      ECC-521
      HMAC
      RSA-1024
      RSA-2048
      RSA-3072
      RSA-4096
      SHA-256
      SHA-384
  • Security Protocols

    • HTTPS (TLS 1.2)
      SNMPv3
      SSHv2
Serial Interface
  • Connector

    • DB9 male
  • No. of Ports

    • 1
  • Serial Standards

    • RS-232
      RS-422
      RS-485
  • Secure Operation Modes

    • Reverse SSH
      Secure Pair Connection
      Secure Real COM
      Secure TCP Client
      Secure TCP Server
      SSH
  • Standard Operation Modes

    • Disabled
      Pair Connection
      SLIP
      PPP
      Real COM
      Reverse Terminal
      RFC2217
      TCP Client
      TCP Server
      Terminal
      UDP
  • Baudrate

    • 50 bps to 921.6 kbps (supports non-standard baudrates)
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Flow Control

    • None
      RTS/CTS
      DTR/DSR
      RTS Toggle
      XON/XOFF
  • Parity

    • None, Even, Odd, Space, Mark
  • RS-485 Data Direction Control

    • Automatic Data Direction Control (ADDC)
  • Terminator for RS-485

    • 120 ohms
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
      (software–configurable)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Power Parameters
  • Input Current

    • 12 to 48 VDC, 160 mA (max.)
  • Input Voltage

    • 12 to 48 VDC
Reliability
  • Automatic Reboot Trigger

    • Built-in WDT
  • Alert Tools

    • Built-in buzzer and RTC (real-time clock)
Physical Characteristics
  • Housing

    • Metal
  • Dimensions (with ears)

    • NPort 6150-G2 models: 64 x 111.8 x 25 mm (2.52 x 4.4 x 0.98 in)
      NPort 6250-G2 models: 76.3 x 122.4 x 25 mm (3 x 4.82 x 0.98 in)
  • Weight

    • Product With Package: 228 g (0.50 lb)
  • Installation

    • Desktop
      DIN-rail mounting (with optional kit)
      Wall mounting (with optional kit)
      Side-panel mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
      IEC 61000-4-11
  • Traffic Control

    • NEMA TS2
  • Vibration

    • IEC 60068-2-6
  • Package Drop Test

    • ISTA 1A
  • Safety

    • IEC 62368-1
      UL 62368-1
      EN 62368-1
  • International Approval

    • KC
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 3,843,653 hrs
  • Standards

    • Telcordia Standard SR-332
      Telcordia SR-332 Issue 4
