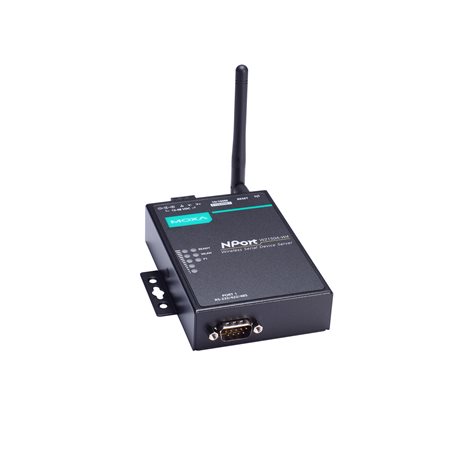

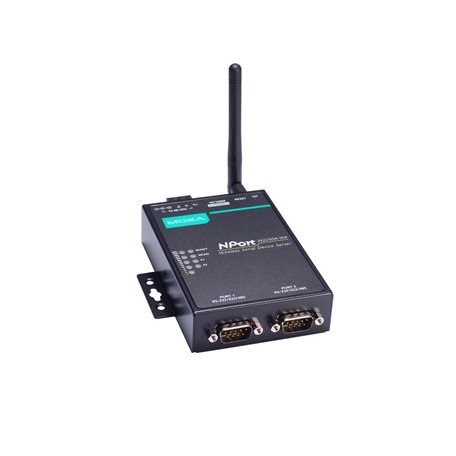

NPort W2150A-W4/W2250A-W4 Series

1 and 2-port serial-to-Wi-Fi (802.11a/b/g/n) device servers with a wireless client

moxa-nport-w2150a-w4-w2250a-w4-series-image-(1).jpg | Moxa
moxa-nport-w2150a-w4-w2250a-w4-series-image-1-(1).jpg | Moxa
moxa-nport-w2150a-w4-w2250a-w4-series-image-2-(1).jpg | Moxa
moxa-nport-w2150a-w4-w2250a-w4-series-image-3-(1).jpg | Moxa
moxa-nport-w2150a-w4-w2250a-w4-series-image-4-(1).jpg | Moxa
moxa-nport-w2150a-w4-w2250a-w4-series-image-5-(1).jpg | Moxa
moxa-nport-w2150a-w4-w2250a-w4-series-image-6-(1).jpg | Moxa

Features and Benefits

  • Links serial and Ethernet devices to an IEEE 802.11a/b/g/n network
  • Web-based configuration using built-in Ethernet or WLAN
  • Secure Boot that only allows Moxa-authorized firmware to run on devices
  • Remote configuration with HTTPS (TLS 1.3), SSH
  • Secure data access with WEP, WPA, WPA2
  • WPA/WPA2 Enterprise IEEE 802.1X/RADIUS (EAP-TLS 1.3)
  • Fast roaming for quick automatic switching between access points
  • Offline port buffering and serial data log
  • Enhanced surge protection for serial, LAN, and power
  • Dual power inputs (1 screw-type power jack, 1 terminal block)

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ukca-certification-logo-image.png | Moxa

Contact Sales

Introduction

The NPort® W2150A-W4 and W2250A-W4 are the ideal choice for connecting your serial and Ethernet devices, such as PLCs, meters, and sensors, to a wireless LAN. Your communications software will be able to access the serial devices from anywhere over a wireless LAN. Moreover, the wireless device servers require fewer cables and are ideal for applications that involve difficult wiring situations. In Infrastructure Mode, the NPort® W2150A-W4 and NPort® W2250A-W4 can connect to Wi-Fi networks at offices and factories to allow users to move, or roam, between several APs (access points), and offer an excellent solution for devices that are frequently moved from place to place.

  • 10/100BaseT(X) Ports (RJ45 connector)

    1

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)

  • Configuration Options

    Web Console (HTTP/HTTPS)
    Windows Utility

  • Management

    DHCP Option 82
    HTTP
    IPv4
    SMTP
    SNMPv1/v2c/v3
    Syslog
    Telnet
    Web Console

  • Windows Real COM Drivers

    Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
    Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT
    Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel Versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x

  • Fixed TTY Drivers

    macOS Versions: 10.12 to 10.15, 11.x
    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Arm®-based Platform Support

    Linux kernel 5.x/4.x

  • Virtual Machine

    VMWare ESXi (Windows 11/10)
    VMware Fusion (Windows on macOS 10.12 to 11.x)
    Parallels Desktop (Windows on macOS 10.12 to 11.x)

  • Android API

    Android 3.1.x and later

  • MIB

    Device Settings MIB
    RFC1213, RFC1317

  • Security

    HTTPS/SSL
    User Authentication Management: local database, RADIUS
    Secure Protocols: HTTPS (TLSv1.3), SSH, SNMPv3
    Cryptography: HMAC, SHA-1, SHA-256, SHA-384, RSA-1024, AES-128, AES-256

  • Time Management

    NTP Client
    SNTP Client

  • WLAN Standards

    802.11a/b/g/n

  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

    Typ. -91 @ 6 Mbps
    Typ. -74 @ 54 Mbps

  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

    Typ. -92 dBm @ 1 Mbps
    Typ. -84 dBm @ 11 Mbps

  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

    Typ. -91 dBm @ 6 Mbps
    Typ. -73 dBm @ 54 Mbps

  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

    Typ. -89 dBm @ 6.5 Mbps (20 MHz)
    Typ. -71 dBm @ 72.2 Mbps (20 MHz)

  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

    Typ. -89 dBm @ 6.5 Mbps (20 MHz)
    Typ. -71 dBm @ 72.2 Mbps (20 MHz)
    Typ. -85 dBm @ 13.5 Mbps (40 MHz)
    Typ. -67 dBm @ 150 Mbps (40 MHz)

  • Modulation Type

    DSSS
    OFDM

  • Transmission Distance

    Up to 100 meters (in open areas)

  • Transmission Rate

    802.11a/g: 54 Mbps
    802.11b: 11 Mbps
    802.11n: 6.5 to 150 Mbps

  • Transmitter Power for 802.11b

    16±1.5 dBm @ 1 Mbps
    16±1.5 dBm @ 11 Mbps

  • Transmitter Power for 802.11g

    16±1.5 dBm @ 6 Mbps
    14±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11a

    15±1.5 dBm @ 6 Mbps
    14±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (2.4 GHz)

    16 dBm @ 1.5 Mbps (6.5 MHz)
    12 dBm @ 1.5 Mbps (72.2 MHz)

  • Transmitter Power for 802.11n (5 GHz)

    15 dBm @ 1.5 Mbps (6.5 MHz)
    12 dBm @ 1.5 Mbps (150 MHz)

  • Frequency Band for CN (20 MHz operating channels)

    2.412 to 2.472 GHz (13 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.745 to 5.825 GHz (5 channels)

  • Frequency Band for EU (20 MHz operating channels)

    2.412 to 2.472 GHz (13 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.

  • Frequency Band for JP (20 MHz operating channels)

    2.412 to 2.472 GHz (13 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.

  • Frequency Band for US (20 MHz operating channels)

    2.412 to 2.462 GHz (11 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.745 to 5.825 GHz (5 channels)

  • Wireless Security

    WEP encryption (64-bit and 128-bit)
    WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
    WPA/WPA2-Personal

  • WLAN Modes

    Infrastructure mode

  • Connector

    RP-SMA (male)

  • Antenna Type

    Omni-directional

  • Authentication

    Local database
    RADIUS

  • Encryption

    AES-128
    AES-256
    HMAC
    RSA-1024
    SHA-1
    SHA-256
    SHA-384

  • Security Protocols

    SNMPv3
    SSHv2
    HTTPS (TLS 1.3)

  • Wireless Security

    WEP
    WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS support EAP-TLS 1.3)
    WPA/WPA2-Personal

  • Hardware-based Security

    Secure Boot

  • Connector

    DB9 male

  • No. of Ports

    NPort W2150A-W4/W2150A-W4-T: 1
    NPort W2250A-W4/W2250A-W4-T: 2

  • Serial Standards

    RS-232
    RS-422
    RS-485

  • Operation Modes

    Real COM mode
    TCP Server mode
    TCP Client mode
    UDP mode
    RFC2217 mode
    Pair Connection mode
    Ethernet Modem mode
    Disabled

  • Baudrate

    300 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None
    RTS/CTS
    XON/XOFF

  • RS-485 Data Direction Control

    ADDC® (automatic data direction control)

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • Surge

    1 kV

  • Housing

    Metal

  • Installation

    Desktop
    DIN-rail mounting (with optional kit)
    Wall mounting

  • Dimensions (with ears, without antenna)

    100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)

  • Dimensions (without ears or antenna)

    77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)

  • Weight

    NPort W2150A-W4/W2150A-W4-T: 185 g (0.41 lb)
    NPort W2250A-W4/W2250A-W4-T: 191 g (0.42 lb)

  • Antenna Length

    108 mm (4.25 in)

  • Operating Temperature

    Standard Models: 0 to 55°C (32 to 131°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Input Current

    NPort W2150A-W4/W2150A-W4-T: 429 mA @ 12 VDC
    NPort W2250A-W4/W2250A-W4-T: 455 mA @ 12 VDC

  • Input Voltage

    12 to 48 VDC

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Radio Frequency

    CE (ETSI EN 301 893, ETSI EN 300 328, ETSI EN 301489-1/-17), MIC, KC, RCM, WPC

  • Safety

    UL 62368-1
    IEC 62368-1

  • Alert Tools

    RTC (real-time clock)

  • Automatic Reboot Trigger

    Built-in WDT

  • Time

    NPort W2150A-W4/W2150A-W4-T: 1,356,464 hrs
    NPort W2250A-W4/W2250A-W4-T: 1,187,539 hrs

  • Standards

    Telcordia SR332
