NPort Z2150/Z3150 Series

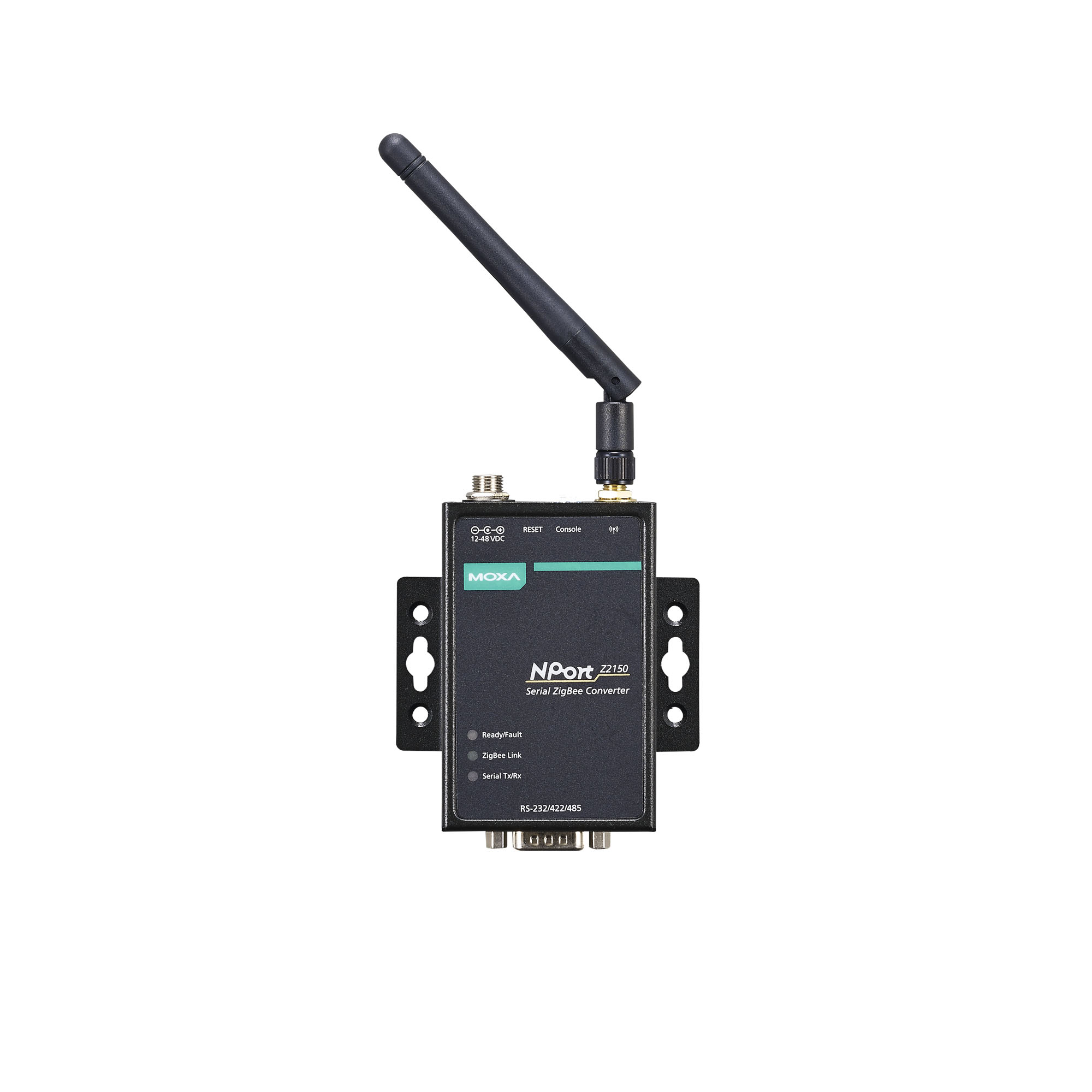

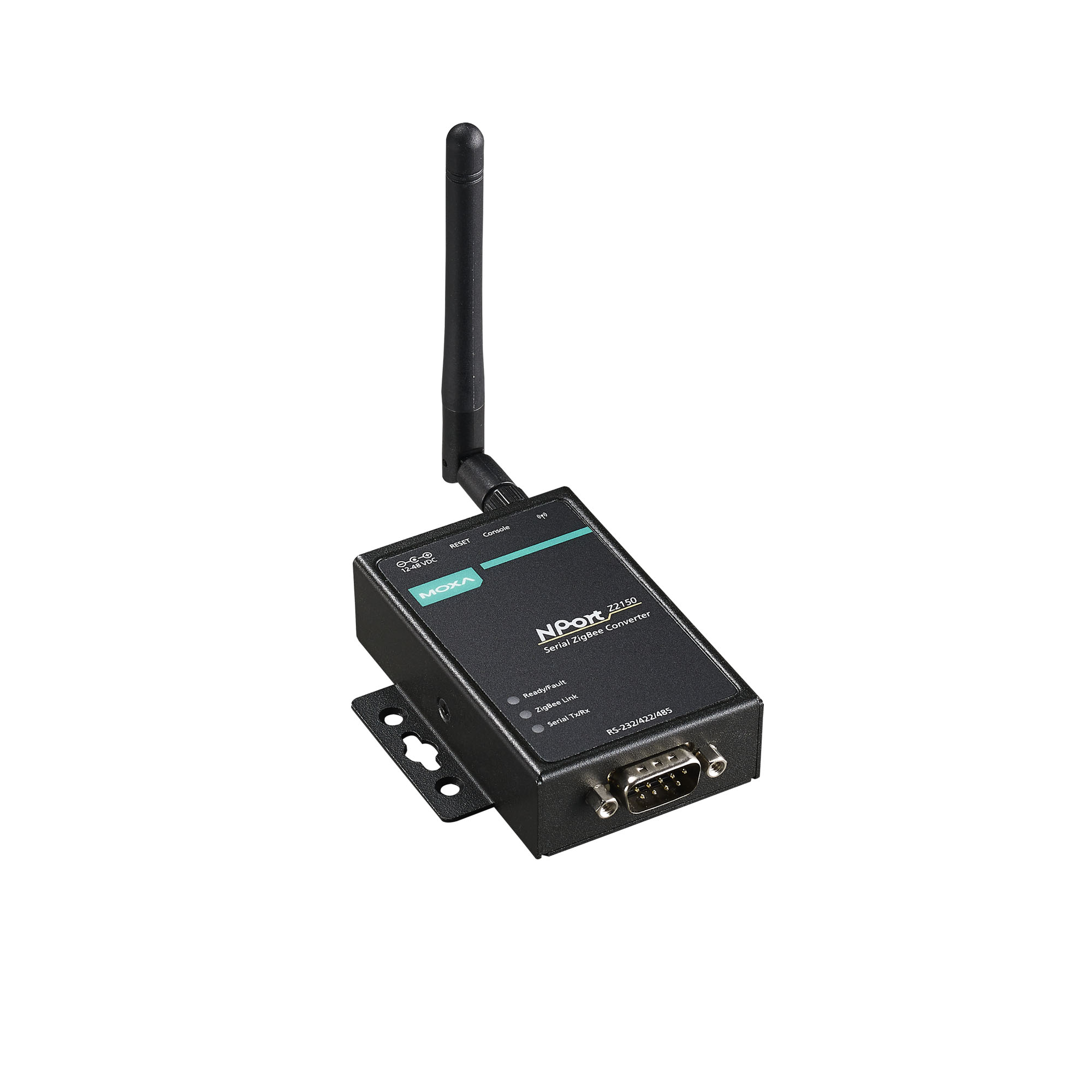

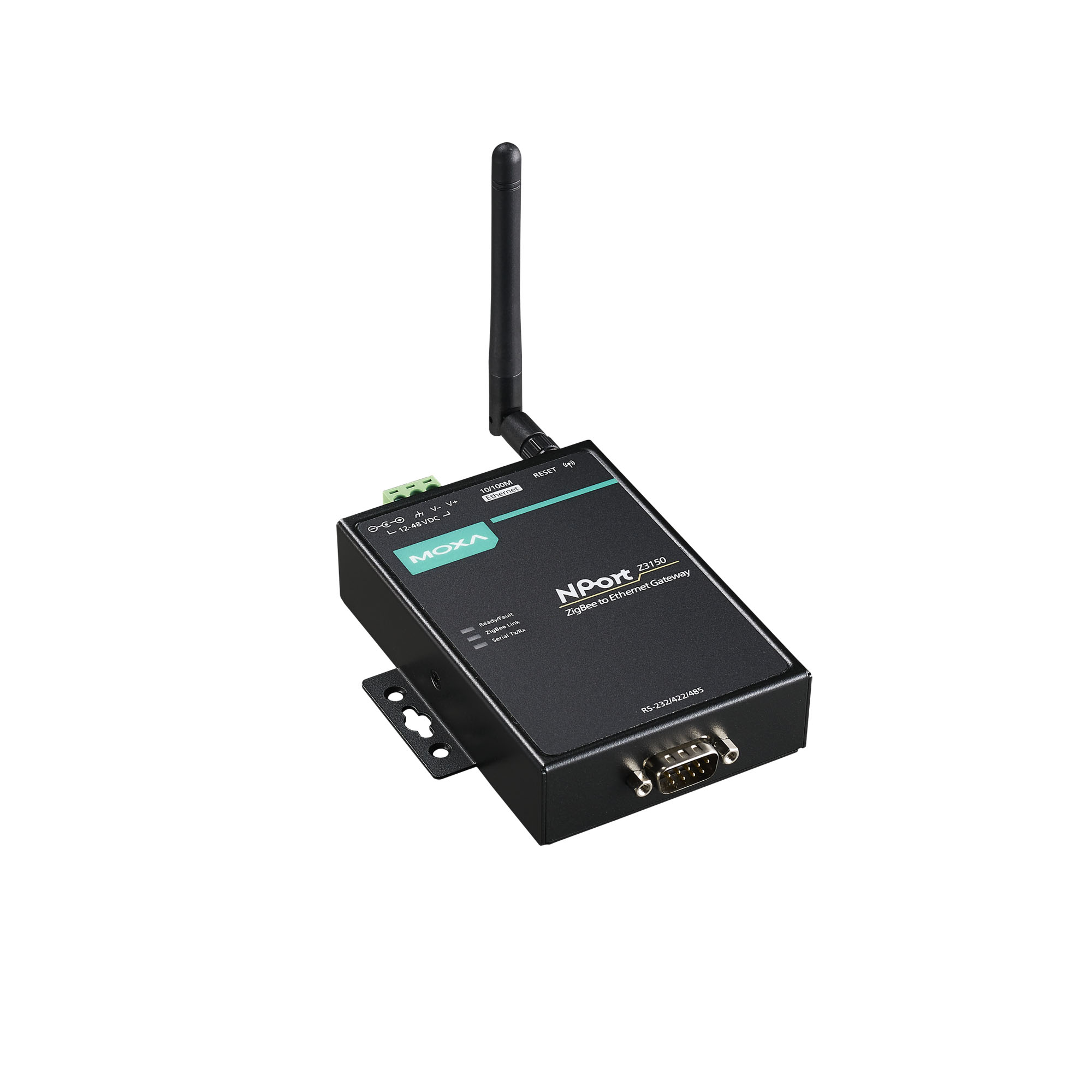

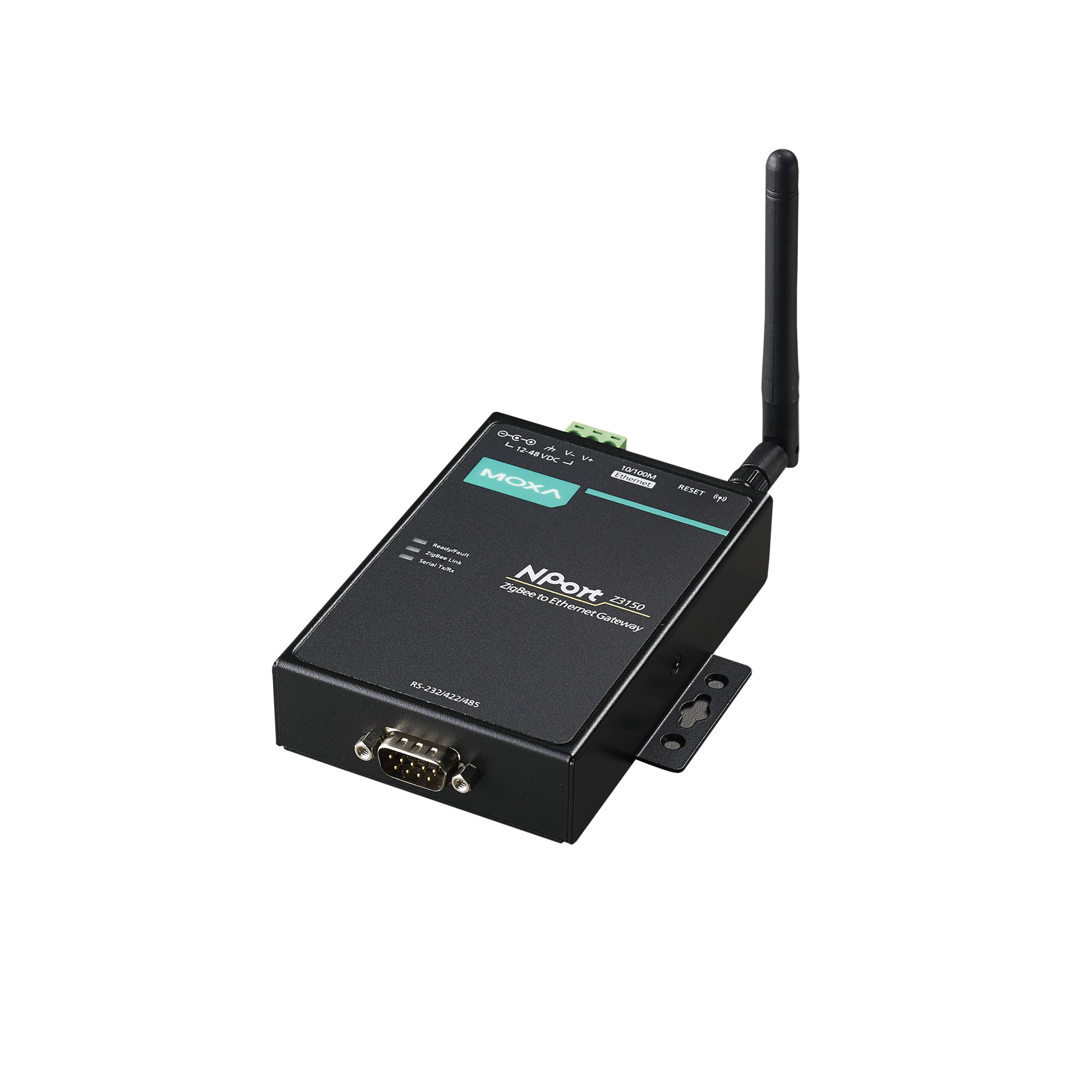

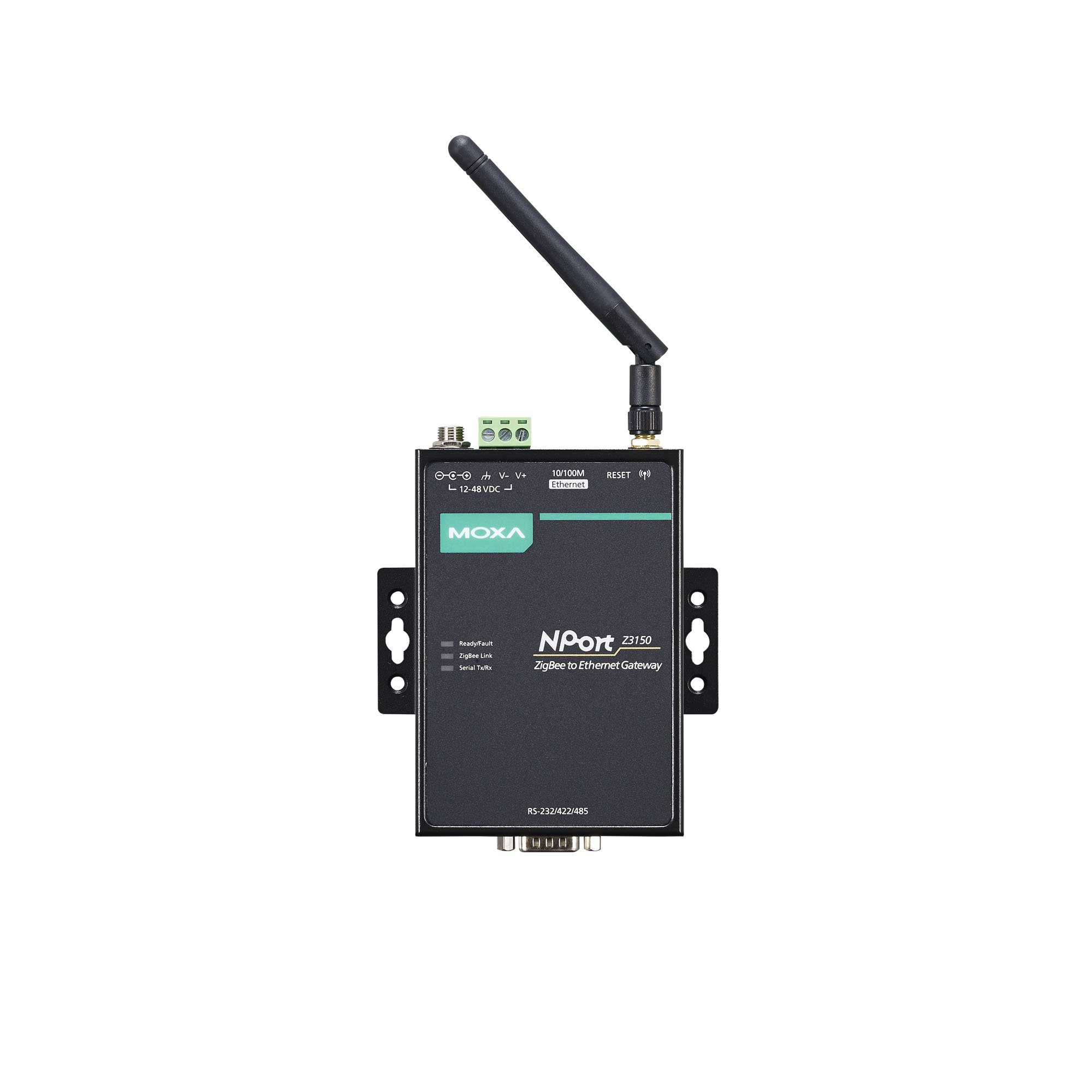

1-port RS-232/422/485 to ZigBee converter or ZigBee-to-Ethernet gateway

moxa-nport-z2150-z3150-series-image-1-(1).jpg | Moxa
moxa-nport-z2150-z3150-series-image-2-(1).jpg | Moxa
moxa-nport-z2150-z3150-series-image-3-(1).jpg | Moxa
moxa-nport-z2150-z3150-series-image-4-(1).jpg | Moxa
moxa-nport-z2150-z3150-series-image-5-(1).jpg | Moxa
moxa-nport-z2150-z3150-series-image-6-(1).jpg | Moxa
moxa-nport-z2150-z3150-series-image-7-(1).jpg | Moxa

Features and Benefits

  • IEEE 802.15.4/ZigBee compliant
  • Network topologies: mesh/star/cluster tree
  • 128-bit AES hardware encryption
  • Enhanced surge protection for serial and power
  • Dual DC power inputs (NPort Z3150)
  • Easy-to-use configuration utility

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa

Contact Sales

Introduction

The NPort Z2150 and NPort Z3150 are IEEE 802.15.4/ZigBee compliant, providing a reliable wireless solution for serial-to-ZigBee networks requiring minimal wiring presence. The NPort Z2150 can be configured as a ZigBee coordinator (ZC), a ZigBee router (ZR), or a ZigBee end device (ZED). Any serial device can be connected to the NPort Z2150 and exchange data via PAN. A user-friendly utility is provided to configure the device type and network settings in a few simple steps.

ZigBee Coordinator

The figure shows a typical topology of a ZigBee network. The NPort Z3150 is the ZigBee coordinator (ZC) connected to numerous ZigBee routers (ZR), and the routers are connected to the end devices (ZED).

Surge Protection for Serial and Power

Surge, which is typically caused by high voltages that result from switching and lightning transients, is a common threat to all electrical devices. Moxa’s leading-edge surge immunity solution, which is applied to the NPort Z2150/Z3150’s serial and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This surge protection provides a robust solution that can protect electrical devices from voltage spikes and withstand electrically noisy environmental conditions.

  • 10/100BaseT(X) Ports (RJ45 connector)

    NPort Z3150: 1

  • 10/100BaseT(X) Port

    NPort Z3150: Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    NPort Z3150: 1.5 kV (built-in)

  • Windows Real COM Drivers

    NPort Z3150: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Connector

    DB9 male

  • No. of Ports

    1

  • Serial Standards

    RS-232, RS-422, RS-485

  • Operation Modes

    NPort Z3150: Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode

  • Baudrate

    NPort Z2150 Series: 50 bps to 230.4 kbps
    NPort Z3150 Series: 50 bps to 921.6 kbps

  • Data Bits

    NPort Z2150 Series: 8
    NPort Z3150 Series: 5, 6, 7, 8

  • Stop Bits

    1, 2

  • Parity

    NPort Z2150 Series: None, Even, Odd
    NPort Z3150 Series: None, Even, Odd, Mark, Space

  • Flow Control

    NPort Z2150 Series: None, RTS/CTS
    NPort Z3150 Series: None, RTS/CTS, XON/XOFF

  • RS-485 Data Direction Control

    ADDC® (automatic data direction control)

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Frequency Band

    2.4 GHz

  • Receiver Sensitivity

    -96 dBm

  • Transmission Distance

    Up to 100 meters (in open areas)

  • Transmission Rate

    250 kbps

  • Transmitter Power

    4.5 dBm (max.)

  • Wireless Security

    128-bit AES

  • ZigBee Antenna Connector

    1 RP-SMA male

  • ZigBee Standards

    802.15.4/ZigBee compliant

  • ZigBee Topology

    Star, Mesh, Cluster tree

  • Antenna

    External, 2 dBi

  • No. of Power Inputs

    NPort Z2150 Series: 1
    NPort Z3150 Series: 2

  • Input Current

    NPort Z2150 Series: 45 mA @ 12 VDC
    NPort Z3150 Series: 120 mA @ 12 VDC

  • Input Voltage

    NPort Z3150 Series: 12 to 48 VDC, redundant dual inputs

  • Overload Current Protection

    NPort Z3150: Supported
    NPort Z3150-T: Supported

  • Housing

    Aluminum

  • IP Rating

    IP30

  • Dimensions (with ears)

    NPort Z2150 Series: 50 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)
    NPort Z3150 Series: 77 x 111 x 26 mm (3.33 x 4.37 x 1.02 in)

  • Dimensions (without ears)

    NPort Z2150 Series: 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in)
    NPort Z3150 Series: 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)

  • Weight

    NPort Z2150 Series: 340 g (0.75 lb)
    NPort Z3150: 780 g (1.72 lb)

  • Installation

    DIN-rail mounting (with optional kit), Wall mounting

  • Operating Temperature

    Standard Models: 0 to 55°C (32 to 131°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-140 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 MHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11 DIPs

  • Environmental Testing

    IEC 60068-2-1
    IEC 60068-2-2
    IEC 60068-2-3
    IEC 60068-2-14

  • Radio Frequency

    EN 301 893, EN 300 328, EN 301 489-1/17, EN 301 489-1

  • Safety

    IEC 60950-1

  • Vibration

    IEC 60068-2-6

  • Time

    NPort Z2150 Series: 2,542,774 hrs
    NPort Z3150 Series: 1,109,589 hrs

  • Standards

    Telcordia (Bellcore), GB
