UPort 204/207 Series

4 and 7-port entry-level USB hubs

moxa-uport-204-207-series-image-1-(1).jpg | Moxa
moxa-uport-204-207-series-image-2-(1).jpg | Moxa
moxa-uport-204-207-series-image-3-(1).jpg | Moxa
moxa-uport-204-207-series-image-4-(1).jpg | Moxa
moxa-uport-204-207-series-image-5-(1).jpg | Moxa
moxa-uport-204-207-series-image-6-(1).jpg | Moxa
moxa-uport-204-207-series-image-7-(1).jpg | Moxa

Features and Benefits

  • Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
  • USB-IF certification
  • 15 kV ESD Level 4 protection for all USB ports
  • Comprehensive diagnostic LEDs
  • Full 500 mA of power per port
  • Chooses bus power or external power (UPort 404)

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The UPort® 204 and UPort® 207 are entry-level USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission through each port, even for heavy-load applications. The UPort® 204 and UPort® 207 have received the USB-IF Hi-Speed certification and are fully plug and play. 500 mA of power per port ensures that your USB devices will function properly, and using 12 to 40 VDC of power makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.

USB-IF Certification

The UPort® 204/207 USB 2.0 entry-level USB hubs are USB-IF (USB Implementers Forum) certified. The USB-IF certification confirms compatibility with a number of electrical requirements for the Hi-Speed USB operation of USB hubs designed in accordance with the USB 2.0 specifications. This means that the UPort® 204/207 supports Hi-Speed USB 2.0 for up to 480 Mbps USB transmission, which is compliant with interoperability requirements, has enough power for devices to function, and provides a successful transition back to high-speed operation from the suspended state.

ESD Level 4 Protection

Electrostatic discharge (ESD) could be as severe as having more than 1,000 volts of ESD with a high rise-time (dv/dt) breaking through the junction layer of protective devices. In order to avoid serious damage, our UPort® 204/207 USB hubs provide ESD Level 4 (contact 8 kV, air 15 kV) protection, which increases the quality and value of the user’s end product.

  • Speed

    12 Mbps, 480 Mbps

  • USB Connector

    USB Type B

  • USB Standards

    USB 1.1/2.0 compliant

  • No. of USB Ports

    UPort 204: 4
    UPort 207: 7

  • Input Voltage

    12 to 40 VDC

  • Input Current

    UPort 204: 1.21 A @ 12 VDC
    UPort 207: 2.17 A @ 12 VDC

  • Housing

    Polycarbonate (PC)

  • Dimensions

    UPort 204: 70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in)
    UPort 207: 80 x 35 x 185 mm (3.15 x 1.38 x 4.72 in)

  • Weight

    Packaged
    UPort 204: 805 g (1.87 lb)
    UPort 207: 890 g (1.96 lb)
    Product only:
    UPort 204: 800 g (1.76 lb)
    UPort 207: 875 g (1.93 lb)

  • Operating Temperature

    0 to 60°C (32 to 140°F)

  • Storage Temperature (package included)

    -20 to 75°C (-4 to 167°F)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV
    IEC 61000-4-5 Surge: Power: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 0 V/m
    IEC 61000-4-8 PFMF

  • Environmental Testing

    IEC 60068-2-1
    IEC 60068-2-3

  • Freefall

    IEC 60068-2-34

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    UPort 204: 1,577,573 hrs
    UPort 207: 1,059,201 hrs

  • Standards

    Telcordia (Bellcore), GB

Support Documents

Name Type Version Release Date
Datasheet for UPort 204/207 Series
605.0 KB
Datasheet v1.0 2018-11-12 Nov 12, 2018
QIG for UPort 204/207 Series
2.0 MB
QIG v4.0 2016-11-11 Nov 11, 2016
3D CAD for UPort 204
402.5 KB
3D CAD 2010-03-03 Mar 03, 2010
3D CAD for UPort 207
542.2 KB
3D CAD 2010-03-03 Mar 03, 2010
2D CAD for UPort 204 TOP
80.3 KB
2D CAD 2010-03-03 Mar 03, 2010
2D CAD for UPort 207 TOP
92.2 KB
2D CAD 2010-03-03 Mar 03, 2010

Available Models (2)

Show Images
moxa-uport-204-image.jpg | MoxaUPort 204moxa-uport-207-image.jpg | MoxaUPort 207
USB InterfaceUSB 2.0USB 2.0
No. of USB Ports47
Housing MaterialPolycarbonate (PC)Polycarbonate (PC)
Operating Temp.0 to 60°C0 to 60°C
Power Adapter Included
Add to QuoteView BagAdd to QuoteView Bag
Added To Bag

UPort 204/207 Series

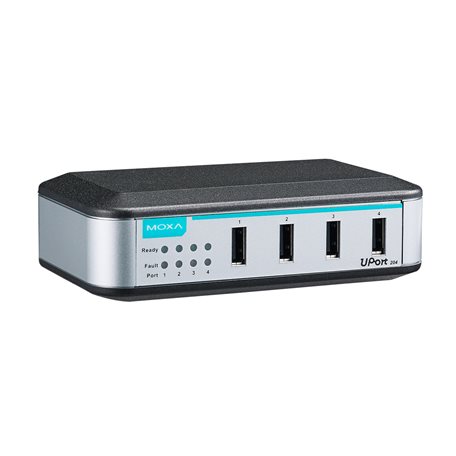

UPort 204

moxa-uport-204-image.jpg | Moxa

Buy online from our distributors

UPort 204/207 Series

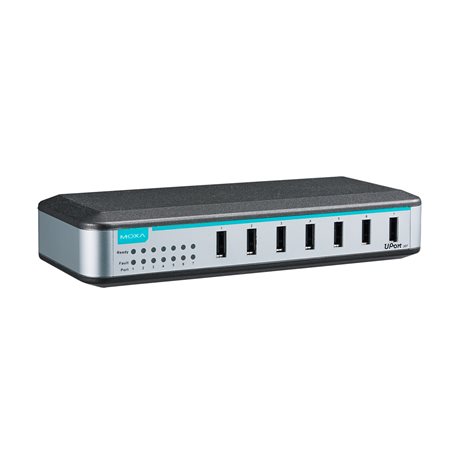

UPort 207
