MOXA

Industrial-Grade USB Hubs

The UPort series of USB hubs is industrial-grade and designed with the ruggedness and reliability needed for industrial applications. Each port has ESD Level 4 protection and provides Super-Speed USB 3.2 data rates up to 5 Gbps—even for heavy-load applications. The UPort Series includes models with dual power inputs, DIN-rail mounting options, and wide temperature models that operate reliably even in harsh conditions.

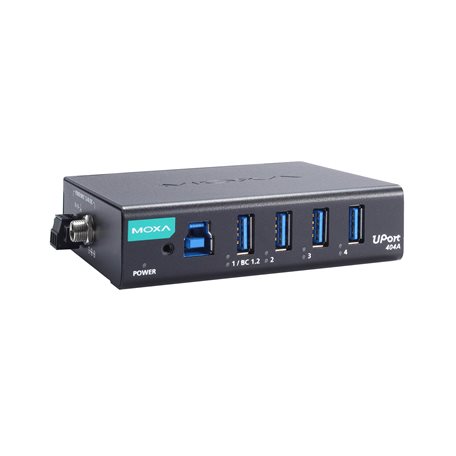

UPort 404A-T
UPort 400A Series

4-port industrial-grade USB 3.2 hubs, -40 to 85°C operating temperature

USB Interface
  • USB Standards

    • USB 3.2 Gen 1
      USB 1.1/2.0 compliant
  • Speed

    • 5 Gbps
  • USB Connector

    • UFP: type B
      DFP: type A
  • No. of USB Ports

    • 5 (UFP: 1, DFP 4)
Power Parameters
  • Input Voltage

    • 12 to 48 VDC
      No. of power inputs: 2
  • Power Connector

    • Power jack
      3-pin terminal block
  • Reverse Polarity Protection

    • Supported
  • Input Current

    • 2..8 A @ 12 VDC
  • Output Power Rating

    • Port 1: 900 mA / 1500 mA @ 5 VDC, BC 1.2 compliant
      Rest of ports: 900 mA @ 5 VDC
Physical Characteristics
  • Housing

    • Metal
  • Dimensions

    • 85 x 27 x 100 mm (3.35 x 1.06 x 3..94 in)
  • Weight

    • 264 g (0.58 lb)
  • Installation

    • Wall mounting (with optional kit)
      DIN-rail mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m
      IEC 61000-4-8 PFMF
  • Safety

    • EN 62368-1
      UL 62368-1
      KC
  • Environmental Testing

    • IEC 60068-2-1
  • Freefall

    • IEC 60068-2-34
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Standards

    • Telcordia (Bellcore), GB
  • Time

    • 2,107,973 hrs
