UPort 404/407 Series

4 and 7-port industrial-grade USB hubs

moxa-uport-404-407-series-image-1-(1).jpg | Moxa
moxa-uport-404-407-series-image-2-(1).jpg | Moxa
moxa-uport-404-407-series-image-3-(1).jpg | Moxa
moxa-uport-404-407-series-image-4-(1).jpg | Moxa
moxa-uport-404-407-series-image-5-(1).jpg | Moxa
moxa-uport-404-407-series-image-6-(1).jpg | Moxa
moxa-uport-404-407-series-image-7-(1).jpg | Moxa

Features and Benefits

  • Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
  • USB-IF certification
  • Dual power inputs (power jack and terminal block)
  • 15 kV ESD Level 4 protection for all USB ports
  • Rugged metal housing
  • DIN-rail and wall-mountable
  • Comprehensive diagnostic LEDs
  • Chooses bus power or external power (UPort 404)

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The UPort® 404 and UPort® 407 are industrial-grade USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission rates through each port, even for heavy-load applications. The UPort® 404/407 have received USB-IF Hi-Speed certification, which is an indication that both products are reliable, high-quality USB 2.0 hubs. In addition, the hubs are fully compliant with the USB plug-and-play spec and provide a full 500 mA of power per port, ensuring that your USB devices function properly. The UPort® 404 and UPort® 407 hubs’ support 12-40 VDC power, which makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.

USB-IF Certification

The UPort® 404 and UPort® 407 USB 2.0 industrial-grade USB hubs have received the USB-IF (USB Implementers Forum) certification. USB-IF verifies a number of strict electrical requirements for the high-speed USB operation of USB hubs designed to the USB 2.0 specification. This means that the UPort® 404/407 support Hi-Speed USB 2.0 for up to 480 Mbps USB transmission, which is fully compliant with interoperability requirements, has enough power for devices to function, and facilitates a smooth transition back to high-speed operation from the suspended state.

ESD Level 4 Protection

Electrostatic discharge (ESD) could be as severe as having more than 1,000 volts of ESD with a high rise-time (dv/dt) breaking through the junction layer of protective devices. In order to avoid serious damage, Moxa’s UPort® 404/407 USB hubs provide ESD Level 4 (contact 8 kV, air 15 kV) protection, which increases the quality and value of the user’s end product.

  • Speed

    12 Mbps, 480 Mbps

  • USB Connector

    USB Type B

  • USB Standards

    USB 1.1/2.0 compliant

  • No. of USB Ports

    UPort 404 Series: 4
    UPort 407 Series: 7

  • Input Current

    UPort 404 Series: 1.3 A @ 12 VDC
    UPort 407 Series: 2.3 A @ 12 VDC

  • Input Voltage

    12 to 40 VDC

  • Housing

    Aluminum

  • Dimensions

    UPort 404 Series: 80 x 35 x 130 mm (3.15 x 1.38 x 5.12 in)
    UPort 407 Series: 100 x 35 x 192 mm (3.94 x 1.38 x 7.55 in)

  • Weight

    Packaged:
    UPort 404 Series: 855 g (1.88 lb)
    UPort 407 Series: 965 g (2.13 lb)

    Product Only:
    UPort 404 Series: 850 g (1.87 lb)
    UPort 407 Series: 950 g (2.1 lb)

  • Installation

    DIN-rail mounting (optional), Wall mounting (with optional kit)

  • Operating Temperature

    Standard Models: 0 to 60°C (32 to 140°F)
    Wide Temp. Models: -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    Standard Models: -20 to 75°C (-4 to 167°F)
    Wide Temp. Models: -40 to 85°C (-40 to 185°F)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV
    IEC 61000-4-5 Surge: Power: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 0 V/m
    IEC 61000-4-8 PFMF

  • Environmental Testing

    IEC 60068-2-1

  • Safety

    UL 508

  • Freefall

    IEC 60068-2-34

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    UPort 404 Series: 1,490,340 hrs
    UPort 407 Series: 1,111,361 hrs

  • Standards

    Telcordia (Bellcore), GB

Support Documents

Name Type Version Release Date
Datasheet for UPort 404/407 Series
696.9 KB
Datasheet v1.0 2018-11-11 Nov 11, 2018
3D CAD for UPort 404
354.6 KB
3D CAD 2010-03-03 Mar 03, 2010
3D CAD for UPort 407
288.9 KB
3D CAD 2010-03-03 Mar 03, 2010
2D CAD for UPort 404
651.0 KB
2D CAD 2010-03-03 Mar 03, 2010
2D CAD for UPort 404 PCB
378.9 KB
2D CAD 2010-03-03 Mar 03, 2010
2D CAD for UPort 407 TOP
146.1 KB
2D CAD 2010-03-03 Mar 03, 2010
QIG for UPort 404/407 Series
2.0 MB
QIG v4.0 2009-01-23 Jan 23, 2009

Available Models (4)

Show Images
moxa-uport-404-image.jpg | MoxaUPort 404moxa-uport-407-image.jpg | MoxaUPort 407moxa-uport-404-t-image.jpg | MoxaUPort 404-Tmoxa-uport-407-t-image.jpg | MoxaUPort 407-T
USB InterfaceUSB 2.0USB 2.0USB 2.0USB 2.0
No. of USB Ports4747
Housing MaterialAluminumAluminumAluminumAluminum
Operating Temp.0 to 60°C0 to 60°C-40 to 85°C-40 to 85°C
Power Adapter Included
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Added To Bag

UPort 404/407 Series

UPort 404

moxa-uport-404-image.jpg | Moxa

Buy online from our distributors

UPort 404/407 Series

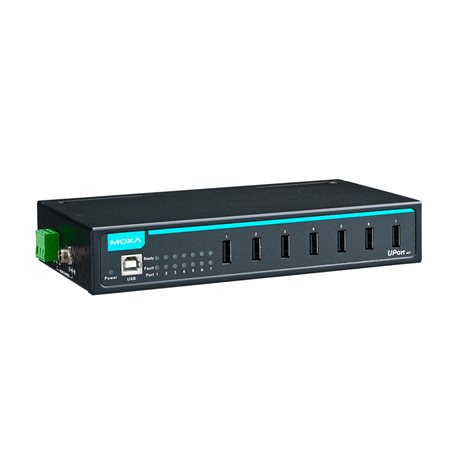

UPort 407

moxa-uport-407-image.jpg | Moxa

Buy online from our distributors

UPort 404/407 Series

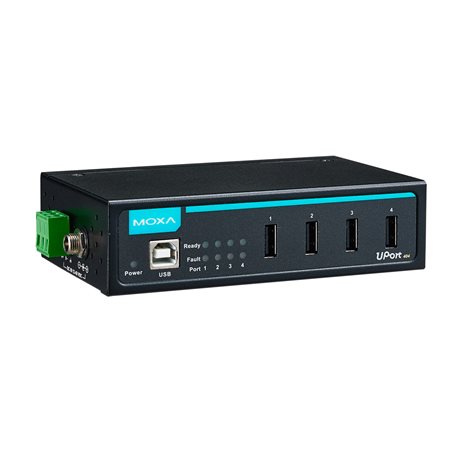

UPort 404-T
