USB-to-Serial Converters

Moxa's UPort USB-to-serial converters provide computers with high performance, industrial-grade connections for up to 16 serial devices over a single USB port. A wide range of converters are available with features that include SuperSpeed USB 3.2 and Hi-Speed USB 2.0, advanced UARTs for high-end serial performance, COM port mapping, fixed-base COM functionality, and more.

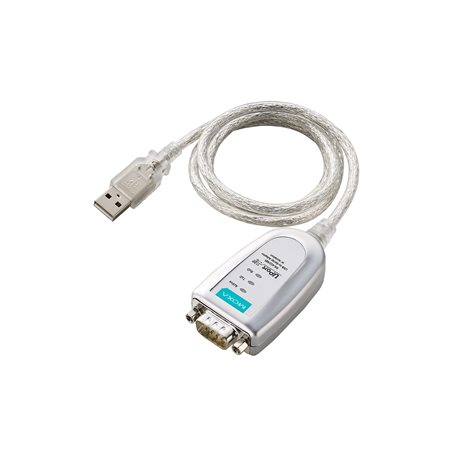

UPort 1130I
UPort 1100 Series

1-port RS-422/485 USB-to-serial converter with 2 kV optical isolation

USB Interface
  • Speed

    • 12 Mbps
  • USB Connector

    • USB Type A
  • USB Standards

    • USB 2.0 compatible, USB 1.0/1.1 compliant
Serial Interface
  • No. of Ports

    • 1
  • Connector

    • DB9 male
  • Baudrate

    • 50 bps to 921.6 kbps
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • None
      RTS/CTS
      XON/XOFF
  • Isolation

    • 2 kV
  • Serial Standards

    • RS-422/485
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Serial Software Features
  • Windows Drivers

    • Windows 11, 10, 8.1, 8, 7, Vista, ME, and XP
      Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
  • Linux Drivers

    • Kernel 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
  • Mac Drivers

    • macOS 10.12 to 10.15
  • Arm®-based Platform Support

    • Linux kernel 6.x, 5.x, and 4.x
      Windows 11
  • Virtual Machine

    • VMware Fusion (Windows on macOS 10.12 to 10.15)
      VMWare ESXi (Windows 7 to 10, Windows Server 2008 R2 to 2019)
      VMWare ESXi (Linux kernel 5 and 4)
      Parallels Desktop (Windows on macOS 10.12 to 10.15)
  • Android API

    • Android 3.1.x and later
Power Parameters
  • Input Voltage

    • 5 VDC
  • Input Current

    • 65 mA
Physical Characteristics
  • Housing

    • ABS + Polycarbonate
  • Dimensions

    • 37.5 x 20.5 x 60 mm (1.48 x 0.81 x 2.36 in)
  • Weight

    • 200 g (0.44 lb)
Environmental Limits
  • Operating Temperature

    • 0 to 55°C (32 to 131°F)
  • Storage Temperature (package included)

    • -20 to 70°C (-4 to 158°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class 1
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m
      IEC 61000-4-8 PFMF
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 1,949,025 hrs
  • Standards

    • MIL-HDBK-217F
      Telcordia (Bellcore), GB
