UPort 1200/1400/1600 Series

2 to 16-port RS-232, RS-422/485, and RS-232/422/485 USB-to-serial converters

moxa-uport-1200-1400-1600-series-image-(1).jpg | Moxa

Features and Benefits

  • Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
  • 921.6 kbps maximum baudrate for fast data transmission
  • Drivers provided for Windows, WinCE, and Linux
  • Mini-DB9-female-to-terminal-block adapter for easy wiring
  • LEDs for indicating USB and TxD/RxD activity
  • 2 kV isolation protection (for “-I” models)

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The UPort® 1200/1400/1600 Series of USB-to-serial converters is the perfect accessory for laptop or workstation computers that do not have a serial port. They are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector.

The UPort® 1200/1400/1600 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices, and can be used with instrumentation and point-of-sale applications.

  • Speed

    12 Mbps, 480 Mbps

  • USB Connector

    USB Type B

  • USB Standards

    USB 1.1/2.0 compliant

  • No. of Ports

    UPort 1200 Series: 2
    UPort 1400 Series: 4
    UPort 1600-8 Series: 8
    UPort 1600-16 Series: 16

  • Connector

    DB9 male

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, XON/XOFF

  • Isolation

    2 kV (I models)

  • Serial Standards

    UPort 1410/1610-8/1610-16: RS-232
    UPort 1250/1250I/1450/1650-8/1650-16: RS-232, RS-422, RS-485

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Input Voltage

    UPort1250/1410/1450: 5 VDC UPort 1410/1450 Series: 5 V for USB port power, 12 V for external power adapter
    UPort 1250I/1400/1600-8 Series: 12 to 48 VDC
    UPort 1600-16 Series: 100 to 240 VAC

  • Input Current

    UPort 1250: 360 mA @ 5 VDC
    UPort 1250I: 200 mA @ 12 VDC
    UPort 1410/1450: 260 mA @ 12 VDC
    UPort 1450I: 360 mA @ 12 VDC
    UPort 1610-8/1650-8: 580 mA @ 12 VDC
    UPort 1600-16 Series: 220 mA @ 100 VAC

  • Housing

    Metal

  • Dimensions

    UPort 1250/1250I: 77 x 26 x 111 mm (3.03 x 1.02 x 4.37 in)
    UPort 1410/1450/1450I: 204 x 30 x 125 mm (8.03 x 1.18 x 4.92 in)
    UPort 1610-8/1650-8: 204 x 44 x 125 mm (8.03 x 1.73 x 4.92 in)
    UPort 1610-16/1650-16: 440 x 45.5 x 198.1 mm (17.32 x 1.79 x 7.80 in)

  • Weight

    UPort 1250/1250I: 180 g (0.40 lb)
    UPort 1410/1450/1450I: 720 g (1.59 lb)
    UPort 1610-8/1650-8: 835 g (1.84 lb)
    UPort 1610-16/1650-16: 2,475 g (5.45 lb)

  • Operating Temperature

    0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    -20 to 75°C (-4 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class 1

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV
    IEC 61000-4-5 Surge: Power: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m
    IEC 61000-4-8 PFMF

  • Safety

    UL 60950-1

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    UPort 1250/1250I: 563,179 hrs
    UPort 1410: 394,441 hrs
    UPort 1450/1450I: 546,770 hrs
    UPort 1610-8: 208,413 hrs
    UPort 1650-8: 186,567 hrs
    UPort 1610-16: 138,704 hrs
    UPort 1650-16: 120,001 hrs

  • Standards

    UPort 1250/1250I/1410/1450/1450I: Telcordia (Bellcore) Standard
    UPort 1610-8/1650-8/1610-16/1650-16: MIL-HDBK-217F

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
Driver for UPort 1200/1400/1600 Series (Windows 7 or Windows Server 2008 R2 and later, Windows WHQL certified)
3.8 MB
Driver v3.1
Dec 12, 2019 Dec 12, 2019 Release notes
Driver for UPort 1200/1400/1600 Series (Linux kernel 4.x)
343.8 KB
Driver v4.0
Jun 17, 2019 Jun 17, 2019 Release notes
Driver for UPort 1200/1400/1600 Series (Linux kernel 2.4.x/2.6.x)
338.1 KB
Driver v2.0
Jun 17, 2019 Jun 17, 2019 Release notes
Driver for UPort 1200/1400/1600 Series (Linux kernel 3.x)
337.5 KB
Driver v3.0
  • Linux Kernel 3.x
Jun 17, 2019 Jun 17, 2019 Release notes
Driver for UPort 1200/1400/1600 Series (Linux kernel 5.x)
307.5 KB
Driver v5.0
Jun 17, 2019 Jun 17, 2019 Release notes
Driver for UPort 1200/1400/1600 Series (Windows CE 6.0)
481.0 KB
Driver v1.0
  • Windows CE 6.0
Jan 18, 2019 Jan 18, 2019 Release notes
Driver for UPort 1200/1400/1600 Series (Windows CE 5.0)
475.4 KB
Driver v1.1
  • Windows CE 5.0
Jan 18, 2019 Jan 18, 2019 Release notes
Driver for UPort 1100 Series (Windows XP or Windows Server 2008 and prior, Windows WHQL certified)
2.1 MB
Driver v2.0
Aug 14, 2018 Aug 14, 2018 Release notes
Driver for UPort 1200/1400/1600 Series (Android)
4.3 MB
Driver v1.0
  • Android
Aug 23, 2013 Aug 23, 2013 Release notes
Utility for UPort 1200/1400/1600 Series (PComm Lite)
1.6 MB
Utility v1.6
  • Windows
May 14, 2012 May 14, 2012 Release notes
Utility for UPort 1200/1400/1600 Series (ViewCOM for Windows Vista/XP/2000/2003/2008)
434.6 KB
Utility v1.0
Jul 12, 2010 Jul 12, 2010 Release notes

Support Documents

Name Type Version Release Date
Datasheet for UPort 1200/1400/1600 Series
1.1 MB
Datasheet v1.0 Dec 15, 2020 Dec 15, 2020
Manual for UPort 1200/1400/1600 Series
7.9 MB
Manual v8.1 Dec 15, 2020 Dec 15, 2020
QIG for UPort 1200/1400/1600 Series
622.8 KB
QIG v9.0 Nov 02, 2018 Nov 02, 2018
2D CAD for UPort 1250 TOP
621.6 KB
2D CAD Nov 05, 2008 Nov 05, 2008
2D CAD for UPort 1250I Top
675.0 KB
2D CAD Nov 05, 2008 Nov 05, 2008
2D CAD for UPort 1410
299.7 KB
2D CAD Nov 05, 2008 Nov 05, 2008
2D CAD for UPort 1450
299.2 KB
2D CAD Nov 05, 2008 Nov 05, 2008
2D CAD for UPort 1610-16/1650-16 TOP
315.4 KB
2D CAD Nov 05, 2008 Nov 05, 2008
2D CAD for UPort 1610-8_1650-8 TOP
923.1 KB
2D CAD Nov 05, 2008 Nov 05, 2008

Available Models (9)

Show Images
moxa-uport-1250-image.jpg | MoxaUPort 1250moxa-uport-1250i-image.jpg | MoxaUPort 1250Imoxa-uport-1410-image.jpg | MoxaUPort 1410moxa-uport-1450-image.jpg | MoxaUPort 1450
USB InterfaceUSB 2.0USB 2.0USB 2.0USB 2.0
Serial StandardsRS-232/422/485RS-232/422/485RS-232RS-232/422/485
No. of Serial Ports2244
Isolation2 kV
Housing MaterialMetalMetalMetalMetal
Operating Temp.0 to 55°C0 to 55°C0 to 55°C0 to 55°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-uport-1450i-image.jpg | MoxaUPort 1450Imoxa-uport-1610-8-image.jpg | MoxaUPort 1610-8moxa-uport-1650-8-image.jpg | MoxaUPort 1650-8moxa-uport-1610-16-image.jpg | MoxaUPort 1610-16
USB InterfaceUSB 2.0USB 2.0USB 2.0USB 2.0
Serial StandardsRS-232/422/485RS-232RS-232/422/485RS-232
No. of Serial Ports48816
Isolation2 kV
Housing MaterialMetalMetalMetalMetal
Operating Temp.0 to 55°C0 to 55°C0 to 55°C0 to 55°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-uport-1650-16-image.jpg | MoxaUPort 1650-16
USB InterfaceUSB 2.0
Serial StandardsRS-232/422/485
No. of Serial Ports16
Isolation
Housing MaterialMetal
Operating Temp.0 to 55°C
Add to QuoteView Bag
Added To Bag

UPort 1200/1400/1600 Series

UPort 1250

moxa-uport-1250-image.jpg | Moxa

Buy online from our distributors

UPort 1200/1400/1600 Series

UPort 1250I

moxa-uport-1250i-image.jpg | Moxa

Buy online from our distributors

UPort 1200/1400/1600 Series

UPort 1410

moxa-uport-1410-image.jpg | Moxa

Buy online from our distributors

UPort 1200/1400/1600 Series

UPort 1450

moxa-uport-1450-image.jpg | Moxa

Buy online from our distributors

UPort 1200/1400/1600 Series

UPort 1450I

moxa-uport-1450i-image.jpg | Moxa

Buy online from our distributors

UPort 1200/1400/1600 Series

UPort 1610-8

moxa-uport-1610-8-image.jpg | Moxa

Buy online from our distributors

UPort 1200/1400/1600 Series

UPort 1650-8

moxa-uport-1650-8-image.jpg | Moxa

Buy online from our distributors

UPort 1200/1400/1600 Series

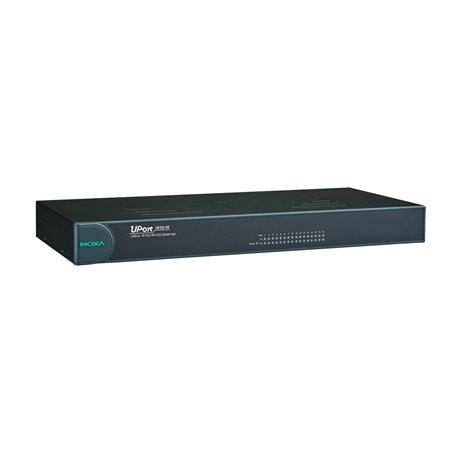

UPort 1610-16

moxa-uport-1610-16-image.jpg | Moxa

Buy online from our distributors

UPort 1200/1400/1600 Series

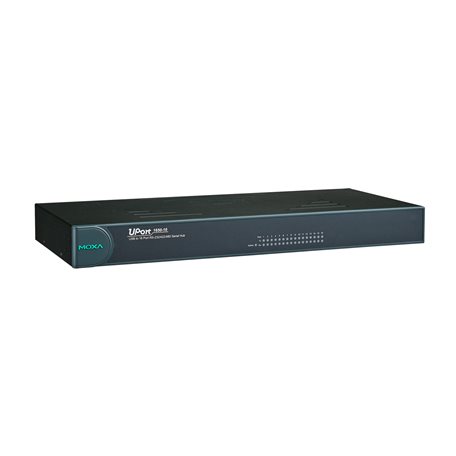

UPort 1650-16
