UPort 1600-8-G2 Series

8-port RS-232/422/485 USB-to-serial converters

moxa-uport-1600-8-g2-series-image-(1).jpg | Moxa
moxa-uport-1600-8-g2-series-image-1-(1).jpg | Moxa
moxa-uport-1600-8-g2-series-image-2-(1).jpg | Moxa
moxa-uport-1600-8-g2-series-image-3-(1).jpg | Moxa
moxa-uport-1600-8-g2-series-image-4-(1).jpg | Moxa
moxa-uport-1600-8-g2-series-image-5-(1).jpg | Moxa
moxa-uport-1600-8-g2-series-image-6-(1).jpg | Moxa

Features and Benefits

  • USB 3.2 SuperSpeed capability
  • 512-byte on-chip FIFO cache and flow control for enhanced performance
  • Drivers provided for a broad selection of operating systems, including Windows and Linux
  • 50 bps to 921.6 kbps baudrate (nonstandard baudrates supported)
  • Double-sided LEDs located at the corners show power, TX, and RX statuses in either directions
  • Cascades with 3 UPort-G2 devices to up port capacity to 32 ports; no additional power adaptors required (UPort 1650-8-G2-Hub)
  • Latching USB cable design for firmer connection
  • Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
  • Serial port with 2 kV isolation protection (for “-I” models)

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-kc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The UPort® 1600-8-G2 Series USB-to-serial converters are ideal for laptop or workstation computers that need serial port expansion. They are essential for computers which need to connect different serial devices in the field or need separate interface converters for devices without a standard COM port or DB9 connector. The computers also come with a USB cable that has a latch and screw lock for a more secure connection between the UPort and your computer. With the cascading capability of the UPort® 1650-8-G2-Hub, you can link up to 32 serial ports without a power adaptor to the UPort. The UPort® 1600-8-G2 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices and can be used with instrumentation and point-of-sale applications.

  • USB Standards

    USB 3.2 Gen 1
    USB 1.1/2.0 compliant

  • Speed

    5 Gbps, 480 Mbps, 12 Mbps

  • No. of USB Ports

    1 x UFP for all models, and 3 additional DFP for UPort 1650-8-G2-Hub

  • USB Connector

    USB type B (UFP) for all models, and type A (DFP) for UPort 1650-8-G2-Hub

  • Connector

    DB9 male

  • No. of Ports

    8

  • Serial Standards

    RS-232: UPort 1610-8-G2
    RS-232/422/485: All other models

  • FIFO

    512 bytes

  • Baudrate

    50 bps to 921.6 kbps (supports non-standard baudrates)

  • Parity

    None, Even, Odd, Space, Mark

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Flow Control

    RTS/CTS, XON/XOFF

  • RS-485 Data Direction Control

    Automatic Data Direction Control (ADDC)

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • Surge

    0.5 kV

  • Isolation

    2 kV (I models)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Windows Drivers

    Windows 11, 10, 8.1, 8, and 7
    Windows Server 2022, 2019, 2016, 2012 R2, 2012 and 2008 R2

  • Linux Drivers

    Kernel 6.x, 5.x and 4.x

  • Mac Drivers

    macOS version (Intel 64): 13, 12, 11 and 10.1x

  • Virtual Machine

    VMware Fusion (Windows on macOS 13, 12, 11, 10.1x, Intel 64) VMWare ESXi (Linux kernel 4)
    Parallels Desktop (Windows on macOS 13, 12, 11, 10.1x, Intel 64)

  • Arm®-based Platform Support

    Linux kernel 6.x, 5.x and 4.x

  • Android API

    Android 3.1.x and later

  • Input Voltage

    UPort 1610-8-G2/1650-8-G2 models:
    5 VDC by USB bus power or 12 to 48 VDC by external power adaptor

    UPort 1650I-8-G2 models/1650-8-G2-Hub:
    12 to 48 VDC by external power adaptor

  • Input Current

    UPort 1610-8-G2: 308 mA @ USB 2.0, 495 mA @ USB 3.2, 260 mA @ 12 VDC
    UPort 1650-8-G2 models: 466 ma @ USB 2.0, 652 mA & USB 3.2, 350 mA @ 12 VDC
    UPort 1650I-8-G2 models: 530 mA @ 12 VDC
    UPort 1650-8-G2-Hub: 2,250 mA @ 12 VDC

  • Output Power Rating

    UPort 1650-8-G2-Hub: 900 mA @ 5 VDC (USB 3.2)
    500 mA @ 5 VDC (USB 2.0)

  • Housing

    Metal

  • Dimensions

    216 x 41.5 x 121.6 mm (8.50 x 1.63 x 4.79 in)

  • Weight

    UPort 1610-8-G2: 650 g (1.43 lb)
    UPort 1650-8-G2 models: 670 g (1.48 lb)
    UPort 1650I-8-G2 models: 678 g (1.49 lb)
    UPort 1650-8-G2-Hub: 689 g (1.52 lb)

  • IP Rating

    IP20

  • Operating Temperature

    Standard models: 0 to 60°C (32 to 140°F)
    -T models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV
    IEC 61000-4-5 Surge: Power: 1 kV, Signal: 0.5 kV
    IEC 61000-4-6 CS: 3 V; 150 kHz to 80 MHz
    IEC 61000-4-8 PFMF

  • Safety

    IEC 62368-1
    EN 62368-1
    UL 62368-1 (CB)
    KC

  • Vibration

    IEC 60068-2-6
    IEC 60068-2-64

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-31

  • Green Product

    RoHS, CRoHS, WEEE

  • Standards

    Telcordia Standard SR332, Telcordia Issue 2

  • Time

    UPort 1610-8-G2: 1,431,860 hrs
    UPort 1650-8-G2 models: 951,145 hrs
    UPort 1650I-8-G2 models: 782,795 hrs
    UPort 1650-8-G2-Hub: 823,983 hrs

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Driver for UPort 1200/1400/1600/G2 Series (Windows XP or Windows Server 2008 and prior, WHQL certified)
1.4 MB
Driver
SHA-512
v2.1
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
Mar 07, 2024 Mar 07, 2024 Release notes
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Windows 11 and Windows Server 2022 and later, WHQL certified)
8.6 MB
Driver
SHA-512
v4.1
  • Windows
  • Windows 11
  • Windows Server 2022
Oct 13, 2023 Oct 13, 2023 Release notes
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Linux kernel 6.x)
644.1 KB
Driver
SHA-512
v6.1
  • Linux Kernel 6.x
Oct 13, 2023 Oct 13, 2023 Release notes
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Linux kernel 5.x)
646.4 KB
Driver
SHA-512
v5.2
  • Linux Kernel 5.x
Oct 13, 2023 Oct 13, 2023 Release notes
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Linux kernel 4.x)
722.5 KB
Driver
SHA-512
v4.2
  • Linux Kernel 4.x
Oct 13, 2023 Oct 13, 2023 Release notes
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
11.4 MB
Driver
SHA-512
v3.3
  • Windows
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
Oct 13, 2023 Oct 13, 2023 Release notes
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (macOS 10.12 to 13)
413.6 KB
Driver
SHA-512
v1.1
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
  • macOS 11
  • macOS 12
  • macOS 13
Oct 13, 2023 Oct 13, 2023 Release notes
PComm Lite Suite - Serial Communication Tool for Windows
3.5 MB
Utility
SHA-512
v1.7
  • Windows
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
Jun 19, 2023 Jun 19, 2023 Release notes

Support Documents

Name Type Version Release Date
FOSS Statement for UPort 1200, 1400, 1600, 1200-G2, 1400-G2 and 1600-8-G2 Series macOS Driver
115.8 KB
Declaration v1.0 Oct 29, 2024 Oct 29, 2024
FOSS Statement for UPort 1200, 1400, 1600, 1200-G2, 1400-G2 and 1600-8-G2 Series Windows Driver
187.6 KB
Declaration v1.0 Oct 29, 2024 Oct 29, 2024
Datasheet for UPort 1600-8-G2 Series
1.1 MB
Datasheet v1.2 Mar 07, 2024 Mar 07, 2024
QIG for UPort 1600-8-G2 Series
3.5 MB
QIG v1.1 Mar 05, 2024 Mar 05, 2024
Manual for UPort 1200-G2/1400-G2/1600-8-G2 Series
10.3 MB
Manual v2.0 Jan 31, 2024 Jan 31, 2024
Declaration of Conformity for UPort 1600-8-G2 Series
314.3 KB
Declaration v1.0 Dec 19, 2023 Dec 19, 2023
Tech Note: UPort Driver Arm-based Platform Porting Guide
423.1 KB
Tech Note v1.2 Oct 13, 2023 Oct 13, 2023
QIG for UPort 1400-G2 and UPort 1600-8-G2 Series
4.4 MB
QIG v1.0 Oct 13, 2023 Oct 13, 2023

Available Models (6)

Show Images

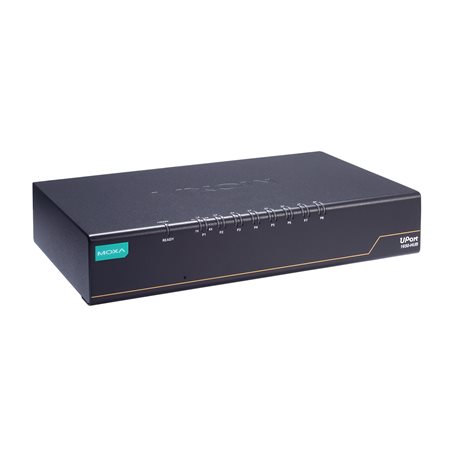

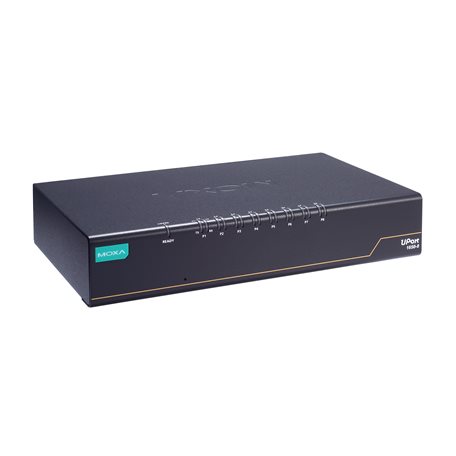

moxa-uport-1610-8-g2-image.jpg | MoxaUPort 1610-8-G2moxa-uport-1650-8-g2-image.jpg | MoxaUPort 1650-8-G2moxa-uport-1650-8-g2-t-image.jpg | MoxaUPort 1650-8-G2-Tmoxa-uport-1650-8-g2-hub-image.jpg | MoxaUPort 1650-8-G2-Hub
Serial StandardsRS-232RS-232/422/485RS-232/422/485RS-232/422/485
No. of Serial Ports8888
Isolation----
Power InputUSB bus power/
Power adapter
USB bus power/
Power adapter
USB bus power/
Power adapter
Power adapter
Operating Temp. 0 to 60°C 0 to 60°C -40 to 75°C 0 to 60°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-uport-1650i-8-g2-image.jpg | MoxaUPort 1650I-8-G2moxa-uport-1650i-8-g2-t-image.jpg | MoxaUPort 1650I-8-G2-T
Serial StandardsRS-232/422/485RS-232/422/485
No. of Serial Ports88
Isolation2 kV2 kV
Power InputPower adapterPower adapter
Operating Temp. 0 to 60°C -40 to 75°C
Add to QuoteView BagAdd to QuoteView Bag
