MOXA

Cellular Gateways

Moxa's cellular gateways provide reliable and secure connectivity for remote devices that are difficult to wire, enabling network access in hard-to-reach or distributed environments. Tailor-made for industrial applications, these easy-to-configure gateways deliver stable connectivity for critical edge devices even in the harshest environments.

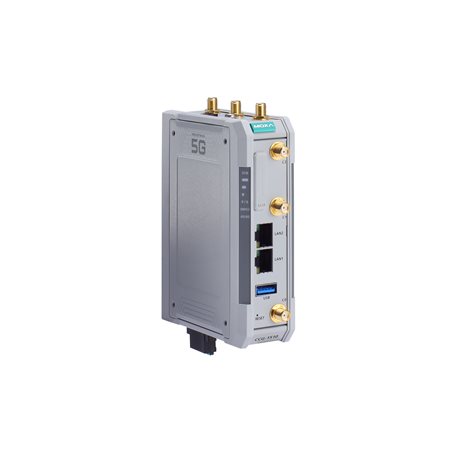

CCG-1510-TW-T
CCG-1500 Series

Industrial private 5G cellular gateway, N78 band for TW, IP30, -40 to 70°C operating temperature

Cellular Interface

  • Cellular Standards

    • 5G Release 15

  • Data Rate

    • 950 Mbps DL, 450 Mbps UL

  • Frequency Bands Supported

    • 5G: n1 (FDD 2100) MHz / n3 (FDD 1800) MHz / n28 (FDD 700) MHz / n41 (TDD 2500) MHz / n78 (TDD 3500) MHz
      4G: LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 28 (700 MHz) / LTE Band 38 (2600 MHz)

  • No. of SIMs

    • 2 Push-eject tray type

  • SIM Format

    • Nano SIM

  • Cellular Antenna Connectors

    • 6 x SMA female
Ethernet Interface

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 2

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3ab for 1000BaseT(X)
Input/Output Interface

  • Buttons

    • Reset button
USB Interface

  • No. of USB Ports

    • 1

  • USB Connector

    • USB Type A

  • USB Standards

    • USB 3.0
Serial Interface

  • No. of Ports

    • 1

  • Console Port

    • 1 x 3-pin header to DB9 console port

  • Serial Standards

    • RS-232/422/485

  • Data Bits

    • 5, 6, 7, 8

  • Parity

    • None, Even, Odd, Space, Mark

  • Stop Bits

    • 1, 1.5, 2

  • Baudrate

    • 9600 bps to 115.2 kbps
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
LED Interface

  • LED Indicators

    • SIG, P/S, SIM1/2, 4G/5G
Ethernet Software Features

  • Configuration Options

    • Web Console (HTTPS)

  • Management

    • Account Permission

  • Network Protocols

    • LwM2M Client

  • Routing

    • IP Passthrough
      Modbus RTU to TCP

  • Time Management

    • NTP Client

  • Tunneling

    • VXLAN
Wireless Software Features

  • Management

    • Keep Alive
Firewall

  • Filter

    • ICMP
      IP address
      DoS
NAT

  • Features

    • Port forwarding
      VPN Passthrough
Power Parameters

  • Input Voltage

    • 9 to 24 VDC

  • Power Consumption

    • Average: 8 W
      Peak: 11 W

  • Input Current

    • 9 to 24 VDC @ 1.33 to 0.5 A min

  • Power Connector

    • Terminal block
Physical Characteristics

  • Dimensions

    • 100 x 125 x 35.2 mm (3.93 x 4.92 x 1.38 in)

  • Housing

    • Metal
      SECC

  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)

  • IP Rating

    • IP30 The rubber SIM cover and console port cover should be attached. For CCG-1520-T, the SMA protection cover must also be attached.

  • Weight

    • 750 g (1.65 lb)
Environmental Limits

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    • -20 to 70°C (-4 to 158°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 16000-4-2 ESD: Contact:4 kV ; Air: 8 kV This device demonstrates a capacity that exceeds the requirements set by certification standards.
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 16000-4-3 RS: 1.8 GHz to 5 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 16000-4-5 Surge: DC: L-G: 2 kV; LAN: L-G: 2 kV; Serial port: 0.5 kV This device demonstrates a capacity that exceeds the requirements set by certification standards.
      IEC 16000-4-6 CS: 0.15 MHz to 10 MHz: 3 V; 10 MHz to 30 MHz: 3 to 1 V; 30 MHz to 80 MHz: 1 V This device demonstrates a capacity that exceeds the requirements set by certification standards.
      IEC 61000-4-8 PFMF

  • Radio Frequency

    • FCC

  • Radio

    • NCC: CCAF235G0270T2
      TELEC
      JATE

  • Cybersecurity

    • EN 18031-1

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-64
MTBF

  • Time

    • 1,036,724 hrs

  • Standards

    • Telcordia Standard SR-332
Warranty
