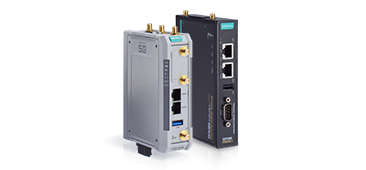

Cellular Gateways

Moxa's LTE gateways bring an efficient way to implement high-performance long-distance network applications with ease. Our LTE gateways are easy to configure and secure your communication channels, enable smart remote management, and provide reliable connections.

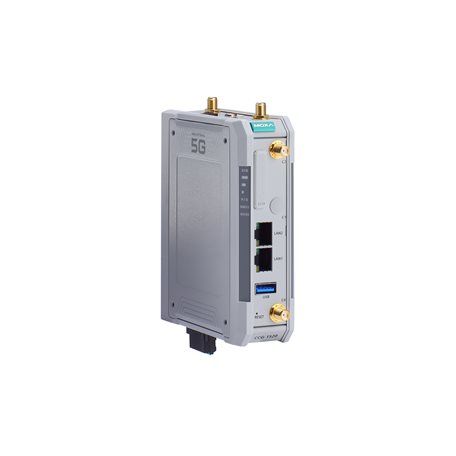

CCG-1520-T
CCG-1500 Series

Industrial private 5G cellular gateway, N79 band, IP30, -40 to 70°C operating temperature

Media Converter Interface
  • Ethernet Ports

    • Auto sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
  • Serial Ports

    • RS-232/422/485 ports x 1 (5-pin terminal block)
  • Cellular Antenna Connector (with GPS)

    • SMA x 4
  • SIM Format

    • Nano
  • Number of SIMs

    • 2
Ethernet Interface
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 2
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3u for 100BaseT(X)
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface
  • Console Port

    • 1 x 4-pin header to DB9 console port
  • Data Bits

    • 5, 6, 7, 8
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 1.5, 2
  • Baudrate

    • 9600 to 115200 bps
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Ethernet Software Features
  • Configuration Options

    • Web Console (HTTPS)
  • Management

    • LwM2M Client
  • Network Protocols

    • VxLAN
      IP Passthrough
      NAT
      Modbus RTU to TCP
  • Firewall

    • Filter: ICMP, IP Address
Cellular Interface
  • Cellular Standards

    • 5G R15
  • Frequency Bands Supported

    • NR: N79
LED Indicators
  • System

    • Power x 1
      SIM card indicator x 1
      5G / LTE indicator x 1
  • Wireless Signal Strength

    • Cellular x 3
Power Parameters
  • Input Voltage

    • 9 to 24 VDC
  • Power Consumption

    • Average: 8 W
      Peak: 11 W
  • Input Current

    • 9 to 24 VDC @ 1.33 to 0.5 A min
  • Power Connector

    • Terminal block
Physical Characteristics
  • Dimensions

    • 100 x 125 x 35.2 mm (3.93 x 4.92 x 1.38 in)
  • Housing

    • Metal
      SECC
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
  • IP Rating

    • IP30
      Note: The rubber SIM cover and console port cover should be attached. For CCG-1520-T, the SMA protection cover must also be attached.
  • Weight

    • 750 g (1.65 lb)
Environmental Limits
  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)
  • Storage Temperature (package included)

    • -20 to 70°C (-4 to 158°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 16000-4-2 ESD: Contact:4kV ; Air: 8kV support up to Contact:8kV ; Air: 15kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 16000-4-3 RS: 1.8 GHz to 5 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 16000-4-5 Surge: DC: L-G: 2 kV; LAN: L-G: 2 kV; Serial port: 0.5 Kv support up to 1kV
      IEC 16000-4-6 CS: 0.15 MHz to 10 MHz: 3V; 10 MHz to 30 MHz: 3~1 V; 30 MHz to 80 MHz: 1V support up to 0.15MHz ~ 80MHz: 10V
      IEC 61000-4-8 PFMF
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-64
MTBF
  • Time

    • 1,036,724 hrs
  • Standards

    • Telcordia SR332
