Cellular Routers

Industrial applications involving mobile communications—such as moving vehicles, industrial M2M, and monitoring geographically dispersed sites—must be reliable and fail-safe even in dynamic and radio-hostile environments. Our industrial-grade cellular routers are able to meet this challenge, and enable reliable mobile data access anytime, anywhere.

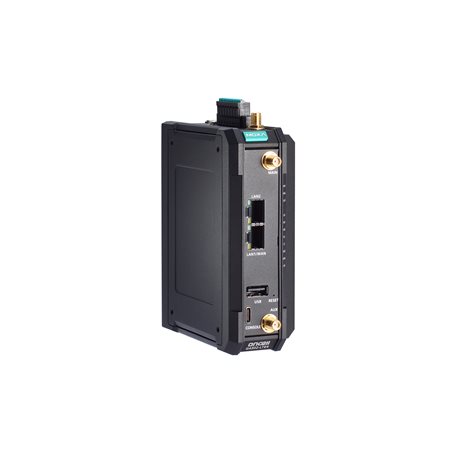

OnCell G4302-LTE4-AU-T
OnCell G4302-LTE4 Series

Industrial LTE Cat. 4 cellular secure router, B1/B3/B5/B7/B8/B28, 2 10/100/1000BaseT(X) RJ45 ports, -30 to 70°C operating temperature

Cellular Interface
  • Cellular Standards

    • LTE CAT 4, HSPA, UMTS, EDGE, GPRS, GSM
  • LTE Data Rate

    • 20 MHz bandwidth: 150 Mbps DL, 50 Mbps UL
  • Band Options (AU)

    • LTE B1 (2100 MHz) / B3 (1800 MHz) / B5 (850 MHz) / B7 (2600 MHz) / B8 (900 MHz) / B28 (700 MHz)
      UMTS/HSPA B1 (2100 MHz) / B5 (850 MHz) / B8 (900 MHz)
      GSM/GPRS/EDGE 900 MHz / 1800 MHz
  • No. of SIMs

    • 2 Push-eject tray type
  • SIM Format

    • Nano SIM
  • Cellular Antenna Connectors

    • 2 SMA female
Ethernet Interface
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 2
GNSS Interface
  • GNSS Bands

    • GPS (1575.42 MHz)
      GLONASS (1597.52 MHz)
      Galileo (1575.42 MHz)
      BeiDou (1561.098 MHz)
  • GNSS Antenna Connectors

    • 1 SMA female
Input/Output Interface
  • Digital Output Channels

    • 1
      Relay output with current carrying capacity of 1 A @ 24 VDC
  • Digital Input Channels

    • 1
  • Digital Inputs

    • -30 to +3 V for state 0
      +13 to +30 V for state 1
  • Buttons

    • Reset button
USB Interface
  • No. of USB Ports

    • 1
  • USB Connector

    • USB Type A
  • USB Standards

    • USB 2.0
Serial Interface
  • No. of Ports

    • 1
  • Connector

    • DB9 male
  • Serial Standards

    • RS-232/422/485
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None
      Even
      Odd
  • Baudrate

    • 300 bps to 921.6 kbps
  • Console Port

    • RS-232 (TxD, RxD, GND), USB type-C (115200, n, 8, 1) We recommend using the Moxa CBL-USBCF9-GY-150 console cable, which can be purchased separately.
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Operation Modes
  • Standards

    • Real COM mode
      RFC2217 mode
      TCP Client mode
      TCP Server mode
      UDP mode
LED Interface
  • LED Indicators

    • PWR1, PWR2, STATE, USB, SIM1, SIM2, CELL, LTE, GNSS, SERIAL, VPN
Ethernet Software Features
  • Management

    • GuaranLink
      Power Management
      Back Pressure Flow Control
      LLDP
      Syslog
      Wireless Search Utility
      MXview One
      MXconfig
      MXsecurity
      Moxa Remote Connect (MRC)
  • Broadcast Forwarding

    • IP directed broadcast, broadcast forwarding
  • Configuration Options

    • Serial Console We recommend using the Moxa CBL-USBCF9-GY-150 console cable, which can be purchased separately.
      Web Console (HTTP/HTTPS)
      Command Line Interface (CLI) through Serial/Telnet/SSH
  • Network Protocols

    • DDNS
      DHCP Server/Client
      SMTP
      SNMPv1/v2c/v3
      ARP
      Telnet
      TCP/IP
      UDP
      Remote SMS Control
  • Filter

    • 802.1Q VLAN
      Port-based VLAN
  • Unicast Routing

    • Static Route
  • Multicast Routing

    • Static Route
  • Routing Redundancy

    • VRRP
  • Time Management

    • NTP Server/Client
      SNTP
Security Functions
  • Hardware-based Security

    • Secure Boot
  • Password

    • User-level password protection
  • Authentication

    • Local database
      RADIUS
      Access Control List
Firewall
  • Filter

    • DDoS
      Ethernet protocols
      ICMP
      IP address
      MAC address
      Ports
NAT
  • Features

    • 1-to-1
      N-to-1
      PAT
      NAT loopback
      Double NAT
IPsec VPN
  • Authentication

    • MD5 and SHA (SHA-256)
      RSA (key size: 1024-bit, 2048-bit)
      Pre-shared Key or X.509 v3 certificate
  • Encryption

    • DES
      3DES
      AES-128
      AES-192
      AES-256
  • Concurrent VPN Tunnels

    • Max. 15 IPsec VPN tunnels
  • Protocols

    • IPsec
Power Parameters
  • Input Current

    • 0.96 A @ 12 VDC (max.)
      0.63 A @ 12 VDC (average)
      0.33 A @ 24 VDC (average)
      0.18 A @ 48 VDC (average)
  • Input Voltage

    • 12 to 48 VDC
  • Power Consumption

    • 7.6 W (typ.)
      11.52 W (max.)
  • Power Connector

    • Screw-locked terminal block
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Housing

    • Metal
  • Dimensions

    • 125 x 46.2 x 100 mm (4.92 x 1.82 x 3.94 in)
  • Weight

    • 610 g (1.34 lb)
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
  • IP Rating

    • IP40 With the rubber SIM slot cover closed.
Environmental Limits
  • Operating Temperature

    • -30 to 70°C (-22 to 158°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4
  • EMI

    • CISPR 22, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV, Signal: 2 kV
      IEC 61000-4-6 CS: 10 V; 150 kHz to 80 MHz
      IEC 61000-4-8: 30 A/m
  • Freefall

    • IEC 60068-2-32
  • Hazardous Locations

    • IECEx Supports for Hardware Rev 1.1.0 and above
      ATEX Supports for Hardware Rev 1.1.0 and above
      Class I Division 2 Supports for Hardware Rev 1.1.0 and above
  • Railway

    • EN 50121-4
  • Traffic Control

    • NEMA TS2
  • Road Vehicles

    • E mark E1
  • Radio Frequency

    • FCC
      PTCRB
      EN 303 413
  • Radio

    • NCC
      TELEC
      RCM
      KC
      ICID
      UKCA
      Anatel
  • Carrier Approvals

    • Verizon
      AT&T
  • Cellular Standards

    • EN 301 489-1/-19
      EN 301 489-1/-52
      EN 301511
      EN 301908-1/-2/-13
  • Safety

    • UL 62368-1
      EN 62368-1
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 518,722 hrs
  • Standards

    • Telcordia SR332
