MOXA

Cellular Routers

Moxa's cellular routers create a secure wireless network for local OT environments, allowing multiple field devices to connect through a highly reliable wireless backhaul. Combining strong security features with robust connectivity, our cellular routers enable safe and hassle-free remote access and maintenance of field devices.



For more information, visit our OnCell Industrial Cellular Routers Microsite.

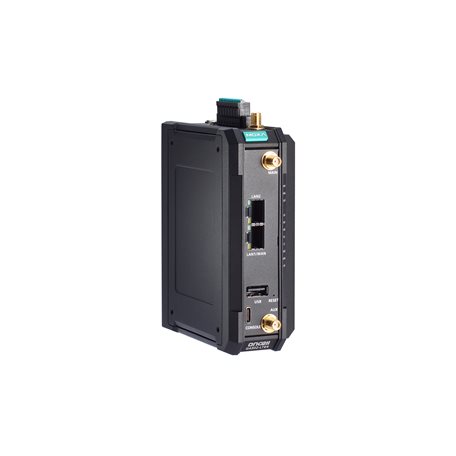

OnCell G4302-LTE4-US
OnCell G4302-LTE4 Series

Industrial LTE Cat. 4 cellular secure router, B2/B4/B5/B12/B13/B14/B17/B66, 2 10/100/1000BaseT(X) RJ45 ports, -10 to 55°C operating temperature

Cellular Interface

  • Cellular Standards

    • LTE CAT 4, HSPA, UMTS, EDGE, GPRS, GSM

  • LTE Data Rate

    • 20 MHz bandwidth: 150 Mbps DL, 50 Mbps UL

  • Band Options (US)

    • LTE B2 (1900 MHz) / B4 (1700/2100 MHz (AWS)) / B5 (850 MHz) / B12 (700 MHz) / B13 (700 MHz) / B14 (700 MHz) / B66 (1700 MHz) / B25 (1900 MHz) /B26 (850 MHz) /B71 (600 MHz)
      UMTS/HSPA B2 (1900 MHz) / B4 (1700 MHz (AWS)) / B5 (850 MHz)

  • No. of SIMs

    • 2 Push-eject tray type

  • SIM Format

    • Nano SIM

  • Cellular Antenna Connectors

    • 2 SMA female
Ethernet Interface

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 2
GNSS Interface

  • GNSS Bands

    • GPS (1575.42 MHz)
      GLONASS (1597.52 MHz)
      Galileo (1575.42 MHz)
      BeiDou (1561.098 MHz)

  • GNSS Antenna Connectors

    • 1 SMA female
Input/Output Interface

  • Digital Output Channels

    • 1
      Relay output with current carrying capacity of 1 A @ 24 VDC

  • Digital Input Channels

    • 1

  • Digital Inputs

    • -30 to +3 V for state 0
      +13 to +30 V for state 1

  • Buttons

    • Reset button
USB Interface

  • No. of USB Ports

    • 1

  • USB Connector

    • USB Type A

  • USB Standards

    • USB 2.0 For use by ABC-02.
Serial Interface

  • No. of Ports

    • 1

  • Connector

    • DB9 male

  • Serial Standards

    • RS-232/422/485

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None
      Even
      Odd

  • Baudrate

    • 300 bps to 921.6 kbps

  • Console Port

    • RS-232 (TxD, RxD, GND), USB type-C (115200, n, 8, 1) We recommend using the Moxa CBL-USBCF9-GY-150 console cable, which can be purchased separately.
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Operation Modes

  • Standards

    • Real COM mode
      RFC2217 mode
      TCP Client mode
      TCP Server mode
      UDP mode
      SCATS
LED Interface

  • LED Indicators

    • PWR1, PWR2, STATE, USB, SIM1, SIM2, CELL, LTE, GNSS, SERIAL, VPN
Ethernet Software Features

  • Management

    • GuaranLink
      Power Management
      Back Pressure Flow Control
      LLDP
      Syslog
      MXview One
      MXconfig
      MXsecurity
      Moxa Remote Connect (MRC)
      Remote SMS Control

  • Broadcast Forwarding

    • IP directed broadcast, broadcast forwarding

  • Configuration Options

    • Serial Console We recommend using the Moxa CBL-USBCF9-GY-150 console cable, which can be purchased separately.
      Web Console (HTTP/HTTPS)
      Command Line Interface (CLI) through Serial/Telnet/SSH

  • Network Protocols

    • DDNS
      DHCP Server/Client
      SMTP
      SNMPv1/v2c/v3
      ARP
      Telnet
      TCP/IP
      UDP

  • Filter

    • 802.1Q VLAN
      Port-based VLAN

  • Unicast Routing

    • Static Route

  • Multicast Routing

    • Static Route

  • Routing Redundancy

    • VRRP

  • Time Management

    • NTP Server/Client
      SNTP
Security Functions

  • Hardware-based Security

    • Secure Boot

  • Password

    • User-level password protection

  • Authentication

    • Local database
      RADIUS
      Access Control List
Firewall

  • Filter

    • DDoS
      Ethernet protocols
      ICMP
      IP address
      MAC address
      DPI
      Ports
NAT

  • Features

    • 1-to-1
      N-to-1
      PAT
      NAT loopback
      Double NAT
IPsec VPN

  • Authentication

    • MD5 and SHA (SHA-256)
      RSA (key size: 1024-bit, 2048-bit)
      Pre-shared Key or X.509 v3 certificate

  • Encryption

    • DES
      3DES
      AES-128
      AES-192
      AES-256

  • Concurrent VPN Tunnels

    • Max. 15 IPsec VPN tunnels

  • Protocols

    • IPsec
OpenVPN

  • OpenVPN

    • OpenVPN (client)

  • Encryption

    • AES-128/192/256 CBC
      AES-128/192/256 GCM
      CHACHA20-POLY1305
Power Parameters

  • Input Current

    • 0.96 A @ 12 VDC (max.)
      0.63 A @ 12 VDC (average)
      0.33 A @ 24 VDC (average)
      0.18 A @ 48 VDC (average)

  • Input Voltage

    • 12 to 48 VDC

  • Power Consumption

    • 170 mW (idle)
      7.6 W (typ.)
      11.52 W (max.)

  • Power Connector

    • Screw-locked terminal block

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • Housing

    • Metal

  • Dimensions

    • 125 x 46.2 x 100 mm (4.92 x 1.82 x 3.94 in)

  • Weight

    • 610 g (1.34 lb)

  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)

  • IP Rating

    • IP40 With the rubber SIM slot cover closed.
Environmental Limits

  • Operating Temperature

    • -10 to 55°C (14 to 131°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4

  • EMI

    • CISPR 22, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV, Signal: 2 kV
      IEC 61000-4-6 CS: 10 kHz to 150 MHz; Signal: 80 V
      IEC 61000-4-8: 30 A/m

  • Freefall

    • IEC 60068-2-32

  • Hazardous Locations

    • IECEx Supports for Hardware Rev 1.1.0 and above
      ATEX Supports for Hardware Rev 1.1.0 and above
      Class I Division 2 Supports for Hardware Rev 1.1.0 and above

  • Railway

    • EN 50121-4

  • Traffic Control

    • NEMA TS2

  • Road Vehicles

    • E mark E1

  • Radio Frequency

    • FCC ID N7NWP76B
      PTCRB
      EN 303 413

  • Radio

    • NCC: CCAH234G0310T1
      TELEC: R 003-190014/T D190010003
      RCM
      KC: R-R-MXA-OnCell-G4302
      IC: 2417C-WP76B
      UKCA

  • Carrier Approvals

    • Verizon
      AT&T

  • Cellular Standards

    • EN 301 489-1/-19 (GPS)
      EN 301 489-1/-52 (WCDMA/LTE)
      EN 301 511
      EN 301908-1/-2/-13

  • Cybersecurity

    • EN 18031-1

  • Safety

    • UL 62368-1
      EN 62368-1

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-6
MTBF

  • Time

    • 521,746 hrs

  • Standards

    • Telcordia Standard SR-332
