Ethernet-to-Fiber Media Converters

Moxa's Ethernet to Fiber media converters feature innovative remote management, industrial-grade reliability, and a flexible, modular design that can fit any type of industrial environment.

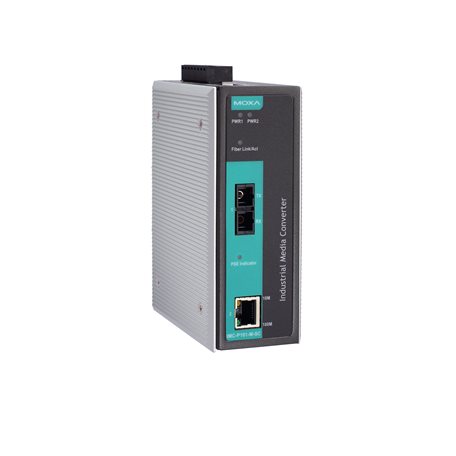

IMC-P101-S-SC
IMC-P101 Series

PoE industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode port with SC connector, 0 to 60°C operating temperature

Ethernet Interface
  • 100BaseFX Ports (single-mode SC connector)

    • 1
  • Optical Fiber

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
  • PoE Ports (10/100BaseT(X), RJ45 connector)

    • 1
Power Parameters
  • Input Current

    • 360 mA @ 12 to 57 VDC
      (HW Rev. 1.1.0 and later)
      430 mA @ 46 to 57 VAC
      (HW Rev. 1.0.1 and prior)
  • Input Voltage

    • 12 to 57 VDC
      (HW Rev. 1.1.0 and later)
      46 to 57 VDC
      (HW Rev. 1.0.1 and prior)
  • Overload Current Protection

    • Supported
Physical Characteristics
  • Housing

    • Metal
  • Dimensions

    • 144.5 x 122.3 x 51.65 mm (5.69 x 4.81 x 2.03 in)
  • Weight

    • Product only: 532 g (1.17 lb)
      Packaged: 701 g (1.55 lb)
  • Installation

    • DIN-rail mounting
Environmental Limits
  • Operating Temperature

    • 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 150 KHz to 80 MHz: 3 to 1 V
      IEC 61000-4-8 PFMF
  • Environmental Testing

    • IEC 60068-2-2
      IEC 60068-2-3
  • Safety

    • UL 508
      EN 62368-1
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 2,892,595 hrs
  • Standards

    • Telcordia SR332
Warranty
