MOXA

Ethernet-to-Fiber Media Converters

Moxa's Ethernet to Fiber media converters feature innovative remote management, industrial-grade reliability, and a flexible, modular design that can fit any type of industrial environment.

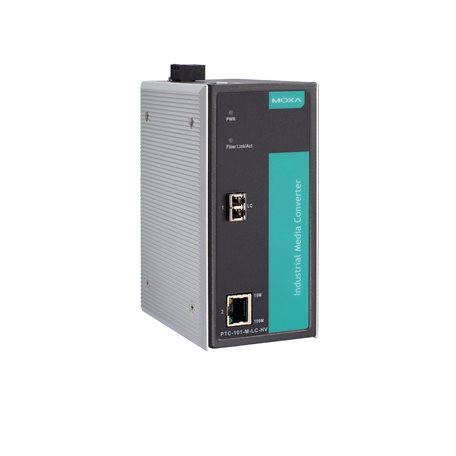

PTC-101-M-LC-HV
PTC-101 Series

Industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with LC connector, 1 isolated power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 85°C operating temperature

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1

  • 100BaseFX Ports (multi-mode LC connector)

    • 1

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)

  • Optical Fiber

    • 100BaseFX
      Multi-Mode Single-Mode
      Wavelength 1300 nm 1310 nm
      Max. TX -10 dBm 0 dBm
      Min. TX -20 dBm -5 dBm
      RX Sensitivity -32 dBm -34 dBm
      Link Budget 12 dB 29 dB
      Typical Distance 5 kma
      4 kmb      		 40 kmc
      Saturation -6 dBm -3 dBm
      a. 50/125 µm, 800 MHz x km fiber optic cable
      b. 62.5/125 µm, 500 MHz x km fiber optic cable
      c. 9/125 µm single-mode fiber optic cable
      d. 9/125 µm single-mode fiber optic cable (80 km)
Power Parameters

  • Input Voltage

    • 100 to 240 VAC
      100 to 240 VDC

  • Input Current

    • 350 to 200 mA @ 100 to 240 VAC
      350 to 200 mA @ 100 to 240 VDC

  • Overload Current Protection

    • Supported

  • Power Consumption

    • 350 to 200 mA @ 100 to 240 VAC
      350 to 200 mA @ 100 to 240 VDC
Physical Characteristics

  • Housing

    • Metal

  • Dimensions

    • 152.15 x 126.46 x 66.65 mm (5.99 x 4.86 x 2.62 in)

  • Weight

    • Product With Package: 952 g (2.09 lb)
      Product Only: 785 g (1.73 lb)

  • Installation

    • DIN-rail mounting
Environmental Limits

  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11

  • Environmental Testing

    • IEC 60068-2-1
      IEC 60068-2-14
      IEC 60068-2-3

  • Safety

    • EN 62368-1
      UL 62368-1
      UL 60950-1

  • Vibration

    • IEC 60068-2-6

  • Power Substation

    • IEC 61850-3
MTBF

  • Time

    • 4,660,534 hrs

  • Standards

    • Telcordia SR332
Warranty
