EN 50155 Switches

Moxa is an IRIS-certified company that offers a large portfolio of rugged Ethernet switches that comply with the mandatory sections of the EN 50155 standard. These products have been deployed in many rail and metro systems around the world. With our innovative solutions and technologies, we help train builders achieve overall transport safety, efficiency, and significant cost and time savings on railway operation and maintenance.

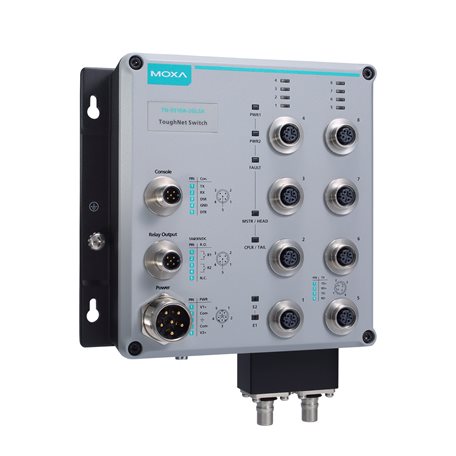

TN-5510A-8PoE-2GLSX-ODC-WV-T
TN-5500A Series

8 10/100BaseT(X) with 802.3at PoE+ ports with M12 connector and 2 GE fiber ports, power input 24 to 110 VDC, -40 to 75°C operating temperature

Input/Output Interface
  • Alarm Contact Channels

    • 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC
Ethernet Interface
  • 10/100/1000BaseT(X) Ports, Q-ODC Fiber Connector

    • 2
  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    • 8
  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
      IEEE 802.3af/at for PoE/PoE+ output
      IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet Software Features
  • Broadcast Forwarding

    • Broadcast forwarding
  • Configuration Options

    • Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility
  • Filter

    • 802.1Q
      GMRP
      GVRP
      IGMP Snooping v1/v2/v3
      IGMP Querier
      Port-based VLAN
      Static Multicast
  • Management

    • Account Management
      Back Pressure Flow Control
      DHCP Client (options 1/3/50/51/53/54/55/57/66/67)
      DHCP option 82 (relay agent)
      DHCP Server (options 1/3/12/15/42/50/55)
      Flow control
      HTTP
      ICMP
      IPv4/IPv6
      LLDP
      Loop Protection
      Port-based DHCP Server
      Port Mirror
      QoS/CoS/ToS
      RARP
      RMON
      SMTP
      SNMP Inform
      SNMP Trap
      SNMPv1/v2c/v3
      Syslog
      Telnet
  • MIB

    • Bridge MIB
      Ethernet-like MIB
      MIB-II
      P-BRIDGE MIB
      Q-BRIDGE MIB
      RMON MIB Groups 1, 2, 3, 9
      RSTP MIB
  • Redundancy Protocols

    • LACP
      MSTP
      RSTP
      Static Port Trunk
      STP
      Turbo Chain
      Turbo Ring v2
      Turbo Ring with DRC
  • Security

    • Broadcast storm protection
      HTTPS/SSL
      Local Account Accessibility
      TACACS+
      Port Lock
      RADIUS
      Rate Limit
      SSH
  • Time Management

    • NTP Server/Client
      SNTP
Switch Properties
  • IGMP Groups

    • 256
  • Max. No. of VLANs

    • 64
  • VLAN ID Range

    • VID 1 to 4094
LED Interface
  • LED Indicators

    • PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet, PoE
Serial Interface
  • Console Port

    • M12 A-coded male connector
Power Parameters
  • Input Current

    • 24-110 VDC, 6.8A max.
  • Input Voltage

    • Redundant dual inputs
      24/36/48/72/96/110 VDC
  • No. of Power Inputs

    • 2
  • Operating Voltage

    • 16.8 to 137.5 VDC
  • Overload Current Protection

    • Supported
  • Power Connector

    • M23 connector
  • Reverse Polarity Protection

    • Supported
  • Total PoE Power Budget

    • 120W
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP54
  • Dimensions

    • 185 x 219.4 x 117.2 mm (7.28 x 8.63 x 4.61 in)
  • Weight

    • 2,690 g (5.93 lb)
  • Installation

    • DIN-rail mounting (optional)
      Wall mounting
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • 2000 m
Standards and Certifications
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Freefall

    • IEC 60068-2-31
  • Radio Frequency

    • FCC
  • Railway

    • EN 50121-4
      EN 50155
  • Railway Fire Protection

    • EN 45545-2
  • Safety

    • EN 62368-1
  • Shock

    • IEC 60068-2-27, IEC 61373, EN 50155
  • Vibration

    • IEC 60068-2-64, IEC 61373, EN 50155
  • EMC

    • EN 55032/35
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 422,208 hrs
  • Standards

    • Telcordia SR332
