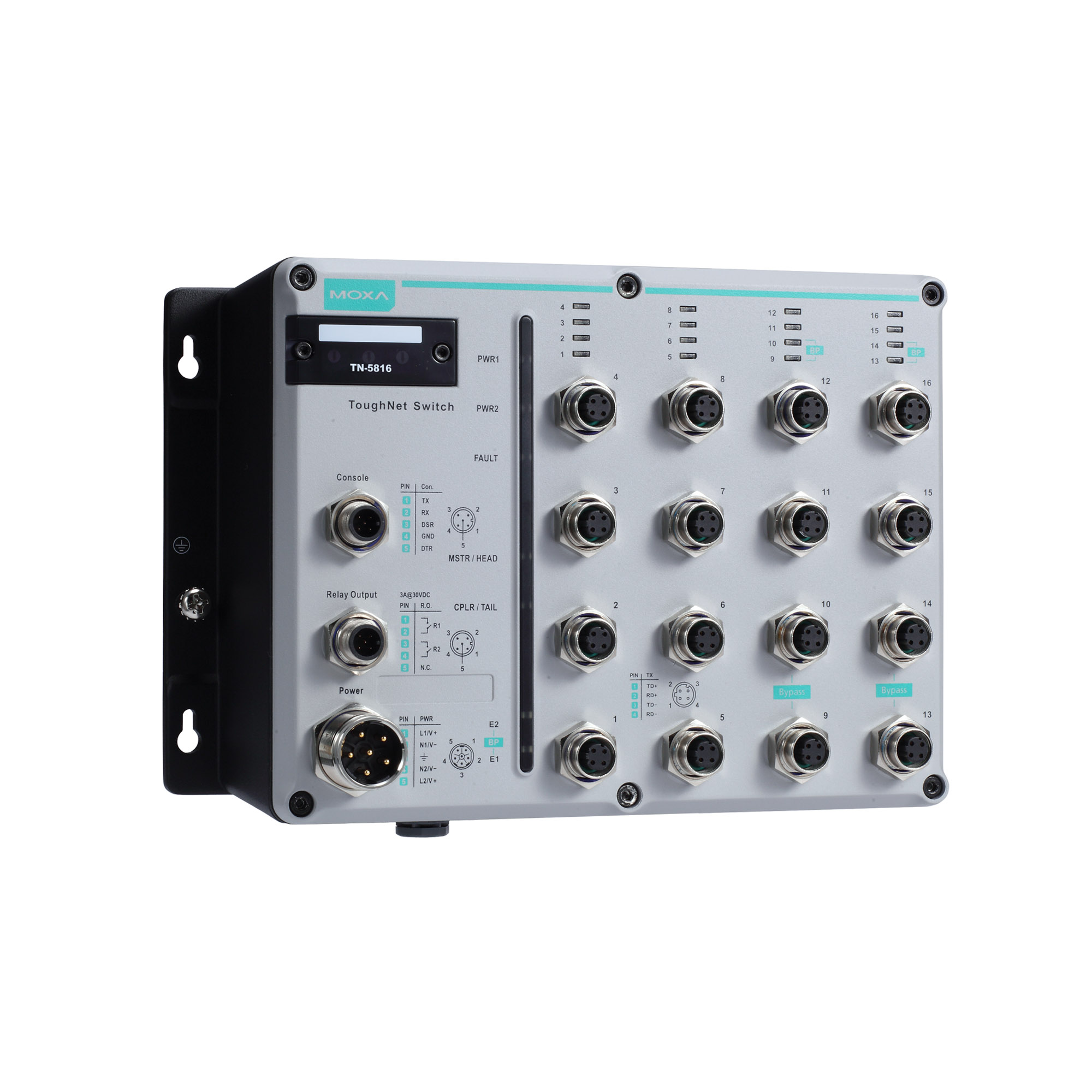

TN-5800A Series

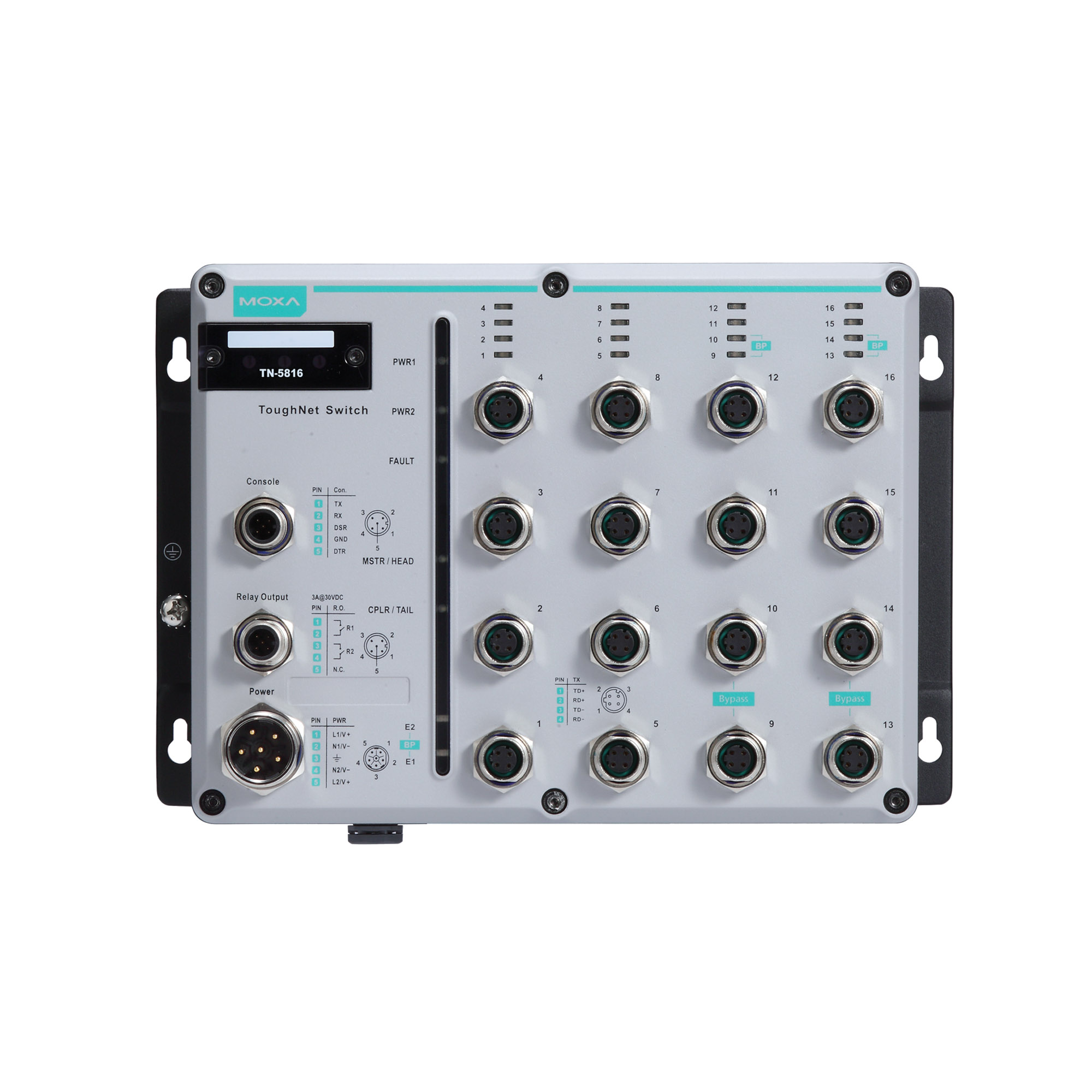

EN 50155 16/16+2G-port layer 3 Gigabit managed Ethernet switches

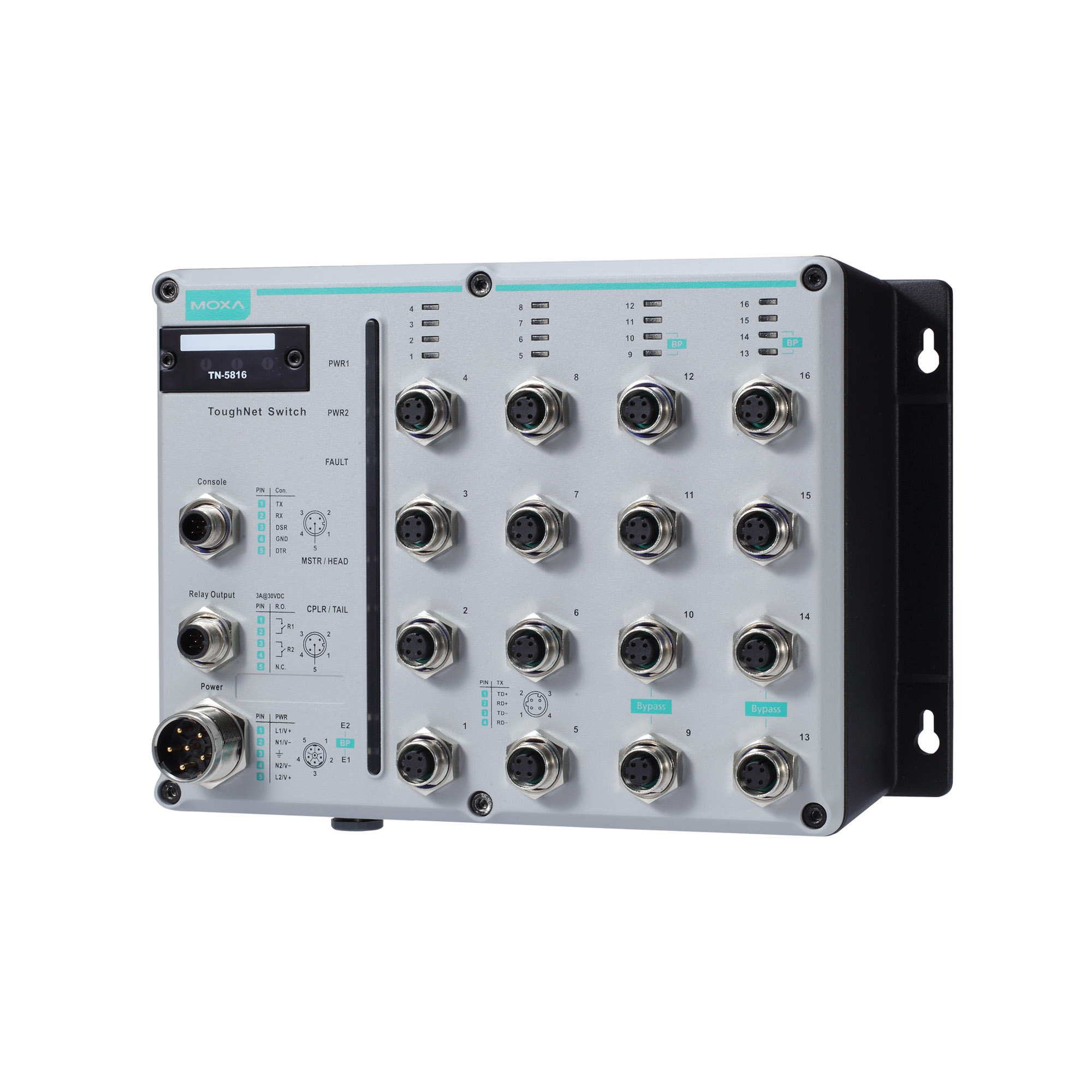

moxa-tn-5800a-series-image-1-(1).jpg | Moxa

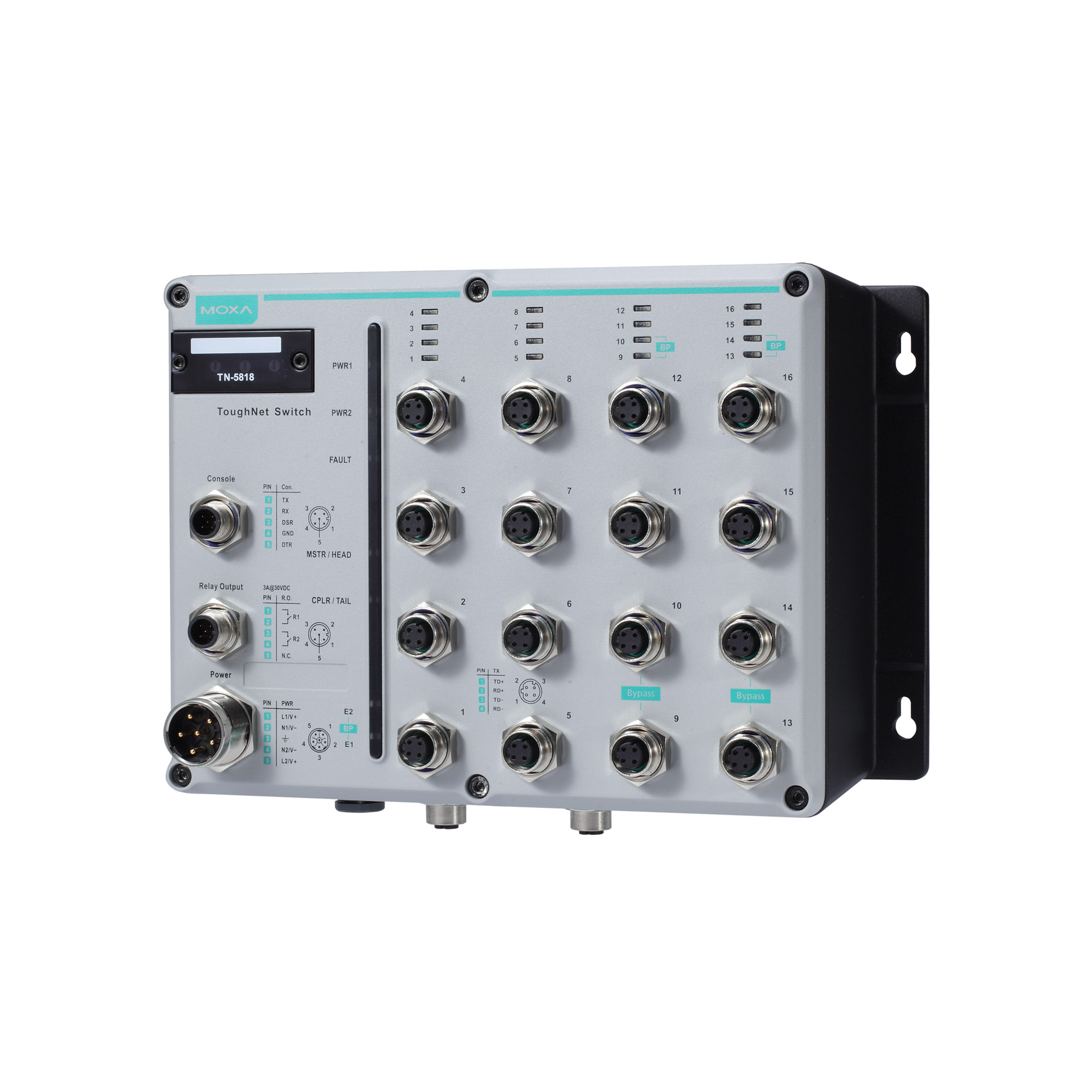

moxa-tn-5800a-series-image-2-(1).jpg | Moxa

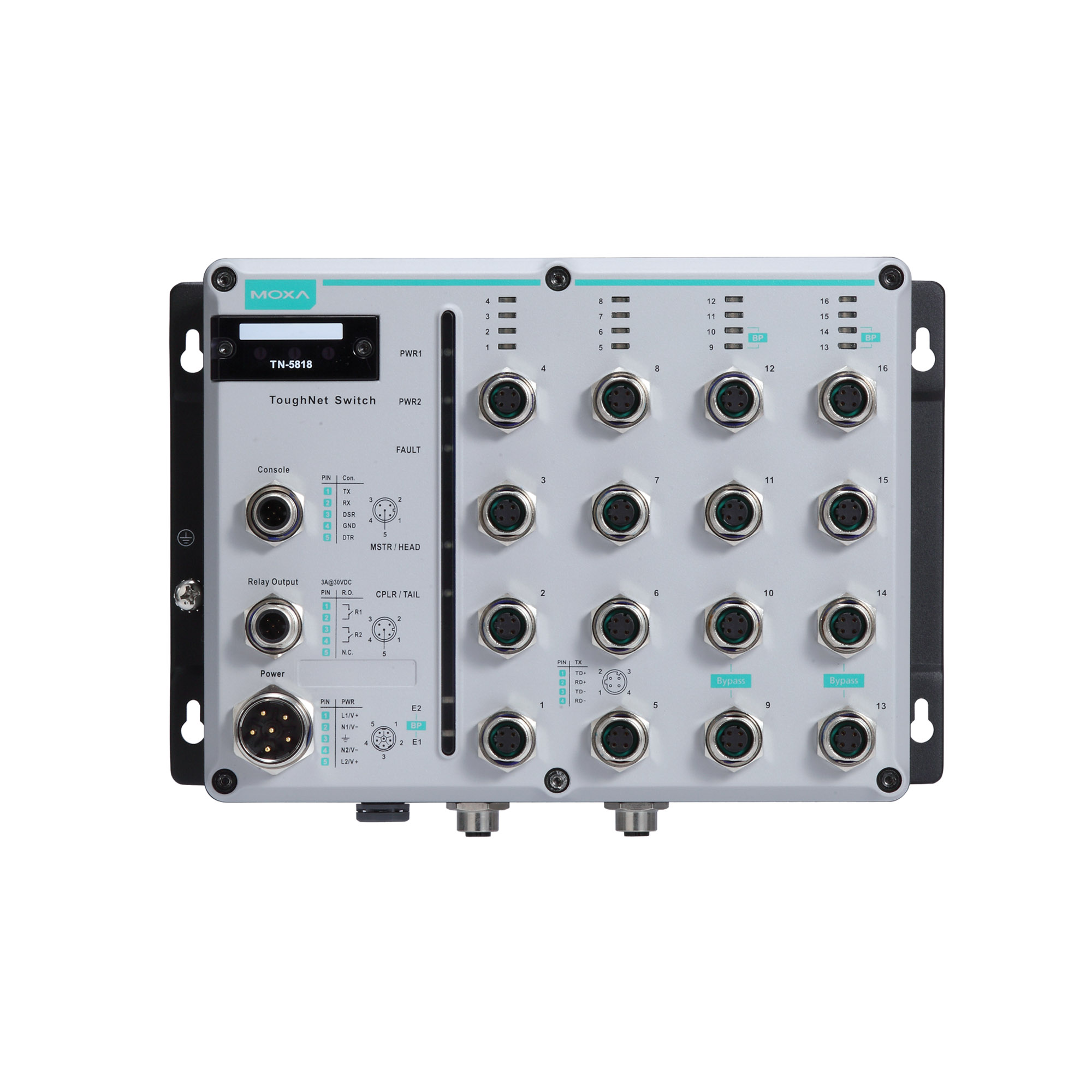

moxa-tn-5800a-series-image-3-(1).jpg | Moxa

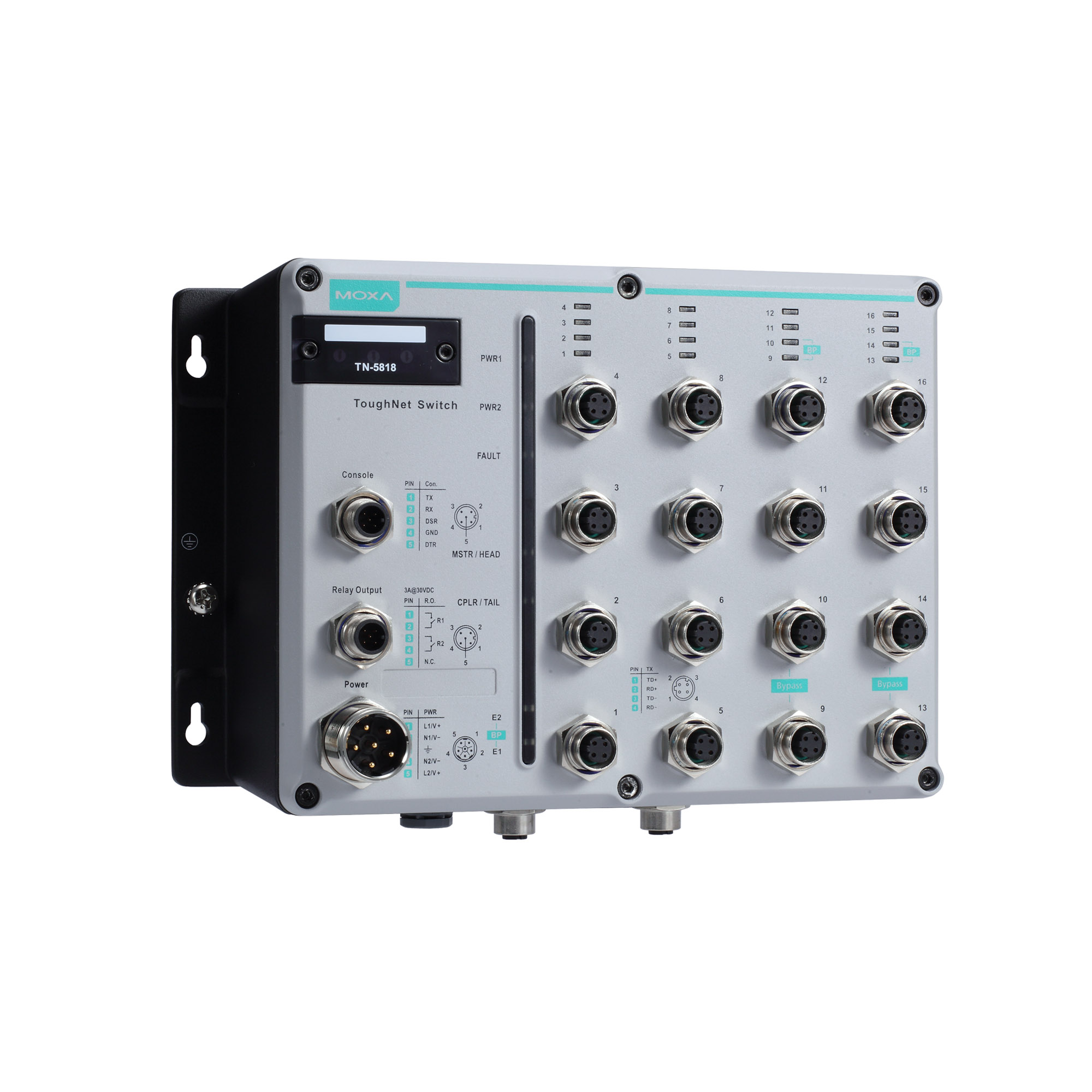

moxa-tn-5800a-series-image-4-(1).jpg | Moxa
moxa-tn-5800a-series-image-5-(1).jpg | Moxa
moxa-tn-5800a-series-image-6-(1).jpg | Moxa

Features and Benefits

  • Layer 3 routing interconnects multiple LAN segments
  • 4 Fast Ethernet ports and 2 optional Gigabit ports with bypass relay function
  • Isolated power with 24 to 110 VDC power supply range
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • -40 to 75°C operating temperature range
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy

Certifications

  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The ToughNet TN-5800A Series switches are high-performance M12 Layer 3 Ethernet switches that support Layer 3 routing to facilitate the deployment of applications across networks. By using M12 and other circular connectors, the TN-5800A Series ensures tight, robust connections and reliability against environmental disturbances, such as vibration and shock. TN-5800A Series switches provide isolated power with 24 to 110 VDC power input range, which allows you to use the same model at different sites around the globe.

In addition, TN-5800A Series switches provide up to 16 Fast Ethernet M12 ports with 4 bypass relay ports, and 2 Gigabit Ethernet ports with bypass relay function. Furthermore, the -40 to 75°C operating temperature and IP54-rated water and dust resistant enclosure allow deployment in harsh environments. The TN-5800A Series Ethernet switches are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

Additional Features and Benefits

  • Layer 3 switching functionality to divide a large network into hierarchical subnets and allow data and information to communicate across networks

  • Leading EN 50155 L3 Ethernet switches for rolling stock applications

  • DHCP Option 82 for IP address assignment with different policies

  • Turbo Ring, Turbo Chain, and STP/RSTP/MSTP for network redundancy

  • IGMP snooping and GMRP for filtering multicast traffic

  • IEEE 802.1Q VLAN, and GVRP to ease network planning

  • EtherNet/IP and Modbus TCP industrial Ethernet protocols supported

  • QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic classification and prioritization

  • IEEE 802.3ad, LACP for optimum bandwidth utilization

  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for proactive and efficient network monitoring

  • Bandwidth management to prevent unpredictable network status

  • Lock port allows access by only authorized MAC addresses

  • Port mirroring for online debugging

  • Automatic warning by exception through email and relay output

  • Line-swap fast recovery

  • LLDP for automatic topology discovery in network management software

  • Configurable by web browser, Telnet/serial console, and Windows utility

  • Panel mounting or DIN-rail mounting installation capability

  • Loop protection to prevent network loops

  • Alarm Contact Channels

    2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC

  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay)

    TN-5818A-2GTXBP Series: 2

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    12

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector with bypass relay)

    4

  • Standards

    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1X for authentication
    IEEE 802.3 for 10BaseT
    TN-5818A-2GTXBP Series: IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control

  • Filter

    802.1Q, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN, QinQ VLAN, Static Multicast

  • Configuration Options

    Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility

  • Industrial Protocols

    EtherNet/IP Adapter (Slave), Modbus TCP Server (Slave)

  • Management

    Back Pressure Flow Control, DHCP Option 66/67/82, Flow control, HTTP, IPv4, LLDP, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet

  • MIB

    Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

  • Multicast Routing

    DVMRP, PIM-DM

  • Redundancy Protocols

    Link Aggregation, RSTP, STP, Turbo Chain, Turbo Ring v1/v2

  • Routing Redundancy

    VRRP

  • Security

    Broadcast storm protection, HTTPS/SSL, Port Lock, RADIUS, Rate Limit, SSH

  • Time Management

    IEEE 1588 PTP v1/v2, NTP Server/Client, SNTP

  • IGMP Groups

    256

  • Max. No. of VLANs

    64

  • Priority Queues

    4

  • VLAN ID Range

    VID 1 to 4094

  • LED Indicators

    STATE, PWR1, PWR2, FAULT, 10/100/1000M

  • Console Port

    M12 A-coded male connector

  • Input Current

    TN-5816A Series: 1.1 A @ 24 VDC, 0.23 A @ 110 VDC
    TN-5818A Series: 1.24 A @ 24 VDC, 0.24 A @ 110 VDC

  • Input Voltage

    24/36/48/72/96/110 VDC

  • No. of Power Inputs

    2

  • Operating Voltage

    16.8 to 137.5 VDC

  • Overload Current Protection

    Supported

  • Power Connector

    M23 connector

  • Reverse Polarity Protection

    Supported

  • Housing

    Metal

  • IP Rating

    IP54

  • Dimensions

    250 x 181.4 x 115 mm (9.84 x 7.14 x 4.53 in)

  • Weight

    TN-5816A Series: 2,290 g (5.62 lb)
    TN-5818A Series: 3,160 g (6.97 lb)

  • Installation

    DIN-rail mounting (optional), Wall mounting (standard)

  • Protection

    PCB conformal coating

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    2000 m

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Freefall

    IEC 60068-2-31

  • Radio Frequency

    FCC

  • Railway

    EN 50121-4, EN 50155, IEC 60571

  • Railway Fire Protection

    EN 45545-2

  • Safety

    EN 60950-1, UL 508

  • Shock

    IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    IEC 60068-2-64, IEC 61373, EN 50155

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    TN-5816A Series: 577,026 hrs
    TN-5818A Series: 525,091 hrs

  • Standards

    Telcordia SR332

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
Firmware for TN-5800A Series
2.7 MB
Firmware v3.5
2016-09-23 Sep 23, 2016

Support Documents

Name Type Version Release Date
Datasheet for TN-5800A Series
1.8 MB
Datasheet v1.0 2018-11-12 Nov 12, 2018
Manual for TN-5800A Series (Layer 2 Switch Functions)
5.1 MB
Manual v2.3 2017-09-07 Sep 07, 2017
QIG for TN-5800A Series
4.2 MB
QIG v2.0 2017-03-21 Mar 21, 2017
Manual for TN-5800A Series (Command Line)
1.9 MB
Manual v1.0 2016-12-02 Dec 02, 2016
Manual for TN-5800A Series (Communication Redundancy)
3.9 MB
Manual v1.0 2016-12-02 Dec 02, 2016
Manual for TN-5800A Series (Industrial Protocols)
13.3 MB
Manual v1.0 2016-12-02 Dec 02, 2016
Manual for TN-5800A Series (Layer 3 Routing Functions)
529.5 KB
Manual v2.0 2012-10-12 Oct 12, 2012

Available Models (4)

Show Images
moxa-tn-5816abp-wv-t-image.jpg | MoxaTN-5816ABP-WV-Tmoxa-tn-5816abp-wv-ct-t-image.jpg | MoxaTN-5816ABP-WV-CT-Tmoxa-tn-5818a-2gtxbp-wv-t-image.jpg | MoxaTN-5818A-2GTXBP-WV-Tmoxa-tn-5818a-2gtxbp-wv-ct-t-image.jpg | MoxaTN-5818A-2GTXBP-WV-CT-T
10/100/1000BaseT(X) Ports, M12 X-coded 8-pin Female Connector with Bypass Relay22
10/100BaseT(X) Ports, M12 D-Coded Female Connector with Bypass Relay4444
10/100BaseT(X) Ports, M12 D-Coded Female Connector12121212
Power InputRedundant dual inputsRedundant dual inputsRedundant dual inputsRedundant dual inputs
Input Voltage24/36/48/96/110 VDC24/36/48/96/110 VDC24/36/48/96/110 VDC24/36/48/96/110 VDC
Conformal Coating
