MOXA

Ethernet Embedded Modules

Our Ethernet embedded modules are designed for device manufacturers who want to enhance the performance and reliability of their solutions, and want to make them suitable for use in applications with harsh conditions.

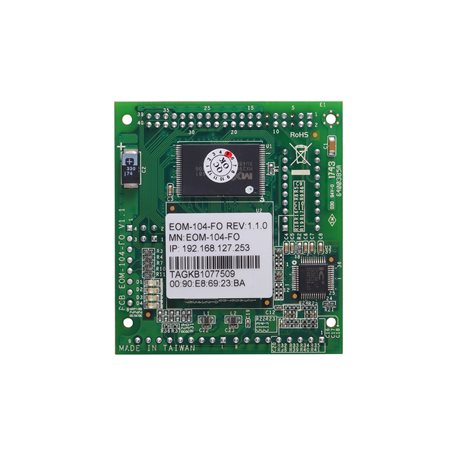

EOM-104-FO 20PCS
EOM-104 Series

Embedded managed Ethernet switch module with 2 10/100BaseT(X) and 2 100BaseFX ports, -40 to 75°C operating temperature, 20 pcs package

Ethernet Interface

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
      IEEE 802.1p for Class of Service
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol

  • 10/100BaseT(X) Port

    • 2

  • 100BaseFX Port

    • 2

  • Connector

    • 1 connector with 2 x 20 pins, 2 connectors with 1 x 9 pins, and 1 connector with 2 x 2 pins

  • GPIO

    • 4 x Programmable I/O pins
Ethernet Software Features

  • Protocols

    • BOOTP, DHCP Client, HTTP, RARP, RMON, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

  • MIB

    • Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Switch Properties

  • MAC Table Size

    • 1 K

  • Packet Buffer Size

    • 512 kbits
Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, DTR, DSR)
Power Parameters

  • Input Current

    • 1.1 A @ 3.3 VDC
Physical Characteristics

  • Dimensions

    • 54 x 60 x 8.25 mm (2.13 x 2.36 x 0.32 in)

  • Weight

    • 21 g (0.046 lb)
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A
Warranty
