Layer 2 Managed Switches

Moxa's Layer 2 managed switches feature industrial-grade reliability, network redundancy, and security features based on the IEC 62443 standard. We offer toughened, industry-specific products with multiple industry certifications, such as parts of the EN 50155 standard for rail applications, IEC 61850-3 for power automation systems, and NEMA TS2 for intelligent transportation systems.

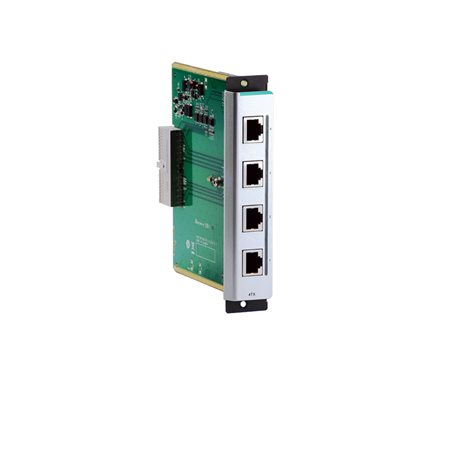

CM-600-4TX
CM-600 Module Series

Fast Ethernet interface module with 4 10/100BaseT(X) ports, RJ45 connectors, -40 to 75°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 4
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection
  • Optical Fiber

Power Parameters
  • Power Consumption

    • 0.61 W (max.)
Physical Characteristics
  • IP Rating

    • IP30
  • Dimensions

    • 29.7 x 144.4 x 144.8 mm (1.17 x 5.69 x 5.7 in)
  • Weight

    • 190 g (0.42 lb)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
MTBF
  • Time

    • 740,661 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
