EDS-505A Series

5-port managed Ethernet switches

moxa-eds-505a-series-image-1-(1).jpg | Moxa
moxa-eds-505a-series-image-2-(1).jpg | Moxa
moxa-eds-505a-series-image-3-(1).jpg | Moxa
moxa-eds-505a-series-image-4-(1).jpg | Moxa

Features and Benefits

  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • Supports MXstudio for easy, visualized industrial network management

Certifications

  • moxa-atex-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-dnv-certification-logo-image.png | Moxa

Contact Sales

Introduction

The EDS-505A standalone 5-port managed Ethernet switches, with their advanced Turbo Ring and Turbo Chain technologies (recovery time < 20 ms), RSTP/STP, and MSTP, increase the reliability and availability of your industrial Ethernet network. Models with a wide operating temperature range of -40 to 75°C are also available, and the switches support advanced management and security features, making the EDS-505A switches suitable for any harsh industrial environment.

Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions

  • DHCP Option 82 for IP address assignment with different policies

  • Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring

  • Compatible with PROFINET protocol for transparent data transmission

  • Lock port function for blocking unauthorized access based on MAC address

  • IGMP snooping and GMRP for filtering multicast traffic

  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • Port Trunking for optimum bandwidth utilization

  • RMON for proactive and efficient network monitoring

  • SNMPv1/v2c/v3 for different levels of network management

  • Bandwidth management to prevent unpredictable network status

  • Automatic warning by exception through email and relay output

  • Alarm Contact Channels

    2
    Relay output with current carrying capacity of 1 A @ 24 VDC

  • Digital Input Channels

    2

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA

  • Buttons

    Reset button

  • 10/100BaseT(X) Ports (RJ45 connector)

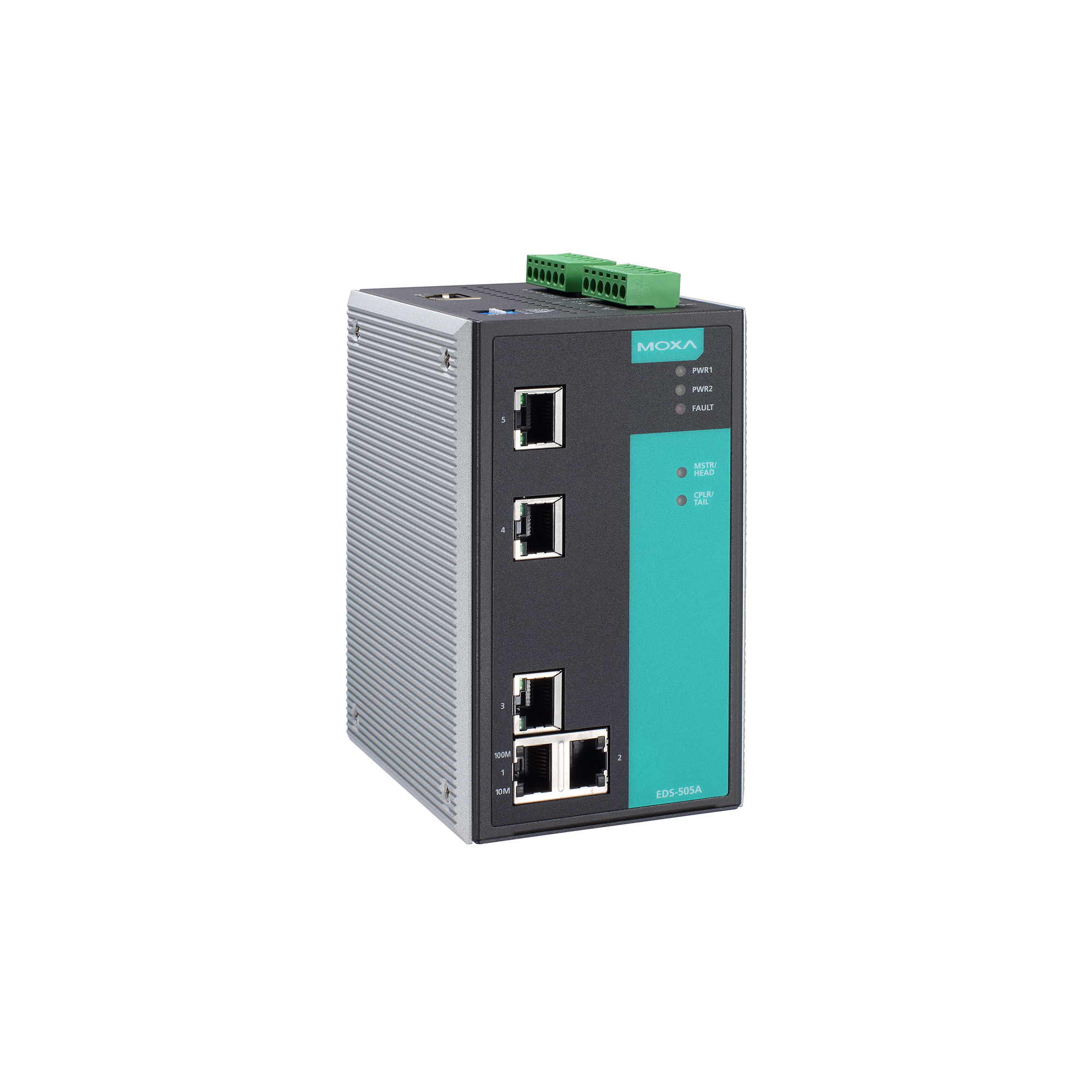

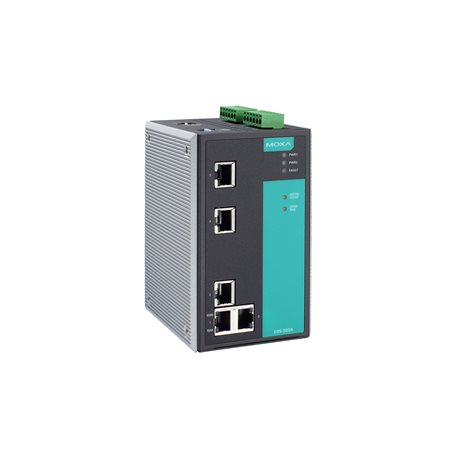

    EDS-505A/505A-T: 5
    EDS-505A-MM-SC/MM-ST/SS-SC Series: 3

    All models support:
    Auto negotiation speed
    Full/Half duplex mode
    Auto MDI/MDI-X connection

  • 100BaseFX Ports (multi-mode SC connector)

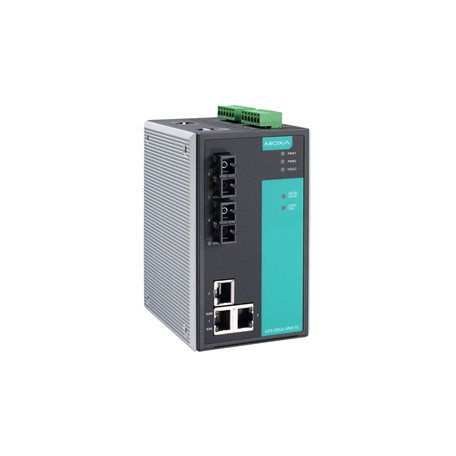

    EDS-505A-MM-SC Series: 2

  • 100BaseFX Ports (multi-mode ST connector)

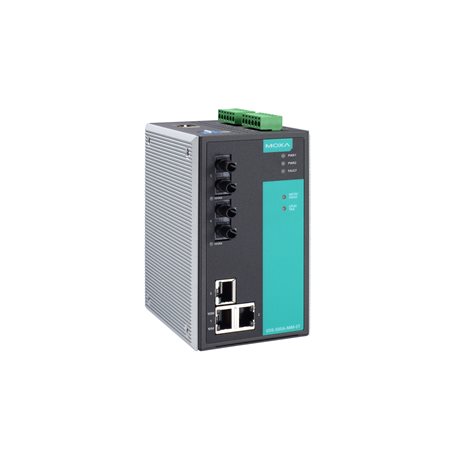

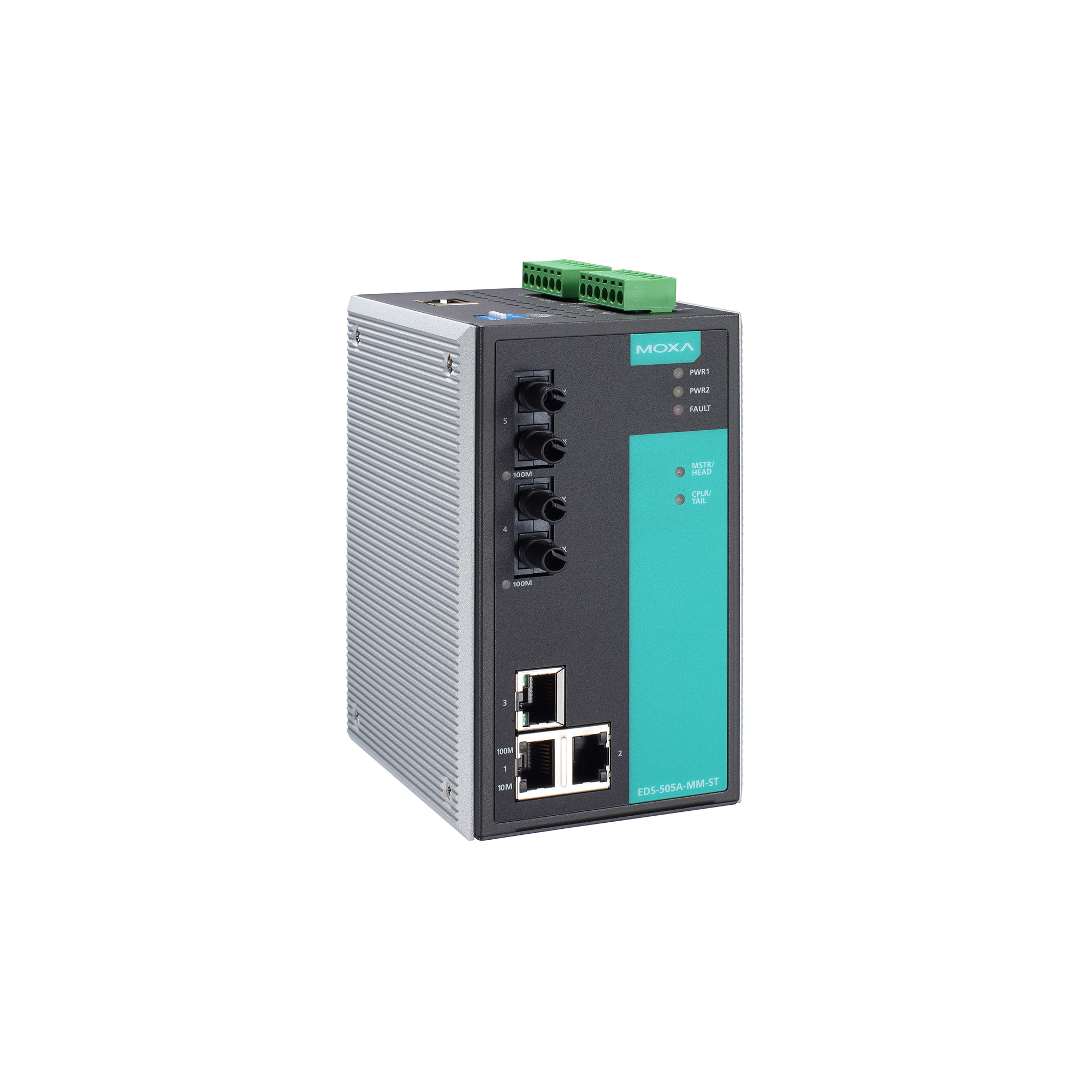

    EDS-505A-MM-ST Series: 2

  • 100BaseFX Ports (single-mode SC connector)

    EDS-505A-SS-SC Series: 2

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.1X for authentication
    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1p for Class of Service
    IEEE 802.3x for flow control
    IEEE 802.3ad for Port Trunk with LACP

  • Optical Fiber

  • Filter

    802.1Q VLAN
    Port-based VLAN
    IGMP v1/v2
    GVRP
    GMRP

  • Industrial Protocols

    EtherNet/IP
    Modbus TCP

  • Management

    IPv4/IPv6
    SNMPv1/v2c/v3
    LLDP
    Port Mirror
    Back Pressure Flow Control
    BOOTP
    DDM
    DHCP Option 66/67/82
    DHCP Server/Client
    Flow control
    RARP
    RMON
    SMTP
    SNMP Inform
    Syslog
    Telnet
    TFTP

  • MIB

    MIB-II
    Bridge MIB
    Ethernet-like MIB
    P-BRIDGE MIB
    Q-BRIDGE MIB
    RMON MIB Groups 1, 2, 3, 9
    RSTP MIB

  • Redundancy Protocols

    STP
    MSTP
    RSTP
    LACP
    Link Aggregation
    Turbo Chain
    Turbo Ring v1/v2

  • Security

    HTTPS/SSL
    RADIUS
    TACACS+
    Port Lock
    SSH
    Broadcast storm protection

  • Time Management

    NTP Server/Client
    SNTP

  • IGMP Groups

    256

  • MAC Table Size

    8 K

  • Max. No. of VLANs

    64

  • Packet Buffer Size

    1 Mbits

  • Priority Queues

    4

  • VLAN ID Range

    VID 1 to 4094

  • LED Indicators

    PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port), MSTR/HEAD, CPLR/TAIL

  • Console Port

    RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

  • Ethernet Interface

    Turbo Ring, Master, Coupler, Reserve

  • Connection

    2 removable 6-contact terminal block(s)

  • Input Voltage

    12/24/48 VDC
    Redundant dual inputs

  • Operating Voltage

    9.6 to 60 VDC

  • Input Current

    EDS-505A/EDS-505A-T: 0.21 A @ 24 VDC
    EDS-505A-MM-SC/MM-ST/SS-SC Series: 0.29 A @ 24 VDC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)

  • Weight

    1040 g (2.3 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Operating Temperature

    Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    EN 62368-1
    UL 60950-1
    UL 508

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Hazardous Locations

    ATEX
    Class I Division 2

  • Vibration

    IEC 60068-2-6

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-31

  • Maritime

    DNV

  • Time

    EDS-505A models: 1,157,396 hrs
    EDS-505A-MM/SS models: 1,090,077 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Software Package for MXview One Series (Windows version)
300.8 MB
Software Package
SHA-512
v1.4.1
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
Sep 20, 2024 Sep 20, 2024 Release notes
Software Package for MXview One Series (Linux version)
404.8 MB
Software Package
SHA-512
v1.4.1
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
Sep 20, 2024 Sep 20, 2024 Release notes
Firmware for EDS-505A Series
2.5 MB
Firmware
SHA-512
v3.11
Feb 03, 2024 Feb 03, 2024 Release notes
Modbus File for Moxa Managed Ethernet Switches
2.3 KB
Software Package
SHA-512
v1.0
Aug 31, 2023 Aug 31, 2023 Release notes
EDS file for EDS-505A Series
29.3 KB
Software Package
SHA-512
v1.4
Aug 31, 2023 Aug 31, 2023 Release notes
SNMP MIB file for EDS-505A Series
145.8 KB
Software Package
SHA-512
v3.8
Aug 31, 2023 Aug 31, 2023 Release notes
EtherNet/IP FactoryTalk View
34.8 MB
Software Package
SHA-512
v1.5
Jan 18, 2018 Jan 18, 2018 Release notes
EtherNet/IP AOI (5P) for EDS-505A Series
82.9 KB
Software Package
SHA-512
v1.2.0
Jan 18, 2018 Jan 18, 2018 Release notes
Firmware for EDS-505A Series
1.8 MB
Firmware
SHA-512
v3.8
Apr 04, 2017 Apr 04, 2017 Release notes
Moxa Ethernet Switch and Video Server Configurator
1.6 MB
Utility
SHA-512
v5.3
  • Windows
  • Windows XP
Apr 09, 2012 Apr 09, 2012 Release notes
Firmware for EDS-505A Series
1.4 MB
Firmware
SHA-512
v2.6
Dec 20, 2009 Dec 20, 2009 Release notes

Support Documents

Name Type Version Release Date
FOSS Statement for EDS, EOM, IKS, ICS, SDS Series products
334.0 KB
Declaration v1.0 Jul 31, 2024 Jul 31, 2024
Declaration of Conformity for EDS-505A/508A Series
323.0 KB
Declaration v1.0 Mar 19, 2024 Mar 19, 2024
Datasheet for EDS-505A Series
1.4 MB
Datasheet v1.6 Feb 28, 2024 Feb 28, 2024
Industrial Protocol Users Guide
13.1 MB
Manual v6.5 Aug 31, 2023 Aug 31, 2023
Moxa Managed Ethernet Switch User Manual
7.8 MB
Manual v9.9 Aug 31, 2023 Aug 31, 2023
Managed Ethernet Switch User Manual
6.4 MB
Manual v9.8 Nov 25, 2022 Nov 25, 2022
Industrial Protocol Users Guide
11.9 MB
Manual v6.3 Sep 12, 2022 Sep 12, 2022
Moxa Managed Ethernet Switch User's Manual
6.4 MB
Manual v9.7 Jun 29, 2022 Jun 29, 2022
QIG for EDS-505A/EDS-508A Series
2.5 MB
QIG v11.2 Jun 28, 2022 Jun 28, 2022
Tech Note: Ring Coupling for a Turbo Ring
60.4 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Turbo Ring V2
54.9 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Ring Coupling for Turbo Ring V2
64.3 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Dual Homing for Turbo Ring V2
70.4 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Turbo Chain
59.1 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Turbo Ring
59.2 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Dual Ring for Turbo Ring V2
59.6 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Recommended Procedure for STP Cable Grounding on Moxa's Industrial Ethernet Switches
558.3 KB
Tech Note v1.0 Feb 12, 2019 Feb 12, 2019
2D CAD for EDS-505A-MM-SC
295.2 KB
2D CAD Jan 19, 2018 Jan 19, 2018
2D CAD for EDS-505A
265.1 KB
2D CAD Jan 19, 2018 Jan 19, 2018
Moxa Command Line Interface (FW 4.x) User's Manual
2.3 MB
Manual v5.2 Oct 19, 2017 Oct 19, 2017
Communication Redundancy User's Manual
1.2 MB
Manual v5.0 Aug 13, 2014 Aug 13, 2014

Available Models (8)

Show Images
moxa-eds-505a-ss-sc-t-image.jpg | MoxaEDS-505A-SS-SC-Tmoxa-eds-505a-mm-sc-image.jpg | MoxaEDS-505A-MM-SCmoxa-eds-505a-t-image.jpg | MoxaEDS-505A-Tmoxa-eds-505a-mm-st-t-image.jpg | MoxaEDS-505A-MM-ST-T
10/100BaseT(X) Ports
RJ45 Connector
3353
100BaseFX Ports
Multi-Mode, SC Connector
2
100BaseFX Ports
Multi-Mode, ST Connector
2
100BaseFX Ports
Single-Mode, SC Connector
2
Operating Temp.-40 to 75°C-10 to 60°C-40 to 75°C-40 to 75°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-eds-505a-mm-sc-t-image.jpg | MoxaEDS-505A-MM-SC-Tmoxa-eds-505a-mm-st-image.jpg | MoxaEDS-505A-MM-STmoxa-eds-505a-ss-sc-image.jpg | MoxaEDS-505A-SS-SCmoxa-eds-505a-image.jpg | MoxaEDS-505A
10/100BaseT(X) Ports
RJ45 Connector
3335
100BaseFX Ports
Multi-Mode, SC Connector
2
100BaseFX Ports
Multi-Mode, ST Connector
2
100BaseFX Ports
Single-Mode, SC Connector
2
Operating Temp.-40 to 75°C-10 to 60°C-10 to 60°C-10 to 60°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
