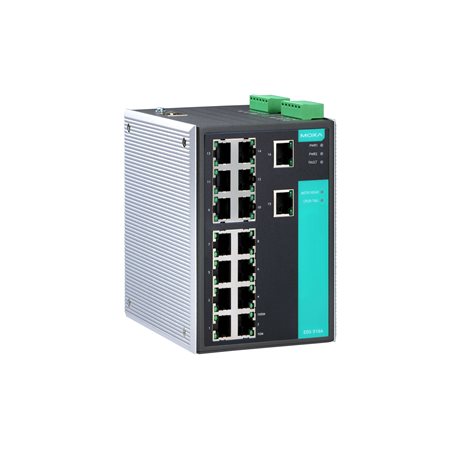

EDS-516A Series

16-port managed Ethernet switches

moxa-eds-516a-series-image-1-(1).jpg | Moxa
moxa-eds-516a-series-image-2-(1).jpg | Moxa
moxa-eds-516a-series-image-3-(1).jpg | Moxa
moxa-eds-516a-series-image-4-(1).jpg | Moxa

Features and Benefits

  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • Supports MXstudio for easy, visualized industrial network management

Certifications

  • moxa-dnv-gl-certification-logo-image.png | Moxa
  • moxa-atex-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The EDS-516A standalone 16-port managed Ethernet switches, with their advanced Turbo Ring and Turbo Chain technologies (recovery time < 20 ms), RSTP/STP, and MSTP, increase the reliability and availability of your industrial Ethernet network. Models with a wide operating temperature range of -40 to 75°C are also available, and the switches support advanced management and security features, making the EDS-516A switches suitable for any harsh industrial environment.

Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions

  • DHCP Option 82 for IP address assignment with different policies

  • Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring

  • Compatible with PROFINET protocol for transparent data transmission

  • Lock port function for blocking unauthorized access based on MAC address

  • IGMP snooping and GMRP for filtering multicast traffic

  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • Port Trunking for optimum bandwidth utilization

  • RMON for proactive and efficient network monitoring

  • SNMPv1/v2c/v3 for different levels of network management

  • Bandwidth management to prevent unpredictable network status

  • Automatic warning by exception through email and relay output

  • Alarm Contact Channels

    Resistive load: 1 A @ 24 VDC

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA

  • 10/100BaseT(X) Ports (RJ45 connector)

    EDS-516A Series: 16
    EDS-516A-MM-SC/MM-ST Series: 14

    All models support:
    Auto negotiation speed
    Full/Half duplex mode
    Auto MDI/MDI-X connection

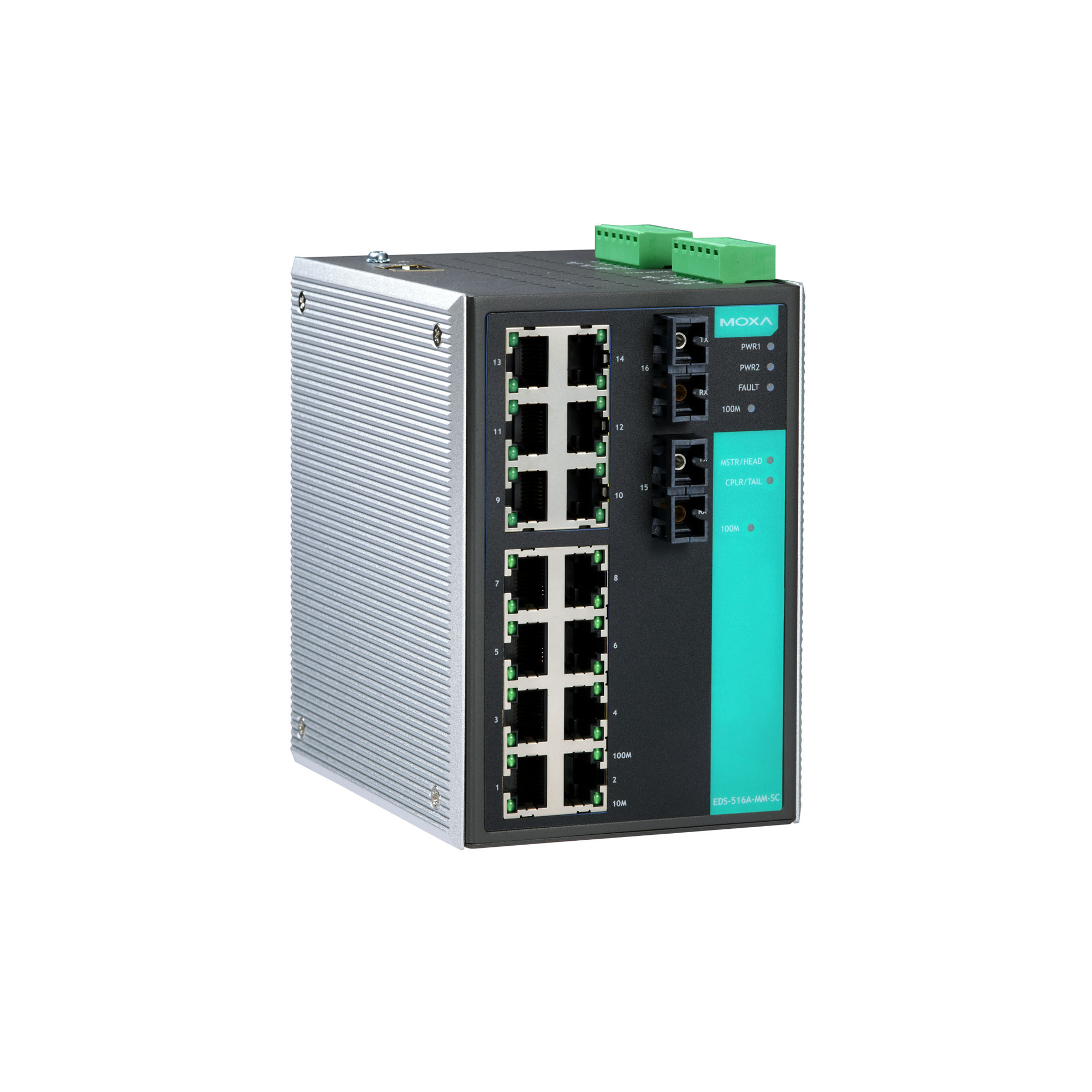

  • 100BaseFX Ports (multi-mode SC connector)

    EDS-516A-MM-SC Series: 2

  • 100BaseFX Ports (multi-mode ST connector)

    EDS-516A-MM-ST Series: 2

  • Optical Fiber

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.1X for authentication
    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1p for Class of Service
    IEEE 802.3x for flow control
    IEEE 802.3ad for Port Trunk with LACP

  • Filter

    802.1Q VLAN
    GMRP
    GVRP
    IGMP v1/v2
    Port-based VLAN

  • Industrial Protocols

    EtherNet/IP
    Modbus TCP

  • Management

    IPv4/IPv6
    SNMPv1/v2c/v3
    LLDP
    Port Mirror
    Back Pressure Flow Control
    BOOTP
    DDM
    DHCP Option 66/67/82
    DHCP Server/Client
    Flow control
    RARP
    RMON
    SMTP
    SNMP Inform
    Syslog
    Telnet
    TFTP

  • MIB

    MIB-II
    Bridge MIB
    Ethernet-like MIB
    P-BRIDGE MIB
    Q-BRIDGE MIB
    RMON MIB Groups 1, 2, 3, 9
    RSTP MIB

  • Redundancy Protocols

    STP
    MSTP
    RSTP
    LACP
    Link Aggregation
    Turbo Chain
    Turbo Ring v1/v2

  • Security

    HTTPS/SSL
    RADIUS
    TACACS+
    Port Lock
    SSH
    Broadcast storm protection

  • Time Management

    NTP Server/Client
    SNTP
    IEEE 1588v2 PTP (software-based)

  • IGMP Groups

    256

  • MAC Table Size

    8 K

  • Max. No. of VLANs

    64

  • Packet Buffer Size

    2 Mbits

  • Priority Queues

    4

  • VLAN ID Range

    VID 1 to 4094

  • LED Indicators

    PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port), MSTR/HEAD, CPLR/TAIL

  • Console Port

    RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

  • Ethernet Interface

    Turbo Ring, Master, Coupler, Reserve

  • Connection

    2 removable 6-contact terminal block(s)

  • Input Voltage

    24 VDC
    Redundant dual inputs

  • Operating Voltage

    12 to 45 VDC

  • Input Current

    EDS-516A Series: 0.35 A @ 24 VDC
    EDS-516A-MM-SC/MM-ST Series: 0.44 A @ 24 VDC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    94 x 135 x 142.7 mm (3.7 x 5.31 x 5.62 in)

  • Weight

    1586 g (3.50 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Operating Temperature

    Standard Models: 0 to 60°C (32 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    EN 62368-1
    UL 60950-1
    UL 508

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Hazardous Locations

    ATEX
    Class I Division 2

  • Vibration

    IEC 60068-2-6

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-31

  • Maritime

    DNV

  • Time

    EDS-516A models: 250,219 hrs
    EDS-516A-MM-ST/SC models: 247,676 hrs

  • Standards

    Telcordia (Bellcore), GB
