EDS-516A-MM-ST
EDS-516A Series

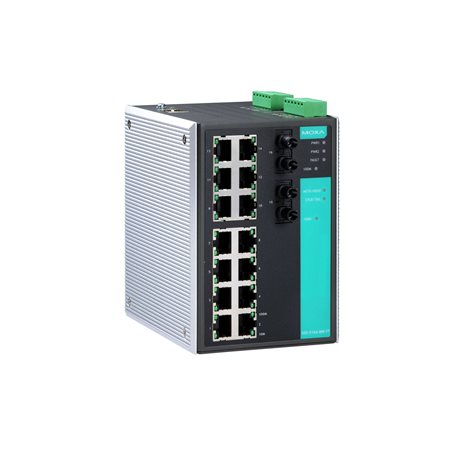

Managed Ethernet switch with 14 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with ST connectors, 0 to 60°C operating temperature

Input/Output Interface
  • Alarm Contact Channels

    • Resistive load: 1 A @ 24 VDC
  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 14
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection
  • 100BaseFX Ports (multi-mode ST connector)

    • 2
  • Optical Fiber

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.1X for authentication
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1p for Class of Service
      IEEE 802.3x for flow control
      IEEE 802.3ad for Port Trunk with LACP
Ethernet Software Features
  • Filter

    • 802.1Q VLAN
      GMRP
      GVRP
      IGMP v1/v2
      Port-based VLAN
  • Industrial Protocols

    • EtherNet/IP
      Modbus TCP
  • Management

    • IPv4/IPv6
      SNMPv1/v2c/v3
      LLDP
      Port Mirror
      Back Pressure Flow Control
      BOOTP
      DDM
      DHCP Option 66/67/82
      DHCP Server/Client
      Flow control
      RARP
      RMON
      SMTP
      SNMP Inform
      Syslog
      Telnet
      TFTP
  • MIB

    • MIB-II
      Bridge MIB
      Ethernet-like MIB
      P-BRIDGE MIB
      Q-BRIDGE MIB
      RMON MIB Groups 1, 2, 3, 9
      RSTP MIB
  • Redundancy Protocols

    • STP
      MSTP
      RSTP
      LACP
      Link Aggregation
      Turbo Chain
      Turbo Ring v1/v2
  • Security

    • HTTPS/SSL
      RADIUS
      TACACS+
      Port Lock
      SSH
      Broadcast storm protection
  • Time Management

    • NTP Server/Client
      SNTP
      IEEE 1588v2 PTP (software-based)
Switch Properties
  • IGMP Groups

    • 256
  • MAC Table Size

    • 8 K
  • Max. No. of VLANs

    • 64
  • Packet Buffer Size

    • 2 Mbits
  • Priority Queues

    • 4
  • VLAN ID Range

    • VID 1 to 4094
LED Interface
  • LED Indicators

    • PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port), MSTR/HEAD, CPLR/TAIL
Serial Interface
  • Console Port

    • RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)
DIP Switch Configuration
  • Ethernet Interface

    • Turbo Ring, Master, Coupler, Reserve
Power Parameters
  • Connection

    • 2 removable 6-contact terminal block(s)
  • Input Voltage

    • 24 VDC
      Redundant dual inputs
  • Operating Voltage

    • 12 to 45 VDC
  • Input Current

    • 0.44 A @ 24 VDC
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 94 x 135 x 142.7 mm (3.7 x 5.31 x 5.62 in)
  • Weight

    • 1586 g (3.50 lb)
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • EN 62368-1
      UL 60950-1
      UL 508
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Hazardous Locations

    • ATEX
      Class I Division 2
  • Vibration

    • IEC 60068-2-6
  • Shock

    • IEC 60068-2-27
  • Freefall

    • IEC 60068-2-31
  • Maritime

    • DNV
MTBF
  • Time

    • 247,676 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
