Layer 2 Managed Switches

Moxa's Layer 2 managed switches feature industrial-grade reliability, network redundancy, and security features based on the IEC 62443 standard. We offer toughened, industry-specific products with multiple industry certifications, such as parts of the EN 50155 standard for rail applications, IEC 61850-3 for power automation systems, and NEMA TS2 for intelligent transportation systems.

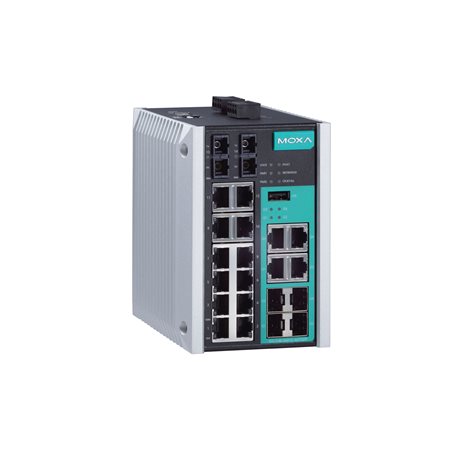

EDS-518E-MM-SC-4GTXSFP
EDS-518E Series

Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX (multi-mode, SC Connector), -10 to 60°C operating temperature

Input/Output Interface
  • Alarm Contact Channels

    • 1
      Relay output with current carrying capacity of 1 A @ 24 VDC
  • Buttons

    • Reset button
  • Digital Input Channels

    • 1
  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 12
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection
  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

    • 4
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection
  • 100BaseFX Ports (multi-mode SC connector)

    • 2
  • Optical Fiber

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
      IEEE 802.3x for flow control
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1X for authentication
      IEEE 802.3ad for Port Trunk with LACP
Ethernet Software Features
  • Filter

    • 802.1Q VLAN
      BPDU Filter
      BPDU Guard
      GMRP
      GVRP
      IGMP v1/v2/v3
      Port-based VLAN
  • Industrial Protocols

    • EtherNet/IP
      Modbus TCP
      PROFINET IO Device
  • Management

    • LLDP
      Back Pressure Flow Control
      BOOTP
      Port Mirror
      DHCP Option 66/67/82
      DHCP Server/Client
      Fiber check
      Flow control
      IPv4/IPv6
      RARP
      RMON
      SCP
      SMTP
      SNMP Inform
      SNMPv1/v2c/v3
      Syslog
      Telnet
      TFTP
  • MIB

    • Ethernet-like MIB
      MIB-II
      Bridge MIB
      P-BRIDGE MIB
      Q-BRIDGE MIB
      RMON MIB Groups 1, 2, 3, 9
      RSTP MIB
  • Redundancy Protocols

    • Link Aggregation
      MRP
      MSTP
      RSTP
      STP
      Turbo Chain
      Turbo Ring v1/v2
  • Security

    • Broadcast storm protection
      HTTPS/SSL
      TACACS+
      SNMPv3
      MAB authentication
      Sticky MAC
      NTP authentication
      MAC ACL
      Port Lock
      RADIUS
      SSH
      SMTP with TLS
  • Time Management

    • NTP Server/Client
      SNTP
Switch Properties
  • IGMP Groups

    • 2048
  • MAC Table Size

    • 16 K
  • Max. No. of VLANs

    • 64
  • Packet Buffer Size

    • 1 Mbits
  • Priority Queues

    • 4
  • VLAN ID Range

    • VID 1 to 4094
USB Interface
  • Storage Port

    • USB Type A
LED Interface
  • LED Indicators

    • PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 100M (fiber port), Gigabit combo port, MSTR/HEAD, CPLR/TAIL
Serial Interface
  • Console Port

    • USB-serial console (Type B connector)
DIP Switch Configuration
  • DIP Switches

    • Turbo Ring, Master, Coupler, Reserve
Power Parameters
  • Connection

    • 2 removable 4-contact terminal block(s)
  • Input Current

    • 0.51 A @ 24 VDC
  • Input Voltage

    • 12/24/48/-48 VDC
      Redundant dual inputs
  • Operating Voltage

    • 9.6 to 60 VDC
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 94 x 135 x 137 mm (3.7 x 5.31 x 5.39 in)
  • Weight

    • 1630 g (3.59 lb)
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • UL 508
      EN 62368-1
  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Hazardous Locations

    • ATEX
      Class I Division 2
  • Power Substation

    • IEC 61850-3
      IEEE 1613
  • Railway

    • EN 50121-4
  • Traffic Control

    • NEMA TS2
  • Vibration

    • IEC 60068-2-6
  • Shock

    • IEC 60068-2-27
  • Freefall

    • IEC 60068-2-32
  • Maritime

    • LR
      ABS
      DNV
      NK
MTBF
  • Standards

    • Telcordia (Bellcore), GB
  • Time

    • 806,427 hrs
