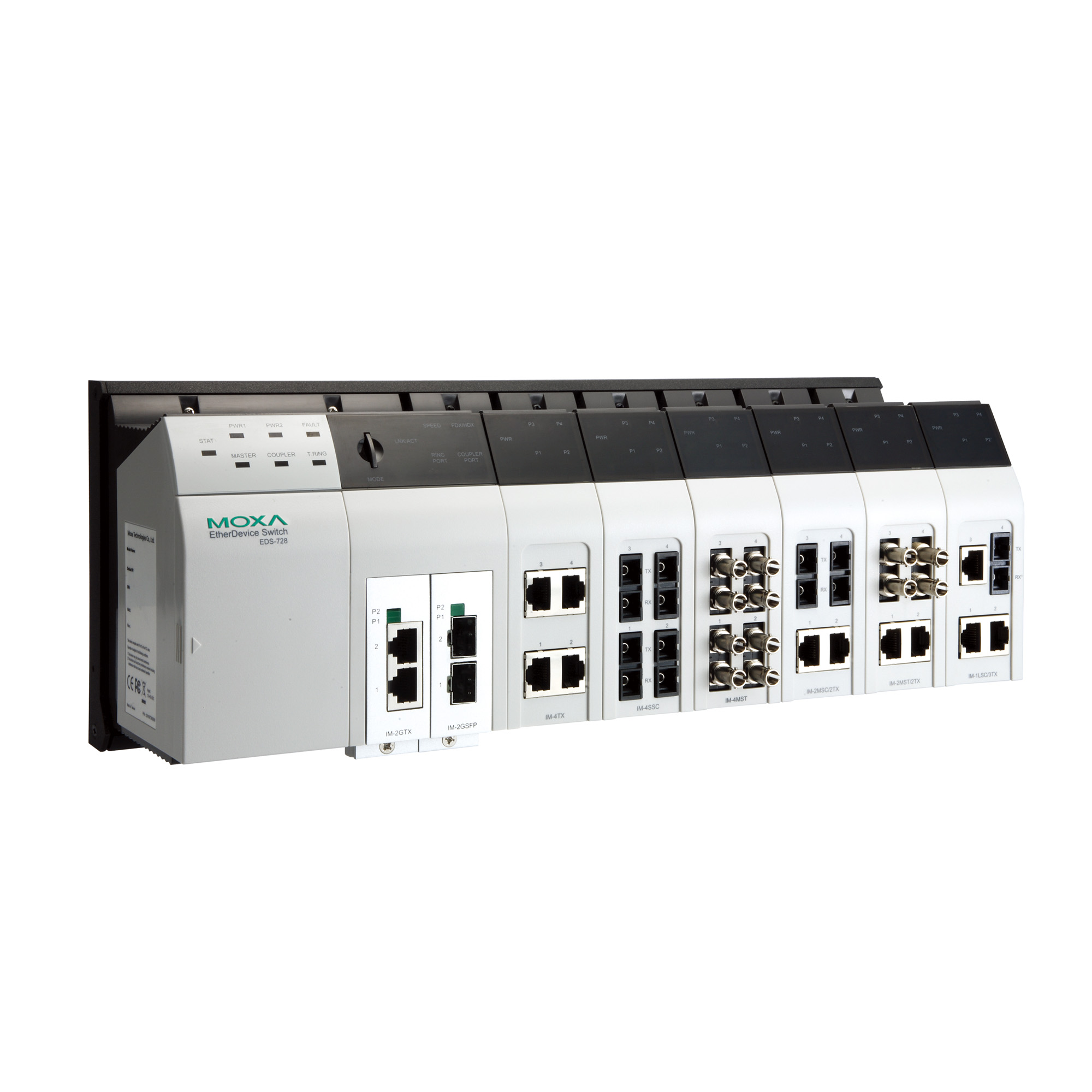

EDS-728 Series

24+4G-port Layer 2 Gigabit modular managed Ethernet switches

moxa-eds-728-series-image-1-(1).jpg | Moxa

Features and Benefits

  • 4 Gigabit plus 24 Fast Ethernet ports for copper and fiber
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), Gigabit Ethernet recovery time < 50 ms RSTP/STP, and MSTP for network redundancy
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • Supports MXstudio for easy, visualized industrial network management

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The EDS-728 Series features a versatile modular design that allows different combinations of fiber and copper modules, creating a wide array of connection options ideal for any automation network. The modular design lets you install up to 4 Gigabit ports and 24 Fast Ethernet ports. The EDS-728 Series is specially designed for redundant Gigabit network backbones and uses a modular configuration to provide a high degree of flexibility for network expansion.

Top network performance, security, and reliability are assured through the EDS-728 Series advanced management and security features. The EDS-728 Series also features industrial-grade construction, a console port for automatic configuration backup, and an angled LED troubleshooting panel that can be conveniently viewed from both horizontal and vertical orientations.

Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions

  • Supports advanced VLAN capability with Q-in-Q tagging

  • Software-based IEEE 1588 PTPv2 (Precision Time Protocol) for time synchronization of networks

  • DHCP Option 82 for IP address assignment with different policies

  • Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring

  • Compatible with PROFINET protocol for transparent data transmission

  • IGMP snooping and GMRP for filtering multicast traffic

  • IEEE 802.1Q VLAN and GVRP protocol to ease network planning

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • Port Trunking for optimum bandwidth utilization

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for proactive and efficient network monitoring

  • Bandwidth management to prevent unpredictable network status

  • Lock port function for blocking unauthorized access based on MAC address

  • Port mirroring for online debugging

  • Automatic warning by exception through email and relay output

  • Digital inputs for integrating sensors and alarms with IP networks

  • Redundant, dual DC power inputs

  • Configurable by Web browser, Telnet/serial console, CLI, Windows utility, and ABC-01 automatic backup configurator

  • Alarm Contact Channels

    2, Relay output with current carrying capacity of 1 A @ 24 VDC

  • Digital Input Channels

    2

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA

  • Module

    6 slots for any combination of 4-port interface modules, 10/100BaseT(X) or 100BaseFX; 2 slots for any combination of 2-port interface modules, 10/100/1000BaseT(X) or 1000BaseSFP

  • Pre-installed Modules

    EDS-72810G-2GSFP: 1 x IM-2GSFP
    EDS-72810G-2GTX2GSFP: 1 x IM-2GTX
    1 x IM-2GSFP
    EDS-72810G-4GSFP: 2 x IM-2GSFP
    EDS-72810G-4GTX: 2 x IM-2GTX

  • Standards

    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1X for authentication
    IEEE 802.3 for 10BaseT
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control
    IEEE 802.3z for 1000BaseX

  • Filter

    GMRP, GVRP, IGMP v1/v2, QinQ VLAN, VLAN unaware, 802.1Q VLAN

  • Industrial Protocols

    EtherNet/IP, Modbus TCP

  • Management

    Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

  • MIB

    Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

  • Redundancy Protocols

    Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2

  • Security

    Broadcast storm protection, HTTPS/SSL, Port Lock, RADIUS, SSH, TACACS+

  • Time Management

    NTP Server/Client, SNTP, IEEE 1588v2 PTP (software-based)

  • IGMP Groups

    256

  • MAC Table Size

    16 K

  • Max. No. of VLANs

    64

  • Packet Buffer Size

    32 Mbits

  • Priority Queues

    4

  • VLAN ID Range

    VID 1 to 4094

  • Console Port

    RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

  • Connection

    2 removable 6-contact terminal block(s)

  • Input Current

    0.82 A @ 24 VDC

  • Input Voltage

    24 VDC, Redundant dual inputs

  • Operating Voltage

    12 to 45 VDC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • IP Rating

    IP30

  • Dimensions

    362.4 x 142.5 x 128 mm (14.27 x 5.61 x 5.04 in)

  • Weight

    1950 g (4.30 lb)

  • Installation

    DIN-rail mounting, Wall mounting (with optional kit)

  • Operating Temperature

    0 to 60°C (32 to 140°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Freefall

    IEC 60068-2-32

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Maritime

    ABS, DNV-GL, LR, NK

  • Safety

    EN 60950-1, UL 508, UL 60950-1, CSA C22.2 No. 60950-1

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Time

    191,203 hrs

  • Standards

    Telcordia SR332

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
EtherNet/IP AOI (28P)
82.9 KB
Software Package v1.2.0
2018-01-19 Jan 19, 2018
EtherNet/IP icon and EDS (electronic data sheet) file
8.2 KB
Software Package v1.3
2018-01-19 Jan 19, 2018
MXview Trial Version
244.9 MB
Software Package v2.9
  • Windows Server 2008
  • Windows 7
  • Windows 10
  • Windows Server 2012
  • Windows 8
2017-12-05 Dec 05, 2017 Release notes
Firmware for EDS-728 Series
2.3 MB
Firmware v3.8
2017-05-04 May 04, 2017 Release notes
SNMP MIB file for EDS-728 Series
143.6 KB
Software Package v3.8
2017-05-04 May 04, 2017
Windows Utility for Moxa Ethernet switch and video server
1.6 MB
Utility v5.3
  • Windows XP
  • Windows
2012-04-10 Apr 10, 2012

Support Documents

Name Type Version Release Date
Datasheet for EDS-728 Series
686.9 KB
Datasheet v1.0 2018-11-12 Nov 12, 2018
2D CAD for EDS-728
620.9 KB
2D CAD 2018-01-19 Jan 19, 2018
Moxa Managed Ethernet Switch User's Manual
5.0 MB
Manual v9.5 2017-10-17 Oct 17, 2017
QIG for EDS-728 Series
2.0 MB
QIG v4.0 2017-03-20 Mar 20, 2017
Industrial Protocols User's Guide
6.9 MB
Manual v6.0 2014-06-03 Jun 03, 2014
Manual for EDS-728 Series
3.1 MB
Manual v3.0 2010-08-04 Aug 04, 2010

Available Models (5)

Show Images
moxa-eds-72810g-image.jpg | MoxaEDS-72810Gmoxa-eds-72810g-4gtx-image.jpg | MoxaEDS-72810G-4GTXmoxa-eds-72810g-2gsfp-image.jpg | MoxaEDS-72810G-2GSFPmoxa-eds-72810g-4gsfp-image.jpg | MoxaEDS-72810G-4GSFP
Layer2222
Total No. of Ports28282828
IM-2G Series Module
10/100/1000BaseT(X) or 1000BaseSFP
2 slots for up to 4 10/100/1000BaseT(X) or 1000BaseSFP ports2 IM-2GTX preinstalled; 2 slots for up to 4 10/100/1000BaseT(X) or 1000BaseSFP ports1 IM-2GSFP preinstalled; 2 slots for up to 4 10/100/1000BaseT(X) or 1000BaseSFP ports2 IM-2GSFP preinstalled; 2 slots for up to 4 10/100/1000BaseT(X) or 1000BaseSFP ports
IM Series Module
10/100BaseT(X) and/or 100BaseFX
6 slots for up to 24 10/100BaseT(X) and/or 100BaseFX ports6 slots for up to 24 10/100BaseT(X) and/or 100BaseFX ports6 slots for up to 24 10/100BaseT(X) and/or 100BaseFX ports6 slots for up to 24 10/100BaseT(X) and/or 100BaseFX ports
Operating Temp.0 to 60°C0 to 60°C0 to 60°C0 to 60°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-eds-72810g-2gtx2gsfp-image.jpg | MoxaEDS-72810G-2GTX2GSFP
Layer2
Total No. of Ports28
IM-2G Series Module
10/100/1000BaseT(X) or 1000BaseSFP
1 IM-2GTX and 1 IM-2GSFP preinstalled; 2 slots for up to 4 10/100/1000BaseT(X) or 1000BaseSFP ports
IM Series Module
10/100BaseT(X) and/or 100BaseFX
6 slots for up to 24 10/100BaseT(X) and/or 100BaseFX ports
Operating Temp.0 to 60°C
