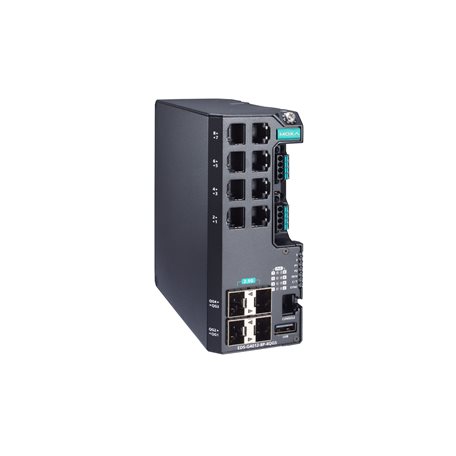

EDS-G4012-8P-4QGS-LVB-T
EDS-G4012 Series

Managed Full Gigabit Ethernet switch with 8 10/100/1000BaseT(X) ports with 802.3bt PoE, 4 1000/2500BaseSFP ports, dual power supply 12/24/48 VDC, -40 to 75°C operating temperature,

Ethernet Interface
  • PoE Ports (10/100/1000BaseT(X), RJ45 connector)

    • 8
  • 1000/2500BaseSFP Ports

    • 4
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3z for 1000BaseX
      IEEE 802.3bz for 2.5GBaseX
      IEEE 802.3x for flow control
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1X for authentication
Ethernet Software Features
  • Industrial Protocols

    • EtherNet/IP
      Modbus TCP
      PROFINET IO Device
  • Management

    • IPv4/IPv6
      Flow control
      Back Pressure Flow Control
      DHCP Server/Client
      ARP
      RARP
      LLDP
      Port Mirroring (SPAN, RSPAN)
      Linkup Delay
      SMTP
      SNMP Trap
      SNMP Inform
      SNMPv1/v2c/v3
      RMON
      TFTP
      SFTP
      HTTP
      HTTPS
      Telnet
      Syslog
      Private MIB
      Fiber check
  • Filter

    • GMRP
      GVRP
      GARP
      802.1Q VLAN
      IGMP Snooping v1/v2/v3
      IGMP Querier
  • Redundancy Protocols

    • STP
      RSTP
      Turbo Ring v2
      Turbo Chain
      Ring Coupling
      Dual-Homing
      MRP
      Link Aggregation
      MSTP
  • Security

    • Broadcast storm protection
      Rate Limit
      Trust access control
      Static Port Lock
      MAC Sticky
      HTTPS/SSL
      SSH
      RADIUS
      TACACS+
      Login and Password Policy
      Access control list
      DHCP Snooping
  • Time Management

    • SNTP
      NTP Server/Client
      NTP Authentication
      IEEE 1588v2 PTP (hardware-based)
      Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
  • Protocols

    • IPv4/IPv6
      TCP/IP
      UDP
      ICMP
      ARP
      RARP
      TFTP
      DNS
      NTP Client
      DHCP Server
      DHCP Client
      802.1X
      QoS
      HTTPS
      HTTP
      Telnet
      SMTP
      SNMPv1/v2c/v3
      RMON
      Syslog
  • MIB

    • P-BRIDGE MIB
      Q-BRIDGE MIB
      IEEE8021-SPANNING-TREE-MIB
      IEEE8021-PAE-MIB
      IEEE8023-LAG-MIB
      LLDP-EXT-DOT1-MIB
      LLDP-EXT-DOT3-MIB
      SNMPv2-MIB
      RMON MIB Groups 1, 2, 3, 9
Switch Properties
  • MAC Table Size

    • 16 K
  • Jumbo Frame Size

    • 9.216 KB
  • Max. No. of VLANs

    • 256
  • VLAN ID Range

    • VID 1 to 4094
  • IGMP Groups

    • 512
  • Priority Queues

    • 4
  • Packet Buffer Size

    • 1 MB
LED Interface
  • LED Indicators

    • PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC
Serial Interface
  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
USB Interface
  • USB Connector

    • USB Type A (Reserved)
Input/Output Interface
  • Alarm Contact Channels

    • 1, Relay output with current carrying capacity of 1 A @ 24 VDC
  • Digital Input Channels

    • 1
  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
  • Buttons

    • Reset button
DIP Switch Configuration
  • DIP Switches

    • Turbo Ring, Master, Coupler, Reserve
Power Parameters
  • Connection

    • 2 removable 4-contact terminal block(s)
  • Pre-installed Power Module

    • PWR-103-LV-VB-I
  • Note

    • The EDS-G4012 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.

      For example:
      EDS-G4012-4GC-T + PWR-100–LV = EDS-G4012-4GC-LV-T
      EDS-G4012-4GC-T + PWR-105-HV-I = EDS-G4012-4GC-HV-T

      If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-G4012-4GC-LV-T with the PWR-105–HV-I, refer to the specifications of the EDS-G4012-4GC-HV-T.
  • Input Voltage

    • 12/24/48 VDC
      Redundant dual inputs
  • Operating Voltage

    • 12 to 57 VDC (>52 VDC for PoE+ output recommended)
  • Input Current

    • 12/48 VDC, 7.46/4.27 A or 24 VDC, 7.26 A
  • Power Consumption (Max.)

    • Without PoE: 17.96 W
      With PoE:
      Max. 180 W for total PD power consumption @ 48 VDC input;
      Max. 150 W for total PD power consumption @ 24 VDC input;
      Max. 62 W for total PD power consumption @ 12 VDC input
  • Max. PoE Power Output per Port

    • 90 W
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • IP Rating

    • IP40
  • Dimensions

    • 55 x 140 x 122.5 mm (2.17 x 5.51 x 4.82 in)
  • Weight

    • 972 g (2.14 lb)
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
  • Housing

    • Metal
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Industrial Cybersecurity

    • IEC 62443-4-1
      IEC 62443-4-2
  • Safety

    • UL 61010-2-201
      EN 62368-1 (LVD)
  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Maritime

    • ABS
      NK
      DNV
      LR
  • Vibration

    • IEC 60068-2-6
  • Shock

    • IEC 60068-2-27
  • Freefall

    • IEC 60068-2-32
  • Railway

    • EN 50121-4
  • Traffic Control

    • NEMA TS2
  • Power Substation

    • IEC 61850-3
      IEEE 1613 Class 1
MTBF
  • Time

    • 759,924 hrs
  • Standards

    • Telcordia SR332
Warranty
