EDS-G516E Series

16G-port full Gigabit managed Ethernet switches

moxa-eds-g516e-series-image-1-(1).jpg | Moxa

Features and Benefits

  • Up to 12 10/100/1000BaseT(X) ports and 4 100/1000BaseSFP ports
  • Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
  • RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC-addresses to enhance network security
  • EtherNet/IP, PROFINET, and Modbus TCP protocols supported for device management and monitoring
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery

Certifications

  • moxa-dnv-gl-certification-logo-image.png | Moxa
  • moxa-atex-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The EDS-G516E Series is equipped with 16 Gigabit Ethernet ports and up to 4 fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly.

Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the reliability of your system and improve the availability of your network backbone. The EDS-G500E Series is designed specifically for communication demanding applications, such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable network backbone.

Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions

  • DHCP Option 82 for IP address assignment with different policies

  • Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring

  • IGMP snooping and GMRP for filtering multicast traffic

  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

  • Supports the ABC-02-USB (Automatic Backup Configurator) for system configuration backup/restore and firmware upgrade

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • Port Trunking for optimum bandwidth utilization

  • RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1x, MAC ACL, HTTPS, SSH, and sticky MAC address to enhance network security

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for proactive and efficient network monitoring

  • Bandwidth management to prevent unpredictable network status

  • Lock port function for blocking unauthorized access based on MAC address

  • Port mirroring for online debugging

  • Automatic warning by exception through email and relay output

  • Alarm Contact Channels

    1
    Relay output with current carrying capacity of 1 A @ 24 VDC

  • Buttons

    Reset button

  • Digital Input Channels

    1

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    12
    Auto negotiation speed
    Full/Half duplex mode
    Auto MDI/MDI-X connection

  • 100/1000BaseSFP Slots

    4

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
    IEEE 802.3x for flow control
    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1X for authentication
    IEEE 802.3ad for Port Trunk with LACP

  • Filter

    802.1Q VLAN
    BPDU Filter
    BPDU Guard
    GMRP
    GVRP
    IGMP v1/v2/v3
    Port-based VLAN

  • Industrial Protocols

    EtherNet/IP
    Modbus TCP
    PROFINET IO Device

  • Management

    LLDP
    Back Pressure Flow Control
    BOOTP
    Port Mirror
    DHCP Option 66/67/82
    DHCP Server/Client
    Fiber check
    Flow control
    IPv4/IPv6
    RARP
    RMON
    SCP
    SMTP
    SNMP Inform
    SNMPv1/v2c/v3
    Syslog
    Telnet
    TFTP

  • MIB

    Ethernet-like MIB
    MIB-II
    Bridge MIB
    P-BRIDGE MIB
    Q-BRIDGE MIB
    RMON MIB Groups 1, 2, 3, 9
    RSTP MIB

  • Redundancy Protocols

    Link Aggregation
    MRP
    MSTP
    RSTP
    STP
    Turbo Chain
    Turbo Ring v1/v2

  • Security

    Broadcast storm protection
    HTTPS/SSL
    TACACS+
    SNMPv3
    MAB authentication
    Sticky MAC
    NTP authentication
    MAC ACL
    Port Lock
    RADIUS
    SSH
    SMTP with TLS

  • Time Management

    NTP Server/Client
    SNTP

  • IGMP Groups

    2048

  • Jumbo Frame Size

    9.6 KB

  • MAC Table Size

    8 K

  • Max. No. of VLANs

    256

  • Packet Buffer Size

    4 Mbits

  • Priority Queues

    4

  • VLAN ID Range

    VID 1 to 4094

  • Storage Port

    USB Type A

  • LED Indicators

    PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 1000M (TP port), 100/1000M (SFP port), MSTR/HEAD, CPLR/TAIL

  • Console Port

    USB-serial console (Type B connector)

  • DIP Switches

    Turbo Ring, Master, Coupler, Reserve

  • Connection

    2 removable 4-contact terminal block(s)

  • Input Current

    0.51 A @ 24 VDC

  • Input Voltage

    12/24/48/-48 VDC
    Redundant dual inputs

  • Operating Voltage

    9.6 to 60 VDC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)

  • Weight

    1440 g (3.18 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Operating Temperature

    EDS-G516E-4GSFP: -10 to 60°C (14 to 140°F)
    EDS-G516E-4GSFP-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    UL 508

  • EMC

    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Hazardous Locations

    ATEX
    Class I Division 2

  • Power Substation

    IEC 61850-3
    IEEE 1613

  • Railway

    EN 50121-4

  • Traffic Control

    NEMA TS2

  • Vibration

    IEC 60068-2-6

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-32

  • Maritime

    DNV
    LR
    ABS
    NK

  • Time

    808,933 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

All Driver Firmware Software Package Utility
Name Type Checksum Version Operating System Release Date
Moxa USB Console Windows Driver
2.2 MB 		Driver
SHA-512
v1.8
  • Windows 11
  • Windows Server 2022
 Apr 09, 2025 Apr 09, 2025 Release notes
Software Package for EDS-G516E Series (GSD file)
7.9 KB 		Software Package
SHA-512
v2.4
Mar 04, 2025 Mar 04, 2025 Release notes
Software Package for EDS-G516E Series (SNMP MIB)
206.2 KB 		Software Package
SHA-512
v5.6
Mar 04, 2025 Mar 04, 2025 Release notes
Modbus File
2.3 KB 		Software Package
SHA-512
v1.1
Mar 04, 2025 Mar 04, 2025 Release notes
Software Package for EDS-G516E Series (EDS file)
5.7 KB 		Software Package
SHA-512
v1.5
Mar 04, 2025 Mar 04, 2025 Release notes
Firmware for EDS-G516E Series
3.7 MB 		Firmware
SHA-512
v6.5
Mar 04, 2025 Mar 04, 2025 Release notes
Software Package for MXview One Series (Linux version)
508.2 MB 		Software Package
SHA-512
v1.5.0
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
 Jan 22, 2025 Jan 22, 2025 Release notes
Software Package for MXview One Series (Windows version)
284.5 MB 		Software Package
SHA-512
v1.5.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
 Jan 22, 2025 Jan 22, 2025 Release notes
Firmware for EDS-G516E Series
3.7 MB 		Firmware
SHA-512
v6.4
Dec 08, 2023 Dec 08, 2023 Release notes
EtherNet/IP AOI (16P) for EDS-G516E Series
82.9 KB 		Software Package
SHA-512
v1.2.0
Jan 18, 2018 Jan 18, 2018 Release notes
EtherNet/IP FactoryTalk View
34.8 MB 		Software Package
SHA-512
v1.5
Jan 18, 2018 Jan 18, 2018 Release notes
Moxa USB Console Windows Driver
1.2 MB 		Driver
SHA-512
v1.7.1
  • Windows
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 98 SE
  • Windows ME
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
 Dec 10, 2013 Dec 10, 2013 Release notes
PComm Lite - Serial Communication Tool for Windows
1.6 MB 		Utility
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
 May 14, 2012 May 14, 2012 Release notes

Support Documents

FILTER

All 2D CAD Datasheet Declaration Manual QIG Tech Note
Name Type Version Release Date
Datasheet for EDS-G516E Series
784.0 KB 		Datasheet v1.4 Jun 09, 2025 Jun 09, 2025
FOSS Statement for EDS-500E Series, EDS-G500E Series, EDS-P500E Series, ICS Series, IKS Series
128.8 KB 		Declaration v1.0 Mar 17, 2025 Mar 17, 2025
Moxa Managed Ethernet Switch Redundancy Protocol Manual (UI 2.0)
3.9 MB 		Manual v4.4 Mar 11, 2025 Mar 11, 2025
Industrial Protocol Users Guide
13.4 MB 		Manual v6.6 Mar 11, 2025 Mar 11, 2025
Moxa Managed Ethernet Switch User Manual (UI 2.0, FW 5.x)
8.0 MB 		Manual v2.7 Mar 11, 2025 Mar 11, 2025
Moxa Command Line Interface (FW 5.x) Users Manual
2.8 MB 		Manual v1.8 Mar 11, 2025 Mar 11, 2025
FOSS Statement for EDS, EOM, IKS, ICS, SDS Series products
334.0 KB 		Declaration v1.0 Jul 31, 2024 Jul 31, 2024
Declaration of Conformity for EDS-G508E/G512E/G516E Series
305.1 KB 		Declaration v1.0 Feb 05, 2024 Feb 05, 2024
QIG for EDS-G500E Series
2.2 MB 		QIG v3.3 Jan 16, 2024 Jan 16, 2024
Moxa Managed Ethernet Switch (UI 2.0, FW 5.x) User's Manual
5.3 MB 		Manual v2.2 Jun 29, 2022 Jun 29, 2022
Tech Note: Recommended Procedure for STP Cable Grounding on Moxa's Industrial Ethernet Switches
558.3 KB 		Tech Note v1.0 Feb 12, 2019 Feb 12, 2019
2D CAD for EDS-G516E
384.8 KB 		2D CAD Jan 19, 2018 Jan 19, 2018
Moxa Command Line Interface (FW 4.x) User's Manual
2.3 MB 		Manual v5.2 Oct 19, 2017 Oct 19, 2017
Moxa Managed Ethernet Switch (UI 2.0, FW 4.x) User's Manual
4.4 MB 		Manual v3.3 Jul 04, 2017 Jul 04, 2017

Related Content

FILTER

All Article Solution Brochure Spotlight Technology Guide White Paper

Available Models (2)

Show Images
Compare

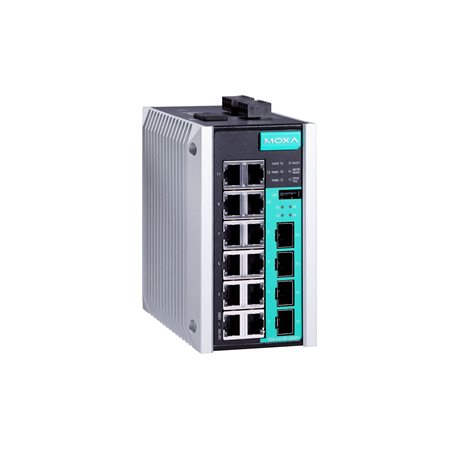

moxa-eds-g516e-4gsfp-image.jpg | MoxaEDS-G516E-4GSFP
