ICS-G7526A Series

24G+2 10GbE-port Layer 2 full Gigabit managed Ethernet switches

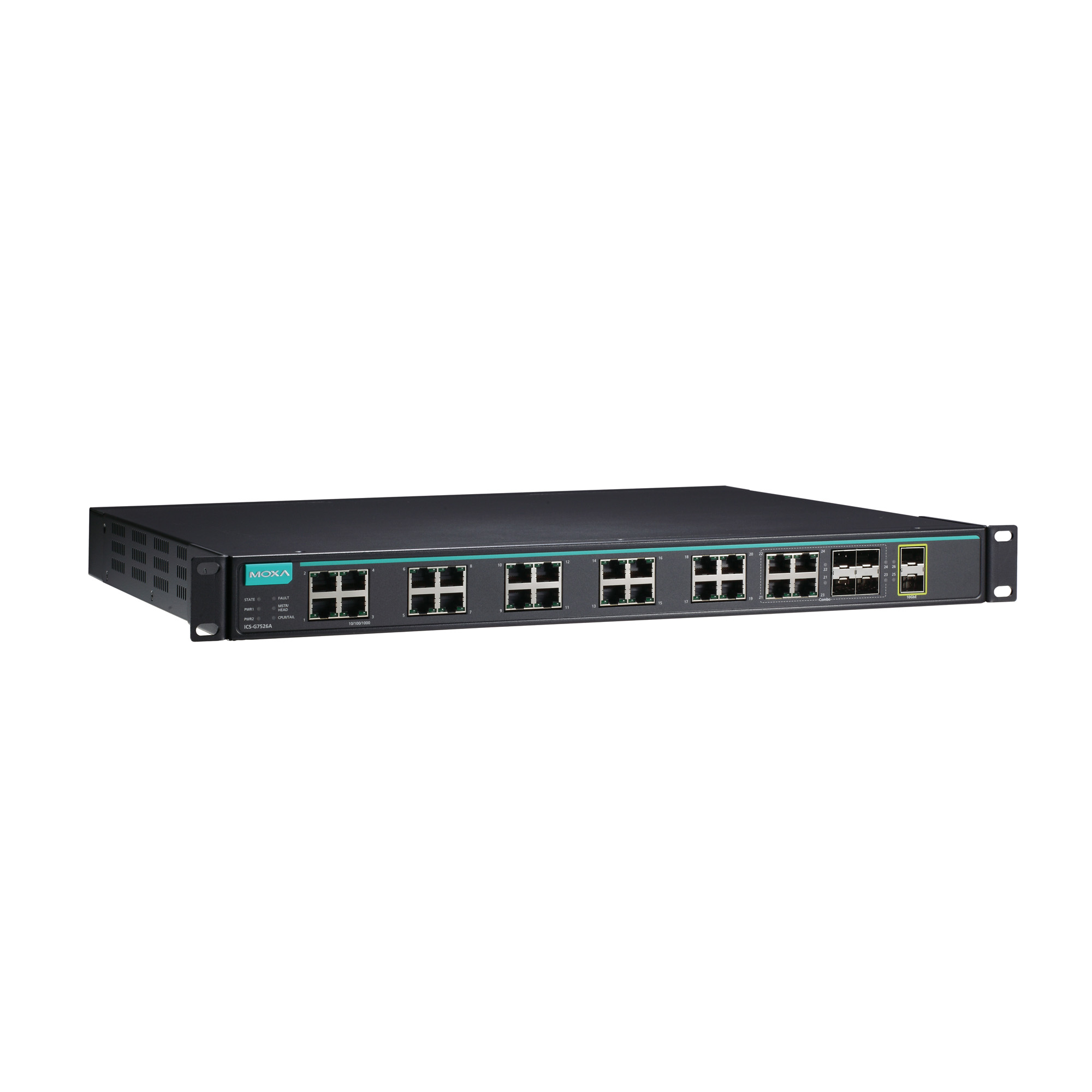

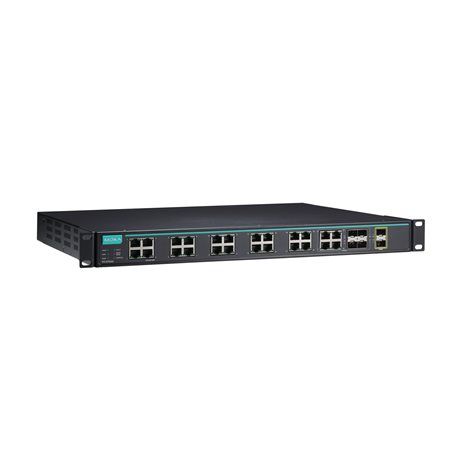

moxa-ics-g7526a-series-image-(1).jpg | Moxa

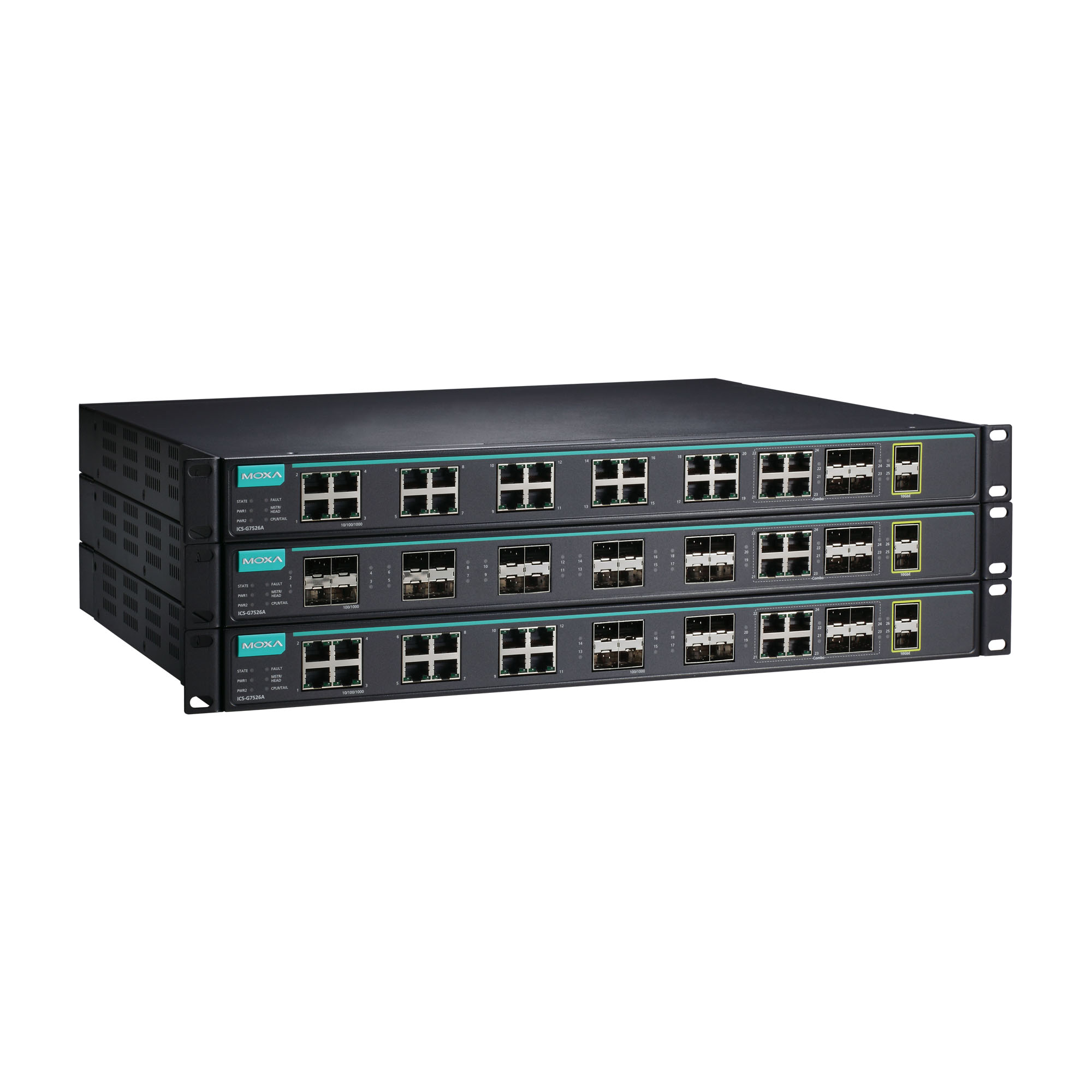

moxa-ics-g7526a-series-image-1-(1).jpg | Moxa

Features and Benefits

  • 24 Gigabit Ethernet ports plus up to 2 10G Ethernet ports
  • Up to 26 optical fiber connections (SFP slots)
  • Fanless, -40 to 75°C operating temperature range (T models)
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) If the port link speed is 1 Gigabit or higher, the recovery time is < 50 ms. , and STP/RSTP/MSTP for network redundancy
  • Isolated redundant power inputs with universal 110/220 VAC power supply range
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa

Contact Sales

Introduction

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7526A Series full Gigabit backbone switches are equipped with 24 Gigabit Ethernet ports plus up to 2 10G Ethernet ports, making them ideal for large-scale industrial networks.

The ICS-G7526A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.

Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions

  • DHCP Option 82 for IP address assignment with different policies

  • Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring

  • IGMP snooping and GMRP for filtering multicast traffic

  • IEEE 802.1Q VLAN and GVRP protocol to ease network planning

  • Digital inputs for integrating sensors and alarms with IP networks

  • Redundant, dual AC power inputs

  • Automatic warning by exception through email and relay output

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • Port Trunking for optimum bandwidth utilization

  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for proactive and efficient network monitoring

  • Bandwidth management to prevent unpredictable network status

  • Lock port function for blocking unauthorized access based on MAC address

  • Port mirroring for online debugging

  • Redundant, dual AC power inputs

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    ICS-G7526A-2XG-HV-HV-T: 20
    ICS-G7526A-8GSFP-2XG-HV-HV-T: 12

  • 100/1000BaseSFP Ports

    ICS-G7526A-8GSFP-2XG-HV-HV-T: 8
    ICS-G7526A-20GSFP-2XG-HV-HV-T: 20

  • 10GbE SFP+ Slots

    2

  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

    4

  • Standards

    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1X for authentication
    IEEE 802.3 for 10BaseT
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control
    IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
    IEEE 802.3ae for 10 Gigabit Ethernet

  • Management

    ARP
    Back Pressure Flow Control
    BOOTP
    DDM
    DHCP Option 66/67/82
    DHCP Server/Client
    Flow control
    IPv4/IPv6
    LLDP
    Port Mirror
    RARP
    RMON
    SCP
    SMTP
    SNMP Inform
    SNMPv1/v2c/v3
    Syslog
    Telnet
    TFTP

  • Filter

    802.1Q
    BPDU Filter
    BPDU Guard
    GMRP
    GVRP
    IGMP v1/v2/v3

  • Redundancy Protocols

    Link Aggregation
    MRP
    MSTP
    RSTP
    Turbo Chain
    Turbo Ring v1/v2
    V-ON

  • Security

    Access control list
    Broadcast storm protection
    HTTPS/SSL
    MAB authentication
    Sticky MAC
    NTP authentication
    Port Lock
    RADIUS
    SSH
    TACACS+

  • Time Management

    NTP Server/Client
    SNTP

  • Industrial Protocols

    EtherNet/IP
    Modbus TCP
    PROFINET

  • MIB

    Bridge MIB
    Ethernet-like MIB
    MIB-II
    P-BRIDGE MIB
    Q-BRIDGE MIB
    RMON MIB Groups 1, 2, 3, 9
    RSTP MIB

  • DRAM

    128 MB

  • Flash

    16 MB

  • IGMP Groups

    4096

  • Jumbo Frame Size

    9.6 KB

  • MAC Table Size

    16 K

  • Max. No. of VLANs

    256

  • Packet Buffer Size

    12 Mbits

  • VLAN ID Range

    VID 1 to 4094

  • Priority Queues

    8

  • Storage Port

    USB Type A

  • Console Port

    USB-serial console (Type B connector)

  • Alarm Contact Channels

    Relay output with current carrying capacity of 2 A @ 30 VDC

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +1 V for state 0
    Max. input current: 8 mA

  • Input Voltage

    110 to 220 VAC
    Redundant dual inputs

  • Operating Voltage

    85 to 264 VAC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Input Current

    1/0.5 A @ 110/220 VAC

  • IP Rating

    IP30

  • Dimensions

    440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in)

  • Weight

    6470 g (14.26 lb)

  • Installation

    Rack mounting

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    UL 61010-2-201, EN 61010-2-201: ICS-G7526A-2XG-HV-HV-T, ICS-G7526A-8GSFP/20GSFP-2XG-HV-HV-T

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Railway

    EN 50121-4

  • Freefall

    IEC 60068-2-32

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Time

    ICS-G7526A-2XG-HV-HV-T: 464,063 hrs
    ICS-G7526A-8GSFP-2XG-HV-HV-T: 445,251 hrs
    ICS-G7526A-20GSFP-2XG-HV-HV-T: 419,734 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

All Driver Firmware Software Package Utility
Name Type Checksum Version Operating System Release Date
Modbus File
2.3 KB 		Software Package
SHA-512
v1.0
Apr 28, 2023 Apr 28, 2023 Release notes
Software Package for ICS-G7526A Series (EDS file)
3.7 KB 		Software Package
SHA-512
v4.1
Apr 24, 2023 Apr 24, 2023 Release notes
Software Package for ICS-G7526A Series (SNMP MIB)
196.3 KB 		Software Package
SHA-512
v5.5
Apr 24, 2023 Apr 24, 2023 Release notes
Firmware for ICS-G7526A Series
4.0 MB 		Firmware
SHA-512
v5.10
Apr 24, 2023 Apr 24, 2023 Release notes
Software Package for MXview One Series (Windows version)
277.4 MB 		Software Package
SHA-512
v1.1.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
 Feb 08, 2023 Feb 08, 2023 Release notes
Software Package for MXview One Series (Linux version)
251.0 MB 		Software Package
SHA-512
v1.1.0
  • Linux
 Feb 01, 2023 Feb 01, 2023 Release notes
MXview
417.7 MB 		Software Package
SHA-512
v3.2.8
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
 Oct 31, 2022 Oct 31, 2022 Release notes
Firmware for ICS-G7526A Series
3.6 MB 		Firmware
SHA-512
v5.8
Sep 15, 2021 Sep 15, 2021 Release notes
Firmware for ICS-G7526A Series
3.2 MB 		Firmware
SHA-512
v5.7
Feb 17, 2020 Feb 17, 2020 Release notes
PROFINET GSD file for ICS-G7526A Series
45.4 KB 		Software Package
SHA-512
v1.2.0
Jan 18, 2018 Jan 18, 2018 Release notes
EtherNet/IP AOI (28P) for ICS-G7526A Series
82.9 KB 		Software Package
SHA-512
v1.2.0
Jan 18, 2018 Jan 18, 2018 Release notes
Moxa ICS/IKS Configuration Migration Tool
118.5 KB 		Utility
SHA-512
v1.1
  • Windows
  • Windows XP
 May 20, 2015 May 20, 2015 Release notes
Moxa USB Console Windows Driver
1.2 MB 		Driver
SHA-512
v1.7.1
  • Windows
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 98 SE
  • Windows ME
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
 Dec 10, 2013 Dec 10, 2013 Release notes
PComm Lite - Serial Communication Tool for Windows
1.6 MB 		Utility
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
 May 14, 2012 May 14, 2012 Release notes
Moxa Ethernet Switch and Video Server Configurator
1.6 MB 		Utility
SHA-512
v5.3
  • Windows
  • Windows XP
 Apr 09, 2012 Apr 09, 2012 Release notes

Support Documents

FILTER

All 2D CAD Datasheet Manual QIG Tech Note
Name Type Version Release Date
Datasheet for ICS-G7526A Series
560.6 KB 		Datasheet v1.7 May 17, 2023 May 17, 2023
Moxa Command Line Interface (FW 5.x) Users Manual
1.9 MB 		Manual v1.6 May 08, 2023 May 08, 2023
Industrial Protocol Users Guide
11.9 MB 		Manual v6.4 Apr 26, 2023 Apr 26, 2023
Moxa Managed Ethernet Switch User Manual (UI 2.0, FW 5.x)
5.7 MB 		Manual v2.4 Apr 26, 2023 Apr 26, 2023
Moxa Managed Ethernet Switch Redundancy Protocol Manual (UI 2.0)
3.0 MB 		Manual v4.3 Apr 26, 2023 Apr 26, 2023
Moxa Managed Ethernet Switch (UI 2.0, FW 5.x) User's Manual
5.3 MB 		Manual v2.2 Jun 29, 2022 Jun 29, 2022
QiG for ICS-G7526A/G7528A/G7826A/G7828A-T Series
2.5 MB 		QIG v1.1 May 07, 2021 May 07, 2021
2D CAD for ICS-G7526A Series (ICS-G7x26A-8GSFP-2XG-T Model)
222.7 KB 		2D CAD Dec 25, 2019 Dec 25, 2019
2D CAD for ICS-G7526A Series (ICS-G7x26A-8GSFP-2XG-T)
446.5 KB 		2D CAD Dec 25, 2019 Dec 25, 2019
2D CAD for ICS-G7526A Series (ICS-G7x26A-20GSFP-2XG-T)
541.4 KB 		2D CAD Dec 25, 2019 Dec 25, 2019
2D CAD for ICS-G7526A Series (ICS-G7x26A-2XG-T)
368.5 KB 		2D CAD Dec 25, 2019 Dec 25, 2019
2D CAD for ICS-G7526A Series (ICS-G7x26A-2XG-T Model)
158.0 KB 		2D CAD Dec 25, 2019 Dec 25, 2019
2D CAD for ICS-G7526A Series (ICS-G7x26A-20GSFP-2XG-T Model)
318.7 KB 		2D CAD Dec 25, 2019 Dec 25, 2019
Tech Note: Recommended Procedure for STP Cable Grounding on Moxa's Industrial Ethernet Switches
558.3 KB 		Tech Note v1.0 Feb 12, 2019 Feb 12, 2019
Moxa Command Line Interface (FW 4.x) User's Manual
2.3 MB 		Manual v5.2 Oct 19, 2017 Oct 19, 2017
Moxa Managed Ethernet Switch (UI 2.0, FW 4.x) User's Manual
4.4 MB 		Manual v3.3 Jul 04, 2017 Jul 04, 2017

Related Content

FILTER

All Article Solution Brochure White Paper

Available Models (3)

Show Images
Compare

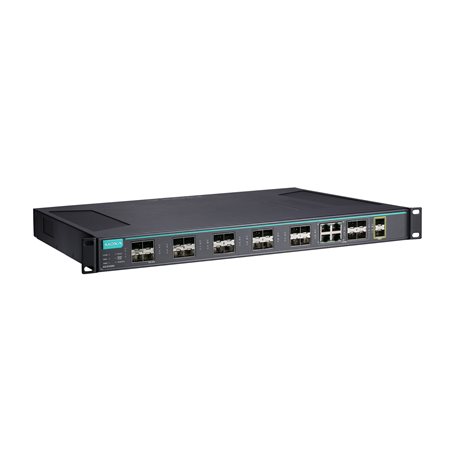

moxa-ics-g7526a-20gsfp-2xg-hv-hv-t-image.jpg | MoxaICS-G7526A-20GSFP-2XG-HV-HV-T
Compare

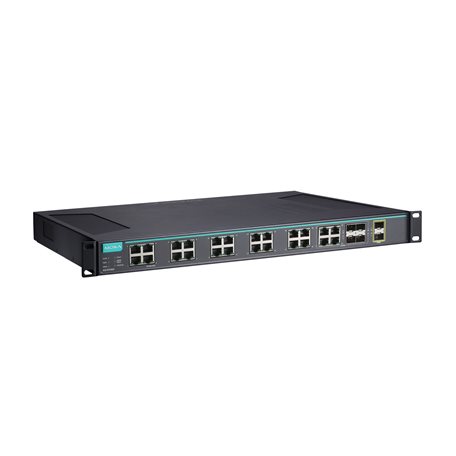

moxa-ics-g7526a-2xg-hv-hv-t-image.jpg | MoxaICS-G7526A-2XG-HV-HV-T
