LM-7000H Module Series

Ethernet and PoE+ modules for the PT-G7728/G7828 Series and MDS-G4012/20/28 Series

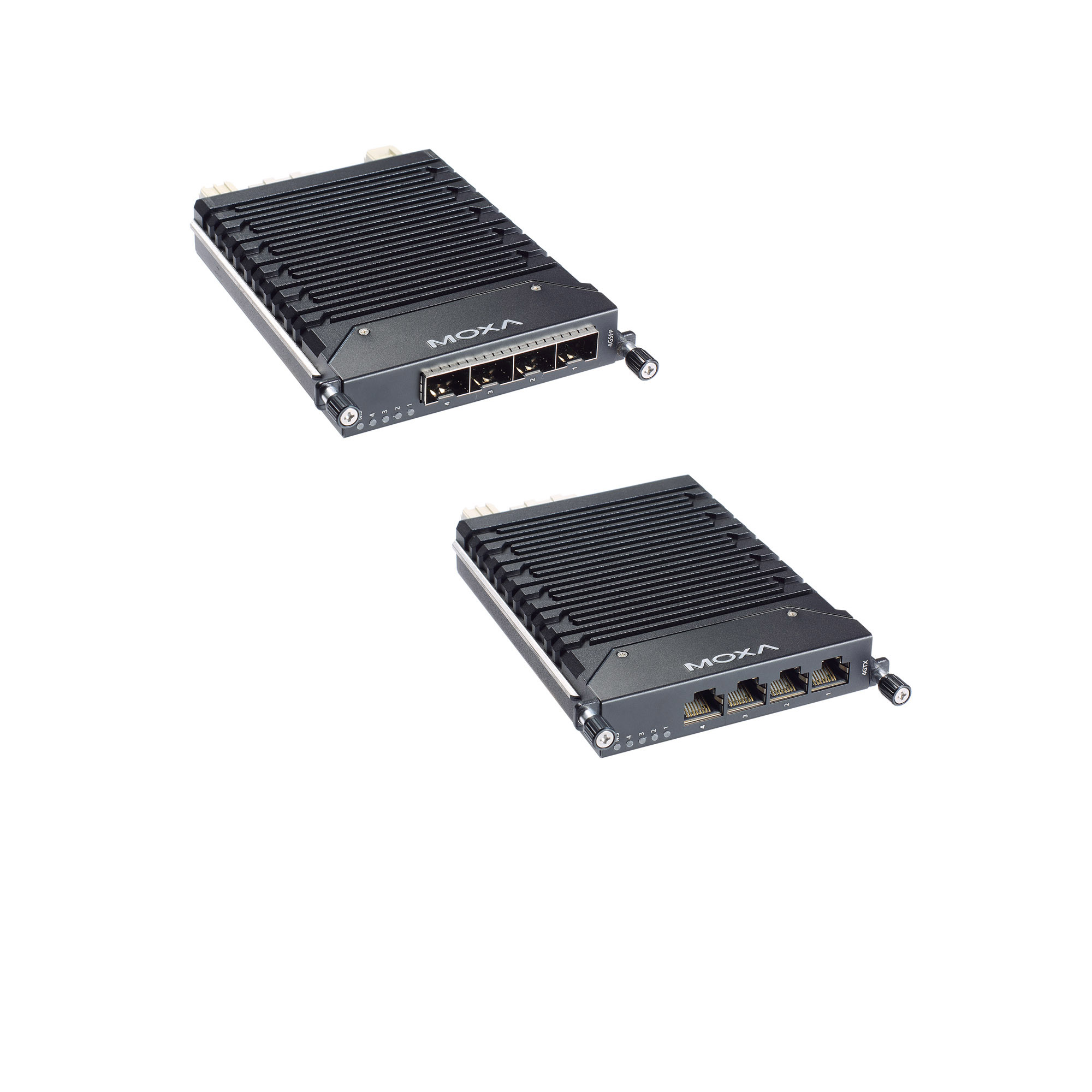

moxa-lm-7000h-module-series-image-1-(1).jpg | Moxa

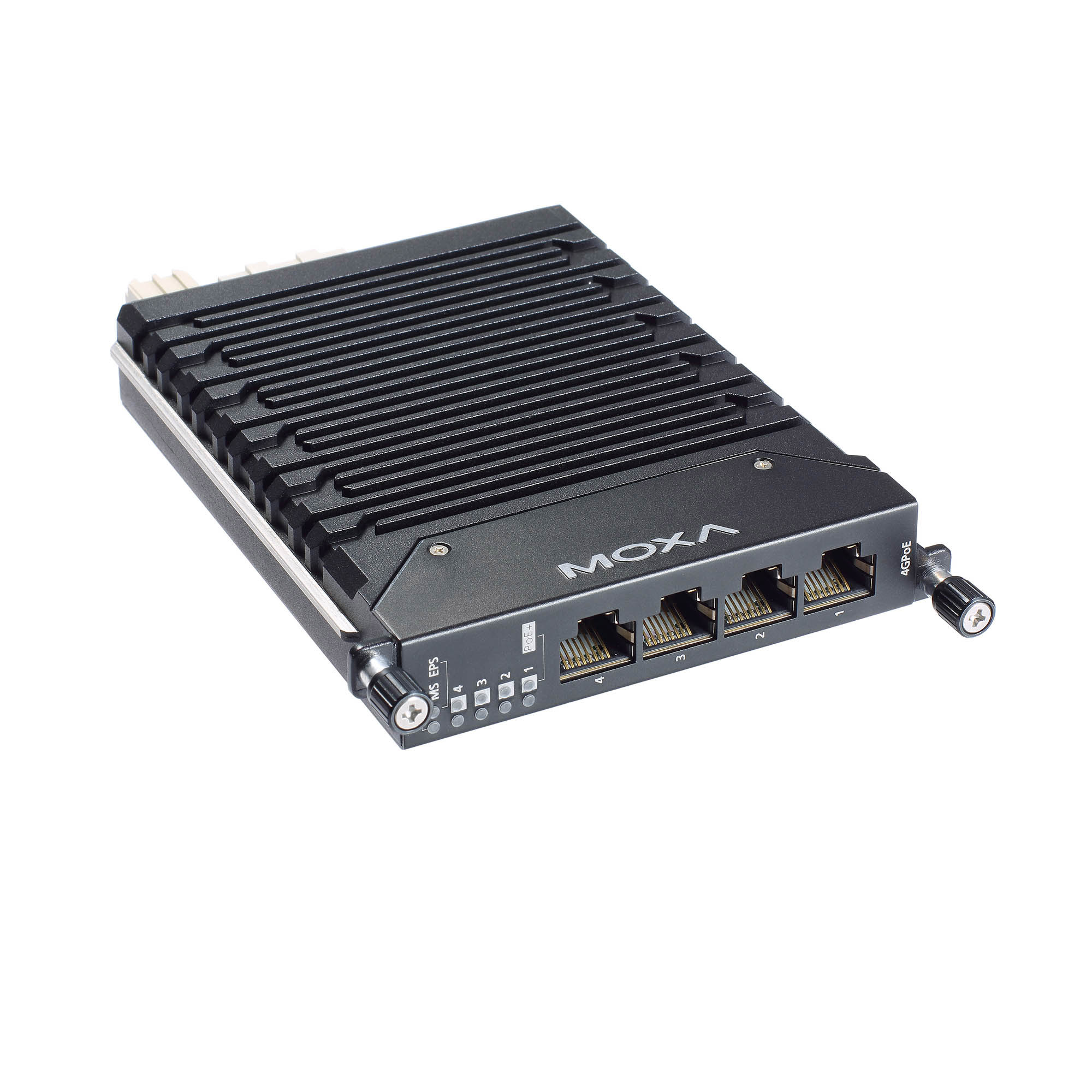

moxa-lm-7000h-module-series-image-2-(1).jpg | Moxa

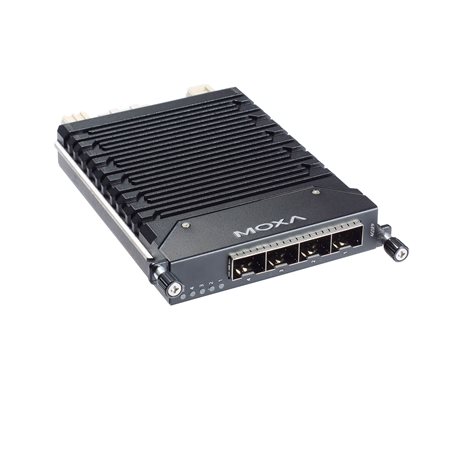

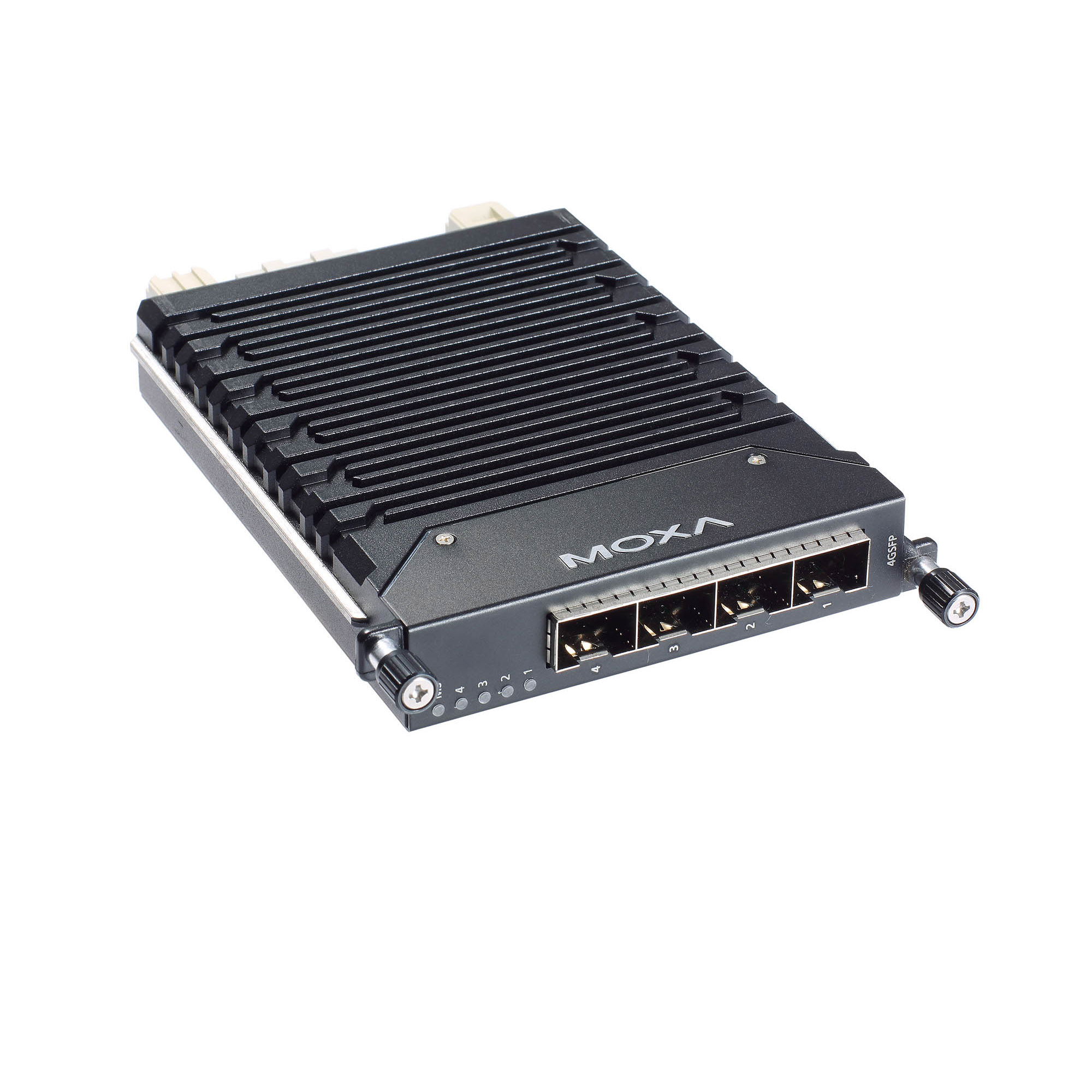

moxa-lm-7000h-module-series-image-3-(1).jpg | Moxa

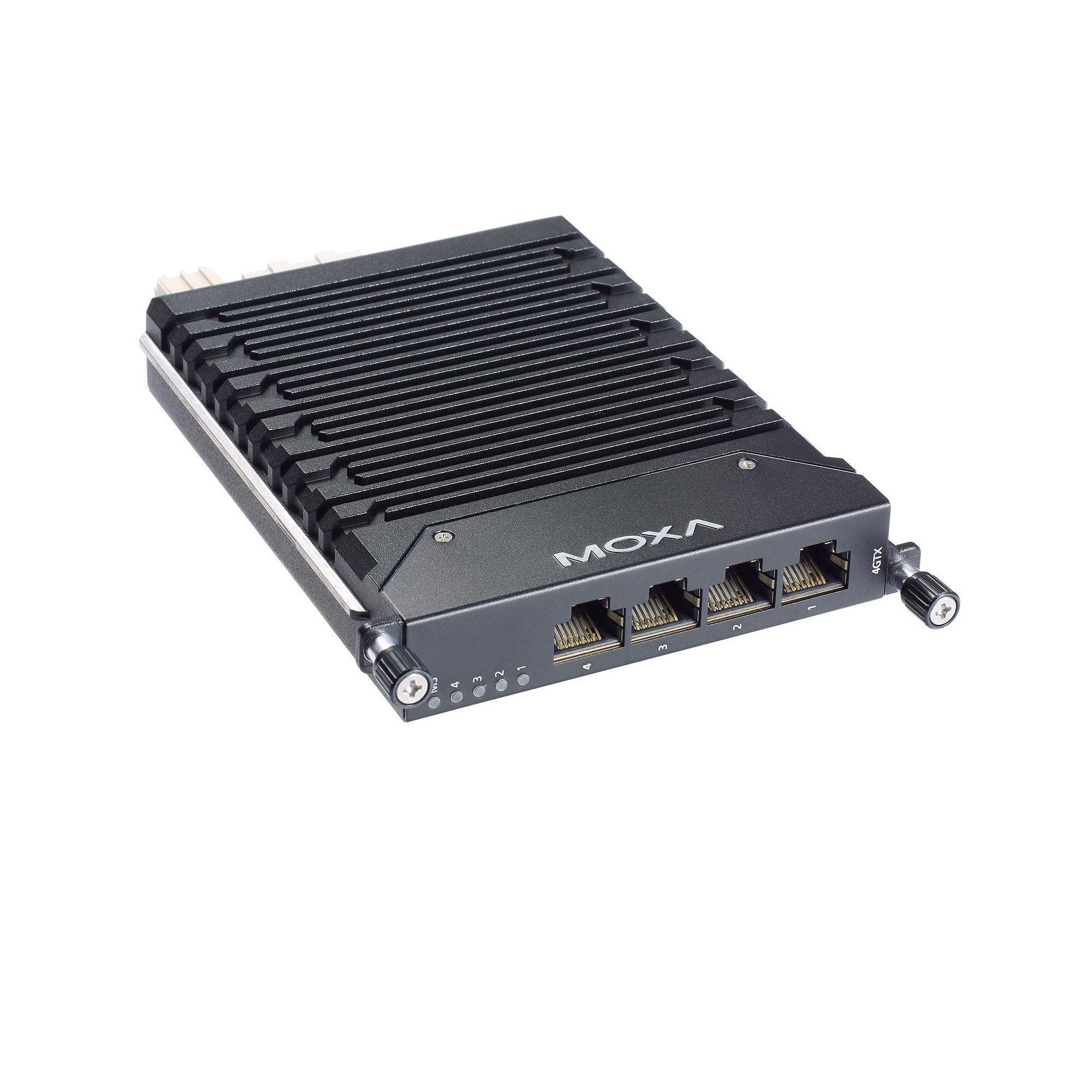

moxa-lm-7000h-module-series-image-4-(1).jpg | Moxa

Features and Benefits

  • -40 to 85°C wide operating temperature
  • IEC 61850-3 and IEEE 1613 compliant
  • IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant
  • Hot-swappable

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The LM-7000H Module Series is designed for the PT-G7728/G7828 Series and MDS-G4012/G4020/G4028 Series IEC 61850-3 Ethernet switches. These modules provide additional flexibility to supported switches by letting you add 4 Gigabit Ethernet or PoE ports per module, or 2 Gigabit PRP/HSR ports per module.

  • PoE Ports (100/1000BaseT(X), RJ45 connector)

    LM-7000H-4GPoE: 4

  • 10/100BaseT(X) Ports (RJ45 connector)

    LM-7000H-4TX: 4

  • PoE Ports (10/100BaseT(X), RJ45 connector)

    LM-7000H-4PoE: 4

  • 100/1000BaseSFP Slots

    LM-7000H-4GSFP: 4

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    LM-7000H-4GTX: 4

  • Combo Ports (100/1000BaseT(X) PRP/HSR or 100/1000BaseSFP PRP/HSR)

    LM-7000H-2GPHR: 2 (For PT-G7728 Series only)

  • Power Consumption

    LM-7000H-4GTX: 3.63 W (max.)
    LM-7000H-4GPoE: 3.8 W (max.)
    LM-7000H-4GSFP: 4.8 W (max.)
    LM-7000H-4TX: 1.85 W (max.)
    LM-7000H-4PoE: 1.85 W (max.)
    LM-7000H-2GPHR: 8.1 W (max.)

  • Weight

    LM-7000H-4GSFP: 0.3 kg (0.66 lb)
    LM-7000H-4GTX: 0.24 kg (0.53 lb)
    LM-7000H-4GPoE: 0.31 kg (0.69 lb)
    LM-7000H-4TX: 0.24 kg (0.53 lb)
    LM-7000H-4PoE: 0.31 kg (0.69 lb)
    LM-7000H-2GPHR: 0.31 kg (0.69 lb)

  • Time

    LM-7000H-4GPoE: 1,280,518 hrs
    LM-7000H-4GSFP: 2,475,903 hrs
    LM-7000H-4GTX: 2,641,729 hrs
    LM-7000H-4PoE: 1,280,220 hrs
    LM-7000H-4TX: 2,640,462 hrs
    LM-7000H-2GPHR: 1,832,962 hrs

  • Standards

    Telcordia (Bellcore), GB

Support Documents

Name Type Version Release Date
Datasheet for LM-7000H Module Series
365.5 KB
Datasheet v1.2 Apr 14, 2022 Apr 14, 2022
Tech Note: Recommended Procedure for STP Cable Grounding on Moxa's Industrial Ethernet Switches
558.3 KB
Tech Note v1.0 Feb 12, 2019 Feb 12, 2019
2D CAD for LM-7000H-SFP
283.5 KB
2D CAD Jan 19, 2018 Jan 19, 2018
2D CAD for LM-7000H-GTX
341.7 KB
2D CAD Jan 19, 2018 Jan 19, 2018
2D CAD for LM-7000H-PoE
354.5 KB
2D CAD Jan 19, 2018 Jan 19, 2018

Available Models (6)

Show Images

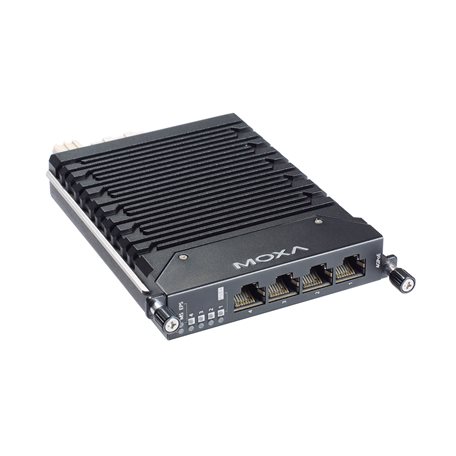

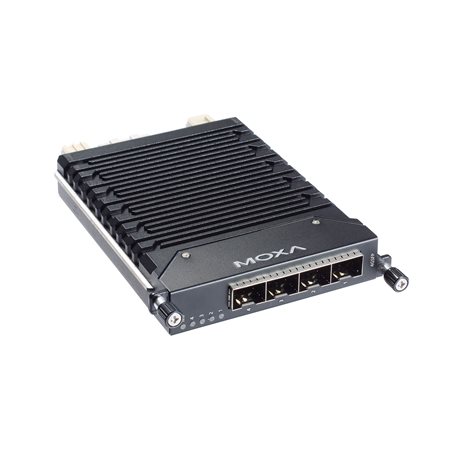

moxa-lm-7000h-4gpoe-image.jpg | MoxaLM-7000H-4GPoEmoxa-lm-7000h-4gsfp-image.jpg | MoxaLM-7000H-4GSFPmoxa-lm-7000h-4gtx-image.jpg | MoxaLM-7000H-4GTXLM-7000H-4TX
10/100/1000BaseT(X) Ports4
10/100BaseT(X) Ports4
100/1000BaseSFP Slots4
100/1000BaseT(X) PoE Ports4
10/100BaseT(X) PoE Ports
Combo Ports
(10/100/1000BaseT(X) PRP/HSR or 100/1000BaseSFP PRP/HSR)
Operating Temp.-45 to 85°C-45 to 85°C-45 to 85°C-45 to 85°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

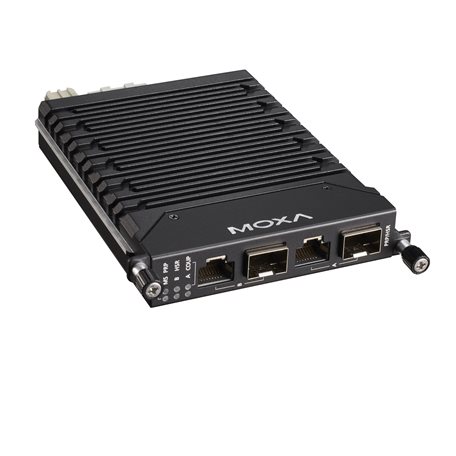

LM-7000H-4PoEmoxa-lm-7000h-2gphr-image.jpg | MoxaLM-7000H-2GPHR
10/100/1000BaseT(X) Ports
10/100BaseT(X) Ports
100/1000BaseSFP Slots
100/1000BaseT(X) PoE Ports
10/100BaseT(X) PoE Ports4
Combo Ports
(10/100/1000BaseT(X) PRP/HSR or 100/1000BaseSFP PRP/HSR)
2
Operating Temp.-45 to 85°C-45 to 75°C
Add to QuoteView BagAdd to QuoteView Bag
