PM-7200 Module Series

Gigabit and Fast Ethernet modules for PT Series rackmount Ethernet switches

moxa-pm-7200-module-series-image-2-(1).jpg | Moxa

moxa-pm-7200-module-series-image-3-(1).jpg | Moxa

Features and Benefits

-40 to 85°C wide operating temperature
IEC 61850-3 and IEEE 1613 compliant

Certifications

You can track updates for your followed products in My Moxa

Contact Sales

Introduction

The PM-7200 Module Series includes Gigabit and Fast Ethernet modules for the PT Series rackmount Ethernet switches. IEEE 1588 interface modules provide hardware-based PTP functions for precise time synchronization across the network.

Download datasheet
Print this page
Save

You can manage and share your saved list in My Moxa

Time Management

PTP models: IEEE 1588 PTP v1/v2 (hardware-based)
Redundancy Protocols

PM-7200-PHR-PTP Series: HSR, PRP

Combo Ports (10/100/1000BaseT(X) or 1000BaseSFP)

PM-7200-2GTXSFP: 2
PM-7200-4GTXSFP: 4

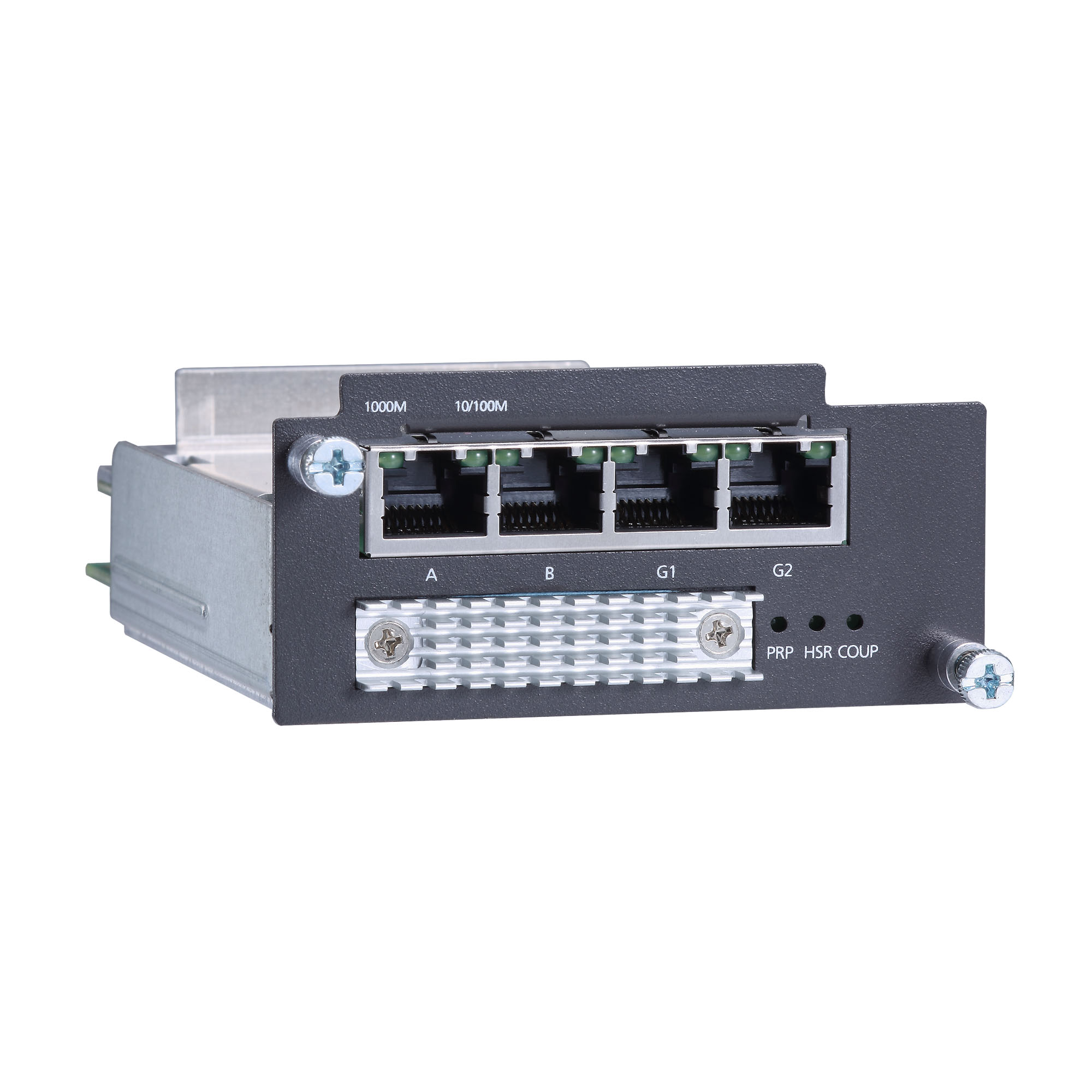

10/100/1000BaseT(X) Ports PRP/HSR Ports

PM-7200-4GTX-PHR-PTP: 2

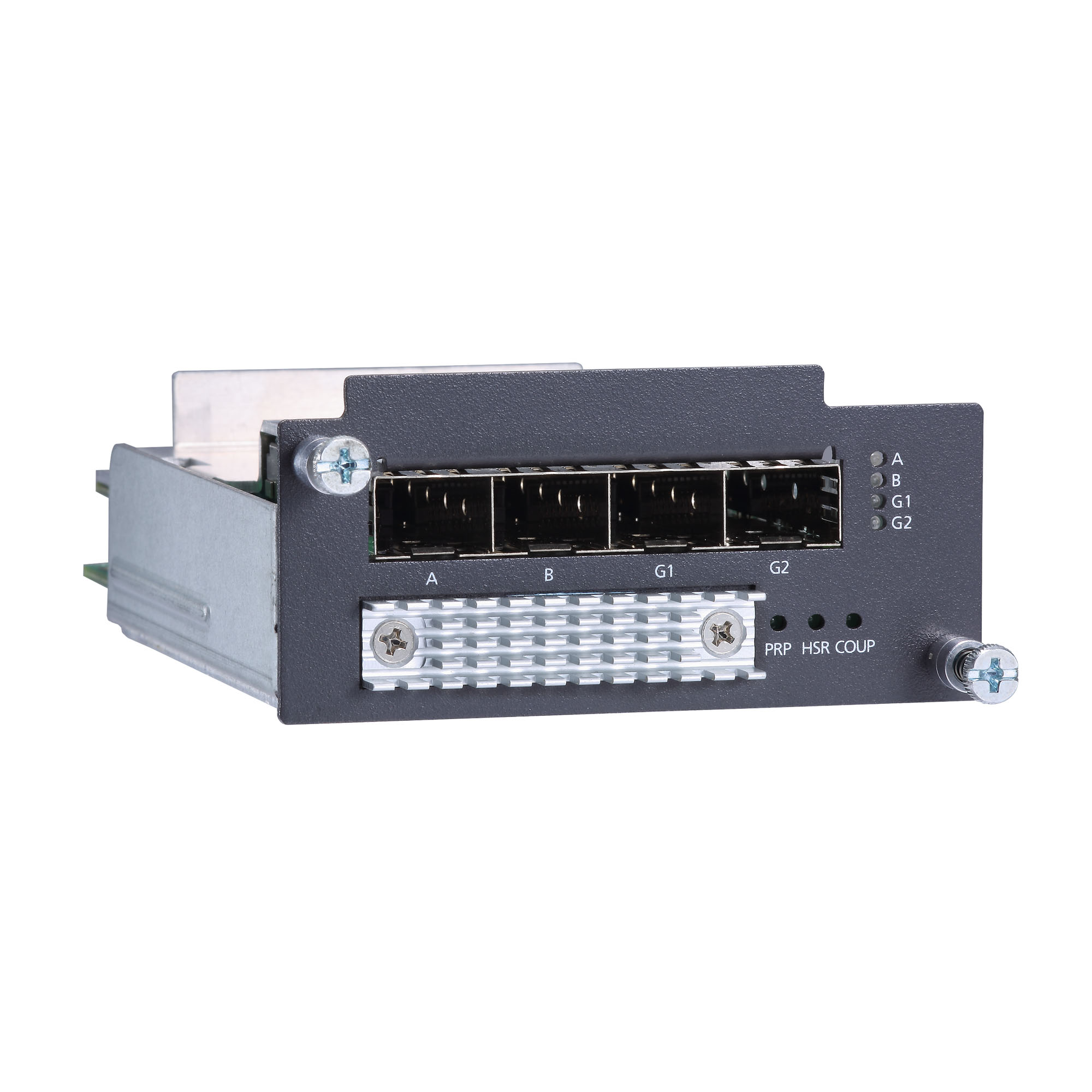

100/1000BaseSFP PRP/HSR Ports

PM-7200-4GSFP-PHR-PTP: 2
10/100/1000BaseT(X) Ports (RJ45 connector)

PM-7200-4GTX-PHR-PTP: 2
100/1000BaseSFP Ports

PM-7200-4GSFP-PHR-PTP: 2
10/100BaseT(X) Ports (RJ45 connector)

PM-7200-2TX Series: 2
PM-7200-4TX Series: 4

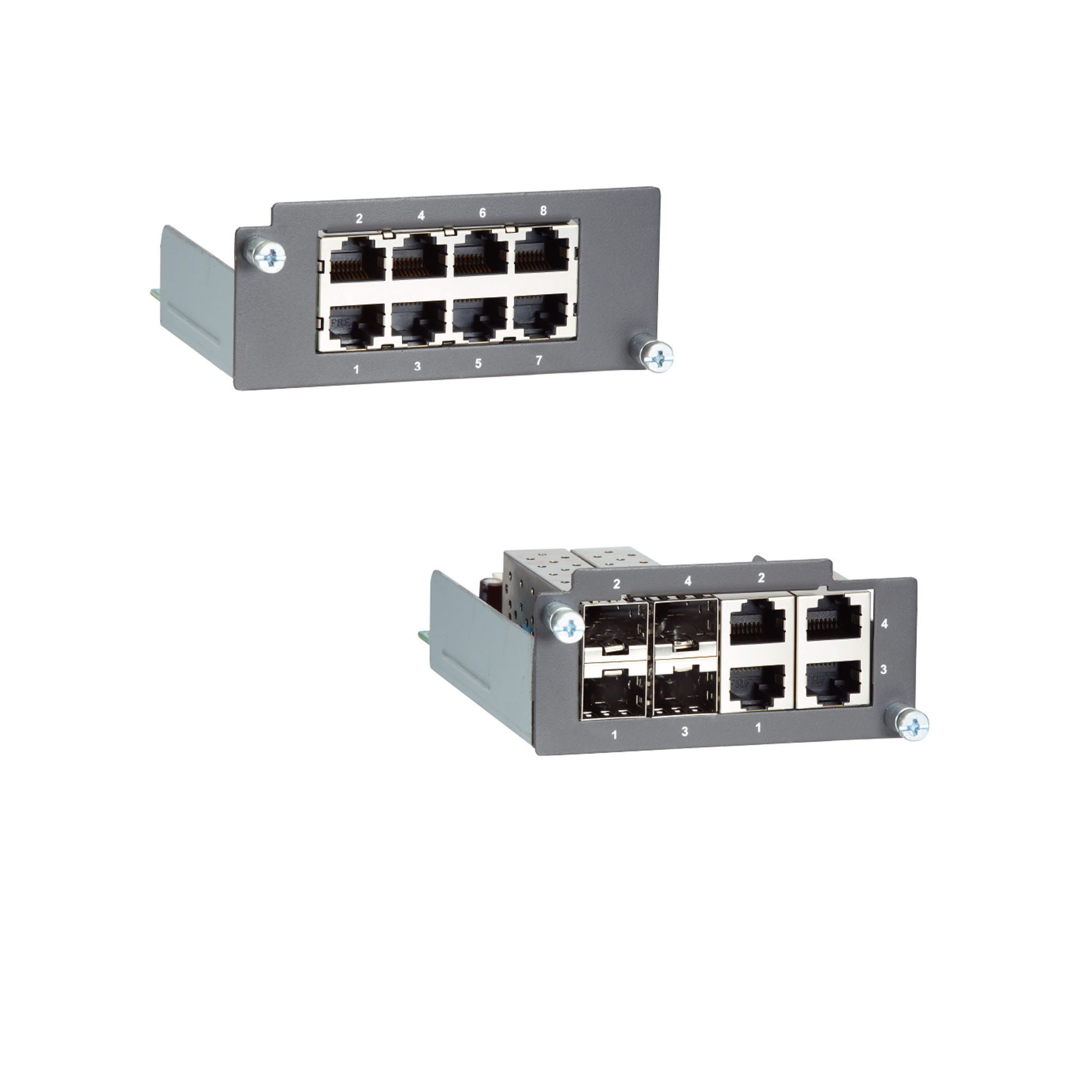

PM-7200-8TX: 8
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

PM-7200-4M12: 4
100BaseSFP Slots

PM-7200-8SFP: 8
100BaseFX Ports (multi-mode SC connector)

PM-7200-1MSC: 1
PM-7200-2MSC Series: 2
PM-7200-4MS Series: 4
PM-7200-6MSC: 6
100BaseFX Ports (multi-mode ST connector)

PM-7200-1MST: 1
PM-7200-2MST Series: 2
PM-7200-4MST Series: 4
PM-7200-6MST: 6
100BaseFX Ports (single-mode SC connector)

PM-7200-2SSC Series: 2
PM-7200-4SSC2TX: 4
PM-7200-6SSC: 6
100BaseFX Ports, Multi-Mode MTRJ Connector

PM-7200-8MTRJ: 8
PPS Output, BNC Connector

PM-7200-1BNC2MST-PTP: 1

Optical Fiber

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Warranty Period

5 years
Details

See www.moxa.com/warranty

Download datasheet

Support Documents

Name	Type	Version	Release Date
Datasheet for PM-7200 Module Series 281.2 KB	Datasheet	v1.2	Jul 02, 2020 Jul 02, 2020
Tech Note: Recommended Procedure for STP Cable Grounding on Moxa's Industrial Ethernet Switches 558.3 KB	Tech Note	v1.0	Feb 12, 2019 Feb 12, 2019
2D CAD for PM-7200-4MSC-PTP 312.4 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-1BNC2MSC 266.2 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-4MST-PTP 334.8 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-4TX-PTP 273.6 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-1BNC2MST 324.2 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PT-7200-8SFP 2.4 MB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-4GTXSFP 2.4 MB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-6SSC 2.4 MB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-1LSC6TX 84.3 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-2GTXSFP 71.1 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-1MSC 61.5 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-1MST 61.4 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-2MSC 66.4 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-2MST4TX 83.2 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-2MSC4TX-2SSC4TX 81.5 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-2MST 66.3 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-4MSC2TX-4SSC2TX 89.6 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-6MST 88.6 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-4MST2TX 88.7 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-6MSC 89.1 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-8TX 68.5 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-4GSFP-PHR 471.2 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-4FIBER-PTP PCBA 574.7 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-4TX-PTP PCBA 695.2 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-4GTX-PHR 517.1 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-4MST-FL TOP 211.5 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-2MTRJ TOP 140.0 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-4MST-FL PCBA 266.1 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-8MTRJ PCBA 269.9 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-1BNC2MST PCBA 492.3 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7200-8MTRJ TOP 143.5 KB	2D CAD		Jan 19, 2018 Jan 19, 2018
Moxa Command Line Interface (FW 4.x) User's Manual 2.3 MB	Manual	v5.2	Oct 19, 2017 Oct 19, 2017
Communication Redundancy User's Manual 1.2 MB	Manual	v5.0	Aug 13, 2014 Aug 13, 2014

Available Models (26)

Show Images

	Compare PM-7200-1BNC2MST-PTP	Compare PM-7200-1MSC	Compare PM-7200-1MST	Compare PM-7200-2GTXSFP
1000 Mbps	–	–	–	2 x combo port, 10/100/1000BaseT(X) or 1000BaseSFP
100 Mbps	2 x 100BaseFX, multi-mode, ST connector	1 x 100BaseFX, multi-mode, SC connector	1 x 100BaseFX, multi-mode, ST connector	–
PPS Output	1 x BNC connector	–	–	–
Hardware-Based IEEE 1588 PTP V2	–	–	–	–
PRP/HSR	–	–	–	–
Operating Temp.	-45 to 85°C	-45 to 85°C	-45 to 85°C	-45 to 85°C
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare PM-7200-2MSC	Compare PM-7200-2MSC4TX	Compare PM-7200-2MST	Compare PM-7200-2MST4TX
1000 Mbps	–	–	–	–
100 Mbps	2 x 100BaseFX, multi-mode, SC connector	4 x 10/100BaseT(X) 2 x 1000BaseFX, multi-mode, SC connector	2 x 100BaseFX, multi-mode, ST connector	4 x 10/100BaseT(X) 2 x 100BaseFX, multi-mode, ST connector
PPS Output	–	–	–	–
Hardware-Based IEEE 1588 PTP V2	–	–	–	–
PRP/HSR	–	–	–	–
Operating Temp.	-45 to 85°C	-45 to 85°C	-45 to 85°C	-45 to 85°C
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare PM-7200-2SSC	Compare PM-7200-2SSC4TX	Compare PM-7200-4GSFP-PHR-PTP	Compare PM-7200-4GTX-PHR-PTP
1000 Mbps	–	–	2 x 100/1000BaseSFP	2 x 10/100/1000BaseT(X)
100 Mbps	2 x 100BaseFX, single-mode, SC connector	4 x 10/100BaseT(X) 2 x 100BaseFX, single-mode, SC connector	–	–
PPS Output	–	–	–	–
Hardware-Based IEEE 1588 PTP V2	–	–	✓	✓
PRP/HSR	–	–	2 x 100/1000BaseSFP PRP/HSR ports	2 x 10/100/1000BaseT(X) PRP/HSR ports
Operating Temp.	-45 to 85°C	-45 to 85°C	-45 to 85°C	-45 to 85°C
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare PM-7200-4GTXSFP	Compare PM-7200-4M12	Compare PM-7200-4MSC2TX	Compare PM-7200-4MSC-PTP
1000 Mbps	4 x combo port, 10/100/1000BaseT(X) or 1000BaseSFP	–	–	–
100 Mbps	–	4 x 10/100BaseT(X), M12 connectors	2 x 10/100BaseT(X) 4 x 100BaseFX, multi-mode, SC connector	4 x 100BaseFX, multi-mode, SC connector
PPS Output	–	–	–	–
Hardware-Based IEEE 1588 PTP V2	–	–	–	✓
PRP/HSR	–	–	–	–
Operating Temp.	-45 to 85°C	-45 to 85°C	-45 to 85°C	-45 to 85°C
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare PM-7200-4MST2TX	Compare PM-7200-4MST-PTP	Compare PM-7200-4SSC2TX	Compare PM-7200-4TX-PTP
1000 Mbps	–	–	–	–
100 Mbps	2 x 10/100BaseT(X) 4 x 100BaseFX, multi-mode, ST connector	4 x 100BaseFX, multi-mode, ST connector	2 x 10/100BaseT(X) 4 x 100BaseFX, single-mode, SC connector	4 x 10/100BaseT(X)
PPS Output	–	–	–	–
Hardware-Based IEEE 1588 PTP V2	–	✓	–	✓
PRP/HSR	–	–	–	–
Operating Temp.	-45 to 85°C	-45 to 85°C	-45 to 85°C	-45 to 85°C
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare PM-7200-6MSC	Compare PM-7200-6MST	Compare PM-7200-6SSC	Compare PM-7200-8MTRJ
1000 Mbps	–	–	–	–
100 Mbps	6 x 100BaseFX, multi-mode, SC connector	6 x 100BaseFX, multi-mode, ST connector	6 x 100BaseFX, single-mode, SC connector	8 x 100BaseFX, multi-mode, MTRJ connector
PPS Output	–	–	–	–
Hardware-Based IEEE 1588 PTP V2	–	–	–	–
PRP/HSR	–	–	–	–
Operating Temp.	-45 to 85°C	-45 to 85°C	-45 to 85°C	-45 to 85°C
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare PM-7200-8SFP	Compare PM-7200-8TX
1000 Mbps	–	–
100 Mbps	8 x 100BaseFX	8 x 10/100BaseT(X)
PPS Output	–	–
Hardware-Based IEEE 1588 PTP V2	–	–
PRP/HSR	–	–
Operating Temp.	-45 to 85°C	-45 to 85°C
	Add to Quote View Bag	Add to Quote View Bag
