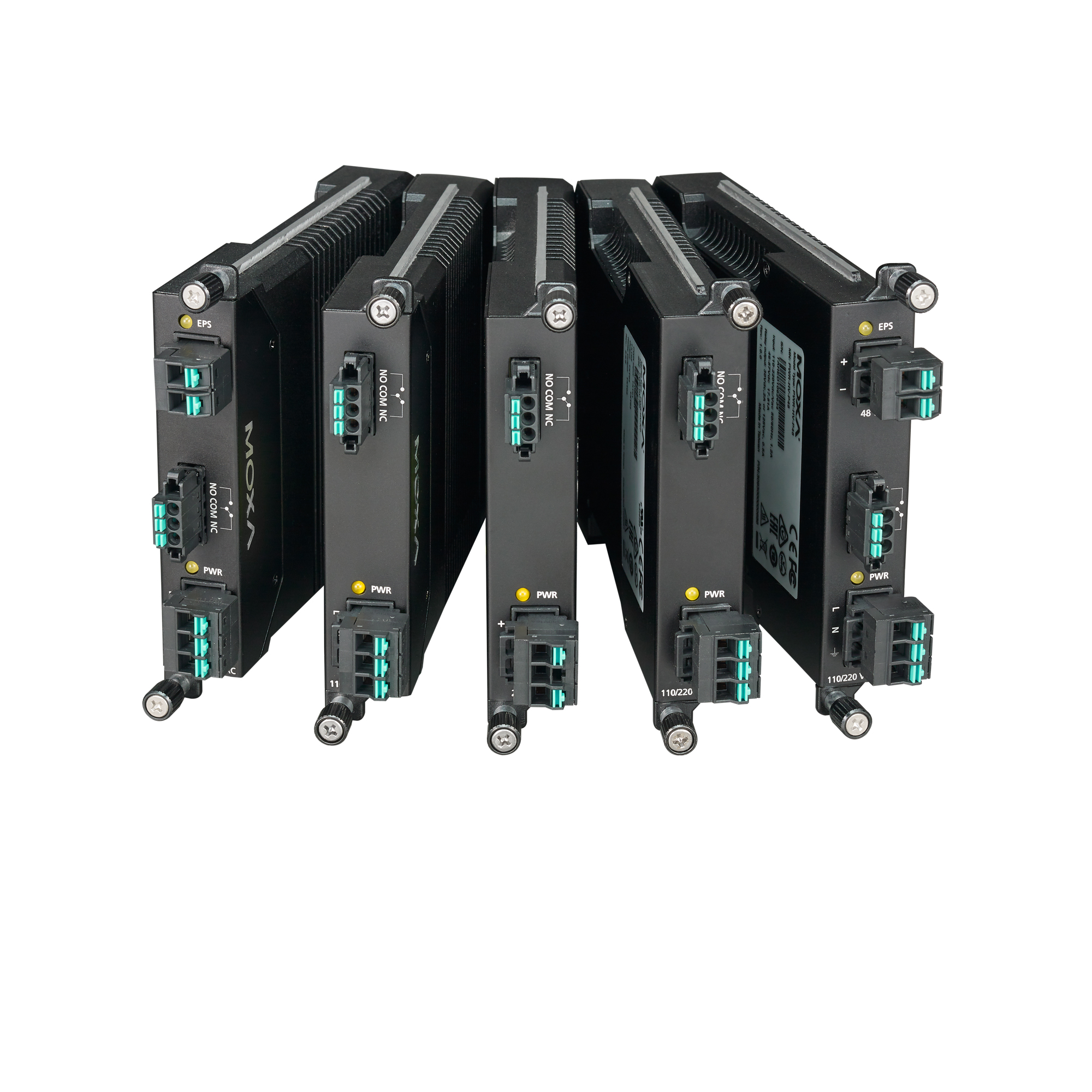

PWR Power Module Series

Hot-swappable power modules for Moxa switches

moxa-pwr-power-module-series-image-(1).jpg | Moxa

Features and Benefits

  • -40 to 85°C wide operating temperature
  • IEC 61850-3 and IEEE 1613 compliant

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-rec-certification-logo-image.png | Moxa

Contact Sales

Introduction

The PWR Power Module Series hot-swappable power modules are designed for Moxa switches. The power modules allow supported switches to use 24/48 VDC or 110/220 VAC/VDC.

  • Input Voltage

    PWR-HV-P48:
    110/220 VDC/VAC for the switch system
    48 VDC for PoE systems
    (53 to 57 VDC is recommended for PoE+ devices)

    PWR-LV-P48:
    24/48 VDC for the switch system
    48 VDC for PoE systems
    (53 to 57 VDC is recommended for PoE+ devices)

    PWR-HV-NP:
    110/220 VDC/VAC for the switch system

    PWR-LV-NP:
    24/48 VDC for the switch system

  • Operating Voltage

    PWR-HV-P48:
    88 to 300 VDC, 90 to 264 VAC for the switch system
    46 to 57 VDC for PoE systems

    PWR-LV-P48:
    18 to 72 VDC for the switch system
    46 to 57 VDC for PoE systems

    PWR-HV-NP:
    88 to 300 VDC, 90 to 264 VAC for the switch system

    PWR-LV-NP:
    18 to 72 VDC for the switch system

  • Reverse Polarity Protection

    Supported

  • Alarm Contact Channels

    1 relay output with current carrying capacity of 2 A @ 30 VDC or 0.5 A @ 125 VAC

  • Weight

    PWR-HV-P48: 360 g (0.79 lb)
    PWR-LV-P48: 360 g (0.79 lb)
    PWR-HV-NP: 340 g (0.75 lb)
    PWR-LV-NP: 340 g (0.75 lb)

  • Time

    PWR-HV-P48: 1,530,831 hrs
    PWR-LV-P48: 1,388,747 hrs
    PWR-HV-NP: 2,556,214 hrs
    PWR-LV-NP: 2,710,293 hrs

  • Standards

    Telcordia (Bellcore), GB

Support Documents

Name Type Version Release Date
Datasheet for PWR Power Module Series
1.0 MB
Datasheet v2.1 Nov 17, 2023 Nov 17, 2023

Available Models (4)

Show Images

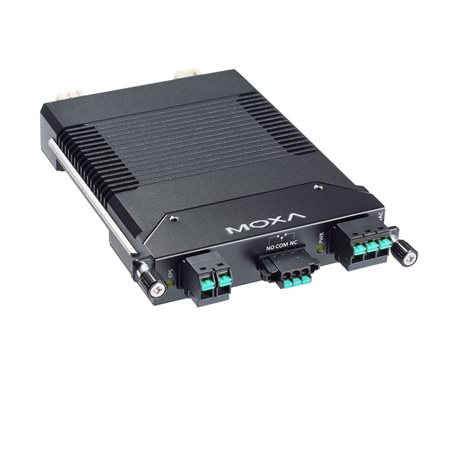

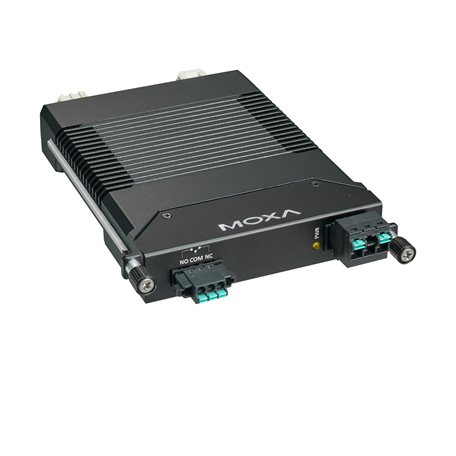

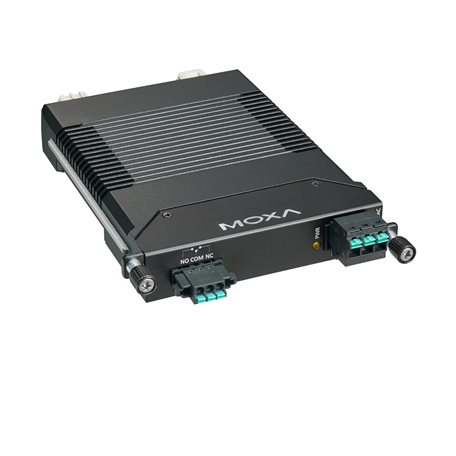

moxa-pwr-hv-p48-image.jpg | MoxaPWR-HV-P48moxa-pwr-lv-p48-image.jpg | MoxaPWR-LV-P48moxa-pwr-lv-np-image.jpg | MoxaPWR-LV-NPmoxa-pwr-hv-np-image.jpg | MoxaPWR-HV-NP
Input Voltage110/220 VDC/VAC
48 VDC for PoE systems
24/48 VDC
48 VDC for PoE systems
24/48 VDC110/220 VDC/VAC
Operating Voltage88-300 VDC, 90-264 VAC
46 to 57 VDC for PoE systems
18-72 VDC
46 to 57 VDC for PoE systems
18-72 VDC88-300 VDC, 90-264 VAC
Supported SeriesPT-G7728 Series
PT-G7828 Series
MDS-G4012 Series
MDS-G4020 Series
MDS-G4028 Series
MDS-G4012-L3 Series
MDS-G4020-L3 Series
MDS-G4028-L3 Series
PT-G7728 Series
PT-G7828 Series
MDS-G4012 Series
MDS-G4020 Series
MDS-G4028 Series
MDS-G4012-L3 Series
MDS-G4020-L3 Series
MDS-G4028-L3 Series
PT-G7728 Series
PT-G7828 Series
MDS-G4012 Series
MDS-G4020 Series
MDS-G4028 Series
MDS-G4012-L3 Series
MDS-G4020-L3 Series
MDS-G4028-L3 Series
MDS-G4012-4XGS Series
MDS-G4020-4XGS Series
MDS-G4028-4XGS Series
MDS-G4012-L3-4XGS Series
MDS-G4020-L3-4XGS Series
MDS-G4028-L3-4XGS Series
PT-G7728 Series
PT-G7828 Series
MDS-G4012 Series
MDS-G4020 Series
MDS-G4028 Series
MDS-G4012-L3 Series
MDS-G4020-L3 Series
MDS-G4028-L3 Series
MDS-G4012-4XGS Series
MDS-G4020-4XGS Series
MDS-G4028-4XGS Series
MDS-G4012-L3-4XGS Series
MDS-G4020-L3-4XGS Series
MDS-G4028-L3-4XGS Series
