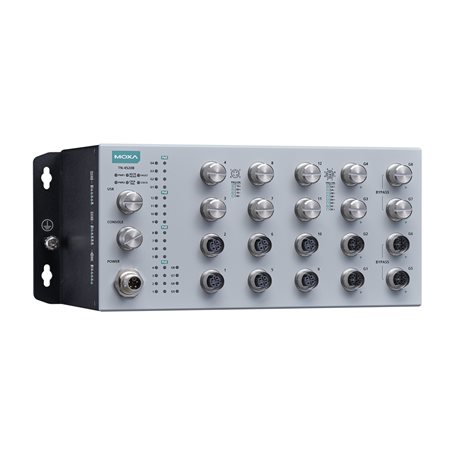

TN-4520B-12P-4GP-4GBP-CT-T
TN-4500B Series

EN 50155 20-port L2 switch including 12 FE PoE ports, 4 Gigabit PoE ports, 4 Gigabit ports with bypass relay, 150 W PoE power budget, 24 to 110 VDC power input, -40 to 70°C operating temperature, IP42, conformal coating

Ethernet Interface
  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    • 12
  • PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector)

    • 4
  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay)

    • 4
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3af/at for PoE/PoE+ output
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3x for flow control
Ethernet Software Features
  • Configuration Options

    • Command Line Interface (CLI) through Serial/Telnet/SSH
      Web Console (HTTP/HTTPS)
      Windows Utility
  • Filter

    • GMRP
      GVRP
      GARP
      802.1Q VLAN
      IGMP Snooping v1/v2/v3
      IGMP Querier
      Static Multicast
  • Management

    • IPv4/IPv6
      Flow control
      Back Pressure Flow Control
      DHCP Server
      DHCP Client
      DHCP Relay Agent (Option 82)
      QoS/CoS/ToS
      ARP
      RARP
      LLDP
      Port Mirror
      Linkup Delay
      SMTP
      SNMP Trap
      SNMP Inform
      SNMPv1/v2c/v3
      RMON
      TFTP
      SFTP
      HTTP
      HTTPS
      Telnet
      Syslog
      Private MIB
      Loop Protection
  • MIB

    • P-BRIDGE MIB
      Q-BRIDGE MIB
      Ethernet-like MIB
      IEEE8021-SPANNING-TREE-MIB
      IEEE8021-PAE-MIB
      IEEE8023-LAG-MIB
      LLDP-EXT-DOT1-MIB
      LLDP-EXT-DOT3-MIB
      SNMPv2-MIB
      RMON MIB Groups 1, 2, 3, 9
  • Redundancy Protocols

    • STP
      RSTP
      MSTP
      Turbo Ring v2
      Link Aggregation
      Ring Coupling
      Static Port Trunk
      LACP
      MRP
  • Security

    • Rate Limit
      Trust access control
      Port Lock
      Sticky MAC
      HTTPS/SSL
      SSH
      RADIUS
      TACACS+
      Access control list
      Login and password policy
      DHCP Snooping
  • Time Management

    • SNTP Server/Client
      NTP Server/Client
Switch Properties
  • MAC Table Size

    • 16 K
  • IGMP Groups

    • 1024
  • Max. No. of VLANs

    • 256
  • VLAN ID Range

    • VID 1 to 4094
  • Priority Queues

    • 8
LED Interface
  • LED Indicators

    • PWR1, PWR2, FAULT, STATE, MSTR/HEAD, CPLR/TAIL, Ethernet ports, PoE ports
Serial Interface
  • Console Port

    • M12 B-coded 5-pin female connector (RS-232)
USB Interface
  • M12 Connector

    • M12 A-coded 5-pin female (for ABC-02 USB storage)
Power Parameters
  • Input Current

    • 9.3 A @ 24 VDC
  • Input Voltage

    • 24/36/48/72/96/110 VDC
      Redundant dual inputs
      No. of power inputs: 2
  • Operating Voltage

    • 16.8 to 137.5 VDC
  • Power Connector

    • M12 K-coded 5-pin male connector
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
  • Total PoE Power Budget

    • 150 W
Physical Characteristics
  • Housing

    • Metal
  • Dimensions

    • 280 x 115 x 133 mm (11.02 x 4.53 x 5.24 in)
  • IP Rating

    • IP42
  • Weight

    • 2,419 g (5.33 lb)
  • Installation

    • Wall mounting
  • Protection

    • PCB conformal coating
Environmental Limits
  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • 3000 m
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Radio Frequency

    • FCC
  • Railway

    • IEC 60068-2-1, EN 50155
      IEC 60068-2-2, EN 50155
      IEC 60068-2-30, EN 50155
      IEC 60068-2-78
      EN 50121-4
      EN 50155
      IEC 60571
  • Railway Fire Protection

    • EN 45545-2
  • Safety

    • UL 62368-1
      IEC 62368-1
      EN 62368-1
      BSMI
  • Salt Spray Test

    • EN 50155
  • Shock

    • IEC 60068-2-27, IEC 61373, EN 50155
  • Vibration

    • IEC 60068-2-64, IEC 61373, EN 50155
  • Package Vibration Test

    • ISTA 1A
  • Package Drop Test

    • ISTA 1A
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 688,231 hrs
  • Standards

    • Telcordia SR332 Issue 4
