SDS-3006 Series

Industrial 6-port smart Ethernet switches with 4-port IEEE 802.3af/at PoE+ or 2-port Gigabit uplink options

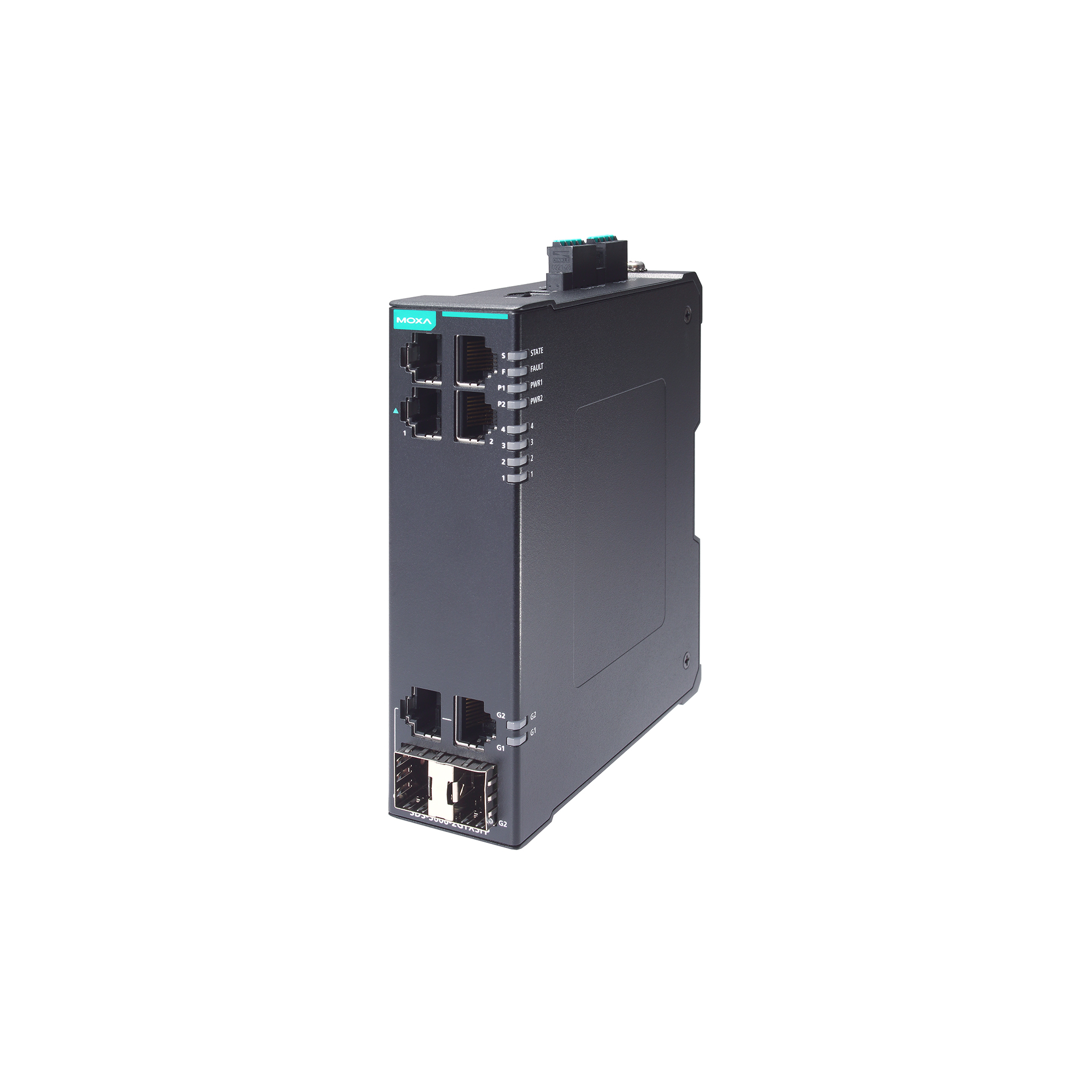

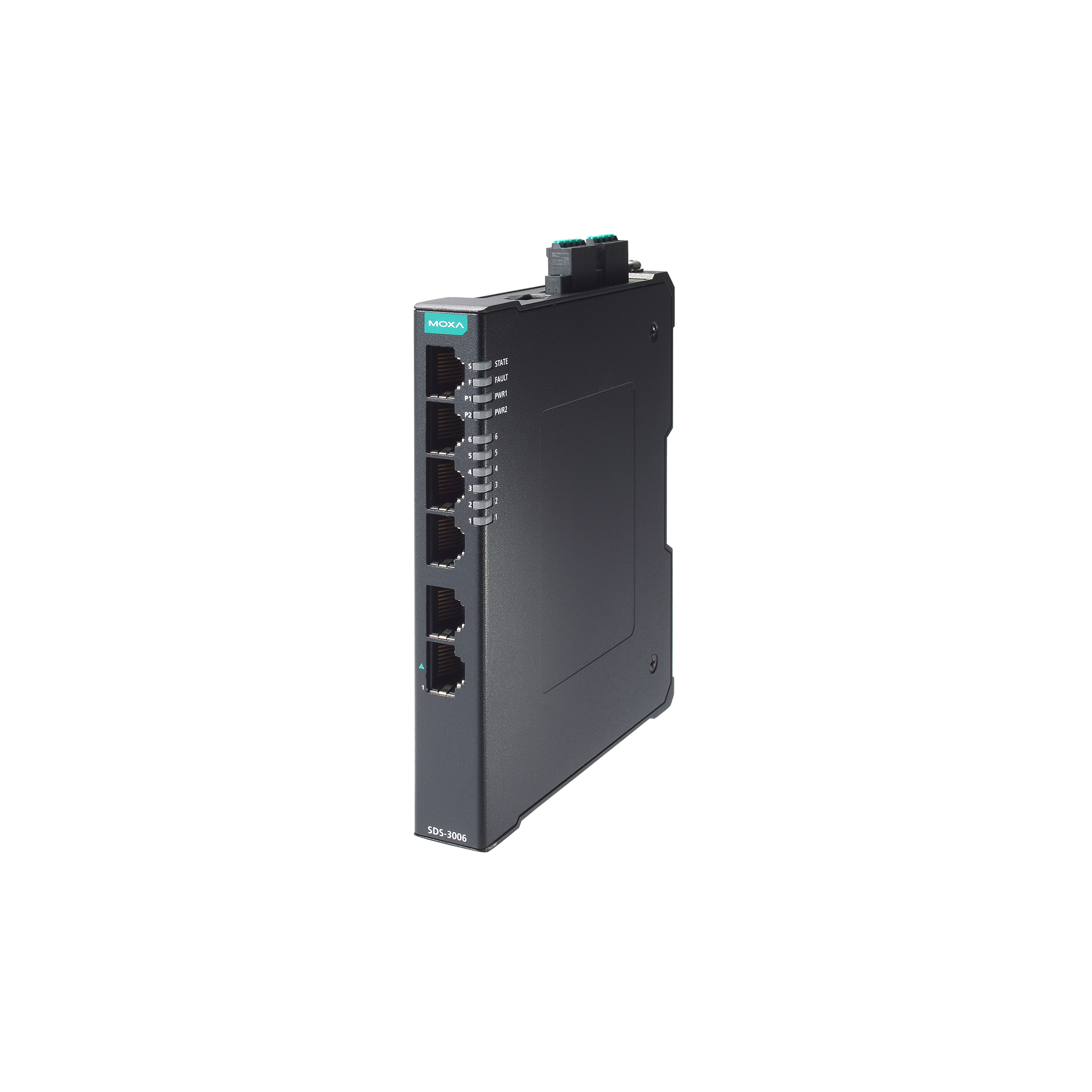

moxa-sds-3006-series-image-(1).jpg | Moxa

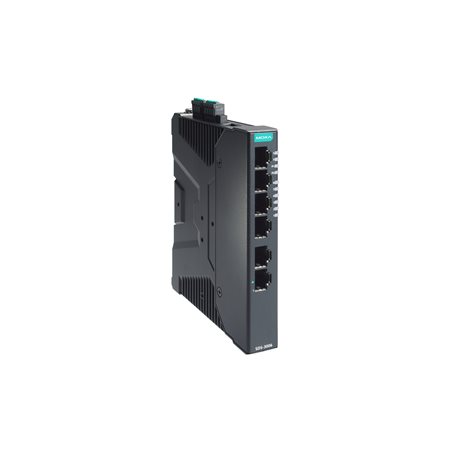

moxa-sds-3006-series-image-1-(1).jpg | Moxa

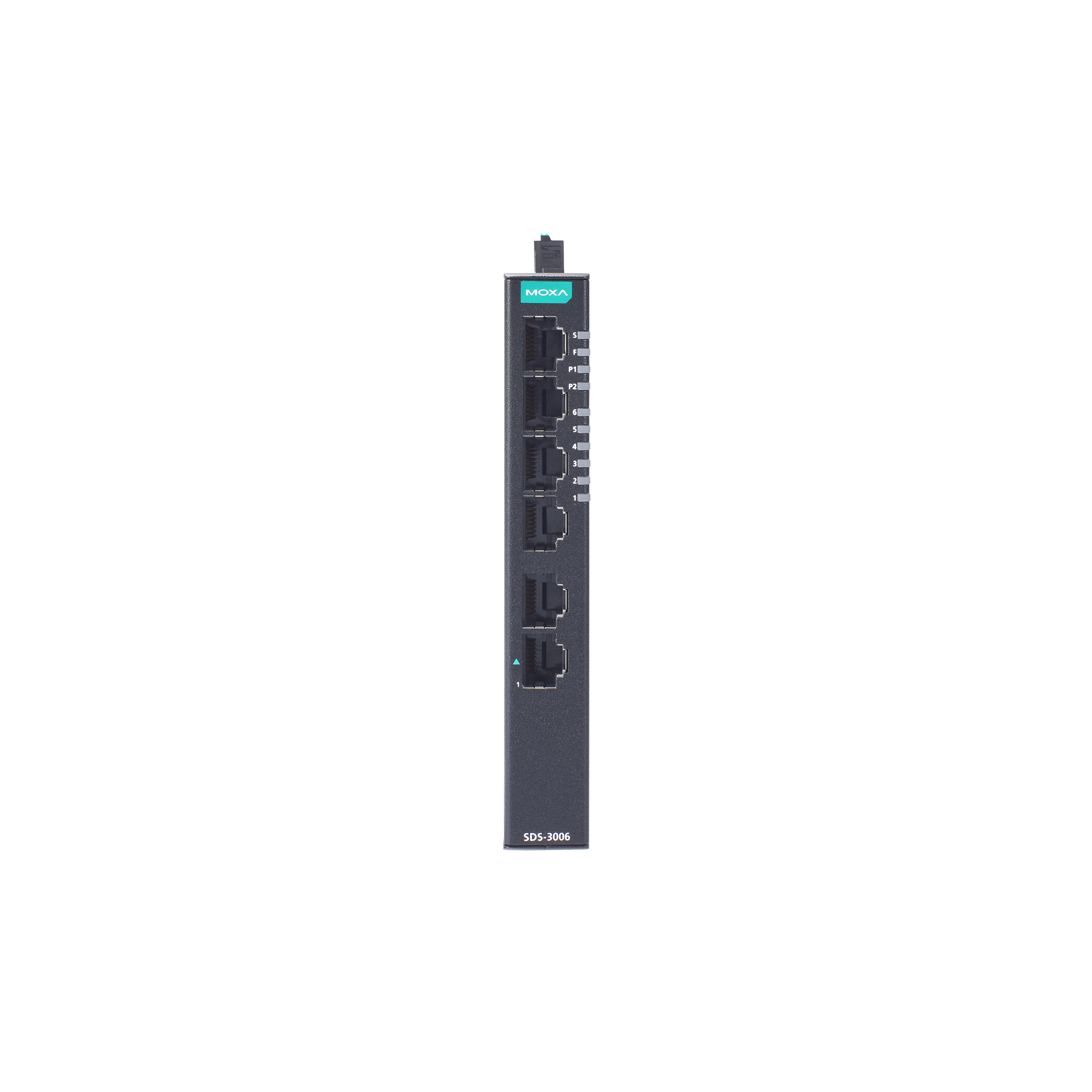

moxa-sds-3006-series-image-2-(1).jpg | Moxa

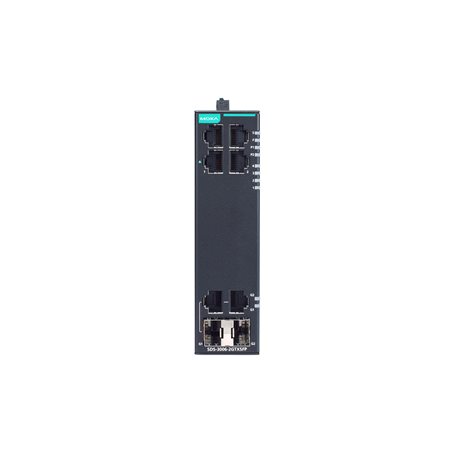

moxa-sds-3006-series-image-3-(1).jpg | Moxa

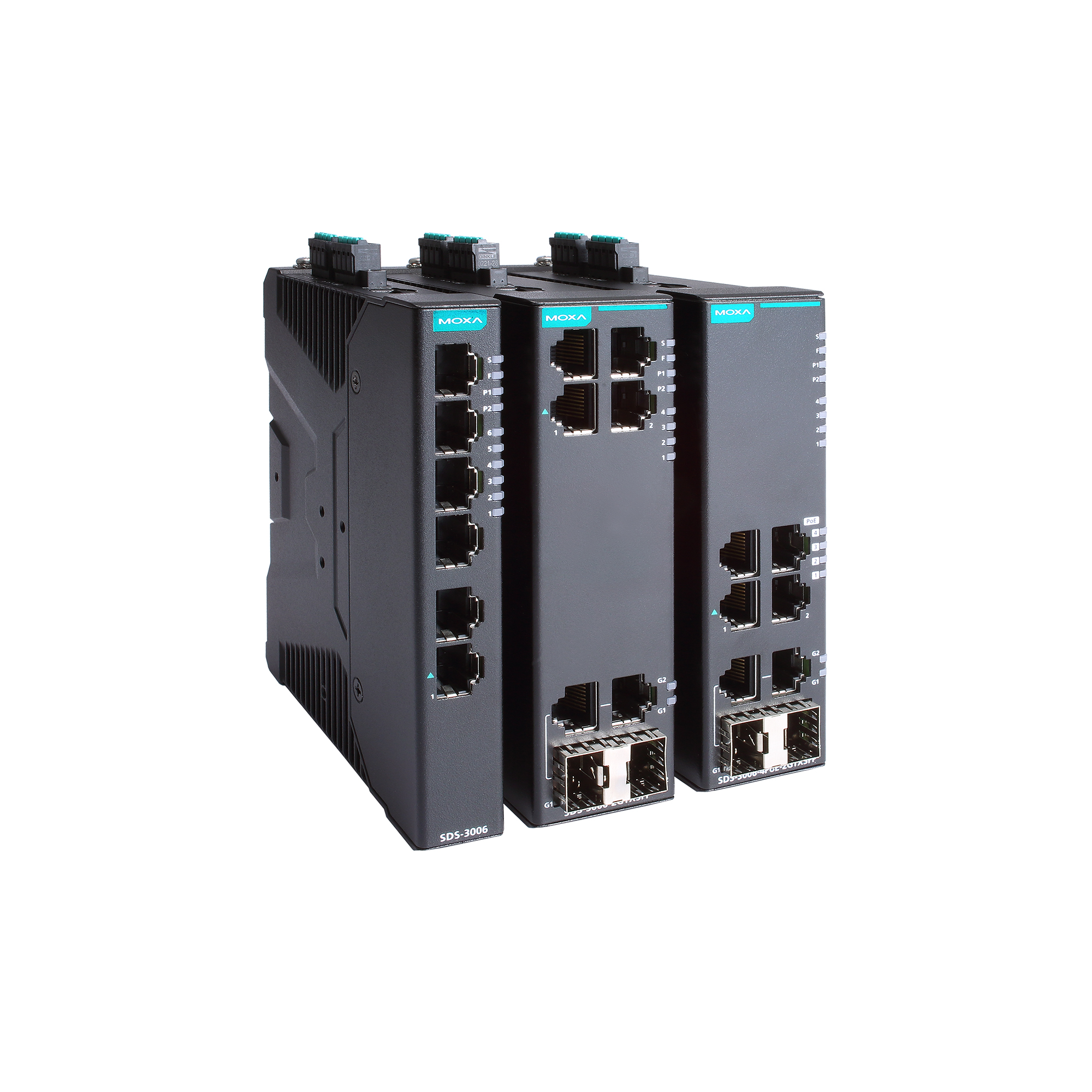

moxa-sds-3006-series-image-4-(1).jpg | Moxa

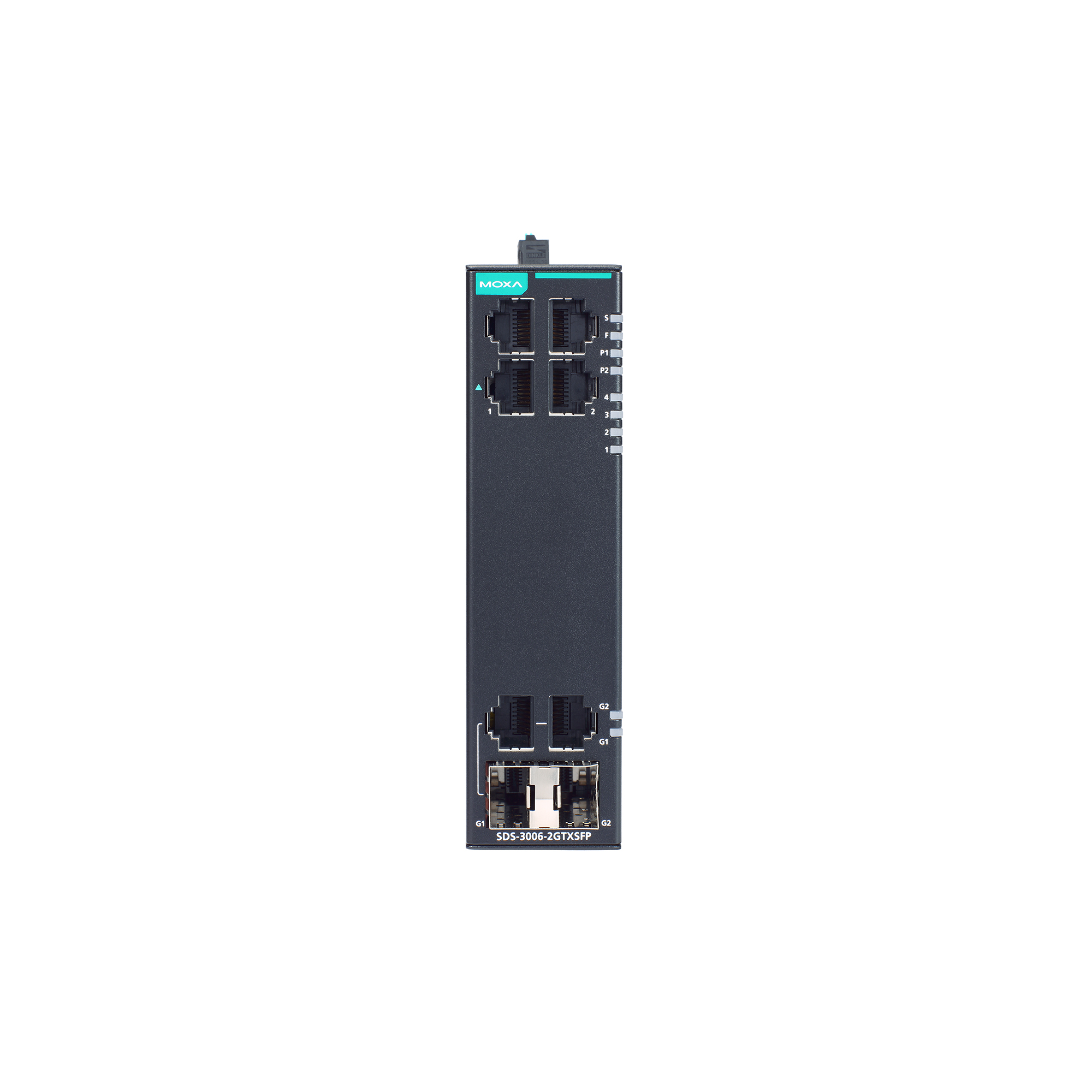

moxa-sds-3006-series-image-5-(1).jpg | Moxa

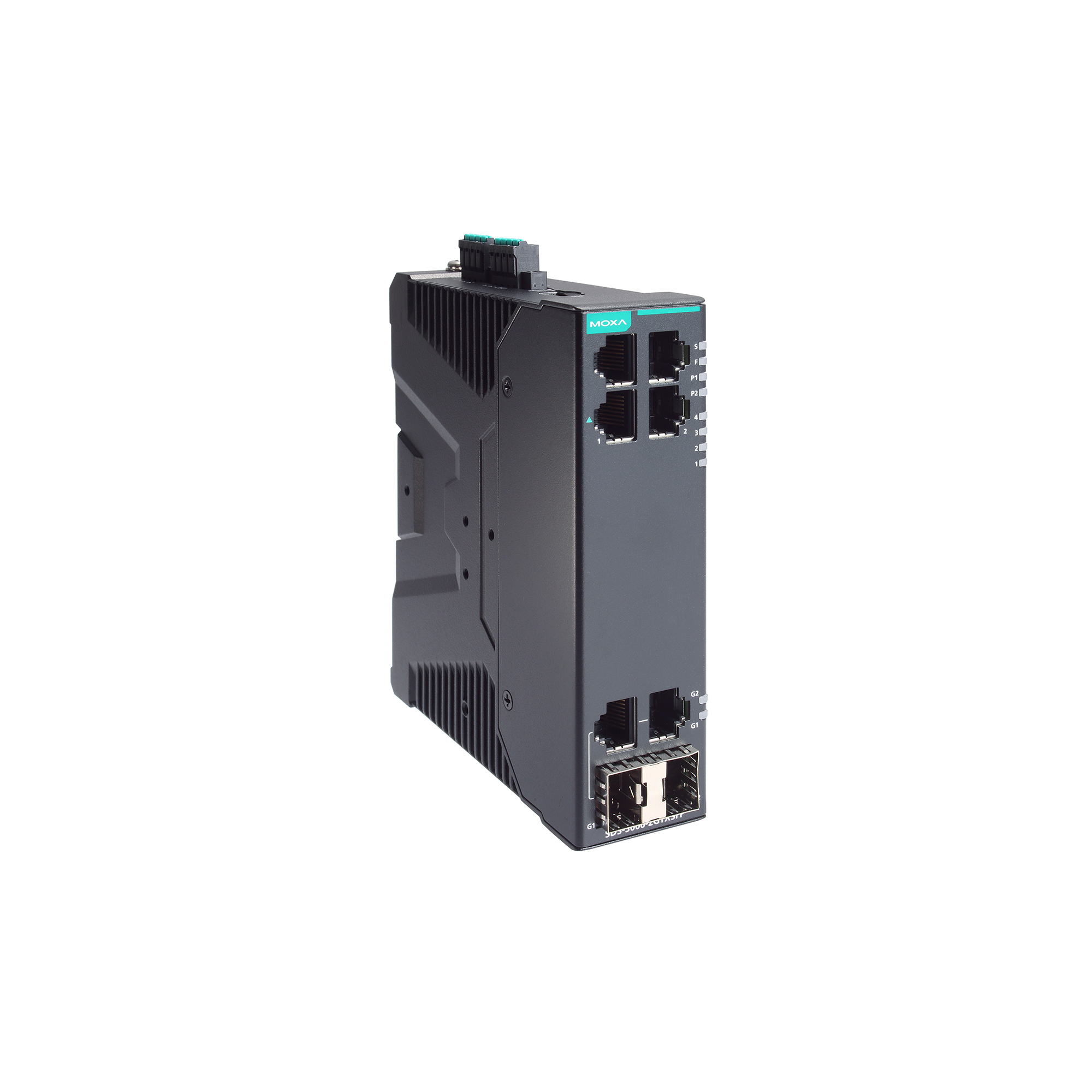

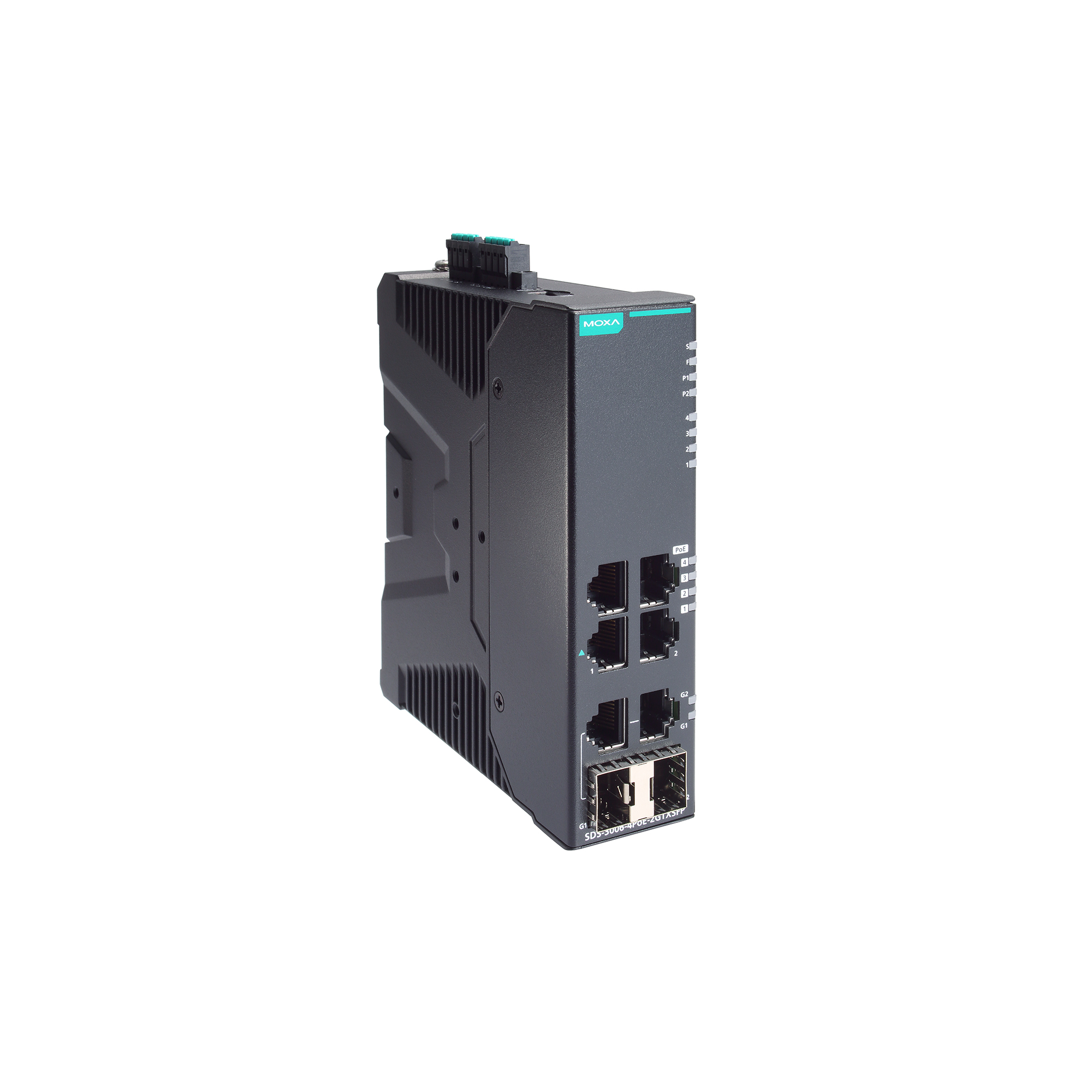

moxa-sds-3006-series-image-6-(1).jpg | Moxa

Features and Benefits

  • 4 IEEE 802.3af/at PoE+ standard ports
  • 36-watt output per PoE+ port in high-power mode
  • Multi-language web GUI: English, Traditional Chinese, Simplified Chinese, Japanese, German, and French
  • Supports RSTP/STP, and MRP for network redundancy to ensure high network availability
  • EtherNet/IP, PROFINET, and Modbus TCP industrial protocols supported for easy integration and monitoring in automation HMI/SCADA systems
  • Rotary DIP switch can perform profile-based settings without using a web browser
  • Supports MXstudio for easy, visualized industrial network management

Certifications

  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa

Contact Sales

Introduction

The SDS-3006 smart Ethernet switch is the ideal product for IA engineers and automation machine builders to make their networks compatible with the vision of Industry 4.0. By breathing life into machines and control cabinets, the smart switch simplifies daily tasks with its easy configuration and easy installation. In addition, it is monitorable and is easy to maintain throughout the entire product life cycle.

The most frequently used automation protocols—including EtherNet/IP, PROFINET, and Modbus TCP—are embedded in the SDS-3006 switch to provide enhanced operational performance and flexibility by making it controllable and visible from automation HMIs. It also supports a range of useful management functions, including IEEE 802.1Q VLAN, port mirroring, SNMP, warning by relay, and a multi-language Web GUI.

Additional Features and Benefits

  • IP port binding to ensure critical devices can be replaced quickly without reassigning the IP Address

  • IEEE 802.1Q VLAN to ease network planning

  • Supports the ABC-02-USB (automatic Backup Configurator) for quick system configuration backup/restore and firmware upgrade

  • Automatic warning by exception through relay output

  • Unused port lock, SNMPv3 and HTTPS to enhance network security

  • Port mirroring for online debugging and monitoring

  • Local log and the ability to export inventory files ease inventory management

  • Advanced PoE management function (PoE port setting, PD failure check, and PoE scheduling)

  • 10/100BaseT(X) Ports (RJ45 connector)

    SDS-3006(-T) models: 6
    SDS-3006-2GTXSFP(-T) models: 4
    SDS-3006-4PoE-2GTXSFP(-T) models: 4
    Auto negotiation speed
    Full/Half duplex mode
    Auto MDI/MDI-X connection

  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)

    SDS-3006-2GTXSFP(-T) models: 2
    SDS-3006-4PoE-2GTXSFP(-T) models: 2

  • PoE Ports (10/100/1000BaseT(X), RJ45 connector)

    SDS-3006-4PoE-2GTXSFP(-T) models: 4

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3x for flow control
    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1p for Class of Service

  • Industrial Protocols

    EtherNet/IP
    Modbus TCP
    PROFINET IO Device
    MECHATROLINK-4

  • Management

    Back Pressure Flow Control
    DHCP Client
    Fiber check
    Flow control
    IPv4/IPv6
    LLDP
    Port Mirroring
    RMON
    SNMP Inform
    SNMPv1/v2c/v3
    Syslog

  • MIB

    RFC1213
    Ethernet-like MIB
    IF MIB
    LLDP MIB
    Bridge MIB
    Q-BRIDGE MIB

  • Redundancy Protocols

    RSTP
    STP
    MRP

  • Security

    Broadcast storm protection
    HTTPS/SSL
    SNMPv3
    Port Lock
    Trust access control

  • Time Management

    NTP Server/Client
    SNTP

  • Filter

    802.1Q VLAN

  • Industrial Profile

    Indicator Mode
    0 No function enabled via DIP switch (Default)
    1 PROFINET profile enabled
    2 PROFINET profile and DHCP client enabled
    3 EtherNet/IP profile enabled
    4 EtherNet/IP profile and DHCP client enabled
    5 Modbus TCP profile enabled
    6 Modbus TCP profile and DHCP client enabled
    7 MECHATROLINK-4 profile enabled
    8-9 Reserved (currently performs the same behavior as indicator 0)

  • Jumbo Frame Size

    9.6 KB

  • MAC Table Size

    8 K

  • Max. No. of VLANs

    8

  • VLAN ID Range

    VID 1 to 4094

  • Packet Buffer Size

    3 Mbits

  • LED Indicators

    PWR1, PWR2, STATE, FAULT, 10/100M (TP Port), 10/100/1000M (Gigabit Combo port), smart PoE LED (SDS-3006-4PoE-2GTXSFP(-T) models only)

  • Storage Port

    USB Type A (for ABC-02 only)

  • Alarm Contact Channels

    1
    Relay output with current carrying capacity of 1 A @ 24 VDC

  • Buttons

    Reset button

  • Digital Input Channels

    1

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA

  • Connection

    2 removable 4-contact terminal block(s)

  • Input Voltage

    12-48 VDC
    Redundant dual inputs

  • Operating Voltage

    SDS-3006(-T) models: 9.6 to 60 VDC
    SDS-3006-2GTXSFP(-T) models: 9.6 to 60 VDC
    SDS-3006-4PoE-2GTXSFP(-T) models: 9.6 to 57 VDC

  • Input Current

    SDS-3006(-T) models: 0.76 A max. 12-48 VDC
    SDS-3006-2GTXSFP(-T) models: 0.98 A max. 12-48 VDC
    SDS-3006-4PoE-2GTXSFP(-T) models: 0.85 A max. 12-48 VDC

  • Power Budget

    Max. 120 W for total PD consumption @ 48 VDC input
    Max. 90 W for total PD consumption @ 24 VDC input
    Max. 45 W for total PD consumption @ 12 VDC input
    Max. 36 W for each PoE port

  • Power Consumption (Max.)

    SDS-3006(-T) models: 4.75 W
    SDS-3006-2GTXSFP(-T) models: 6.69 W
    SDS-3006-4PoE-2GTXSFP(-T) models: 10.38 W full loading without PDs’ consumption

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Housing

    Metal

  • IP Rating

    IP40

  • Dimensions

    SDS-3006(-T): 20 x 135 x 111 mm (0.79 x 5.32 x 4.37 in)
    SDS-3006-2GTXSFP(-T): 36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in)
    SDS-3006-4PoE-2GTXSFP(-T): 36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in)

  • Weight

    SDS-3006(-T): 383g (0.84 lbs)
    SDS-3006-2GTXSFP(-T): 718g (1.58 lbs)
    SDS-3006-4PoE-2GTXSFP(-T): 779g (1.72 lbs)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Operating Temperature

    Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 800 MHz: 10 V/m; 800 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (1.2/50 μs), 1 kV (10/700 μs)
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Safety

    EN IEC 62368-1
    UL 61010-2-201

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-32

  • Vibration

    IEC 60068-2-6

  • Time

    SDS-3006(-T): 3,483,278 hrs
    SDS-3006-2GTXSFP(-T): 3,196,539 hrs
    SDS-3006-4PoE-2GTXSFP(-T): 2,339,356 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

All Firmware Software Package
Name Type Checksum Version Operating System Release Date
AOI file for SDS-3006, SDS-G3006 Series
92.6 KB 		Software Package
SHA-512
v1.4
Sep 11, 2025 Sep 11, 2025 Release notes
Software Package for MXview One Series (Windows version)
240.7 MB 		Software Package
SHA-512
v1.6.1
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
 Sep 05, 2025 Sep 05, 2025 Release notes
Software Package for MXview One Series (Linux version)
554.4 MB 		Software Package
SHA-512
v1.6.1
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
 Sep 05, 2025 Sep 05, 2025 Release notes
GSD file for SDS-3006 Series
27.4 KB 		Software Package
SHA-512
v2.4
Jun 16, 2025 Jun 16, 2025 Release notes
Firmware for SDS-3000, SDS-G3000 Series
3.9 MB 		Firmware
SHA-512
v3.2
May 23, 2025 May 23, 2025 Release notes
SNMP MIB File for SDS-3000, SDS-G3000 Series
37.2 KB 		Software Package
SHA-512
v3.1
May 23, 2025 May 23, 2025 Release notes
Firmware for SDS-3000, SDS-G3000 Series
3.9 MB 		Firmware
SHA-512
v3.1
Mar 18, 2025 Mar 18, 2025 Release notes
EDS file for SDS-3006 Series
12.9 KB 		Software Package
SHA-512
v3.0
Sep 30, 2024 Sep 30, 2024 Release notes
Firmware for SDS-3000, SDS-G3000 Series
3.9 MB 		Firmware
SHA-512
v3.0
Sep 30, 2024 Sep 30, 2024 Release notes
Modbus file for SDS-3000, SDS-G3000 Series
1.4 KB 		Software Package
SHA-512
v3.0
Sep 30, 2024 Sep 30, 2024 Release notes

Support Documents

FILTER

All 2D CAD Datasheet Declaration Manual QIG
Name Type Version Release Date
Datasheet for SDS-3006 Series
9.7 MB 		Datasheet v1.4 Jun 05, 2025 Jun 05, 2025
Moxa Industrial Smart Ethernet Switch User's Manual
5.7 MB 		Manual v3.1 May 23, 2025 May 23, 2025
Industrial Protocols User Guide for SDS Series
12.9 MB 		Manual v2.1 May 23, 2025 May 23, 2025
QIG for SDS PoE Series
3.4 MB 		QIG v1.0 Dec 27, 2024 Dec 27, 2024
Declaration of Conformity for SDS-3006/3010/G3006/G3010 (with PoE)
315.6 KB 		Declaration v1.0 Dec 23, 2024 Dec 23, 2024
QIG for SDS-3006, SDS-G3006, SDS-3008, SDS-G3008 Series
4.0 MB 		QIG v4.1 Dec 16, 2024 Dec 16, 2024
2D CAD for SDS-3006 V2.0
1.2 MB 		2D CAD Nov 29, 2024 Nov 29, 2024
2D CAD for SDS-3006-4PoE-2GTXSFP V2.0
1.4 MB 		2D CAD Nov 29, 2024 Nov 29, 2024
2D CAD for SDS-3006-2GTXSFP V2.0
883.4 KB 		2D CAD Nov 29, 2024 Nov 29, 2024
FOSS Statement for SDS-3000, SDS-G3000 Series
411.3 KB 		Declaration v1.0 Oct 02, 2024 Oct 02, 2024
Declaration of Conformity for SDS-3006/3008/3010/3016/G3006/G3008/G3010/G3016 (non PoE)
322.5 KB 		Declaration v1.0 Sep 23, 2024 Sep 23, 2024
