IKS-G6824A Series

24G-port Layer 3 full Gigabit managed Ethernet switches

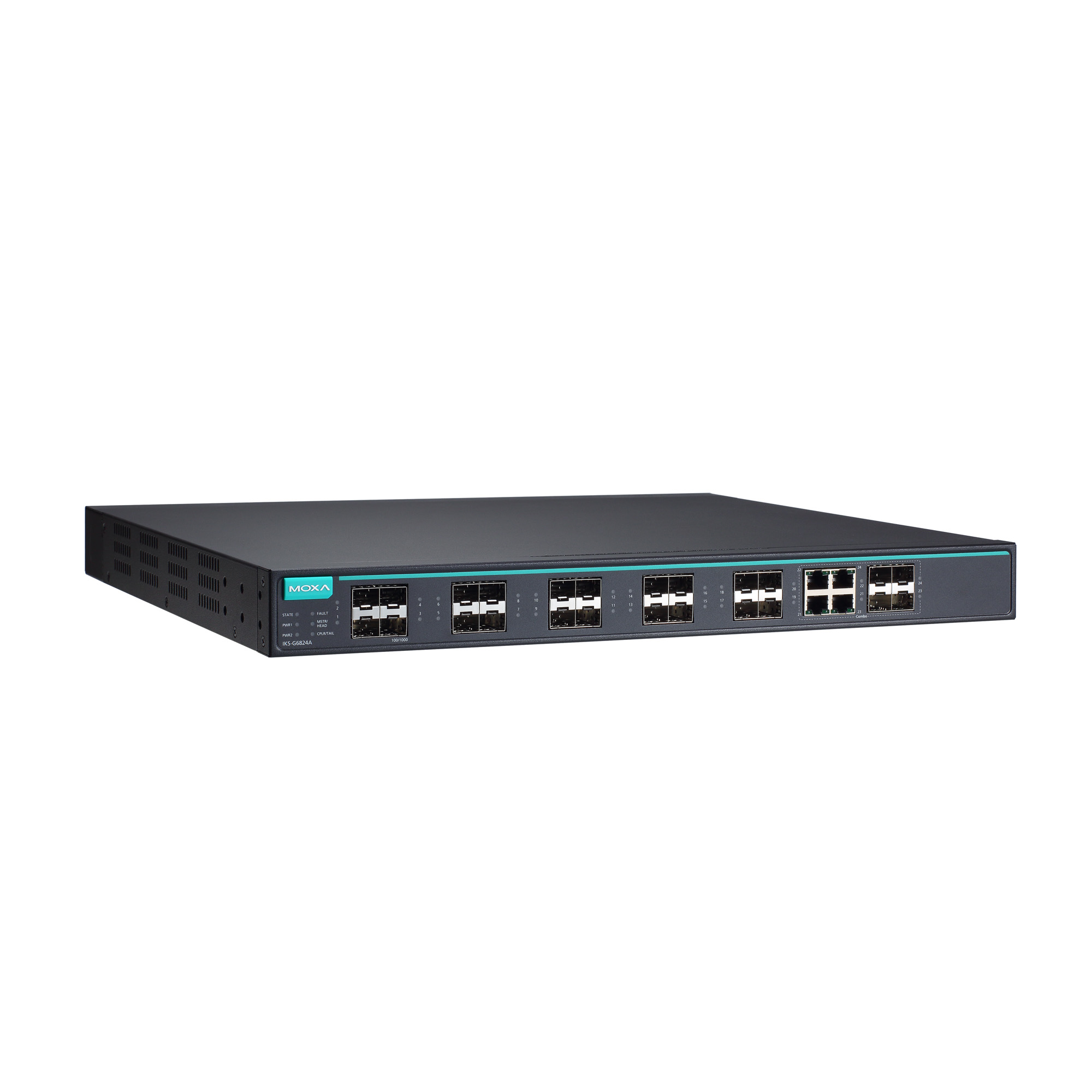

moxa-iks-g6824a-series-image-(1).jpg | Moxa

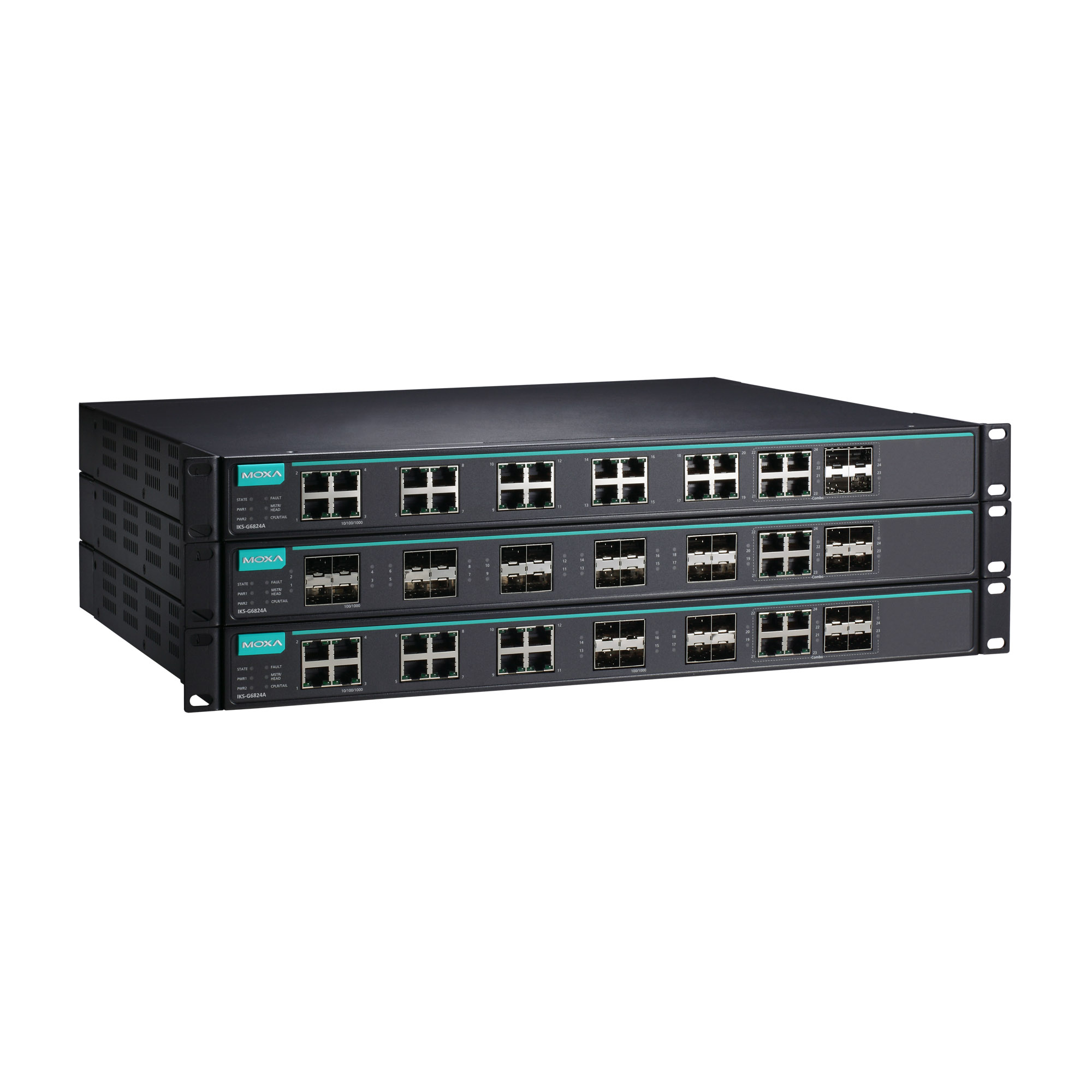

moxa-iks-g6824a-series-image-1-(1).jpg | Moxa

Features and Benefits

  • Layer 3 routing interconnects multiple LAN segments
  • 24 Gigabit Ethernet ports
  • Up to 24 optical fiber connections (SFP slots)
  • Fanless, -40 to 75°C operating temperature range (T models)
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) If the port link speed is 1 Gigabit or higher, the recovery time is < 50 ms. , and STP/RSTP/MSTP for network redundancy
  • Isolated redundant power inputs with universal 110/220 VAC power supply range
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa

Contact Sales

Introduction

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The IKS-G6824A Series is equipped with 24 Gigabit Ethernet ports, and support Layer 3 routing functionality to facilitate the deployment of applications across networks, making them ideal for large-scale industrial networks.

The IKS-G6824A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and are fanless and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.

Additional Features and Benefits

  • Layer 3 switching functionality to move data and information across networks

  • Command line interface (CLI) for quickly configuring major managed functions

  • Supports advanced VLAN capability with Q-in-Q tagging

  • DHCP Option 82 for IP address assignment with different policies

  • Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring

  • IGMP snooping and GMRP for filtering multicast traffic

  • IEEE 802.1Q VLAN and GVRP protocol to ease network planning

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • Redundant, dual AC power inputs

  • Port Trunking for optimum bandwidth utilization

  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security

  • Access control lists (ACL) increase the flexibility and security of network management

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for proactive and efficient network monitoring

  • Bandwidth management to prevent unpredictable network status

  • Lock port function for blocking unauthorized access based on MAC address

  • Port mirroring for online debugging

  • Automatic warning by exception through email and relay output

  • Digital inputs for integrating sensors and alarms with IP networks

  • Alarm Contact Channels

    Relay output with current carrying capacity of 2 A @ 30 VDC

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +1 V for state 0
    Max. input current: 8 mA

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    IKS-G6824A-4GTXSFP-HV-HV Series: 20
    IKS-G6824A-8GSFP-4GTXSFP-HV-HV Series: 12

  • 100/1000BaseSFP Ports

    IKS-G6824A-8GSFP-4GTXSFP-HV-HV Series: 8
    IKS-G6824A-20GSFP-4GTXSFP-HV-HV Series: 20

  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

    4

  • Standards

    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1X for authentication
    IEEE 802.3 for 10BaseT
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control
    IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

  • Management

    ARP
    Back Pressure Flow Control
    BOOTP
    DDM
    DHCP Option 66/67/82
    DHCP Server/Client
    Flow control
    IPv4
    LLDP
    Port Mirror
    RARP
    RMON
    SCP
    SMTP
    SNMP Inform
    SNMPv1/v2c/v3
    Syslog
    Telnet
    TFTP

  • Filter

    802.1Q
    BPDU Filter
    BPDU Guard
    GMRP
    GVRP
    IGMP v1/v2/v3
    QinQ VLAN

  • Multicast Routing

    DVMRP
    PIM-DM
    PIM-SM
    PIM-SSM

  • Redundancy Protocols

    Link Aggregation
    MRP
    MSTP
    RSTP
    Turbo Chain
    Turbo Ring v1/v2
    V-ON

  • Routing Redundancy

    VRRP

  • Security

    Access control list
    Broadcast storm protection
    HTTPS/SSL
    MAB authentication
    Sticky MAC
    NTP authentication
    Port Lock
    RADIUS
    SSH
    TACACS+

  • Time Management

    NTP Server/Client
    SNTP

  • Unicast Routing

    OSPF
    RIPV1/V2
    Static Route

  • Industrial Protocols

    EtherNet/IP
    Modbus TCP
    PROFINET

  • MIB

    Bridge MIB
    Ethernet-like MIB
    MIB-II
    P-BRIDGE MIB
    Q-BRIDGE MIB
    RMON MIB Groups 1, 2, 3, 9
    RSTP MIB

  • DRAM

    128 MB

  • Flash

    16 MB

  • IGMP Groups

    4096

  • Jumbo Frame Size

    9.6 KB

  • MAC Table Size

    16 K

  • Max. No. of VLANs

    256

  • Packet Buffer Size

    12 Mbits

  • VLAN ID Range

    VID 1 to 4094

  • Priority Queues

    8

  • Storage Port

    USB Type A

  • Console Port

    USB-serial console (Type B connector)

  • Input Voltage

    110 to 240 VAC
    Redundant dual inputs

  • Operating Voltage

    85 to 264 VAC

  • Input Current

    Max. 0.66 A @ 110 VAC
    Max. 0.39 A @ 220 VAC

  • Power Consumption

    Max. 37.83 W @ 110 VAC
    Max. 40.15 W @ 220 VAC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • IP Rating

    IP30

  • Dimensions

    440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in)

  • Weight

    5100 g (11.25 lb)

  • Installation

    Rack mounting

  • Operating Temperature

    Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    UL 62368-1
    IEC 62368-1
    UL 61010-2-201
    EN 61010-2-201

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Railway

    EN 50121-4

  • Traffic Control

    NEMA TS2

  • Freefall

    IEC 60068-2-32

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Time

    IKS-G6824A-4GTXSFP-HV-HV Series: 697,302 hrs
    IKS-G6824A-8GSFP-4GTXSFP-HV-HV Series: 648,494 hrs
    IKS-G6824A-20GSFP-4GTXSFP-HV-HV Series: 670,194 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

All Driver Firmware Software Package Utility
Name Type Checksum Version Operating System Release Date
Moxa USB Console Windows Driver
2.2 MB 		Driver
SHA-512
v1.8
  • Windows 11
  • Windows Server 2022
 Apr 09, 2025 Apr 09, 2025 Release notes
Modbus File
2.3 KB 		Software Package
SHA-512
v1.1
Mar 04, 2025 Mar 04, 2025 Release notes
Firmware for IKS-G6824A Series
4.4 MB 		Firmware
SHA-512
v5.11
Mar 04, 2025 Mar 04, 2025 Release notes
Software Package for IKS-G6824A Series (EDS file)
4.1 KB 		Software Package
SHA-512
v1.5
Mar 04, 2025 Mar 04, 2025 Release notes
Software Package for IKS-G6824A Series (SNMP MIB)
244.5 KB 		Software Package
SHA-512
v5.9
Mar 04, 2025 Mar 04, 2025 Release notes
Software Package for IKS-G6824A Series (GSD file)
42.3 KB 		Software Package
SHA-512
v1.4
Mar 04, 2025 Mar 04, 2025 Release notes
Software Package for MXview One Series (Windows version)
284.5 MB 		Software Package
SHA-512
v1.5.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
 Jan 22, 2025 Jan 22, 2025 Release notes
Software Package for MXview One Series (Linux version)
508.2 MB 		Software Package
SHA-512
v1.5.0
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
 Jan 22, 2025 Jan 22, 2025 Release notes
Firmware for IKS-G6824A Series
4.4 MB 		Firmware
SHA-512
v5.10
Apr 24, 2023 Apr 24, 2023 Release notes
EtherNet/IP AOI (28P) for IKS-G6824A Series
82.9 KB 		Software Package
SHA-512
v1.2.0
Jan 18, 2018 Jan 18, 2018 Release notes
Moxa ICS/IKS Configuration Migration Tool
118.5 KB 		Utility
SHA-512
v1.1
  • Windows
  • Windows XP
 May 20, 2015 May 20, 2015 Release notes
Moxa USB Console Windows Driver
1.2 MB 		Driver
SHA-512
v1.7.1
  • Windows
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 98 SE
  • Windows ME
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
 Dec 10, 2013 Dec 10, 2013 Release notes
PComm Lite - Serial Communication Tool for Windows
1.6 MB 		Utility
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
 May 14, 2012 May 14, 2012 Release notes
Moxa Ethernet Switch and Video Server Configurator
1.6 MB 		Utility
SHA-512
v5.3
  • Windows
  • Windows XP
 Apr 09, 2012 Apr 09, 2012 Release notes

Support Documents

FILTER

All 2D CAD Datasheet Declaration Manual QIG Tech Note
Name Type Version Release Date
FOSS Statement for EDS-500E Series, EDS-G500E Series, EDS-P500E Series, ICS Series, IKS Series
128.8 KB 		Declaration v1.0 Mar 17, 2025 Mar 17, 2025
Moxa Managed Ethernet Switch User Manual (UI 2.0, FW 5.x)
8.0 MB 		Manual v2.7 Mar 11, 2025 Mar 11, 2025
Moxa Command Line Interface (FW 5.x) Users Manual
2.8 MB 		Manual v1.8 Mar 11, 2025 Mar 11, 2025
Industrial Protocol Users Guide
13.4 MB 		Manual v6.6 Mar 11, 2025 Mar 11, 2025
Moxa Managed Ethernet Switch Redundancy Protocol Manual (UI 2.0)
3.9 MB 		Manual v4.4 Mar 11, 2025 Mar 11, 2025
FOSS Statement for EDS, EOM, IKS, ICS, SDS Series products
334.0 KB 		Declaration v1.0 Jul 31, 2024 Jul 31, 2024
Declaration of Conformity for IKS-G6524A/G6824A and ICS-G7526A/G7826A/G7528A/G7828A Series
323.7 KB 		Declaration v1.0 Mar 07, 2024 Mar 07, 2024
Datasheet for IKS-G6824A Series
553.6 KB 		Datasheet v1.8 Nov 01, 2023 Nov 01, 2023
QIG for IKS-G6524A/IKS-G6824A Series
758.4 KB 		QIG v3.5 Aug 11, 2023 Aug 11, 2023
Moxa Managed Ethernet Switch (UI 2.0, FW 5.x) User's Manual
5.3 MB 		Manual v2.2 Jun 29, 2022 Jun 29, 2022
Tech Note: Recommended Procedure for STP Cable Grounding on Moxa's Industrial Ethernet Switches
558.3 KB 		Tech Note v1.0 Feb 12, 2019 Feb 12, 2019
2D CAD for IKS-G6x24A-20GSFP-4GTXSFP
1.4 MB 		2D CAD Jan 19, 2018 Jan 19, 2018
2D CAD for IKS-G6x24A-8GSFP-4GTXSFP
1.3 MB 		2D CAD Jan 19, 2018 Jan 19, 2018
2D CAD for IKS-G6x24A-4GTXSFP
1.2 MB 		2D CAD Jan 19, 2018 Jan 19, 2018
Moxa Command Line Interface (FW 4.x) User's Manual
2.3 MB 		Manual v5.2 Oct 19, 2017 Oct 19, 2017
Moxa Managed Ethernet Switch (UI 2.0, FW 4.x) User's Manual
4.4 MB 		Manual v3.3 Jul 04, 2017 Jul 04, 2017

Related Content

FILTER

All Solution Brochure White Paper

Available Models (6)

Show Images
Compare

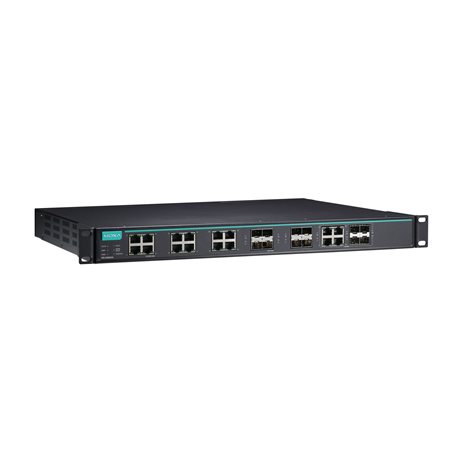

moxa-iks-g6824a-8gsfp-4gtxsfp-hv-hv-image.jpg | MoxaIKS-G6824A-8GSFP-4GTXSFP-HV-HV
Compare

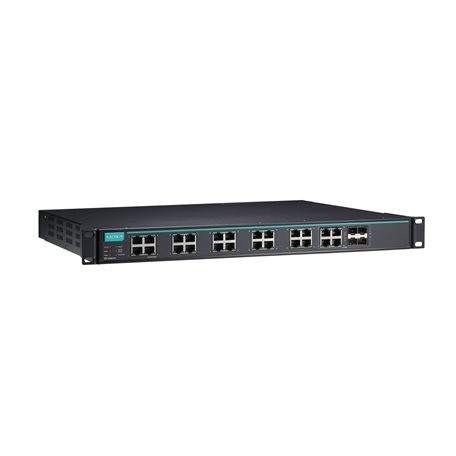

moxa-iks-g6824a-4gtxsfp-hv-hv-t-image.jpg | MoxaIKS-G6824A-4GTXSFP-HV-HV-T
Compare
moxa-iks-g6824a-20gsfp-4gtxsfp-hv-hv-image.jpg | MoxaIKS-G6824A-20GSFP-4GTXSFP-HV-HV
Compare
moxa-iks-g6824a-8gsfp-4gtxsfp-hv-hv-t-image.jpg | MoxaIKS-G6824A-8GSFP-4GTXSFP-HV-HV-T
Layer3333
Combo Ports
10/100/1000BaseT(X) or 100/1000BaseSFP+		4444
100/1000Base SFP Slots80208
10/100/1000BaseT(X) Ports
RJ45 Connector		1220012
Operating Temp.-10 to 60°C-40 to 75°C-10 to 60°C-40 to 75°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Compare
moxa-iks-g6824a-20gsfp-4gtxsfp-hv-hv-t-image.jpg | MoxaIKS-G6824A-20GSFP-4GTXSFP-HV-HV-T
Compare
moxa-iks-g6824a-4gtxsfp-hv-hv-image.jpg | MoxaIKS-G6824A-4GTXSFP-HV-HV
Layer33
Combo Ports
10/100/1000BaseT(X) or 100/1000BaseSFP+		44
100/1000Base SFP Slots200
10/100/1000BaseT(X) Ports
RJ45 Connector		020
Operating Temp.-40 to 75°C-10 to 60°C
Add to QuoteView BagAdd to QuoteView Bag

Details

File Name: Firmware for Nport 6000 Series

Version: xx

SHA-512 Checksum: --checksum placeholder--

Copied to clipboard

product image

Buy online from distributors

Please sign in

Forgot your password?
Sign In
Remember Me.
Not a member? Sign up now

Do Not Share My Personal Information

To opt out of sharing your personal information for cross-context behavioral advertising, you can complete and submit the form provided below.


Please note that even if you choose to complete the form, you may still see our ads on other websites. However, these ads may not be as relevant to you as they would be if you had not opted out.



Added To Bag

View Bag
You have some items waiting in your bag; click here to finish your quote!

You are currently on the Global / English site.
Would you like to go to the site for your region?

Feedback
