MRX-Q4064 Series

48 2.5GbE- and 16 10GbE-port Layer 3 full 2.5 Gigabit modular managed Ethernet switches

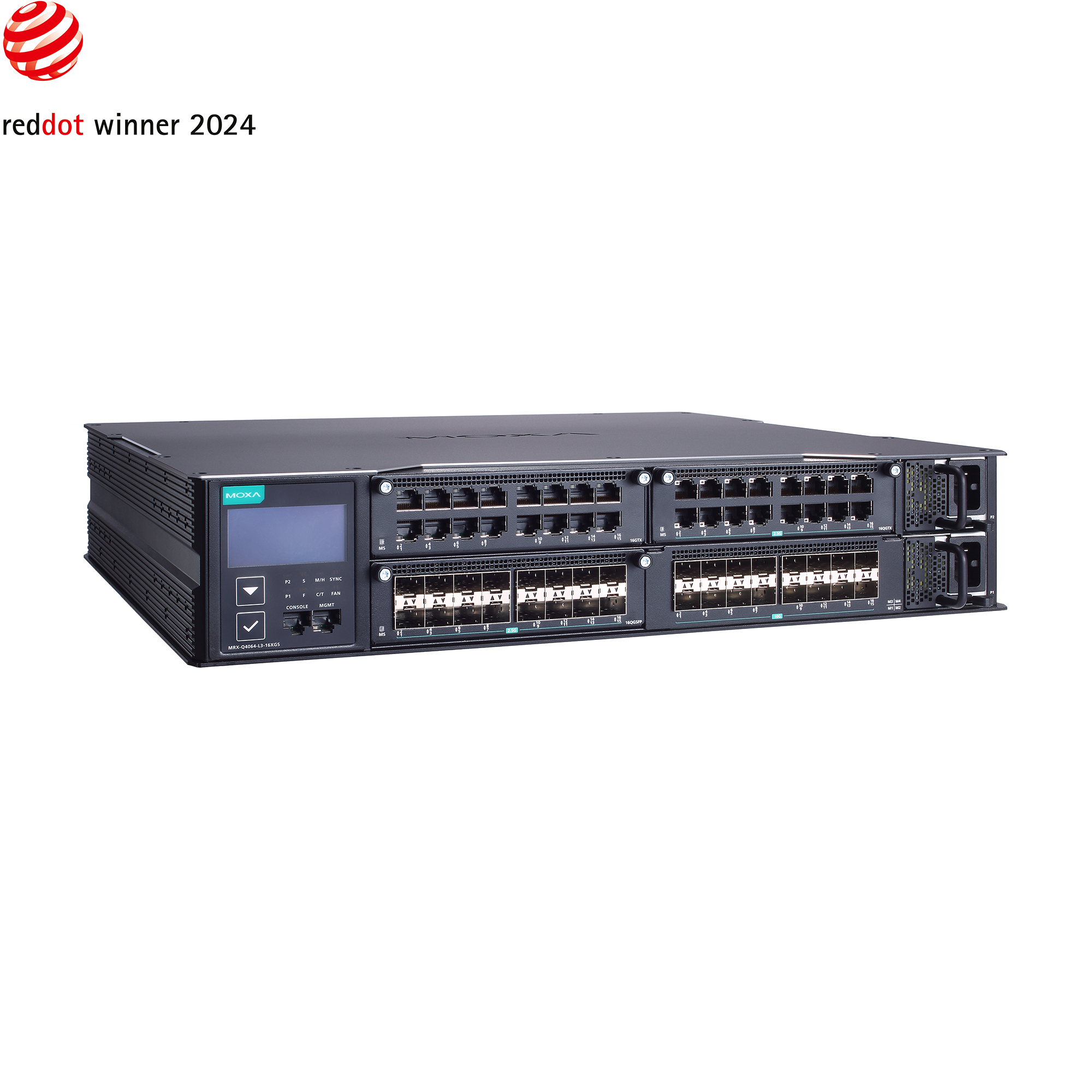

moxa-mrx-q4064-series-image-(1).jpg | Moxa

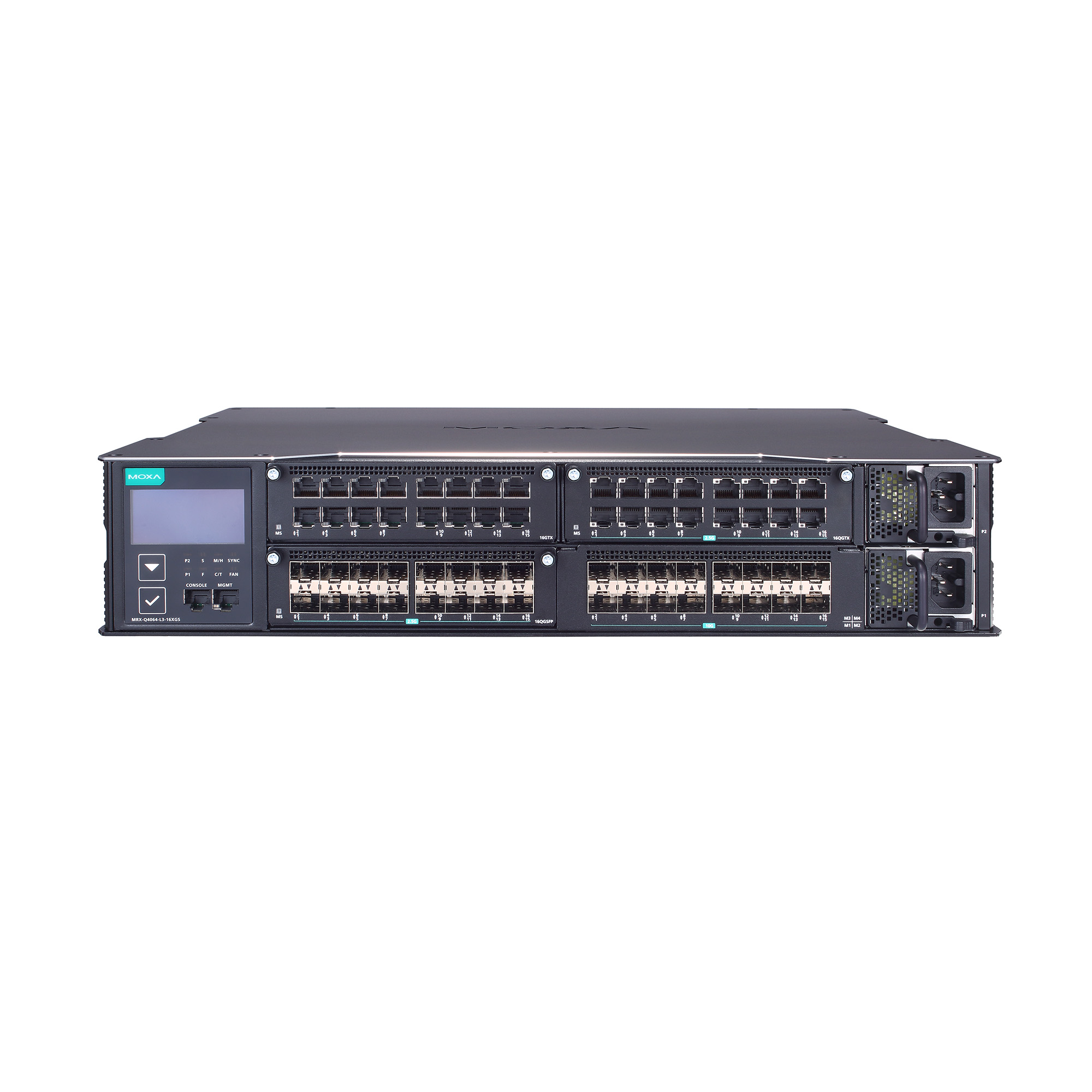

moxa-mrx-q4064-series-image-1-(1).jpg | Moxa

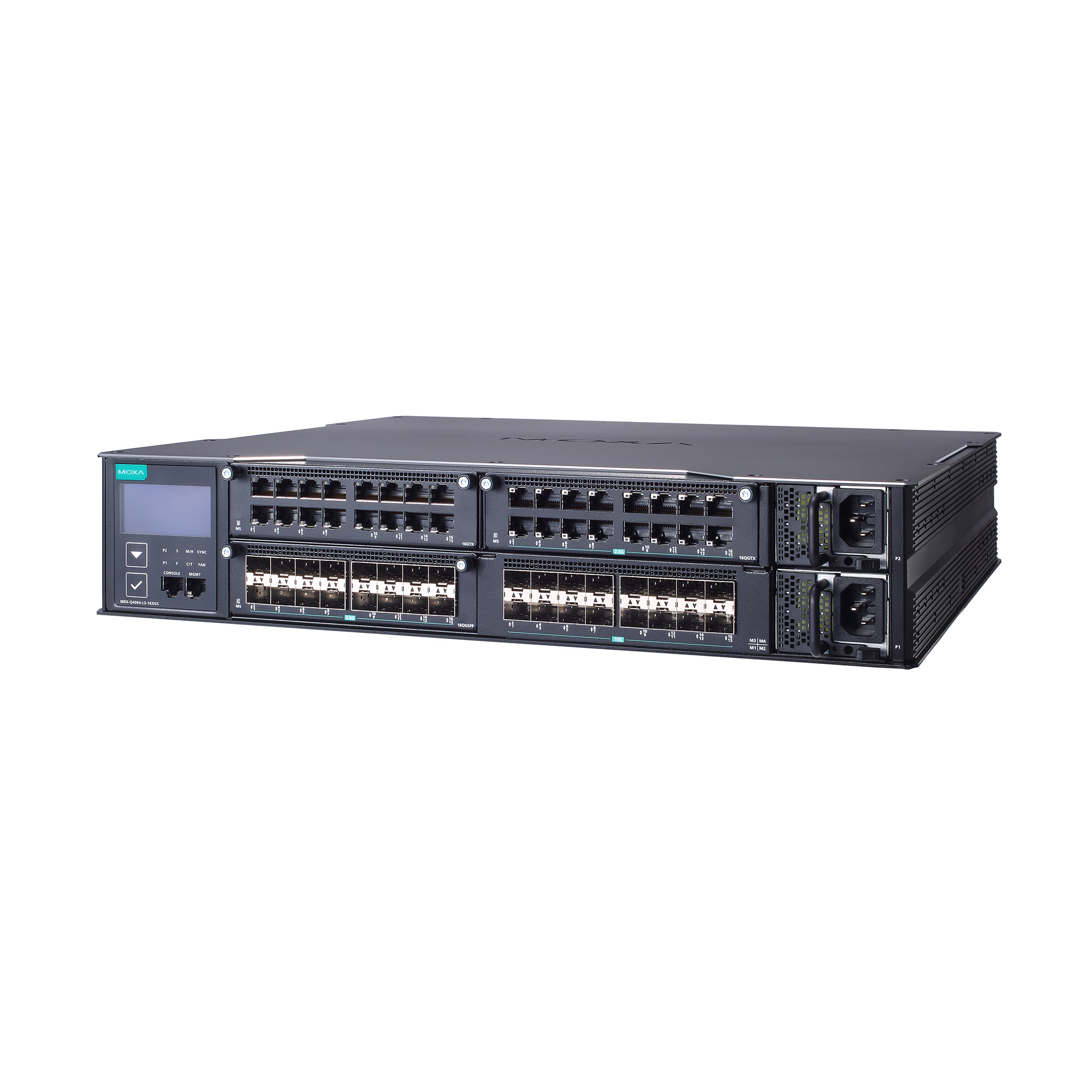

moxa-mrx-q4064-series-image-2-(1).jpg | Moxa

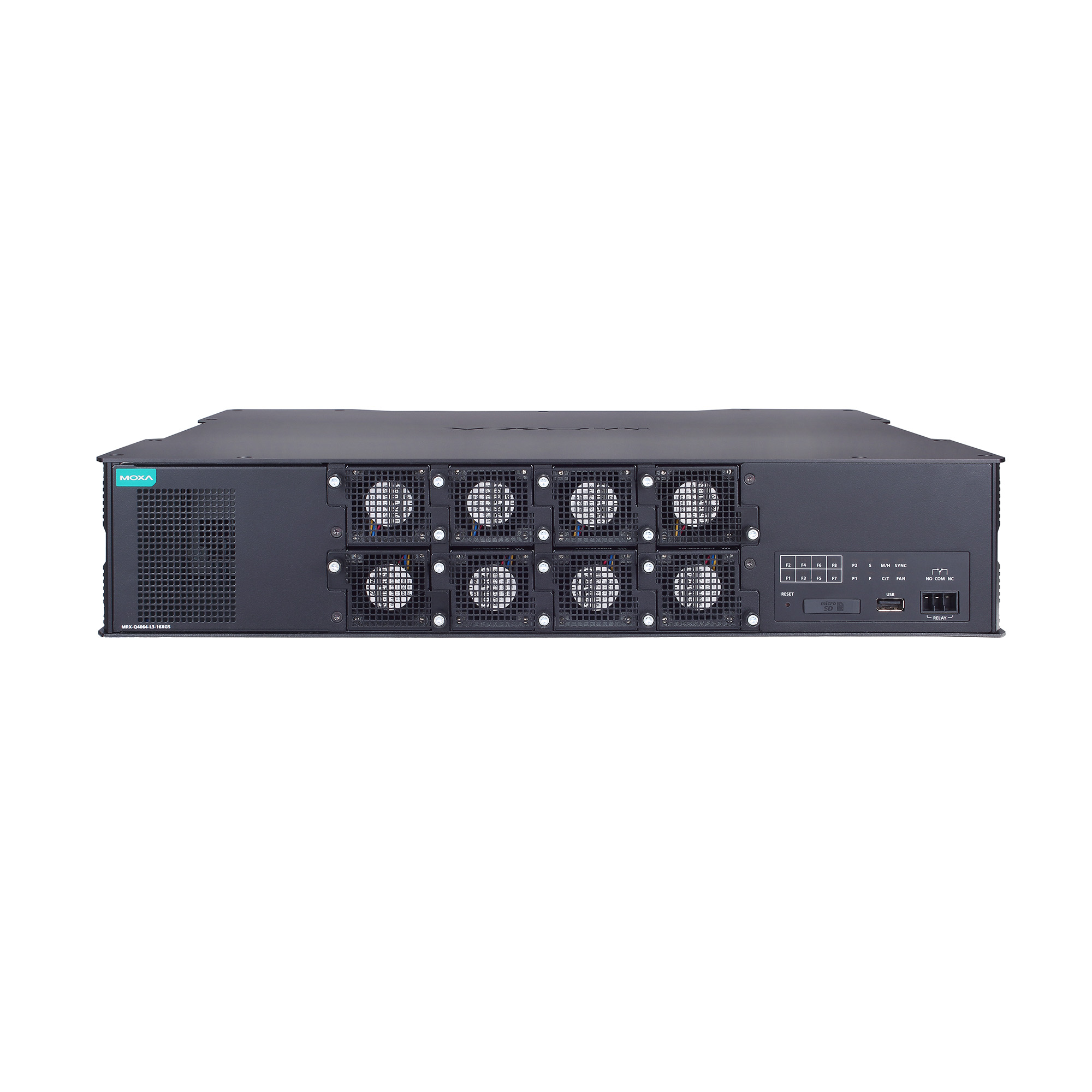

moxa-mrx-q4064-series-image-3-(1).jpg | Moxa

Features and Benefits

  • 16 10GbE Ethernet ports
  • Up to 48 1GbE or 2.5GbE ports or SFP slots
  • HAST (High-availability Static Trunk) technology supports backbone reliability
  • Onboard LCM display for at-a-glance status updates supports easy on-site maintenance and operation
  • Dual power modules and 6+2 fan redundancy design for non-stop network operations
  • Real-time system temperature monitoring to protect network and devices

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa

Contact Sales

Introduction

The MRX-Q4064 Series is designed to meet the high-performance, high-availability requirements of industrial video, voice, and data applications resulting from the growing convergence of information technology in industrial sites.

The modular design of the MRX-Q4064 Series supports 16 10GbE ports built-in and up to 48 2.5GbE ports via modules, ideal for building large-scale industrial network applications. 10GbE ports significantly increase the network switching bandwidth, allowing for direct connections to 10GbE-enabled servers and moving data collection and analysis closer to the application site. Additionally, support for multi-port aggregation allows for higher bandwidth backbone, while also leaving room for future network growth.

In addition to accommodating larger numbers of field devices, MRX-Q4064 Series reduces the delay of data transmission and enables the rapid transmission of large amounts of video, voice, and data on high-performance networks. This series is equipped with a redundant multi-fan cooling system and redundant isolated power supplies. It supports industrial high-efficiency Turbo Ring technology, as well as other network redundancy technologies such as ERPS (ITU-T G.8032) and RSTP/STP, which can enhance the reliability and availability of backbone networks in IT/OT convergence applications.

Additional Features and Benefits

  • Flexible bandwidth/port combinations for effective bandwidth management and maximum reliability

  • Command line interface (CLI) for quick management

  • Out-of-band management (OOBM) port to ensure the availability of network management when in-band services are inaccessible

  • System temperature control and power consumption management for non-stop operations

  • Port mirroring (N:M) technology to support security monitoring and auditing

  • Optimized for large burst transmissions of large-scale video surveillance to prevent frame loss

  • IEEE1588v2 PTP (Precision Time Protocol) for network time synchronization

  • Supports MXconfig and MXview One for industrial network management and visualization

  • 1000/2500/10000BaseSFP Ports

    16

  • Out-of-band Management (OOBM)

    1 x 8-pin RJ45 1GbE Ethernet port (MGMT)

  • Module

    There are 3 module slots on the switch. Users can select different types of modules to insert into the switch. The modules that can be selected include 16-port modules with 1000BaseT(X), 1000/2500BaseT(X), 1000BaseSFP, or 1000/2500BaseSFP interfaces.

    Refer to Expansion Modules in the Accessories section for a full list of supported interface modules.

  • Standards

    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1X for Authentication
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.3x for Flow Control
    IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
    IEEE 802.3bz for 2.5GBaseX
    IEEE 802.3ae for 10 Gigabit Ethernet
    IEEE 802.3az for Energy-Efficient Ethernet
    ITU-T G.8032 Ethernet Ring Protection Switching

  • Management

    IPv4
    Flow control
    Back Pressure Flow Control
    DHCP Client
    ARP
    RARP
    LLDP
    Linkup Delay
    SMTP
    SNMP Trap
    SNMP Inform
    SNMPv1/v2c/v3
    RMON
    TFTP
    SFTP
    HTTP
    HTTPS
    Telnet
    Syslog
    Private MIB
    Port Mirroring (SPAN, RSPAN)

  • Filter

    GMRP
    GVRP
    GARP
    802.1Q
    IGMP Snooping v1/v2/v3
    IGMP Querier

  • Redundancy Protocols

    STP
    RSTP
    Turbo Ring v2
    Ring Coupling
    Multiple Dual-Homing
    Link Aggregation
    Network Loop Protection
    MSTP

  • Routing Redundancy

    VRRP

  • Security

    Broadcast storm protection
    Rate Limit
    Access control list
    Static port lock
    Sticky MAC
    HTTPS/SSL
    SSH
    RADIUS
    TACACS+
    Login and password policy
    Secure Boot

  • Time Management

    SNTP
    IEEE 1588v2 PTP (hardware-based)
    NTP Server/Client
    NTP Authentication

  • Protocols

    TCP/IP
    UDP
    ICMP
    ARP
    RARP
    TFTP
    DNS
    NTP Client
    DHCP Client
    802.1X
    QoS
    HTTPS
    HTTP
    Telnet
    SMTP
    SNMPv1/v2c/v3
    IPv4
    RMON
    Syslog

  • Unicast Routing

    OSPF
    Static Route

  • MIB

    P-BRIDGE MIB
    Q-BRIDGE MIB
    IEEE8021-SPANNING-TREE-MIB
    IEEE8021-PAE-MIB
    IEEE8023-LAG-MIB
    LLDP-EXT-DOT1-MIB
    LLDP-EXT-DOT3-MIB
    SNMPv2-MIB
    RMON MIB Groups 1, 2, 3, 9

  • MAC Table Size

    32 K

  • Max. No. of VLANs

    512

  • IGMP Groups

    1500

  • Jumbo Frame Size

    9.6 KB

  • Packet Buffer Size

    6 MB

  • Priority Queues

    8

  • VLAN ID Range

    VID 1 to 4094

  • Storage Port

    USB Type A

  • Storage Port

    microSD card

  • Console Port

    RS-232 (RJ45)

  • Alarm Contact Channels

    1 relay output with current carrying capacity of 2 A @ 30 VDC

  • Input Voltage

    100-240 VAC, 50-60 Hz or 230-240 VDC (for each power supply)

  • Operating Voltage

    90-264 VAC, 47-63 Hz or 180-300 VDC (for each power supply)

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Input Current

    Max. 2.703 A @ 110 VAC
    Max. 1.339 A @ 220 VAC
    Max. 1.615 A @ 180 VDC
    Max. 0.948 A @ 300 VDC

  • Power Consumption (Max.)

    Max. 297 W @ 110 VAC
    Max. 287.3 W @ 220 VAC
    Max. 290.3 W @ 180 VDC
    Max. 284.3 W @ 300 VDC

    Note: These are the maximum power consumption ratings for the device with the maximum number of modules installed.

  • Power Module

    2 x slots (2 x PWR-300-HVA-IF power modules included)

  • IP Rating

    IP30

  • Dimensions

    440 x 88 x 420 mm (17.32 x 3.46 x 16.54 in)

  • Weight

    12 kg (26 lb)

  • Fan Module

    8 x slots (8 x XM-4000-FAN-R preinstalled)

  • Installation

    Rack mounting

  • Interactive Interface

    Onboard LCM display
    Push buttons for configuration

  • Operating Temperature

    -10 to 60°C (-14 to 140°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    UL 62368-1
    UL 61010-2-201
    IEC 62368-1

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF
    IEC 61000-4-11 Voltage Dips & Interruptions

  • Railway

    EN 50121-4

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Package Drop Test

    ISTA 1A

  • Package Vibration Test

    ISTA 1A

  • Time

    1,337,959 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Software Package for MRX-Q4064 Series (MIB file)
403.0 KB
Software Package
SHA-512
v1.0
May 07, 2024 May 07, 2024 Release notes
Firmware for MRX-Q4064 Series
83.7 MB
Firmware
SHA-512
v1.0
May 07, 2024 May 07, 2024 Release notes

Support Documents

Name Type Version Release Date
Datasheet for MRX-Q4064 Series (Datasheet of MRX-Q4064 Series)
1.3 MB
Datasheet v1.1 May 21, 2024 May 21, 2024
Moxa Managed Switch MRX (v1.x) Layer 3 User Manual
2.2 MB
Manual v1.0 May 06, 2024 May 06, 2024
Moxa Managed Switch MRX (v1.x) Layer 2 User Manual
12.4 MB
Manual v1.0 May 06, 2024 May 06, 2024
Moxa Managed Switch MRX (v1.x) Layer 3 CLI Manual
1.8 MB
Manual v1.0 May 06, 2024 May 06, 2024
Moxa Managed Switch MRX (v1.x) Layer 2 CLI Manual
4.7 MB
Manual v1.0 May 06, 2024 May 06, 2024
MRX-G4064/Q4064 Series Quick Installation Guide
3.6 MB
QIG v1.0 May 06, 2024 May 06, 2024

Available Models (1)

Show Images

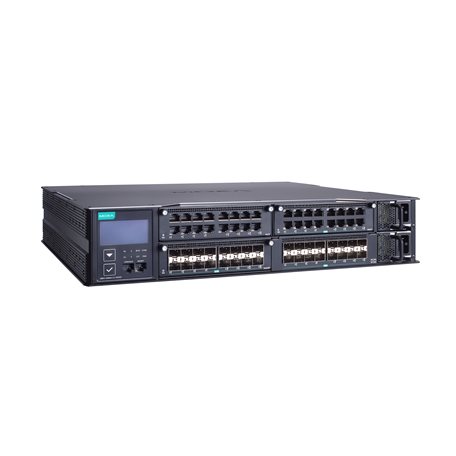

moxa-mrx-q4064-l3-16xgs-image.jpg | MoxaMRX-Q4064-L3-16XGS
