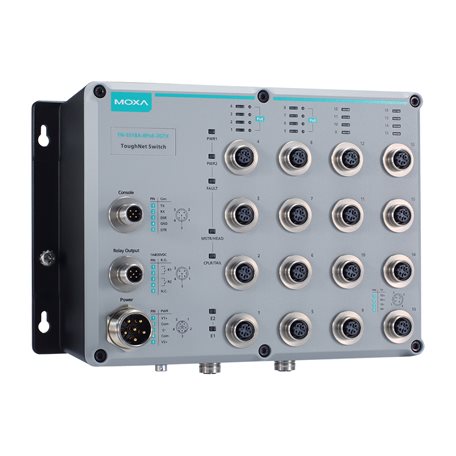

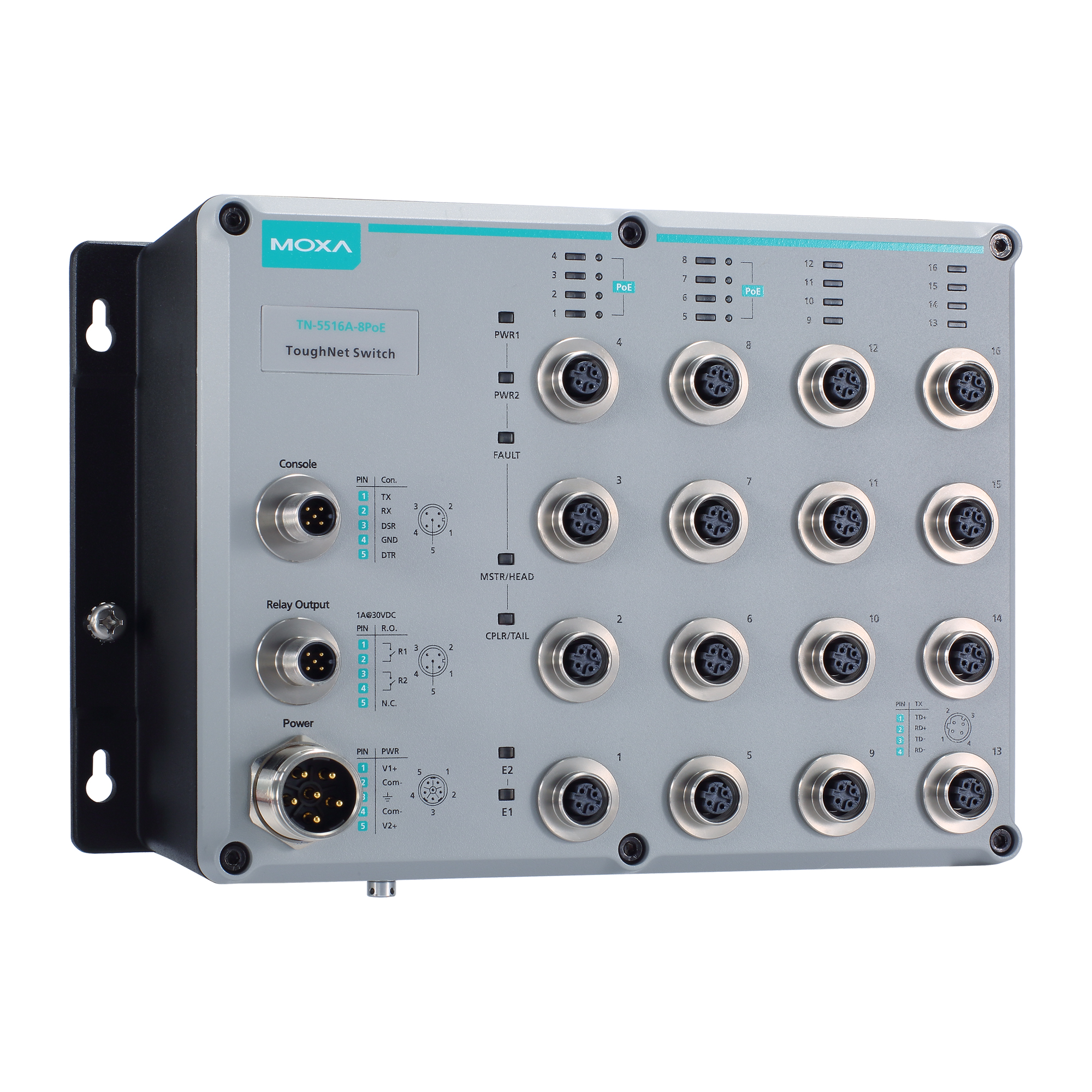

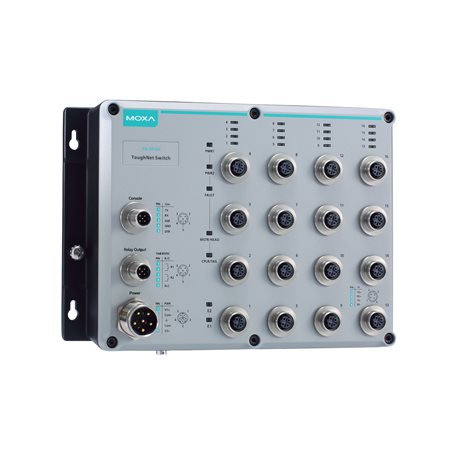

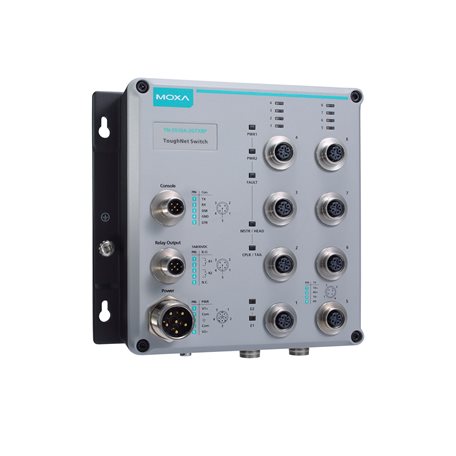

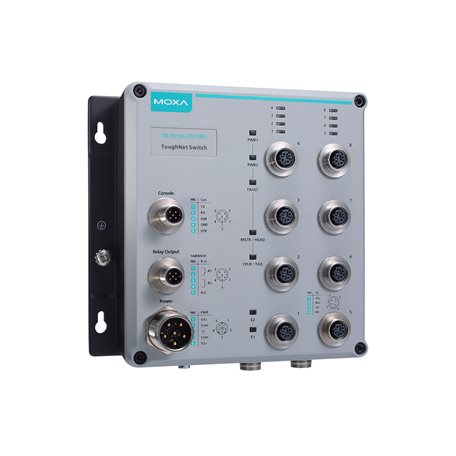

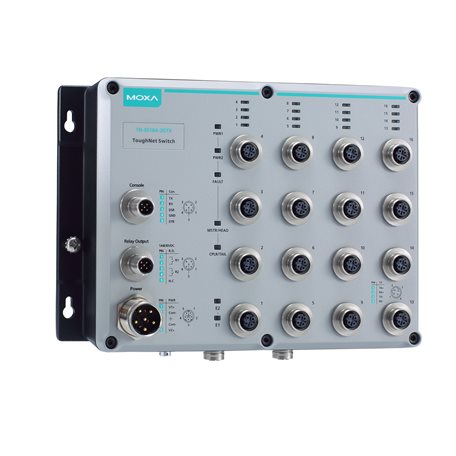

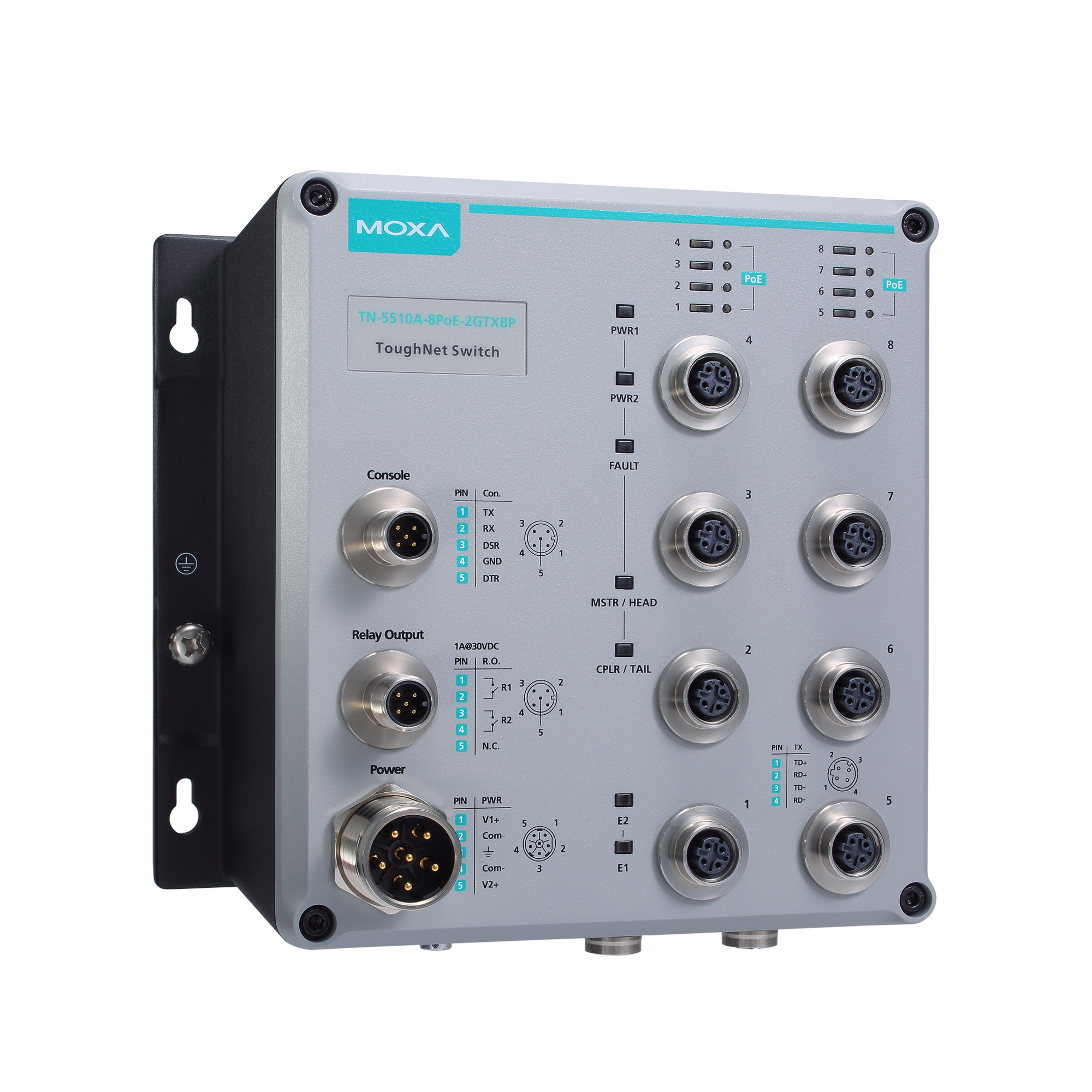

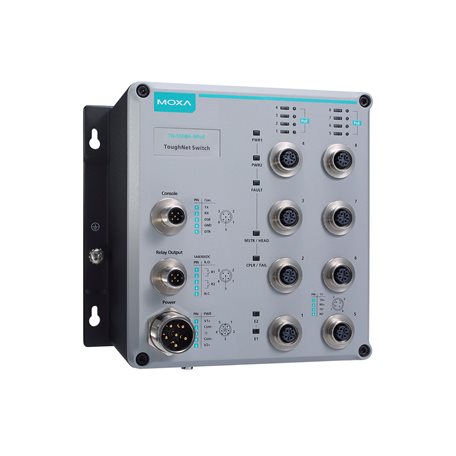

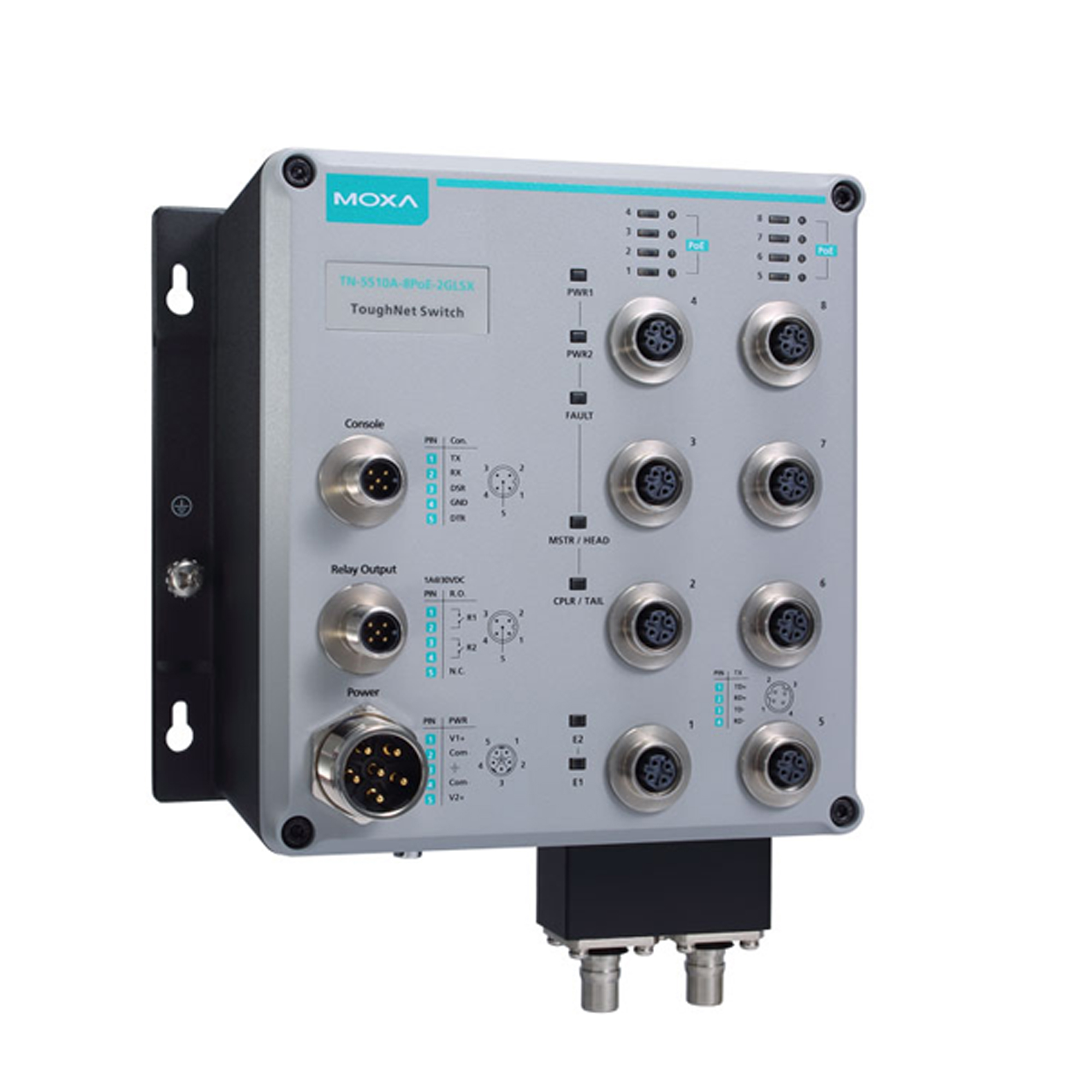

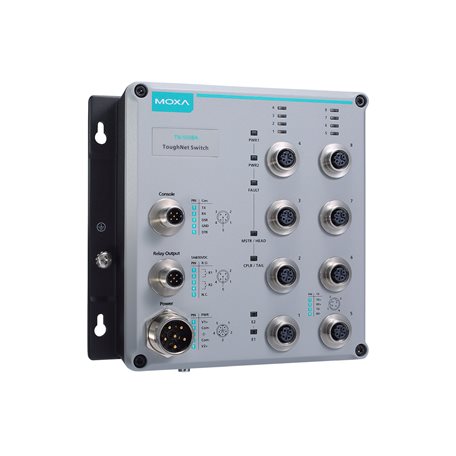

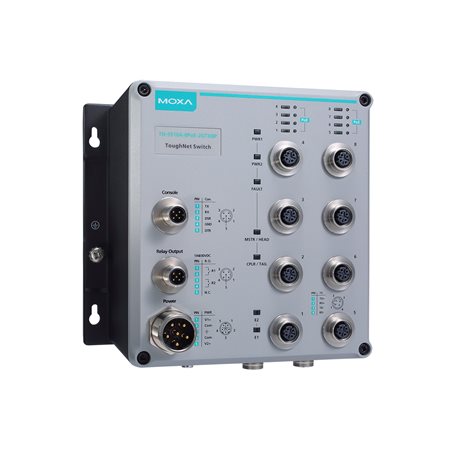

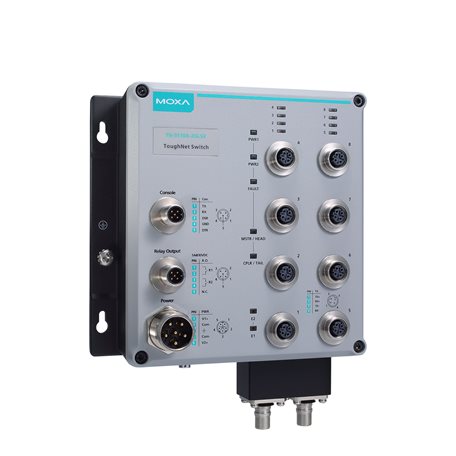

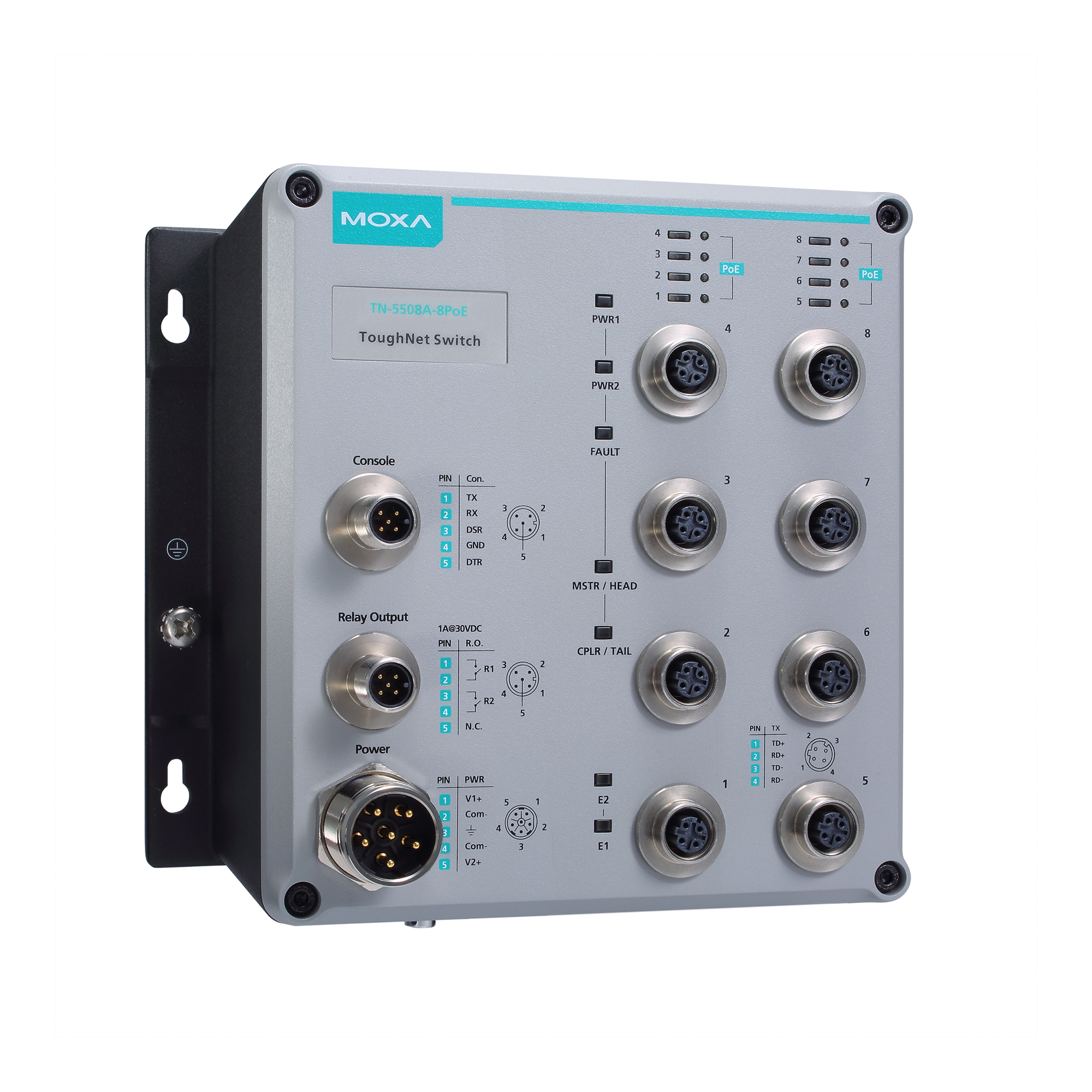

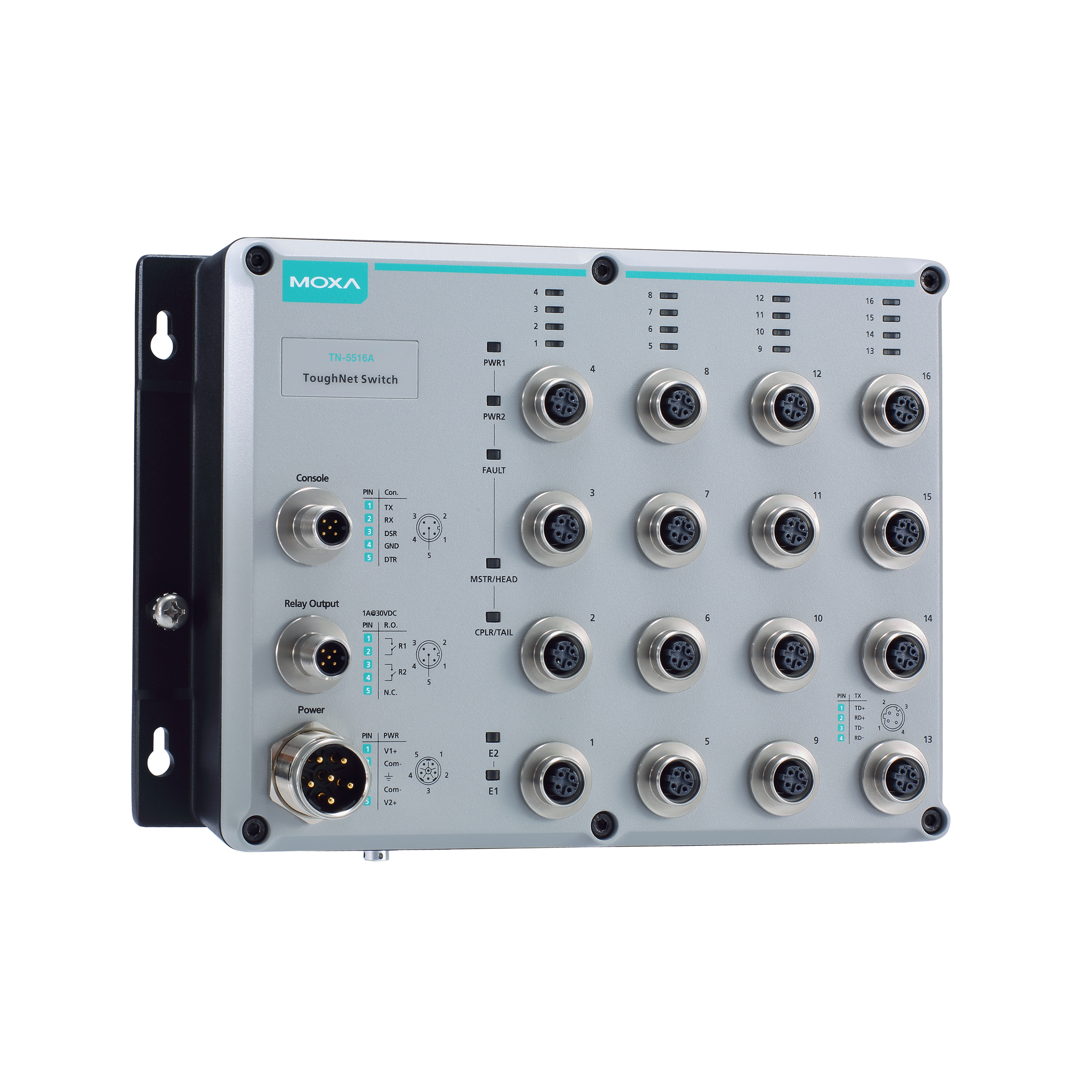

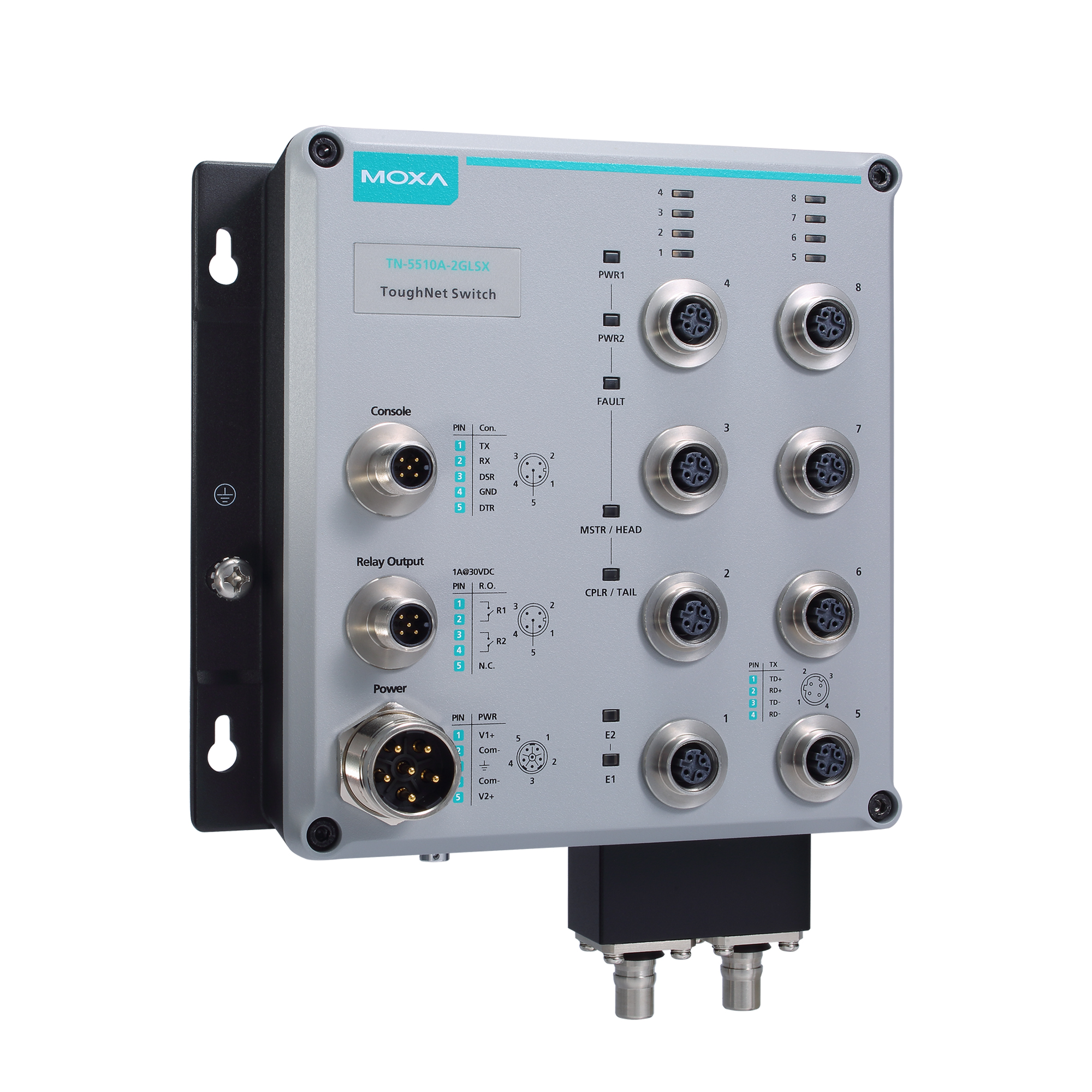

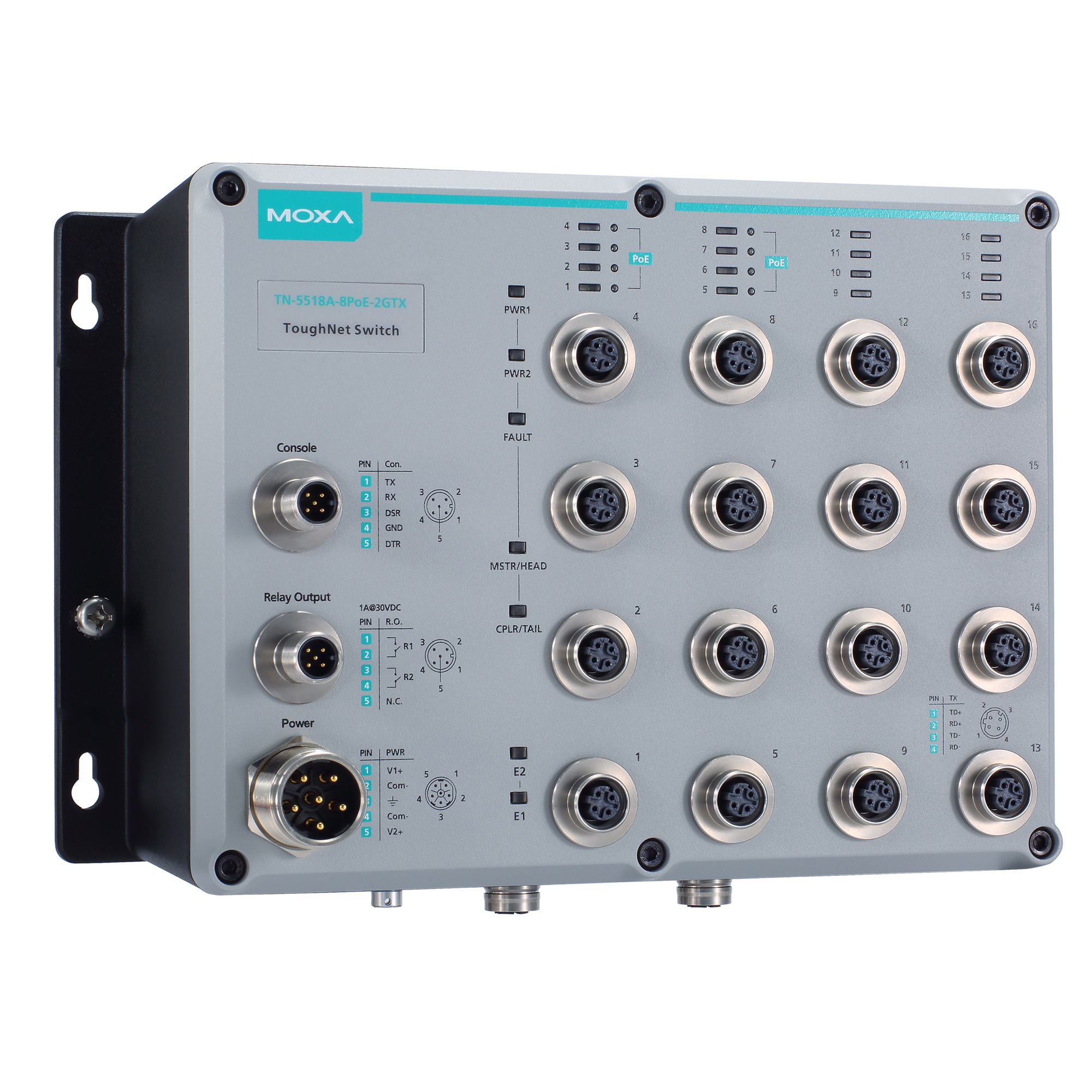

TN-5500A Series

EN 50155 8- to 18-port Ethernet switches with up to 8 PoE ports and up to 2 Gigabit Ethernet ports

moxa-tn-5500a-series-image-(1).jpg | Moxa
moxa-tn-5500a-series-image-1-(1).jpg | Moxa
moxa-tn-5500a-series-image-2-(1).jpg | Moxa
moxa-tn-5500a-series-image-3-(1).jpg | Moxa
moxa-tn-5500a-series-image-4-(1).jpg | Moxa
moxa-tn-5500a-series-image-5-(1).jpg | Moxa
moxa-tn-5500a-series-image-6-(1).jpg | Moxa

Features and Benefits

  • Up to 2 Gigabit ports with optional bypass relay function
  • 8 IEEE 802.3at/af compliant PoE and Ethernet combo ports
  • Isolated power with 24 to 110 VDC power supply range
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • -40 to 75°C operating temperature range
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy

Certifications

  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The ToughNet TN-5500A Series M12 managed Ethernet switches are designed for railway applications, such as rolling stock, and wayside installations. The TN-5500A Series switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5500A Series Ethernet switches provide 8 or 16 Fast Ethernet M12 ports with or without 8 IEEE 802.3at/af compliant PoE (Power-over-Ethernet) ports, and 2 ports on the down side to provide the Gigabit Ethernet interface with an optional bypass relay function. The PoE switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP surveillance, wireless access points, and IP phones.

The TN-5500A Series provides a wide power input range of 24/36/48/72/96/110 VDC that allows you to use the same type of power source at different sites around the globe. In addition, the 24 to 110 VDC wide power input range and isolated power increases the reliability of your communications system. In addition, the -40 to 75°C operating temperature and IP54 rated waterproof enclosure allow deployment in harsh environments. TN-5500A Series Ethernet switches are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

Additional Features and Benefits

  • Provides up to 30 watts per PoE port with a total power budget of 120 watts per switch

  • IPv6 Ready logo awarded (IPv6 Logo Committee certified)

  • Leading EN 50155 PoE switches for rolling stock applications

  • DHCP Option 82 for IP address assignment with different policies

  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy

  • IGMP snooping and GMRP for filtering multicast traffic

  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

  • QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic classification and prioritization

  • IEEE 802.3ad, LACP for optimum bandwidth utilization

  • SNMPv1/v2c/v3 for different levels of network management

  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security

  • RMON for proactive and efficient network monitoring

  • Bandwidth management to prevent unpredictable network status

  • Lock port allows access by only authorized MAC addresses

  • Port mirroring for online debugging

  • Automatic warning by exception through email and relay output

  • Line-swap fast recovery

  • LLDP for automatic topology discovery in network management software

  • Configurable by web browser, Telnet/serial console, CLI, and Windows utility

  • Loop protection to prevent network loops

  • Panel mounting or DIN-rail mounting installation capability

  • Alarm Contact Channels

    2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC

  • 10/100/1000BaseT(X) Ports, Q-ODC Fiber Connector

    TN-5510A-2GLSX Series: 2
    TN-5510A-8PoE-2GLSX Series: 2

  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay)

    TN-5510A-2GTXBP Series: 2
    TN-5510A-8PoE-2GTXBP Series: 2
    TN-5518A-2GTXBP Series: 2
    TN-5518A-8PoE-2GTXBP: 2

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    TN-5508A/5510A Series non-PoE models: 8
    TN-5516A/5518A Series non-PoE models: 16
    TN-5516A/5518A Series PoE models: 8

  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    TN-5508A/5510A/5516A/5518A Series PoE models: 8

  • Standards

    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1X for authentication
    IEEE 802.3 for 10BaseT
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control
    TN-5508A/5510A/5516A/5518A Series PoE models: IEEE 802.3af/at for PoE/PoE+ output
    TN-5510A Series 2GLSX models: IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)

    TN-5510A-2GTX Series: 2
    TN-5510A-8PoE-2GTX Series: 2
    TN-5518A-2GTX Series: 2
    TN-5518A-8PoE-2GTX Series: 2

  • Broadcast Forwarding

    Broadcast forwarding

  • Configuration Options

    Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility

  • Filter

    802.1Q
    GMRP
    GVRP
    IGMP Snooping v1/v2/v3
    IGMP Querier
    Port-based VLAN
    Static Multicast

  • Management

    Account Management
    Back Pressure Flow Control
    DHCP Client (options 1/3/50/51/53/54/55/57/66/67)
    DHCP option 82 (relay agent)
    DHCP Server (options 1/3/12/15/42/50/55)
    Flow control
    HTTP
    ICMP
    IPv4/IPv6
    LLDP
    Loop Protection
    Port-based DHCP Server
    Port Mirror
    QoS/CoS/ToS
    RARP
    RMON
    SMTP
    SNMP Inform
    SNMP Trap
    SNMPv1/v2c/v3
    Syslog
    Telnet

  • MIB

    Bridge MIB
    Ethernet-like MIB
    MIB-II
    P-BRIDGE MIB
    Q-BRIDGE MIB
    RMON MIB Groups 1, 2, 3, 9
    RSTP MIB

  • Redundancy Protocols

    LACP
    MSTP
    RSTP
    Static Port Trunk
    STP
    Turbo Chain
    Turbo Ring v2
    Turbo Ring with DRC

  • Security

    Broadcast storm protection
    HTTPS/SSL
    Local Account Accessibility
    TACACS+
    Port Lock
    RADIUS
    Rate Limit
    SSH

  • Time Management

    NTP Server/Client
    SNTP

  • IGMP Groups

    256

  • Max. No. of VLANs

    64

  • VLAN ID Range

    VID 1 to 4094

  • LED Indicators

    PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet, PoE

  • Console Port

    M12 A-coded male connector

  • Input Current

    TN-5508A-WV Series: 24-110 VDC, 0.5A max.
    TN-5510A-2GTX Series: 24-110 VDC, 0.5A max.
    TN-5510A-2GTXBP Series: 24-110 VDC, 0.5A max.
    TN-5510A-2GLSX Series: 24-110 VDC, 0.5A max.
    TN-5508A-8PoE Series: 24-110 VDC, 6.8A max.
    TN-5510A-8PoE-2GTX Series: 24-110 VDC, 6.8A max.
    TN-5510A-8PoE-2GTXBP Series: 24-110 VDC, 6.8A max.
    TN-5510A-8PoE-2GLSX Series: 24-110 VDC, 6.8A max.
    TN-5516A-WV Series: 24-110 VDC, 0.75A max.
    TN-5518A-2GTX Series: 24-110 VDC, 0.75A max.
    TN-5518A-2GTXBP Series: 24-110 VDC, 0.75A max.
    TN-5516A-8PoE Series: 24-110 VDC, 7.1A max.
    TN-5518A-8PoE-2GTX Series: 24-110 VDC, 7.1A max.
    TN-5518A-8PoE-2GTXBP Series: 24-110 VDC, 7.1A max.

  • Input Voltage

    Redundant dual inputs
    24/36/48/72/96/110 VDC

  • No. of Power Inputs

    2

  • Operating Voltage

    16.8 to 137.5 VDC

  • Overload Current Protection

    Supported

  • Power Connector

    M23 connector

  • Reverse Polarity Protection

    Supported

  • Total PoE Power Budget

    TN-5500A Series PoE models: 120 W

  • Housing

    Metal

  • IP Rating

    IP54

  • Dimensions

    TN-5508A Series non-PoE models: 185 x 176.2 x 76 mm (7.28 x 6.9 x 2.99 in)
    TN-5508A Series PoE models: 185 x 176.2 x 117.2 mm (7.28 x 6.9 x 4.61 in)
    TN-5510A Series non-PoE models: 185 x 178.1 x 76 mm (7.28 x 7.01 x 2.99 in)
    TN-5510A Series PoE models: 185 x 178.1 x 117.2 mm (7.28 x 7.01 x 4.61 in)
    TN-5510A-2GLSX-ODC Series: 185 x 219.4 x 76 mm (7.28 x 8.63 x 2.99 in)
    TN-5510A-8PoE-2GLSX-ODC series: 185 x 219.4 x 117.2 mm (7.28 x 8.63 x 4.61 in)
    TN-5516A Series non-PoE models: 250 x 176.2 x 75 mm (9.84 x 6.9 x 2.95 in)
    TN-5516A Series PoE models: 250 x 176.2 x 115 mm (9.84 x 6.9 x 4.53 in)
    TN-5518A Series non-PoE models: 250 x 178.6 x 75 mm (9.84 x 7.03 x 2.95 in)
    TN-5518A Series PoE models: 250 x 178.6 x 115 mm (9.84 x 7.03 x 4.53 in)

  • Weight

    TN-5508A Series non-PoE models: 1,610 g (3.54 lb)
    TN-5508A Series PoE models: 2,383 g (5.25 lb)
    TN-5510A Series non-PoE models: 1,805 g (3.97 lb)
    TN-5510A Series PoE models: 2,690 g (5.93 lb)
    TN-5516A Series non-PoE models: 2,138 g (4.71 lb)
    TN-5516A Series PoE models: 3,286 g (7.24 lb)
    TN-5518A Series non-PoE models: 2,250 g (4.96 lb)
    TN-5518A Series PoE models: 3,439 g (7.58 lb)

  • Installation

    DIN-rail mounting (optional)
    Wall mounting

  • Protection

    TN-5500A Series -CT models: PCB conformal coating

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    2000 m

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Freefall

    IEC 60068-2-31

  • Radio Frequency

    FCC

  • Railway

    EN 50121-4
    EN 50155

  • Railway Fire Protection

    EN 45545-2

  • Safety

    EN 62368-1

  • Shock

    IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    IEC 60068-2-64, IEC 61373, EN 50155

  • EMC

    EN 55032/35

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    TN-5508A Series: 814,964 hrs
    TN-5510A-2GTX Series: 758,855 hrs
    TN-5510A-2GTXBP Series: 742,880 hrs
    TN-5510A-2GLSX Series: 722,049 hrs
    TN-5508A-8PoE Series: 526,372 hrs
    TN-5510A-8PoE-2GTX Series: 502,756 hrs
    TN-5510A-8PoE-2GTXBP Series: 495,703 hrs
    TN-5510A-8PoE-2GLSX Series: 486,560 hrs
    TN-5516A-WV Series: 722,721 hrs
    TN-5516A-8PoE Series: 483,246 hrs
    TN-5518A-2GTX Series: 647,128 hrs
    TN-5518A-2GTXBP Series: 628,808 hrs
    TN-5518A-8PoE-2GTX Series: 448,300 hrs
    TN-5518A-8PoE-2GTXBP Series: 439,442 hrs

  • Standards

    Telcordia SR332
