Rackmount Switches

Industrial rackmount switches provide modular flexibility with 24 to 64-port routing and up to 10GbE switching capabilities, security features based on the IEC 62443 standard, and millisecond-level, fast multicast traffic redundancy to strengthen IIoT infrastructure such as power, transportation, manufacturing, and surveillance applications.

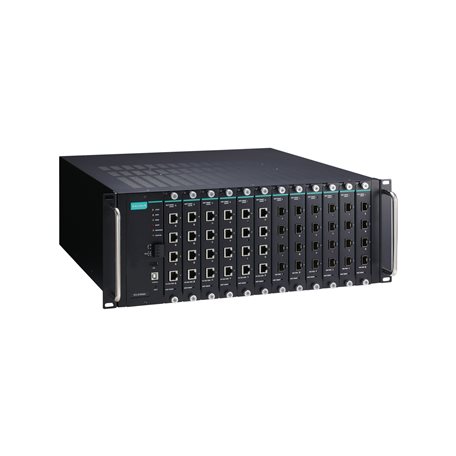

ICS-G7848A-HV-HV
ICS-G7848A Series

Layer 3 full Gigabit modular managed Ethernet switch system with 12 slots for 4-port Gigabit Ethernet interface modules, 2 isolated power supplies (85 to 264 VAC), for a total of up to 48G ports, 0 to 60°C operating temperature

Input/Output Interface
  • Alarm Contact Channels

    • Relay output with current carrying capacity of 2 A @ 30 VDC
  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +1 V for state 0
      Max. input current: 8 mA
Ethernet Interface
  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
      IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
      IEEE 802.3af/at for PoE/PoE+ output
  • Slot Combination

    • 12 slots for 4-port interface modules (10/100/1000BaseT(X), or PoE+ 10/100/1000BaseT(X), or 100/1000BaseSFP slots) See the IM-G7000A datasheet for Gigabit Ethernet module product information.
Ethernet Software Features
  • Management

    • ARP
      Back Pressure Flow Control
      BOOTP
      DDM
      DHCP Option 66/67/82
      DHCP Server/Client
      Flow control
      IPv4
      LLDP
      Port Mirror
      RARP
      RMON
      SCP
      SMTP
      SNMP Inform
      SNMPv1/v2c/v3
      Syslog
      Telnet
      TFTP
  • Filter

    • 802.1Q
      BPDU Filter
      BPDU Guard
      GMRP
      GVRP
      IGMP v1/v2/v3
      QinQ VLAN
  • Multicast Routing

    • DVMRP
      PIM-DM
      PIM-SM
      PIM-SSM
  • Redundancy Protocols

    • Link Aggregation
      MRP
      MSTP
      RSTP
      Turbo Chain
      Turbo Ring v1/v2
      V-ON
  • Routing Redundancy

    • VRRP
  • Security

    • Access control list
      Broadcast storm protection
      HTTPS/SSL
      MAB authentication
      Sticky MAC
      NTP authentication
      Port Lock
      RADIUS
      SSH
      TACACS+
  • Time Management

    • NTP Server/Client
      SNTP
  • Unicast Routing

    • OSPF
      RIPV1/V2
      Static Route
  • Industrial Protocols

    • EtherNet/IP
      Modbus TCP
  • MIB

    • Bridge MIB
      Ethernet-like MIB
      MIB-II
      P-BRIDGE MIB
      Q-BRIDGE MIB
      RMON MIB Groups 1, 2, 3, 9
      RSTP MIB
Switch Properties
  • DRAM

    • 128 MB
  • Flash

    • 16 MB
  • IGMP Groups

    • 4096
  • Jumbo Frame Size

    • 9.6 KB
  • MAC Table Size

    • 16 K
  • Max. No. of VLANs

    • 256
  • Packet Buffer Size

    • 12 Mbits
  • VLAN ID Range

    • VID 1 to 4094
  • Priority Queues

    • 8
USB Interface
  • Storage Port

    • USB Type A
Serial Interface
  • Console Port

    • USB-serial console (Type B connector)
Power Parameters
  • Input Voltage

    • 110 to 220 VAC
      Redundant dual inputs
  • Operating Voltage

    • 85 to 264 VAC
  • Input Current

    • 0.98/0.61 A @ 110/220 VAC
      Note: These are the input current ratings for the device with the maximum number of modules installed.
  • Power Consumption (Max.)

    • 99/97.26 W @ 110/220 VAC
      Note: These are the power consumption ratings for the device with the maximum number of modules installed.
  • Total PoE Power Budget

    • Installed with IM-G7000A-4PoE Module: Maximum 1,440 W @ 48 VDC
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • IP Rating

    • IP30
  • Dimensions

    • 440 x 176 x 523.8 mm (17.32 x 6.93 x 20.62 in)
  • Weight

    • 12,900 g (28.5 lb)
  • Installation

    • Rack mounting
Environmental Limits
  • Operating Temperature

    • -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • EN 61010-2-201
      UL 61010-2-201
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Railway

    • EN 50121-4
  • Freefall

    • IEC 60068-2-32
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 314,973 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
