Rackmount Switches

Industrial rackmount switches provide modular flexibility with 24 to 64-port routing and up to 10GbE switching capabilities, security features based on the IEC 62443 standard, and millisecond-level, fast multicast traffic redundancy to strengthen IIoT infrastructure such as power, transportation, manufacturing, and surveillance applications.

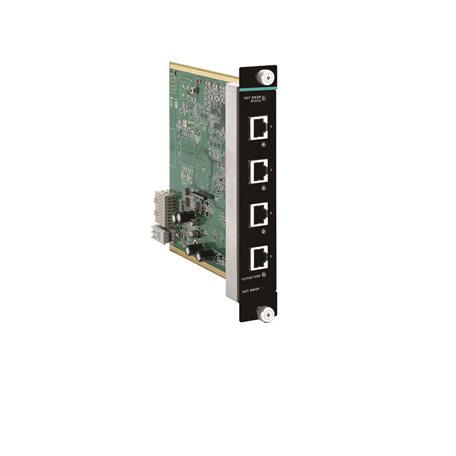

IM-G7000A-4GTX
IM-G7000A Module Series

Gigabit Ethernet interface module with 4 10/100/1000BaseT(X) ports, -10 to 60°C operating temperature

Ethernet Interface
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 4
      Auto negotiation speed
LED Interface
  • LED Indicators

    • State, Hot-swap, 10/100/1000 for TP port, 100/1000 for fiber port, PoE and EPS for PoE module
Power Parameters
  • Power Consumption

    • 3.47 W (max.)
Physical Characteristics
  • Dimensions

    • 28.8 x 174.7 x 166.8 mm (1.13 x 6.88 x 6.57 in)
  • Weight

    • 220 g (0.49 lb)
MTBF
  • Time

    • 1,569,520 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
